Configure Teradata in a copy activity (Preview)

This article outlines how to use the copy activity in a data pipeline to copy data from and to Teradata.

Supported configuration

For the configuration of each tab under copy activity, go to the following sections respectively.

General

For General tab configuration, go to General.

Source

Tip

To load data from Teradata efficiently by using data partitioning, learn more from Parallel copy from Teradata section.

The following properties are supported for Teradata under the Source tab of a copy activity.

Screenshot showing source tab and the list of properties.

The following properties are required:

  • Connection: Select a Teradata connection from the connection list. If no connection exists, then create a new Teradata connection.

  • Use query: Select Table or Query.

    • If you select Table:

      • Table: Specify the name of the table in the Teradata to read data. Select the table from the drop-down list or select Enter manually to enter the schema and table name.

    • If you select Query:

      • Query: Specify the custom SQL query to read data.

        Screenshot showing query.

Under Advanced, you can specify the following fields:

  • Partition option: Specifies the data partitioning options used to load data from Teradata. Allow values are: None (default), DynamicRange and Hash. When a partition option is enabled (that is, not None), the degree of parallelism to concurrently load data from Teradata is controlled by the Degree of copy parallelism in the copy activity settings tab.

    • None: Choose this setting to not use a partition.

    • Dynamic range: When you use a query with parallel enabled, the range partition parameter(?DfDynamicRangePartitionCondition) is needed. Sample query: SELECT * FROM <TableName> WHERE ?DfDynamicRangePartitionCondition.

      • Partition column name: Specify the name of the source column in integer or date/datetime type (int, smallint, bigint, date, smalldatetime, datetime, datetime2, or datetimeoffset) that's used by range partitioning for parallel copy. If not specified, the index or the primary key of the table is autodetected and used as the partition column.

      • Partition upper bound: Specify the maximum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result are partitioned and copied.

      • Partition lower bound: Specify the minimum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result are partitioned and copied.

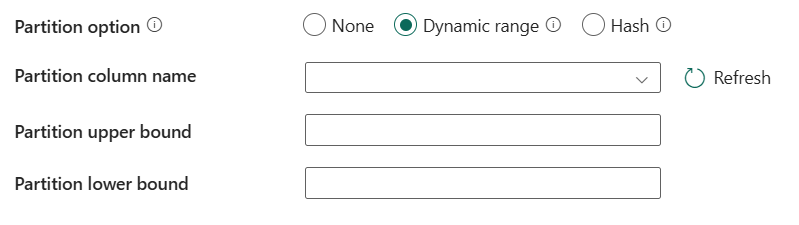

        Screenshot showing dynamic range.

    • Hash: When using query with parallel enabled, hash partition parameter (?AdfHashPartitionCondition) are needed. Sample query: select * from <TableName> where ?AdfHashPartitionCondition.

      • Partition column name: Specify the name of the source column in integer or date/datetime type (int, smallint, bigint, date, smalldatetime, datetime, datetime2, or datetimeoffset) that's used by range partitioning for parallel copy. If not specified, the index or the primary key of the table is autodetected and used as the partition column.

        Screenshot showing hash.

  • Additional columns: Add more data columns to store source files' relative path or static value. Expression is supported for the latter.

Destination

The following properties are supported for Teradata under the Destination tab of a copy activity.

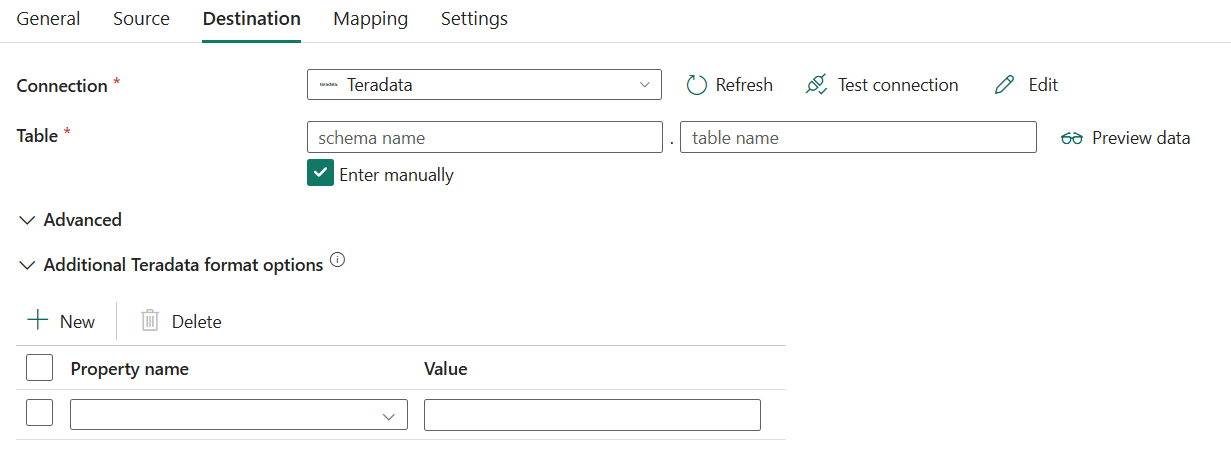

Screenshot showing destination tab.

The following properties are required:

  • Connection: Select a Teradata connection from the connection list. If no connection exists, then create a new Teradata connection.

  • Table: Specify the name of the table in the Teradata to write data. Select the table from the drop-down list or select Enter manually to enter the schema and table name.

Under Advanced, you can specify the following fields:

  • Additional Teradata format options: Specify additional format options which will be used in COPY statement to load data. Examples: DATE_FORMAT, TIME_FORMAT, TIMESTAMP_FORMAT. For more information, see Teradata DATE Format. This property only works for direct copy from DelimitedText format source to Teradata.

Direct copy to Teradata

If your source data store and format meet the criteria described in this section, you can use the Copy activity to directly copy from source to Teradata. The service checks the settings and fails the Copy activity run if the following criteria isn't met:

  • The source connection is Azure Blob storage and Azure Data Lake Storage Gen2 with account key and shared access signature authentication.

  • The source data format is Parquet and DelimitedText with the following configurations:

    • For Parquet format, the compression codec is None or Snappy.

    • For DelimitedText format:

      • rowDelimiter is \n.
      • compression can be no compression or gzip. If gzip compression is selected, the file must end with extension .gz.
      • encodingName is left as default or set to UTF-8.
      • quoteChar is double quote " or empty string.
      • escapeChar is double quote " or empty string.
      • nullValue is Null or empty string.

  • In the Copy activity source:

    • Only static path is allowed when using Azure Data Lake Storage Gen2.
    • Only static path and prefix is allowed when using Azure Blob Storage.

    Static paths will serve as prefixes when copied to Teradata.

Staged copy to Teradata

When your source data store or format isn't natively compatible with the Teradata COPY command, as mentioned in the last section, enable the built-in staged copy using an interim Azure Blob storage instance. The staged copy feature also provides you with better throughput. The service automatically converts the data to meet the data format requirements of Teradata. It then invokes the COPY command to load data into Teradata. Finally, it cleans up your temporary data from the blob storage.

To use this feature, create an Azure Blob storage connection that refers to the Azure storage account as the interim staging. Then specify the enableStaging and stagingSettings properties in the Copy activity.

Note

The staging Azure Blob Storage connection need to use account key or shared access signature authentication as required by the Teradata COPY command.

Mapping

For Mapping tab configuration, go to Configure your mappings under mapping tab.

Settings

For Settings tab configuration, go to Configure your other settings under settings tab.

Parallel copy from Teradata

The Teradata connector provides built-in data partitioning to copy data from Teradata in parallel. You can find data partitioning options on the Source table of the copy activity.

When you enable partitioned copy, the service runs parallel queries against your Teradata source to load data by partitions. The parallel degree is controlled by the Degree of copy parallelism in the copy activity settings tab. For example, if you set Degree of copy parallelism to four, the service concurrently generates and runs four queries based on your specified partition option and settings, and each query retrieves a portion of data from your Teradata.

You are suggested to enable parallel copy with data partitioning especially when you load large amount of data from your Teradata. The following are suggested configurations for different scenarios. When copying data into file-based data store, it's recommended to write to a folder as multiple files (only specify folder name), in which case the performance is better than writing to a single file.

Scenario Suggested settings
Full load from large table. Partition option: Hash.

During execution, the service automatically detects the primary index column, applies a hash against it, and copies data by partitions.
Load large amount of data by using a custom query. Partition option: Hash.
Query: SELECT * FROM <TABLENAME> WHERE ?AdfHashPartitionCondition AND <your_additional_where_clause>.
Partition column: Specify the column used for apply hash partition. If not specified, the service automatically detects the PK column of the table you specified in the Teradata data.

During execution, the service replaces ?AdfHashPartitionCondition with the hash partition logic, and sends to Teradata.
Load large amount of data by using a custom query, having an integer column with evenly distributed value for range partitioning. Partition options: Dynamic range partition.
Query: SELECT * FROM <TABLENAME> WHERE ?AdfRangePartitionColumnName <= ?AdfRangePartitionUpbound AND ?AdfRangePartitionColumnName >= ?AdfRangePartitionLowbound AND <your_additional_where_clause>.
Partition column: Specify the column used to partition data. You can partition against the column with integer data type.
Partition upper bound and partition lower bound: Specify if you want to filter against the partition column to retrieve data only between the lower and upper range.

During execution, the service replaces ?AdfRangePartitionColumnName, ?AdfRangePartitionUpbound, and ?AdfRangePartitionLowbound with the actual column name and value ranges for each partition, and sends to Teradata.
For example, if your partition column "ID" set with the lower bound as 1 and the upper bound as 80, with parallel copy set as 4, the service retrieves data by 4 partitions. Their IDs are between [1,20], [21, 40], [41, 60], and [61, 80], respectively.

Example: query with hash partition

"source": {
    "type": "TeradataSource",
    "query": "SELECT * FROM <TABLENAME> WHERE ?AdfHashPartitionCondition AND <your_additional_where_clause>",
    "partitionOption": "Hash",
    "partitionSettings": {
        "partitionColumnName": "<hash_partition_column_name>"
    }
}

Example: query with dynamic range partition

"source": {
    "type": "TeradataSource",
    "query": "SELECT * FROM <TABLENAME> WHERE ?AdfRangePartitionColumnName <= ?AdfRangePartitionUpbound AND ?AdfRangePartitionColumnName >= ?AdfRangePartitionLowbound AND <your_additional_where_clause>",
    "partitionOption": "DynamicRange",
    "partitionSettings": {
        "partitionColumnName": "<dynamic_range_partition_column_name>",
        "partitionUpperBound": "<upper_value_of_partition_column>",
        "partitionLowerBound": "<lower_value_of_partition_column>"
    }
}

Table summary

The following tables contain more information about a copy activity in a Teradata.

Source information

Name Description Value Required JSON script property
Connection Your connection to the source data store. < your Teradata connection > Yes connection
Use query The way to read data from Teradata. Apply Table to read data from the specified table or apply Query to read data using queries. • Table
• Query		 No /
For Table
schema name Name of the schema. < your schema name > No schema
table name Name of the table. < your table name > No table
For Query
Query Use the custom SQL query to read data. < SQL queries > No query
Partition option The data partitioning options used to load data from Teradata. • None
• Dynamic range
• Hash		 No /
For Dynamic range
Partition column name Specify the name of the source column in integer or date/datetime type (int, smallint, bigint, date, smalldatetime, datetime, datetime2, or datetimeoffset) that's used by range partitioning for parallel copy.
If not specified, the index or the primary key of the table is autodetected and used as the partition column.		 < your partition column names > No partitionColumnName
Partition upper bound Specify the maximum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result are partitioned and copied. < your partition upper bound > No partitionUpperBound
Partition lower bound Specify the minimum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result are partitioned and copied. < your partition lower bound > No partitionLowerBound
For Hash
Partition column name Specify the name of the source column in integer or date/datetime type (int, smallint, bigint, date, smalldatetime, datetime, datetime2, or datetimeoffset) that's used by range partitioning for parallel copy.
If not specified, the index or the primary key of the table is autodetected and used as the partition column.		 < your partition column names > No partitionColumnName
Additional columns Add additional data columns to store source files' relative path or static value. Expression is supported for the latter. • Name
• Value		 No additionalColumns:
• name
• value

Destination information

Name Description Value Required JSON script property
Connection Your connection to the destination data store. < your Teradata connection > Yes connection
Table Your destination data table to write data. < your table name > Yes /
schema name Name of the schema. < your schema name > No schema
table name Name of the table. < your table name > No table
Additional Teradata format options Specify additional format options which will be used in COPY statement to load data. Examples: DATE_FORMAT, TIME_FORMAT, TIMESTAMP_FORMAT. For more information, see Teradata DATE Format. This property only works for direct copy from DelimitedText format source to Teradata. • DATE_FORMAT
• TIME_FORMAT
• TIMESTAMP_FORMAT		 No additionalFormatOptions:
• DATE_FORMAT
• TIME_FORMAT
• TIMESTAMP_FORMAT
