Tutorial: Simulate real-time data ingestion for a map using REST APIs and Python

In Tutorial: Create a real-time map using REST APIs and Python, you provisioned an eventhouse, eventstream, KQL function, and map. The provisioning script also sent a small set of seed events so the map wasn't empty on first open.

In this tutorial, you build on that by creating a real-time simulator notebook programmatically using the Fabric REST API. When run, the notebook continuously sends updated vehicle locations into the eventstream custom endpoint. As events flow into the eventhouse, the map refreshes automatically.

In this tutorial, you:

  • Create a Fabric notebook programmatically using the Fabric REST API
  • Embed a continuous data simulator inside the notebook as an inline ipynb definition
  • Run the notebook in Fabric to stream vehicle location updates into the eventstream
  • Observe the map refresh in near real time as new events are ingested

This tutorial follows a common automation pattern in Fabric: build notebook definition → create notebook in Fabric → stream events → observe live refresh.

Prerequisites

  • Complete Tutorial: Create a real-time map using REST APIs and Python. This tutorial reuses the eventhouse, eventstream, KQL function, and map that the provisioning tutorial created.
  • Python 3.10 or later, with httpx and azure-identity installed. The same environment from the previous tutorial works.
  • Azure CLI
  • Fabric workspace ID (the same one used in the previous tutorial), available through the FABRIC_WORKSPACE_ID environment variable.
  • The eventstream custom endpoint connection string from the previous tutorial. To retrieve it, see Run the application.
  • Permissions to call Fabric REST APIs, such as:
    • Item.ReadWrite.All

Note

Delegated scopes such as Item.ReadWrite.All are granted to the signed-in identity through its workspace role. Make sure the identity you use with az login is assigned the Contributor, Member, or Admin role on the target Fabric workspace before running the script.

Authentication

This tutorial uses the same DefaultAzureCredential flow as the previous tutorial. For full details — including the az login step, the .default token-scope explanation, and the recommendation to sign in to the Fabric web experience at least once — see Authentication in the previous tutorial.

If your sign-in session has expired, refresh it:

az login

How the simulator fits the architecture

The simulator slots into the same pipeline you built in the previous tutorial:

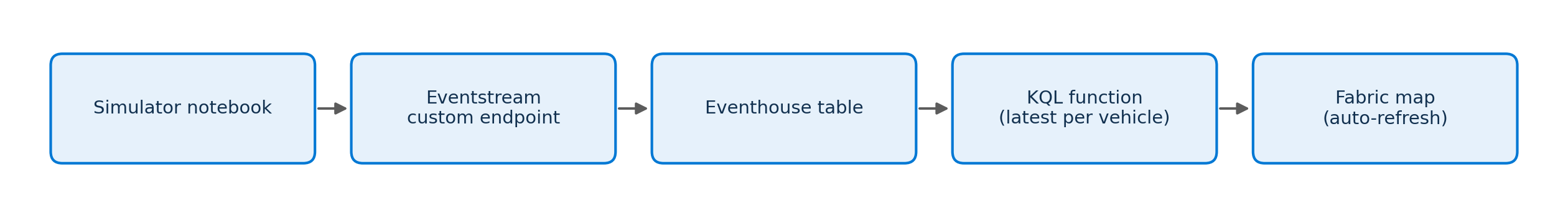

Flowchart showing the simulator notebook sending events to an eventstream custom endpoint, which writes to an eventhouse table, which is queried by a KQL function that returns the latest row per vehicle, which feeds an auto-refreshing map.

Important

The field names used by the seed events, simulator events, KQL function output, and map layer bindings must match exactly, including casing.

The map layer created in the previous tutorial expects these columns from the KQL function:

  • Latitude — map latitude binding
  • Longitude — map longitude binding
  • VehicleId — tooltips and grouping
  • EventTime — used for the arg_max(EventTime, *) "latest location" query

If any of these names differ between the events you send, the KQL function, and the map definition, the map might appear empty even though data is being ingested.

Note

Fabric notebooks can be created and managed through public REST APIs. In this tutorial, you call the Create Notebook endpoint and supply the notebook content inline through definition.parts[] using payloadType: "InlineBase64".

Create the notebook-creation script

Create the file

In the same folder you used for the provisioning script, create a new file named:

create_simulator_notebook.py

Install dependencies

If you reuse the virtual environment from the previous tutorial, the required packages are already installed. Otherwise, run:

pip install httpx azure-identity

What each library is for

  • httpx: makes HTTP requests to the Fabric REST APIs.
  • azure-identity: provides DefaultAzureCredential for Microsoft Entra authentication.

The notebook itself uses azure-eventhub to send events to the eventstream custom endpoint. That package is installed inside the notebook with %pip install azure-eventhub, so you don't need it in your local environment.

Add the code

Copy the following code into create_simulator_notebook.py. The script reuses the helper conventions from the provisioning tutorial (_fabric_headers, _pbi_headers, _handle_lro, _json_to_b64) so the two scripts share a single mental model — including the same long-running operation handler, audience-aware token acquisition, and InlineBase64 definition payload encoding.

import base64
import json
import os
import time

import httpx
from azure.identity import DefaultAzureCredential

# =========================================================
# Config
# =========================================================

# Reuse the same workspace as the provisioning tutorial.
WORKSPACE_ID = os.environ.get("FABRIC_WORKSPACE_ID")
if not WORKSPACE_ID:
    raise SystemExit("Set FABRIC_WORKSPACE_ID to your Fabric workspace GUID before running.")

NOTEBOOK_DISPLAY_NAME = "Real-time vehicle simulator (Eventstream)"

# Vehicles seeded by the provisioning script.
# Keep these IDs and base coordinates in sync with vehicle_locations_seed.csv
# so simulator updates align with rows already in the eventhouse.
VEHICLES = {
    "V-001": (47.6101, -122.3344),
    "V-002": (47.6150, -122.3200),
    "V-003": (47.6205, -122.3493),
    "V-004": (47.6050, -122.3300),
}


# =========================================================
# Authentication helpers
# =========================================================

def _fabric_headers() -> dict:
    """
    Return Authorization + Content-Type headers for Fabric REST API calls.
    Acquires a token for the `https://api.fabric.microsoft.com/.default` scope.
    """
    token = DefaultAzureCredential().get_token("https://api.fabric.microsoft.com/.default").token
    return {"Authorization": f"Bearer {token}", "Content-Type": "application/json"}


def _pbi_headers() -> dict:
    """
    Return Authorization headers for the Power BI / Fabric audience used by
    long-running operation poll URLs hosted on *.analysis.windows.net.
    """
    token = DefaultAzureCredential().get_token("https://analysis.windows.net/powerbi/api/.default").token
    return {"Authorization": f"Bearer {token}"}


def _headers_for_url(url: str) -> dict:
    """
    Pick the correct audience headers based on the host of `url`.
    LRO operation URLs sometimes land on the Power BI cluster and need a
    different token than the Fabric public endpoint.
    """
    if "analysis.windows.net" in url:
        return _pbi_headers()
    return _fabric_headers()


# =========================================================
# Definition payload helper
# =========================================================

def _json_to_b64(obj: dict) -> str:
    """
    Serialize a dict to JSON and Base64-encode it, producing the string
    expected by Fabric item-definition `parts[].payload` when
    `payloadType` is `InlineBase64`.
    """
    return base64.b64encode(json.dumps(obj).encode("utf-8")).decode("utf-8")


# =========================================================
# LRO handler
# =========================================================

def _handle_lro(
    client: httpx.Client,
    initial_response: httpx.Response,
    *,
    list_url: str | None = None,
    match_display_name: str | None = None,
    id_field: str = "id",
    max_attempts: int = 10,
    delay: int = 5,
) -> str:
    """
    Handle a Fabric long-running operation (LRO) and return the resource id.

    Supports the response patterns used by Fabric REST APIs:
    - 200/201 with the resource body inline (synchronous).
    - 202 with a `Location` header or `x-ms-operation-id` (asynchronous).
    - 200 with `status: "Running"` / `"NotStarted"` while polling.
    - 200 with `status: "Succeeded"` but no id (resolve by listing and matching `displayName`).

    Polling uses `Retry-After` and switches to a Power BI audience token when
    the operation URL is on `*.analysis.windows.net`.
    """
    # Sync 200/201 with body: return the id immediately.
    if initial_response.status_code in (200, 201):
        try:
            body = initial_response.json() if initial_response.content else {}
        except ValueError:
            body = {}
        if isinstance(body, dict) and body.get(id_field):
            return body[id_field]

    # Locate the operation URL (Location header, with x-ms-operation-id fallback).
    op_url = initial_response.headers.get("Location")
    if not op_url:
        op_id = initial_response.headers.get("x-ms-operation-id")
        if op_id:
            op_url = f"https://api.fabric.microsoft.com/v1/operations/{op_id}"
        else:
            raise RuntimeError(
                f"Missing LRO Location/x-ms-operation-id. "
                f"status={initial_response.status_code} body={initial_response.text[:500]!r}"
            )

    # Audience-aware polling: Power BI cluster endpoints need a different token.
    poll_headers = _headers_for_url(op_url)
    retry_after = int(initial_response.headers.get("Retry-After", "5"))

    while True:
        time.sleep(retry_after)
        poll = client.get(op_url, headers=poll_headers)

        if poll.status_code == 202:
            retry_after = int(poll.headers.get("Retry-After", "5"))
            continue

        poll.raise_for_status()
        body = poll.json() if poll.content else {}
        status = body.get("status") if isinstance(body, dict) else None

        if status in ("Running", "NotStarted"):
            retry_after = int(poll.headers.get("Retry-After", "5"))
            continue
        if status == "Failed":
            raise RuntimeError(f"LRO failed. Body: {body}")

        if isinstance(body, dict) and body.get(id_field):
            return body[id_field]

        # Status-only success: list and match by displayName, with retries.
        if status == "Succeeded" and list_url and match_display_name:
            for attempt in range(max_attempts):
                r = client.get(list_url, headers=_fabric_headers())
                r.raise_for_status()
                match = next(
                    (i for i in r.json().get("value", []) if i.get("displayName") == match_display_name),
                    None,
                )
                if match and match.get(id_field):
                    return match[id_field]
                time.sleep(delay)
            raise RuntimeError(
                f"LRO succeeded but resource not visible after retries. "
                f"match_display_name={match_display_name!r}"
            )

        raise RuntimeError(f"LRO completed but no resource id was returned. Body: {body}")

# =========================================================
# Build the simulator ipynb
# =========================================================

def build_simulator_ipynb() -> dict:
    """
    Build and return the nbformat-4 notebook dict for the simulator.

    The notebook contains three cells:
    1. A markdown cell that documents what the simulator does.
    2. A code cell that runs `%pip install azure-eventhub`.
    3. A code cell that sets `EVENTHUB_CONNECTION_STRING` from a literal
       you paste in, then enters an infinite loop that sends a batch of
       per-vehicle location updates to the eventstream every
       `SLEEP_SECONDS` until the kernel is interrupted.
    """
    vehicles_literal = json.dumps(VEHICLES)
    return {
        "nbformat": 4,
        "nbformat_minor": 5,
        "cells": [
            {
                "cell_type": "markdown",
                "metadata": {},
                "source": [
                    "# Real-time vehicle simulator (Eventstream)\n",
                    "\n",
                    "This notebook continuously sends vehicle location updates to an Eventstream Custom endpoint.\n",
                    "If `EVENTHUB_CONNECTION_STRING` isn't set, the notebook prompts you to paste it.\n",
                    "\n",
                    "To stop, interrupt the kernel. The `finally` block closes the producer cleanly.\n"
                ]
            },
            {
                "cell_type": "code",
                "metadata": {},
                "execution_count": None,
                "outputs": [],
                "source": [
                    "%pip install azure-eventhub\n"
                ]
            },
            {
                "cell_type": "code",
                "metadata": {},
                "execution_count": None,
                "outputs": [],
                "source": [
                    "# Replace <PASTE_CONNECTION_STRING_HERE> with the eventstream\n",
                    "# connection string-primary key.\n",
                    "import os\n",
                    "os.environ[\"EVENTHUB_CONNECTION_STRING\"] = \"<PASTE_CONNECTION_STRING_HERE>\"\n"
                ]
            },
            {
                "cell_type": "code",
                "metadata": {},
                "execution_count": None,
                "outputs": [],
                "source": [
                    "import os\n",
                    "import json\n",
                    "import random\n",
                    "import time\n",
                    "from datetime import datetime, timezone\n",
                    "from azure.eventhub import EventHubProducerClient, EventData\n",
                    "\n",
                    "# Vehicles seeded by the provisioning script.\n",
                    "# Keep these IDs and base coordinates in sync with vehicle_locations_seed.csv.\n",
                    f"VEHICLES = {vehicles_literal}\n",
                    "\n",
                    "# Update cadence (seconds)\n",
                    "SLEEP_SECONDS = 1.0\n",
                    "\n",
                    "conn_str = os.environ.get(\"EVENTHUB_CONNECTION_STRING\", \"\").strip()\n",
                    "if not conn_str:\n",
                    "    print(\"Paste the eventstream connection string-primary key:\")\n",
                    "    conn_str = input(\"EVENTHUB_CONNECTION_STRING: \").strip()\n",
                    "\n",
                    "producer = EventHubProducerClient.from_connection_string(conn_str=conn_str)\n",
                    "print(\"Starting real-time simulation... (interrupt the kernel to stop)\")\n",
                    "\n",
                    "try:\n",
                    "    while True:\n",
                    "        batch = producer.create_batch()\n",
                    "        now = datetime.now(timezone.utc).isoformat().replace('+00:00', 'Z')\n",
                    "\n",
                    "        for vid, (lat0, lon0) in VEHICLES.items():\n",
                    "            # jitter around the base point to simulate movement\n",
                    "            lat = lat0 + random.uniform(-0.0008, 0.0008)\n",
                    "            lon = lon0 + random.uniform(-0.0008, 0.0008)\n",
                    "\n",
                    "            evt = {\n",
                    "                \"VehicleId\": vid,\n",
                    "                \"Latitude\": round(lat, 6),\n",
                    "                \"Longitude\": round(lon, 6),\n",
                    "                \"EventTime\": now\n",
                    "            }\n",
                    "\n",
                    "            batch.add(EventData(json.dumps(evt)))\n",
                    "\n",
                    "        producer.send_batch(batch)\n",
                    "        time.sleep(SLEEP_SECONDS)\n",
                    "\n",
                    "finally:\n",
                    "    producer.close()\n"
                ]
            }
        ],
        "metadata": {
            "language_info": {"name": "python"}
        }
    }


# =========================================================
# Find an existing notebook by name
# =========================================================

def _find_notebook_id_by_name(client: httpx.Client, display_name: str) -> str | None:
    """
    Page through the workspace's notebooks list and return the id of the
    notebook matching `display_name`, or `None` if no match is found.

    Used by the 409 retry path in `main()` to locate the existing notebook
    so its definition can be updated in place via `updateDefinition`.
    """
    url = f"https://api.fabric.microsoft.com/v1/workspaces/{WORKSPACE_ID}/notebooks"
    while url:
        resp = client.get(url, headers=_fabric_headers())
        resp.raise_for_status()
        body = resp.json()
        for item in body.get("value", []):
            if item.get("displayName") == display_name:
                return item.get("id")
        url = body.get("continuationUri")
    return None


# =========================================================
# Orchestrate the workflow
# =========================================================

def main():
    """
    Build the simulator ipynb, then create the notebook in Fabric.

    The initial POST to the Create Notebook endpoint can return:
    - 201 / 202 / status-only 200 Succeeded — all handled by `_handle_lro`,
      which resolves the notebook id (falling back to a list+match on
      `displayName` for status-only responses).
    - 409 `ItemDisplayNameAlreadyInUse` — a notebook with this name already
      exists. In that case, look it up, call `updateDefinition` to replace
      its content, and return the existing notebook id.
    """
    ipynb = build_simulator_ipynb()
    definition = {
        "format": "ipynb",
        "parts": [
            {
                "path": "artifact.content.ipynb",
                "payloadType": "InlineBase64",
                "payload": _json_to_b64(ipynb),
            }
        ],
    }

    create_url = f"https://api.fabric.microsoft.com/v1/workspaces/{WORKSPACE_ID}/notebooks"
    create_payload = {
        "displayName": NOTEBOOK_DISPLAY_NAME,
        "description": "Continuously sends vehicle location updates to the eventstream",
        "definition": definition,
    }

    with httpx.Client(timeout=60) as client:
        resp = client.post(create_url, headers=_fabric_headers(), json=create_payload)

        # 409 path: notebook already exists — update its definition in place.
        if resp.status_code == 409 and "ItemDisplayNameAlreadyInUse" in resp.text:
            print(f"Notebook '{NOTEBOOK_DISPLAY_NAME}' already exists; updating its definition...")
            notebook_id = _find_notebook_id_by_name(client, NOTEBOOK_DISPLAY_NAME)
            if not notebook_id:
                raise RuntimeError(
                    f"Got 409 for '{NOTEBOOK_DISPLAY_NAME}' but couldn't find it via list."
                )
            update_url = (
                f"https://api.fabric.microsoft.com/v1/workspaces/{WORKSPACE_ID}"
                f"/notebooks/{notebook_id}/updateDefinition"
            )
            upd = client.post(update_url, headers=_fabric_headers(), json={"definition": definition})
            if upd.status_code not in (200, 202):
                raise RuntimeError(f"updateDefinition failed: {upd.status_code} {upd.text}")
            if upd.status_code == 202:
                _handle_lro(client, upd)
            print("\nDONE (updated existing notebook)")
            print("Notebook ID:", notebook_id)
            return

        # 201 / 202 / status-only 200 paths: delegate to _handle_lro.
        notebook_id = _handle_lro(
            client,
            resp,
            list_url=create_url,
            match_display_name=NOTEBOOK_DISPLAY_NAME,
        )
        print("\nDONE")
        print("Notebook ID:", notebook_id)


if __name__ == "__main__":
    main()

Note

Notebook content is supplied as a single definition.parts[] entry with format: "ipynb" and payloadType: "InlineBase64". The path value must be exactly artifact.content.ipynb — any other path causes the Create Notebook call to fail. The Create Notebook endpoint supports long-running operations (LRO), which _handle_lro resolves uniformly.

Run the script

python create_simulator_notebook.py

When the script completes successfully, you see output similar to:

DONE
Notebook ID: 11111111-2222-3333-4444-555555555555

The notebook is now visible in your Fabric workspace. If you rerun the script, the existing notebook is updated in place (its definition is replaced) and you see DONE (updated existing notebook) instead.

Run the simulator notebook in Fabric

Open the notebook

  1. Open your Fabric workspace.
  2. Select the notebook named Real-time vehicle simulator (Eventstream).

Provide the connection string

The notebook includes a dedicated cell that sets the EVENTHUB_CONNECTION_STRING environment variable for the running notebook session. The simulator cell below it reads that variable and skips the input() prompt entirely.

Use the same connection string you pasted when running the provisioning script. To retrieve it again, see Run the application.

  1. In the open notebook, locate the cell that contains:

    os.environ["EVENTHUB_CONNECTION_STRING"] = "<PASTE_CONNECTION_STRING_HERE>"

  2. Replace <PASTE_CONNECTION_STRING_HERE> with the connection string you copied from the eventstream Custom endpoint → SAS Key Authentication → Connection string-primary key.

Important

Don't save the notebook with your real connection string pasted into the cell. Before you commit or share the notebook, clear the value (for example, set it back to <PASTE_CONNECTION_STRING_HERE>) so the secret isn't persisted in the .ipynb file. For long-term use, store the connection string in Azure Key Vault and load it with notebookutils.credentials.getSecret(...) instead of hardcoding it.

Note

After the %pip install azure-eventhub cell runs, Fabric might require you to restart the Python kernel before the from azure.eventhub import … cell can resolve the package. If you see an ImportError, restart the kernel and run the import cell again.

Start the simulator

Run all cells. The final cell prints Starting real-time simulation... (interrupt the kernel to stop) and then enters an infinite loop that sends a batch of vehicle updates roughly every second. There's no per-iteration output — open the map (next step) to watch updates arrive.

Verify the map updates

  1. Open the map created by the provisioning tutorial (My Real-Time Fabric Map).
  2. Confirm the seed points are already visible.
  3. With the simulator notebook still running, watch the markers move as the map auto-refreshes on the interval defined by Config.refresh_interval_ms in the provisioning script (rendered as refreshIntervalMs in the embedded map definition).

Stop the simulator

To stop streaming, interrupt the notebook kernel (Stop in the notebook toolbar). The finally block closes the EventHubProducerClient cleanly so connections aren't leaked.

Troubleshooting

  • Map appears empty after running the simulator. Open the eventstream in Fabric and check the Data preview to confirm events are arriving. Then run VehicleLocations | take 10 in the KQL queryset of the eh_realtime_locations eventhouse to confirm rows reached the eventhouse.
  • EVENTHUB_CONNECTION_STRING errors or Unauthorized. Re-copy the connection string from the eventstream's Custom endpoint → SAS Key Authentication → Connection string-primary key, then update the assignment cell with the new value and rerun the simulator cell.
  • Map markers don't update visibly. Confirm Config.refresh_interval_ms in the provisioning script is set to a small enough value (rendered as refreshIntervalMs in the embedded map definition). Lower values refresh more often.
  • ImportError: azure.eventhub after %pip install. Restart the notebook kernel and rerun the import cell.
  • Create Notebook returns 400. Verify parts[].path is exactly artifact.content.ipynb and format is ipynb.

Summary

In this tutorial, you extended the resources created in the previous tutorial by:

  • Creating a Fabric notebook programmatically through the Fabric REST API, with the notebook content supplied as an inline ipynb definition
  • Embedding a continuous data generator that sends per-vehicle location updates to the eventstream custom endpoint
  • Running the notebook in Fabric and observing the map refresh in near real time as new events flowed through eventstream and eventhouse

Combined with the provisioning tutorial, you now have a fully automated, end-to-end real-time geospatial scenario in Microsoft Fabric.

Next steps

You can extend this solution toward real-world scenarios:

  • Replace the simulator with live data sources (IoT devices, APIs, or application telemetry)
  • Enhance the KQL function to compute aggregates, trends, or geospatial joins
  • Add more layers to the map for richer context and analysis
  • Integrate alerts or downstream workflows based on streaming events
  • Explore building static or historical spatial views using lakehouse data
  • Last updated on
