Chat component in Microsoft Graph Toolkit


This component is in preview and is subject to change. The use of these components in production applications is not supported.


This component is currently only available as a React component and doesn't have a web component equivalent.


This feature takes advantage of real-time endpoints, high-capacity APIs and is subject to the same billing model described in the payment models and licensing requirements for Microsoft Teams APIs.

The chat component enables the user to have 1:1 or group conversations. This component doesn't support channel conversations. The component allows for rendering conversations and authoring new messages. All data is stored in Microsoft Teams.

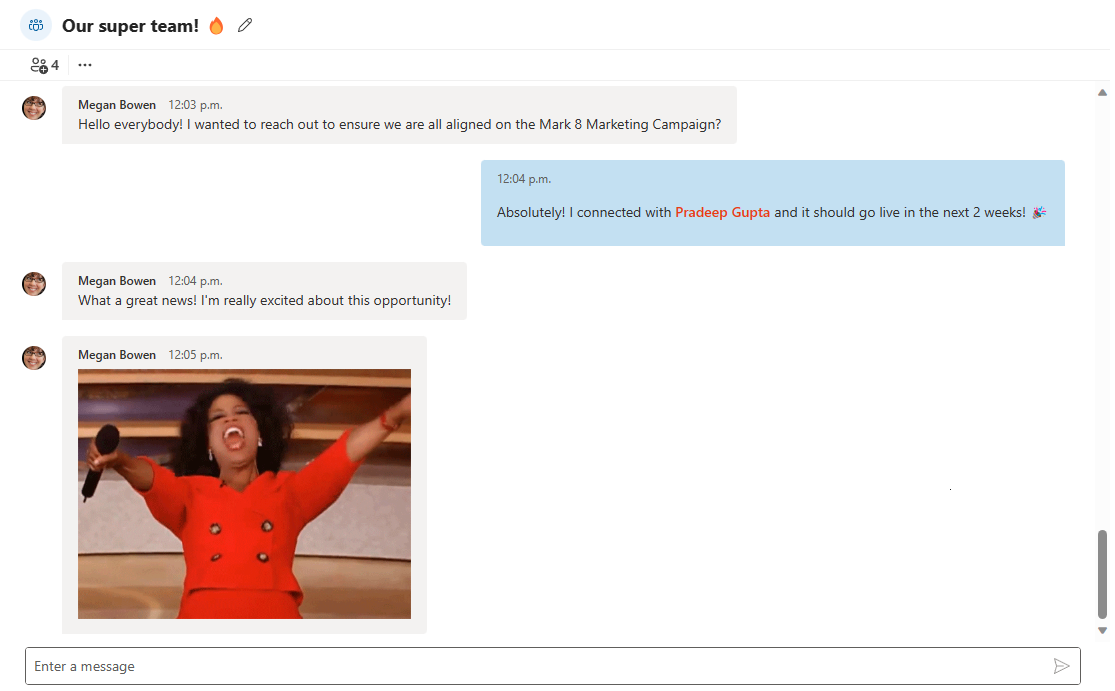

The following example displays a conversation using the mgt-chat component.

A screenshot of a chat component


Attribute Property Description
chat-id chatId A string ID to set the 1:1 or group conversation to render. Required.

CSS custom properties

The mgt-chat component doesn't define CSS custom properties.


The mgt-chat component doesn't offer any events.


The mgt-chat component doesn't offer templates to override.

Microsoft Graph permissions

This control uses the following Microsoft Graph APIs and permissions.

Configuration Permission API
chatId is set Chat.ReadBasic, Chat.Read, ChatMessage.Read, Chat.ReadWrite, ChatMember.ReadWrite /chats/{id}/messages, /chats/{id}/messages, /chats/{id}/messages/{messageId}, /me/chats/{id}/messages/{messageId}/softDelete, /chats/{id}/members/{membershipId}, /chats/{id}/members, /chats/{id}/messages/{messageId}/hostedContents/{hostedContentId}, /chats/{id}


The mgt-chat component consists of one or more subcomponents that might require other permissions than the ones listed previously. For more information, see the documentation for each subcomponent:


The mgt-chat component uses the global authentication provider described in the authentication documentation.


The mgt-chat component caches chat messages and related metadata.


The mgt-chat component doesn't expose any localization variables.

Known issues

  • The mgt-chat component doesn't support the same chatId being used in multiple instances of the component or across multiple tabs.
  • The mgt-chat component doesn't support theming and won't respect browsers preferences.
