Build API plugins with TypeSpec for Microsoft 365 Copilot

Important

API plugins are only supported as actions within declarative agents. They are not enabled in Microsoft 365 Copilot.

API plugins are custom actions for declarative agents that connect a REST API with an OpenAPI specification to Microsoft 365 Copilot. This guide demonstrates how to add an API plugin to a declarative agent by using TypeSpec and the Microsoft 365 Agents Toolkit (an evolution of Teams Toolkit).

Prerequisites

Tip

For the best results, make sure that the API you are generating follows the guidelines detailed in How to make an OpenAPI document effective in extending Copilot.

Adding a GET operation

To start, add a GET operation to list all post items. Open the main.tsp file and add a new namespace PostsAPI in the MyAgent namespace with the following content.

// Omitted for brevity
namespace MyAgent {
  // Omitted for brevity
  @service
  @server("https://jsonplaceholder.typicode.com")
  @actions(#{
    nameForHuman: "Posts APIs",
    descriptionForHuman: "Manage blog post items with the JSON Placeholder API.",
    descriptionForModel: "Read, create, update and delete blog post items with the JSON Placeholder API."
  })
  namespace PostsAPI {

    /**
     * List all blog post items.
     */
    @route("/posts")
    @get op listPosts(): PostItem[];

    /**
     * Structure of a blog post item.
     */
    model PostItem {
      /**
       * The ID of the user who created the post.
       */
      userId: integer;

      /**
       * The ID of the post.
       */
      @visibility(Lifecycle.Read)
      id: integer;

      /**
       * The title of the post.
       */
      title: string;

      /**
       * The body of the post.
       */
      body: string;
    }
  }
  // Omitted for brevity
}

This code defines the PostItem model and the REST API GET /posts.

Adding a GET operation with a query parameter

The GET operation in the previous example takes no parameters. To enable filtering by user ID, update the GET operation with an optional query parameter to filter the results by user ID.

Open the main.tsp file and replace the existing listPosts operation with the following content.

/**
 * List all blog post items.
  * @param userId The ID of the user who created the post. If not provided, all posts will be returned.
  */
@route("/posts")
@get op listPosts(@query userId?: integer): PostItem[];

The @query userId? parameter added to listPosts updates the REST API to GET /posts?userId={userId}.

Add an adaptive card to a GET operation

Adding an Adaptive Card to the listPosts operation changes how the citations in the generated response are rendered.

Create a new file named post-card.json in the appPackage directory and add the following content.

{
  "type": "AdaptiveCard",
  "$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
  "version": "1.5",
  "body": [
    {
      "type": "Container",
      "$data": "${$root}",
      "items": [
        {
          "type": "TextBlock",
          "text": "**${if(title, title, 'N/A')}**",
          "wrap": true
        },
        {
          "type": "TextBlock",
          "text": "${if(body, body, 'N/A')}",
          "wrap": true
        }
      ]
    }
  ],
  "actions": [
    {
      "type": "Action.OpenUrl",
      "title": "Read More",
      "url": "https://www.bing.com/search?q=https://jsonplaceholder.typicode.com/posts/${id}"
    }
  ]
}

Open the main.tsp file and add the @card decorator to the listPosts operation, as shown in the following code snippet.

/**
 * List all blog post items.
  * @param userId The ID of the user who created the post. If not provided, all posts will be returned.
  */
@route("/posts")
@card(#{ dataPath: "$", title: "$.title", file: "post-card.json" })
@get op listPosts(@query userId?: integer): PostItem[];

Adding a POST operation

Open the main.tsp file and within the PostsAPI namespace, add the following content.

/**
 * Create a new blog post item.
 * @param post The post item to create.
 */
@route("/posts")
@post op createPost(@body post: PostItem): PostItem;

This code defines the REST API POST /posts, which creates a new blog post.

Adding a PATCH operation

Open the main.tsp file and within the PostsAPI namespace, add the following content.

/**
 * Updates a blog post item.
 * @param id The ID of the post to update.
 * @param post The updated post item.
 */
@route("/posts/{id}")
@patch op updatePost(@path id: integer, @body post: PostItem): PostItem;

This code defines the REST API PATCH /posts/{id}, which updates an existing blog post.

Adding a DELETE operation

Open the main.tsp file and within the PostsAPI namespace, add the following content.

/**
 * Deletes a blog post item.
 * @param id The ID of the post to delete.
 */
@route("/posts/{id}")
@delete op deletePost(@path id: integer): void;

This code defines the REST API DELETE /posts/{id}, which deletes an existing blog post.

Test the custom actions

  1. Select the Microsoft 365 Agents Toolkit icon in the left-hand Activity Bar.
  2. In the Lifecycle pane, select Provision.
  3. Wait for provisioning to complete, then open https://m365.cloud.microsoft/ in your browser.
  4. Select your agent from the list of agents.
  5. Test the agent with the following prompts, or try your own.

Test the GET operation

Prompt: "List all blog posts and render them as a table."

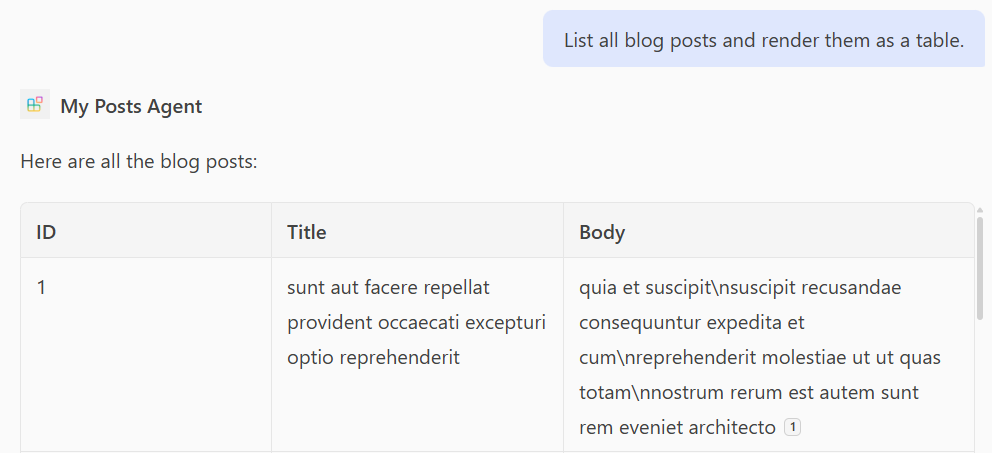

A screenshot of an answer from a declarative agent based on new GET operations

Prompt: "List all blog posts for the user with ID 1 and render them as a table."

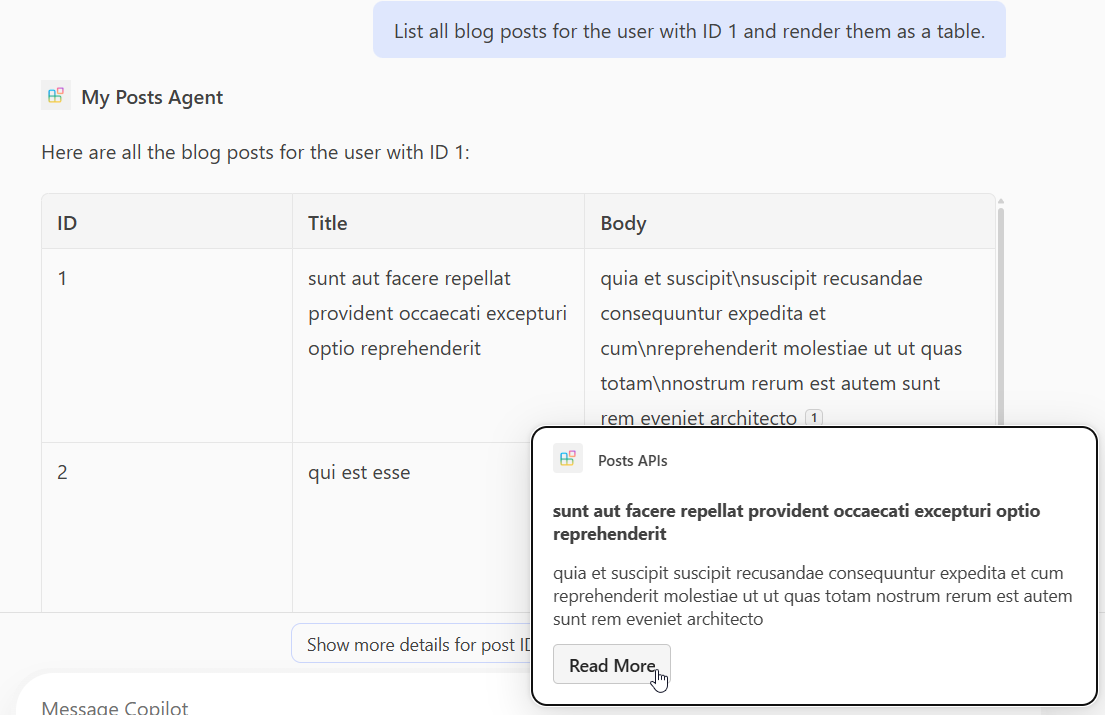

A screenshot of an answer from a declarative agent based on GET operations with adaptive cards

Test the POST operation

Prompt: "Create a new blog post with user ID 1, title 'New Post', and body 'This is a new post'."

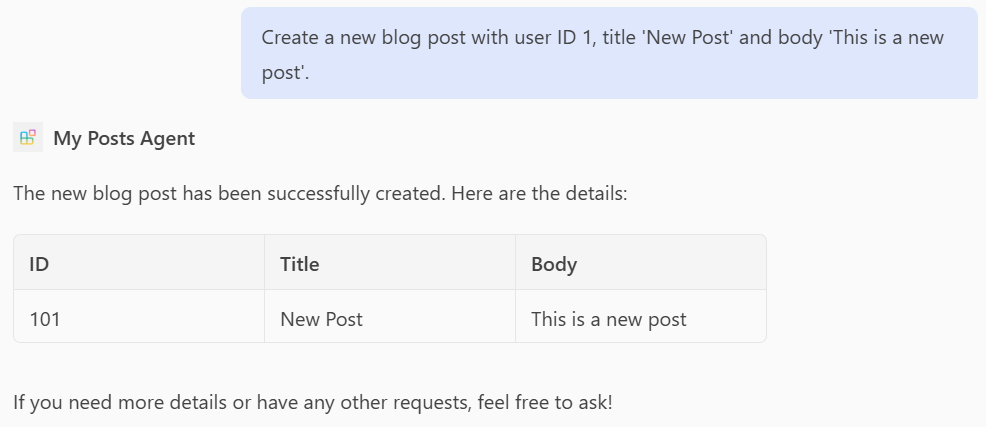

A screenshot of an answer from a declarative agent based on POST operations

Test the PATCH operation

Prompt: "Update the blog post with ID 30 and update the title to 'Updated Title' and body to 'Updated Body'."

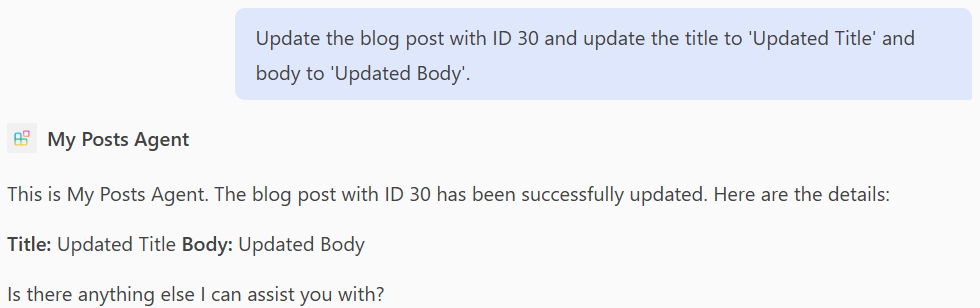

A screenshot of an answer from a declarative agent based on PATCH operations

Test the DELETE operation

Prompt: "Delete the blog post with ID 50."

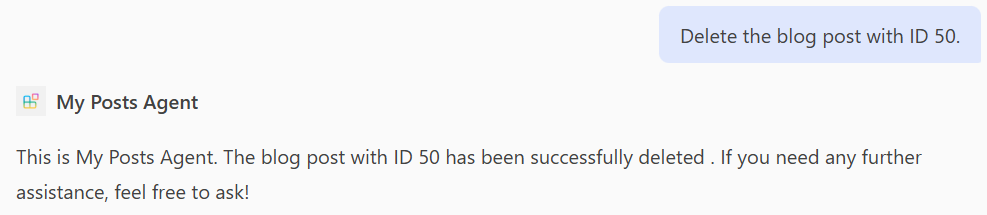

A screenshot of an answer from a declarative agent based on DELETE operations

Example of a complete main.tsp file

The following is an example of a complete main.tsp file with the GET, POST, PATCH, and DELETE operations added.

import "@typespec/http";
import "@typespec/openapi3";
import "@microsoft/typespec-m365-copilot";

using TypeSpec.Http;
using TypeSpec.M365.Copilot.Actions;
using TypeSpec.M365.Copilot.Agents;

@agent(
  "My Posts Agent",
  "Declarative agent focusing on blog posts management."
)

@instructions("""
  You should help users with blog posts management.
  You can read, create, update and delete blog post items.
  You can also search for blog posts by user ID.
""")

@conversationStarter(#{
  title: "List Blog Posts",
  text: "List all blog posts and render them as a table."
})

@conversationStarter(#{
  title: "Lists a user's blog posts",
  text: "List all blog posts for the user with ID 1 and render them as a table."
})

@conversationStarter(#{
  title: "Delete a blog post",
  text: "Delete the blog post with ID 50."
})

@conversationStarter(#{
  title: "Update a blog post",
  text: "Update the blog post with ID 30 and update the title to 'Updated Title' and body to 'Updated Body'."
})

@conversationStarter(#{
  title: "Create a blog post",
  text: "Create a new blog post with user ID 1, title 'New Post' and body 'This is a new post'."
})

@conversationStarter(#{
  title: "Get a blog post",
  text: "Get all the details about the blog post with ID 10."
})

namespace MyAgent {
  @service
  @server("https://jsonplaceholder.typicode.com")
  @actions(#{
    nameForHuman: "Posts APIs",
    descriptionForHuman: "Manage blog post items on JSON Placeholder APIs.",
    descriptionForModel: "Read, create, update and delete blog post items on the JSON Placeholder APIs."
  })
  namespace PostsAPI {
    /**
     * List all blog post items.
     * @param userId The ID of the user who created the post. If not provided, all posts will be returned.
     */
    @route("/posts")
    @card(#{ dataPath: "$", title: "$.title", file: "post-card.json" })
    @get op listPosts(@query userId?: integer): PostItem[];

    /**
     * Get a blog post item by ID.
     */
    @route("/posts/{id}")
    @card(#{ dataPath: "$", title: "$.title", file: "post-card.json" })
    @get op getPost(@path id: integer): PostItem;

    /**
     * Create a new blog post item.
     * @param post The post item to create.
     */
    @route("/posts")
    @post op createPost(@body post: PostItem): PostItem;

    /**
     * Updates a blog post item.
     * @param id The ID of the post to update.
     * @param post The updated post item.
     */
    @route("/posts/{id}")
    @patch op updatePost(@path id: integer, @body post: PostItem): PostItem;

    /**
     * Deletes a blog post item.
     * @param id The ID of the post to delete.
     */
    @route("/posts/{id}")
    @delete op deletePost(@path id: integer): void;

    model PostItem {
      /**
       * The ID of the user who created the post.
       */
      userId: integer;

      /**
       * The ID of the post.
       */
      @visibility(Lifecycle.Read)
      id: integer;

      /**
       * The title of the post.
       */
      title: string;

      /**
       * The body of the post.
       */
      body: string;
    }
  }
}
