Connect ServiceNow Knowledge to the Employee Self-Service declarative agent

Note

This article applies to the Employee Self-Service declarative agent. For the Employee Self-Service custom engine agent, see Integrate ServiceNow with your Employee Self-Service deployment.

Important

You need to complete the steps to deploy the Employee Self-Service agent before you can configure this supplemental extension pack.

The Employee Self-Service agent is built on Copilot and uses AI to provide relevant information to employees and take actions on their HR data. If your organization uses a human resource management system, the Employee Self-Service agent requires access to that system to function most effectively.

Functional synopsis

The Employee Self-Service agent acts as a front-end for consuming information from ServiceNow Knowledge using the Microsoft Copilot Connector. The capabilities enabled for this integration are:

  • Employees can ask questions related to IT/HR workflows.
    • How do I request a new device?
    • How to create a new VPN connection?
    • How do I apply for leave?
  • Use Semantic search in the Employee Self-Service agent to enable employees to find relevant content based on keywords, personal preferences, and social connections.
  • Employees can search for knowledge base articles in the Employee Self-Service agent after it indexes and is visible to all users or restricted with user criteria permissions.

Technical synopsis

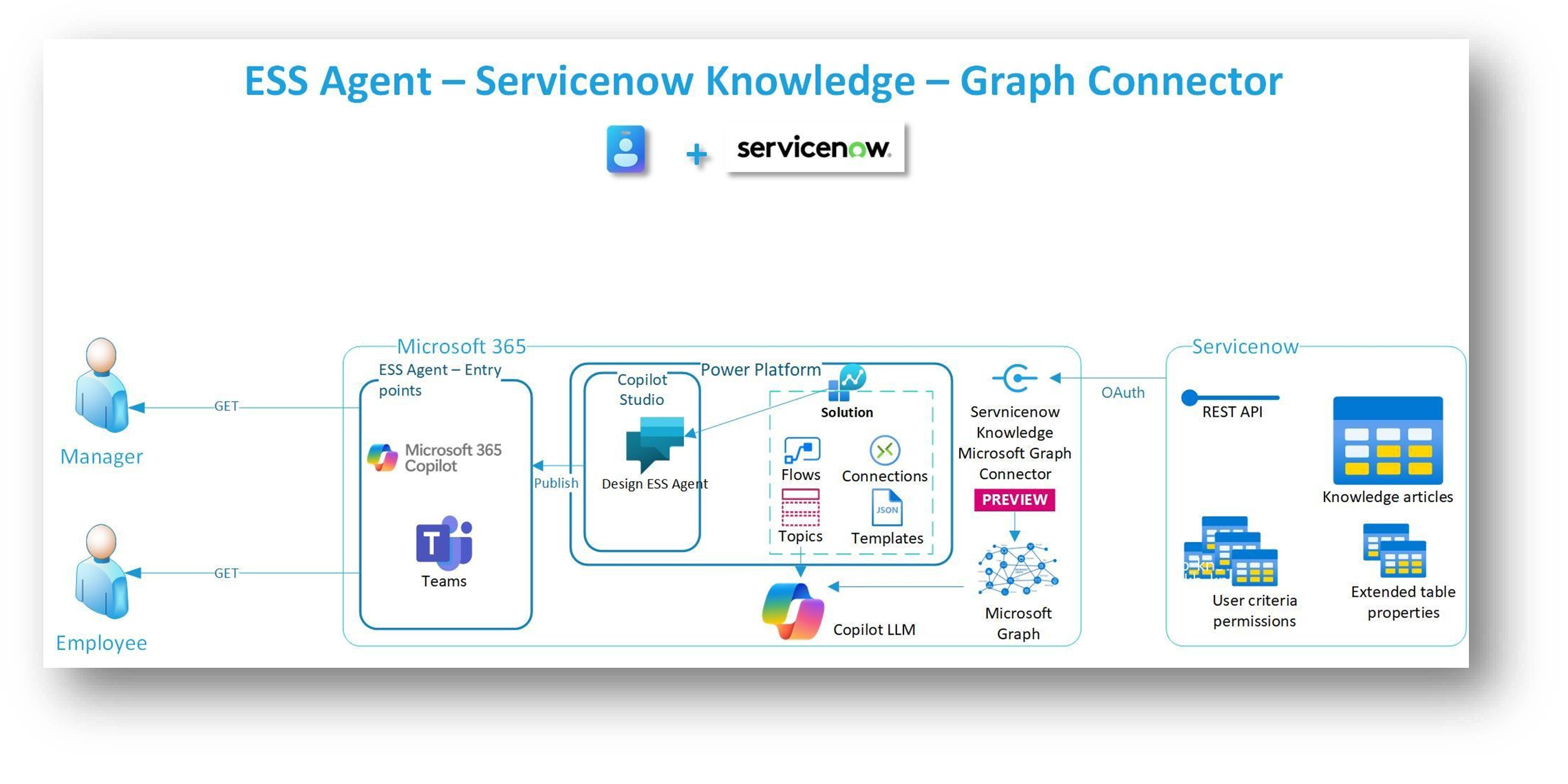

A diagram that shows the high-level components comprising the overall solution for the Employee Self-Service agent and ServiceNow Knowledge integration.

The preceding diagram outlines the high-level components comprising overall solution for the Employee Self-Service agent and ServiceNow Knowledge integration using Microsoft Copilot Connector. There are different activities to be performed as part of initial deployment and for an ongoing operation. As the solution involves multiple technologies, it's better to spend some time initially in understanding the various components. This understanding helps you bring in the right stakeholders to set up an environment to deploy and test the Employee Self-Service agent.

Note

ServiceNow Knowledge Microsoft Copilot Connector is still a preview version, which means the current implementation documented here may have few limitations and known issues. It may change in the future release targeted for General Availability (GA).

Prerequisites

  • ServiceNow Knowledge instance
  • Microsoft 365 Tenant

Important

ServiceNow permissions for User Criteria (required for Employee Self-Service)

If your ServiceNow knowledge articles use User Criteria (common for HR and Employee Self-Service scenarios), the ServiceNow account configured for the Microsoft Copilot connector must have read access to the user_criteria table.

Without this access, permission evaluation may be incomplete and articles may not appear in Employee Self-Service even though they're visible in ServiceNow.

For information on subscription requirements required for the Employee Self-Service agent itself, see the Employee Self-Service agent deployment guide.

Limitations

The current version of ServiceNow Knowledge Microsoft Copilot Connector is a prerelease version and have the following limitations:

  • Attachments aren't indexed.

Hierarchical permissions

The ServiceNow Knowledge Microsoft Copilot connector supports hierarchical permissions. To configure hierarchical permissions, follow the steps in Set up hierarchical permissions (preview) in the ServiceNow Knowledge Microsoft Copilot connector setup guide.

Deployment role requirements

Roles/Persona Description Activities performed Configuration areas
ServiceNow Administrator User who can perform administrative tasks. Create a service account and assign a role to provide read access to specific table records. ServiceNow.
ServiceNow User who can configure access control. 1. Create OAuth Application Registry
The following steps are required only if "Advanced Scripts" are in place:
2. Configure Access Control (ACL) for REST endpoint.
3. Create scripted REST API.
4. Define the API Resource		 ServiceNow
Search Administrator or Global Administrator
NOTE: Microsoft recommends using the least-privileged account to perform actions when possible		 User who can configure the Microsoft Copilot Connector for ServiceNow Knowledge. Configure and authorize the ServiceNow Knowledge connector in Microsoft 365 admin center. Microsoft 365 Admin Center
Global Administrator or Cloud App Administrator User who can configure OAuth in Microsoft Entra 1. Create App registration. Microsoft Entra admin center
Environment Maker User who can customize the Employee Self-Service agent. Configure knowledge source using ServiceNow Knowledge Microsoft Copilot Connector. Microsoft Copilot Studio

Connector identity permissions

Ensure the ServiceNow account used by the Microsoft Copilot connector can:

  • Read knowledge articles
  • Read User Criteria records (user_criteria)
  • Read groups or roles referenced by those criteria

If the connector can't read User Criteria, permission evaluation may silently fail and restricted articles may not appear in Employee Self-Service even though they're visible in ServiceNow.

Note

The following tables are not required and shouldn't be granted access:

  • user_criteria_mtom_user
  • user_criteria_mtom_group
  • user_criteria_mtom_role

Tip

Microsoft recommends you sign in with the least privileged role that you need to complete your task. Typically, the Global Administrator role is too powerful for most tasks.

ServiceNow configuration

This section outlines the tasks required to configure ServiceNow integration by an administrator.

Important

For Employee Self-Service customer deployments, use Microsoft Entra user sign-in with OAuth 2.0. Don't use Basic authentication or app-token-only authentication paths for employee-facing scenarios.

ServiceNow OAuth configuration

Note

For all security related tasks in ServiceNow, the signed-in user with admin or security_admin role must elevate their access using "Elevate role" option from the profile menu in the top-right of navigation bar. Without elevating access, the new security objects can't be created. If New button in the top right of configuration pane is missing, then the role isn't elevated to "security_admin".

Task 1: Create an OAuth Application Registry

  1. Sign in to the ServiceNow instance that needs to be integrated with the Employee Self-Service agent.

  2. Elevate access permissions using Elevate role.

  3. Select All in the top navigation bar.

  4. Search for OAuth in the search box within dropdown navigation menu.

  5. Select "System OAuth → Application Registry" from the search results (if you don't see this option, then you don't have sufficient privileges).

  6. Select New in the top right-corner of the configuration section pane.

  7. Select Create an OAuth API endpoint for external clients.

  8. Fill in the following information for the new application registry:

    Configuration Description
    Name A meaningful name to identify that this application registry is created for the Employee Self-Service agent.
    Client ID Autogenerated code.
    Note: This value is used in Microsoft Copilot Connector configuration if no Advanced Scripting is used.
    Client Secret Leave it blank for a string to be automatically generated.
    Note: This value is used in Microsoft Copilot Connector configuration if no Advanced Scripting is used.
    Row4Redirect URL A required callback URL that the authorization server redirects to:
    For M365 Enterprise: https://gcs.office.com/v1.0/admin/oauth/callback
    For M365 Government: https://gcsgcc.office.com v1.0/admin/oauth/callback It's important to use the actual callback URL from the sign-in popup window during connection configuration. Follow these steps when the URL redirection fails with the error "Invalid redirect_url".
    1. Copy/paste the complete URL from the authorization popup window.
    2. Extract the redirect_url parameter. (example:redirect_uri=https%3a%2f%2ftip1-shared.consent.azure-apim.net%2fredirect).
    3. Decode the URL, replacing %3a with: and %2f with /
    4. Update the Redirect URL field.
    Logo URL A URL that contains the image for the application logo.
    Active Set to active.
    Refresh token lifespan The number of seconds that a refresh token is valid. By default, refresh tokens expire in 100 days (8,640,000 seconds). The recommended value is 31,536,000 (one year).
    Access token lifespan The number of seconds that an access token is valid. Recommended value is 43,200 (12 hours).
    Application Global.
    Accessible from All application scopes.
    Client Type Integration as a Service.

  9. Select Submit or Update button to save the changes.

These steps are the only configuration needed on ServiceNow for integrating with Microsoft Copilot Connector without Advanced Scripts.

The following tasks are required only if Advanced Scripts are used in ServiceNow for controlling access to knowledge bases and articles using user criteria:

Task 2: Configure Access Control for REST endpoint

This task is required to ensure only the crawling account can access the REST API.

  1. Sign in to the ServiceNow instance that needs to be integrated with the Employee Self-Service agent.

  2. Elevate access permissions using Elevate role.

  3. Select All in the top navigation bar.

  4. Search for Access Control in the search box within dropdown navigation menu.

  5. Select System Security → Access Control (ACL) from the search results.

  6. Select New in the top-right corner of configuration section pane

  7. In the new form, fill in the following information.

    Configuration Description/Value
    Type Type of object to be secured with this ACL; select REST_Endpoint.
    Application Global.
    Operation Execute.
    Decision Type Allow If.
    Admin overrides Checked.
    Name Provide a meaningful name to identify the purpose of this ACL, for example, "Microsoft Copilot".
    Description Provide a relevant description.
    Active Checked.
    Role An account used to crawl the content.
    Note: This account is used by the Scripted REST API for advanced user-criteria evaluation.

  8. Select Submit to save changes.

Task 3: Create scripted REST API

This task is required to define a custom script processing for user criteria.

  1. Sign in to the ServiceNow instance that needs to be integrated with the Employee Self-Service agent.

  2. Elevate access permissions using Elevate role.

  3. Select All in the top navigation bar.

  4. Search for Scripted REST in the search box within dropdown navigation menu.

  5. Select System Web Services → Scripted Web Services → Scripted REST APIs from the search results.

  6. Fill in the following configuration information.

    Configuration Description/Value
    Name Provide a name that identifies the purpose.
    API ID Auto generated.
    API namespace Auto generated
    This value is used in Microsoft Copilot Connector configuration.

  7. Select Submit to save changes.

  8. Click on the newly created Scripted REST API from the list.

  9. Under the Security tab, select Default ACLs.

  10. Remove the default value and add/look up the ACL created in Task 2: Configure Access Control for REST endpoint.

  11. Add the ACL and update the changes.

Task 4: Define the API resource

This task is required to define the custom script as a resource for the REST API created in the previous task.

  1. From the Scripted REST API list, select the one created in Task 3.

  2. At the bottom of the page, select the Resources tab and select New.

  3. Fill in the following configuration.

    Configuration Description/Value
    Name GetAllUserCriteria
    Relative path /user_criteria
    Script Copy and paste Script to copy exactly as-is.
    Requires authentication Checked
    Requires ACL authorization Checked
    Ensure that the ACL created in Task 2 is set correctly and remove any other default values.

    Script to copy

    (function execute (/*RESTAPIRequest*/ request,
/*RESTAPIResponse*/ response )
{
    var queryParams = request.queryParams;
    var user = new String(queryParams.user);
    return (new
    sn_uc.UserCriteriaLoader()).getAllUserCriteria(user);
}
) (request, response);

  4. Select Submit to save changes.

This task wraps up the configuration required on the ServiceNow side. The next set of tasks are on the Microsoft 365 side.

Microsoft Copilot Connector configuration

This section covers the tasks required for configuring Microsoft Copilot Connector in Microsoft Admin Center (MAC). These tasks require a Global Administrator role or a Security Administrator role in the Microsoft 365 tenant.

  1. Sign in to the Microsoft Admin Center.

  2. Select Settings → Search & intelligence in the left navigation pane.

  3. In the Search & intelligence page, select Data sources.

  4. Click + Add Connection to add a new Copilot connection.

  5. In the Connect to data source page, from the list of connectors, search for ServiceNow Knowledge.

  6. Select ServiceNow Knowledge connector and select Next.

  7. Fill in the following configuration information:

    Configuration Description/Value
    Display Name Provide a display name that helps to identify this connector within Copilot Studio by the Environment Makers for the Employee Self-Service agent.
    User criteria setup in ServiceNow Select Simple if no hierarchical permissions or user criteria are used; otherwise select Advanced.
    ServiceNow instance Provide the ServiceNow instance name, which typically is https://organization name.service-now.com.
    Authentication type Select OAuth 2.0 and complete Microsoft Entra user sign-in authorization. Use the Client ID and Client secret created in Task 1: Create an OAuth Application Registry.
    API namespace Enter the API namespace for Scripted REST API created in Task 3: Create scripted REST API.

    Important

    Advanced flow is required for Employee Self-Service scenarios

    For Employee Self-Service (including HR and IT help content), Advanced flow is required when knowledge articles use:

    • User Criteria
    • Scripted conditions
    • HR profile-based access rules

    Using Simple flow in these scenarios can result in articles being indexed but not visible to users in Copilot Employee Self-Service.

  8. Select Authorize to complete Microsoft Entra user sign-in for the ServiceNow connection.

  9. Microsoft Copilot Connector connects to the ServiceNow REST API to get authorized and ask for consent to allow the authorization; select Allow for it. When the authorization is successfully completed, the authorization field has a green check.

  10. Choose to enable or disable rollout to limited audience for staged rollout of this connector so that it can be tested with limited set of users before rolling it out to the whole organization.

  11. Check Notice checkbox to authorize Microsoft to create an index of third-party data in Microsoft 365 tenant subject to the configurations.

  12. Select Create to create the connector.

  13. In the status page, it shows the connection status as either a Success or Failure message. A sync is triggered in the background and its status is also indicated.

  14. Provide a description for the Connector, which serves as an instruction to Copilot and select Save.

  15. Select Done and wait for the connection state to be Ready after the sync is completed.

Employee Self-Service agent configuration

After the ServiceNow Knowledge Microsoft 365 Copilot connector is set up, add it as a knowledge source on the Employee Self-Service declarative agent.

  1. Before you start, confirm in the Microsoft 365 admin center that the ServiceNow Knowledge connector is in the Ready state.

  2. Sign in to Copilot Studio and open your Employee Self-Service agent, for example Employee Self-Service (HR).

  3. On the Configure tab, go to the Knowledge section.

  4. Under Add other data sources, select ServiceNow Knowledge.

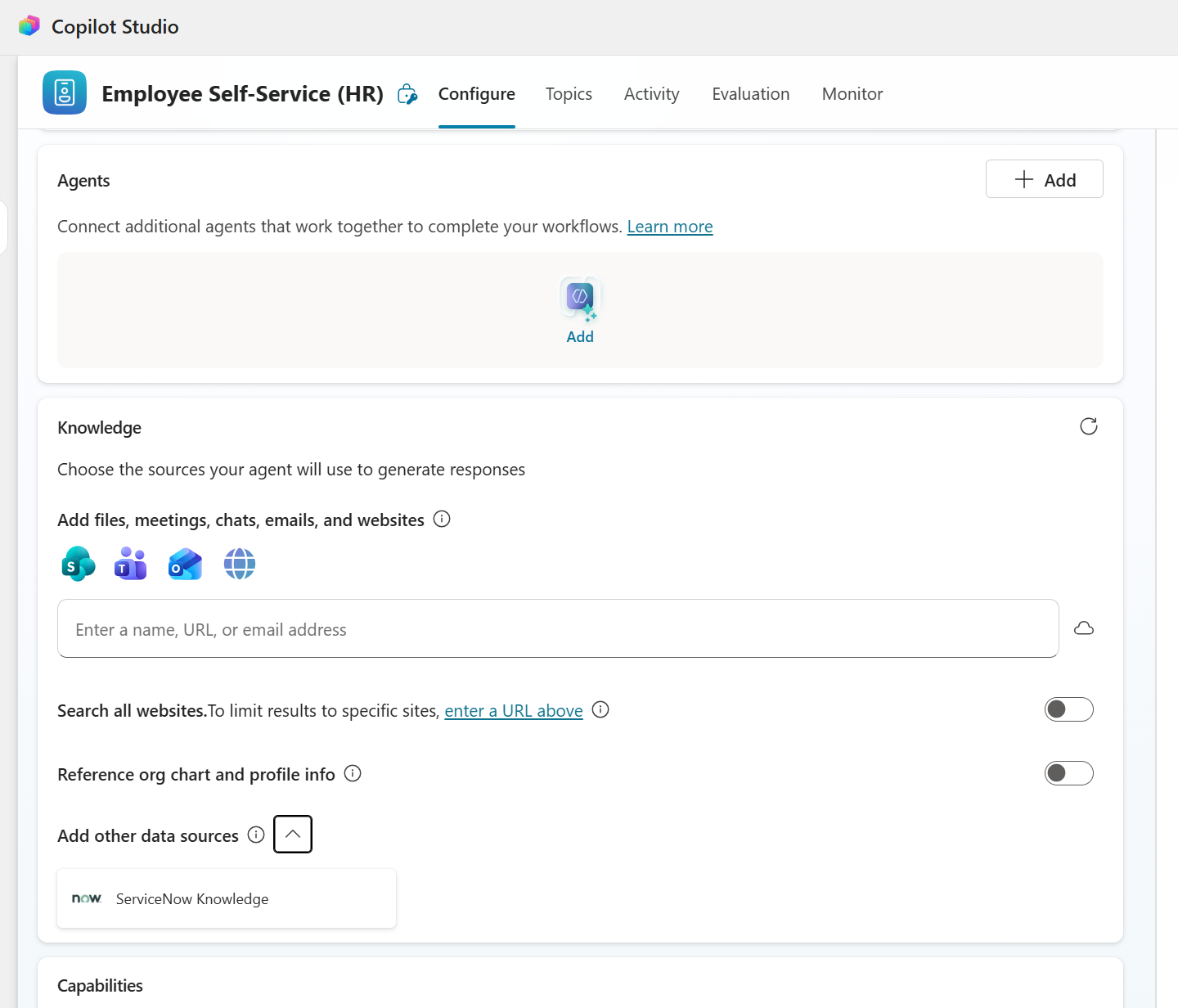

    Screenshot of the Knowledge section on the Configure tab in Copilot Studio, showing ServiceNow Knowledge under Add other data sources.

  5. Under ServiceNow Knowledge data sources, find your ServiceNow connection and select Add.

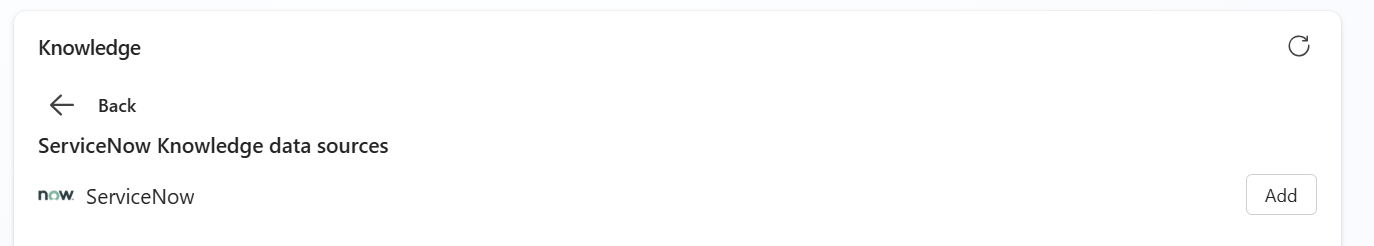

    Screenshot of the ServiceNow Knowledge data sources list in Copilot Studio, showing a ServiceNow connection with an Add button.

  6. Confirm that the connection shows Added. By default, the agent uses all data in the connection to generate responses. To narrow the content the agent uses, select Add filters to improve accuracy.

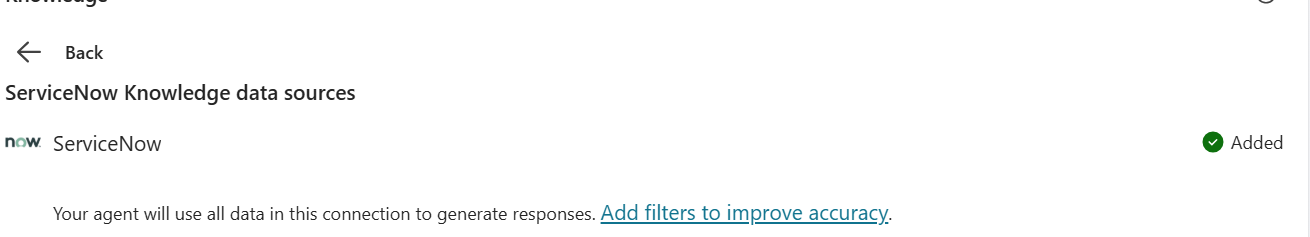

    Screenshot of the ServiceNow connection marked as Added, with a link to add filters to improve accuracy.

After you add the knowledge source, validate it by asking questions answered by your ServiceNow knowledge articles. For issues, see Troubleshooting.

Troubleshooting

Articles are visible in ServiceNow but not in Employee Self-Service

Symptom
Knowledge articles appear correctly in ServiceNow but don't appear in Microsoft Copilot Employee Self-Service.

Cause
The ServiceNow account configured for the connector doesn't have Read access to User Criteria (user_criteria). When User Criteria are used to restrict access, the connector must be able to evaluate them.

Resolution

  1. Grant the connector service account read access to the user_criteria table.
  2. Trigger a re-crawl of the ServiceNow connector.

ServiceNow Knowledge Microsoft Copilot connector - Troubleshooting section.

References

For Custom Setup and complete configuration documentation, see:

For ServiceNow Knowledge documentation, see the following resources, which require ServiceNow sign ins:
