Google Drive Microsoft Graph connector

Article
2025-05-08

With the Microsoft Graph connector, your organization in Microsoft 365 can index files that are accessible to anyone in Google Drive, using Microsoft 365 Copilot and Microsoft Search.

This article is for Microsoft 365 administrators or anyone who configures, runs, and monitors Microsoft Graph Google Drive connectors.

Capabilities

Access Google Drive files using the power of semantic search.
Retain ACLs (Access Control Lists) defined by your organization.
Customize your crawl frequency
Create workflows using this connection and plugins from Microsoft Copilot Studio.

Limitations

Folder replies & comments aren't indexable.
Currently, only files that are accessible to anyone in Google Drive are indexed and visible to all Microsoft 365 users in your tenant, from Microsoft Search or Microsoft 365 Copilot

Prerequisites

Before you create a Microsoft Graph Google Drive connector, you must:

1. Be a Google Workspace super admin role or be granted access

Either be granted access by a super admin role or be a user with administrative privileges. You do not need a super admin role for yourself if you have the access granted by a super admin role.

Check the user permission in the admin console: Admin center/manage user/user detail.

2. Create a Google Cloud Project

The Google Drive connector requires a service account key generated by a Google Cloud Platform console project. You can use an existing project you own or follow the following steps to create a new project:

a. Go to the Manage resources page in the Google Cloud Platform console and click Create Project.

b. In the New Project window that appears, add any project name, organization, and location of your choosing.

c. Note the project ID (which is directly below the project name) as you'll need it when enabling APIs in step 3.

d. Click Create.

3. Enable the required API

In the project you created or in your existing project, ensure the following APIs are enabled by going to the link (replacing PROJECT_ID with your project ID) and clicking Enable if not already enabled:

Admin SDK API (admin.googleapis.com)

https://console.developers.google.com/apis/api/admin.googleapis.com/overview?project=[PROJECT_ID]

Drive API (drive.googleapis.com)

https://console.developers.google.com/apis/api/drive.googleapis.com/overview?project=[PROJECT_ID]

4. Create a Google Cloud Service Account

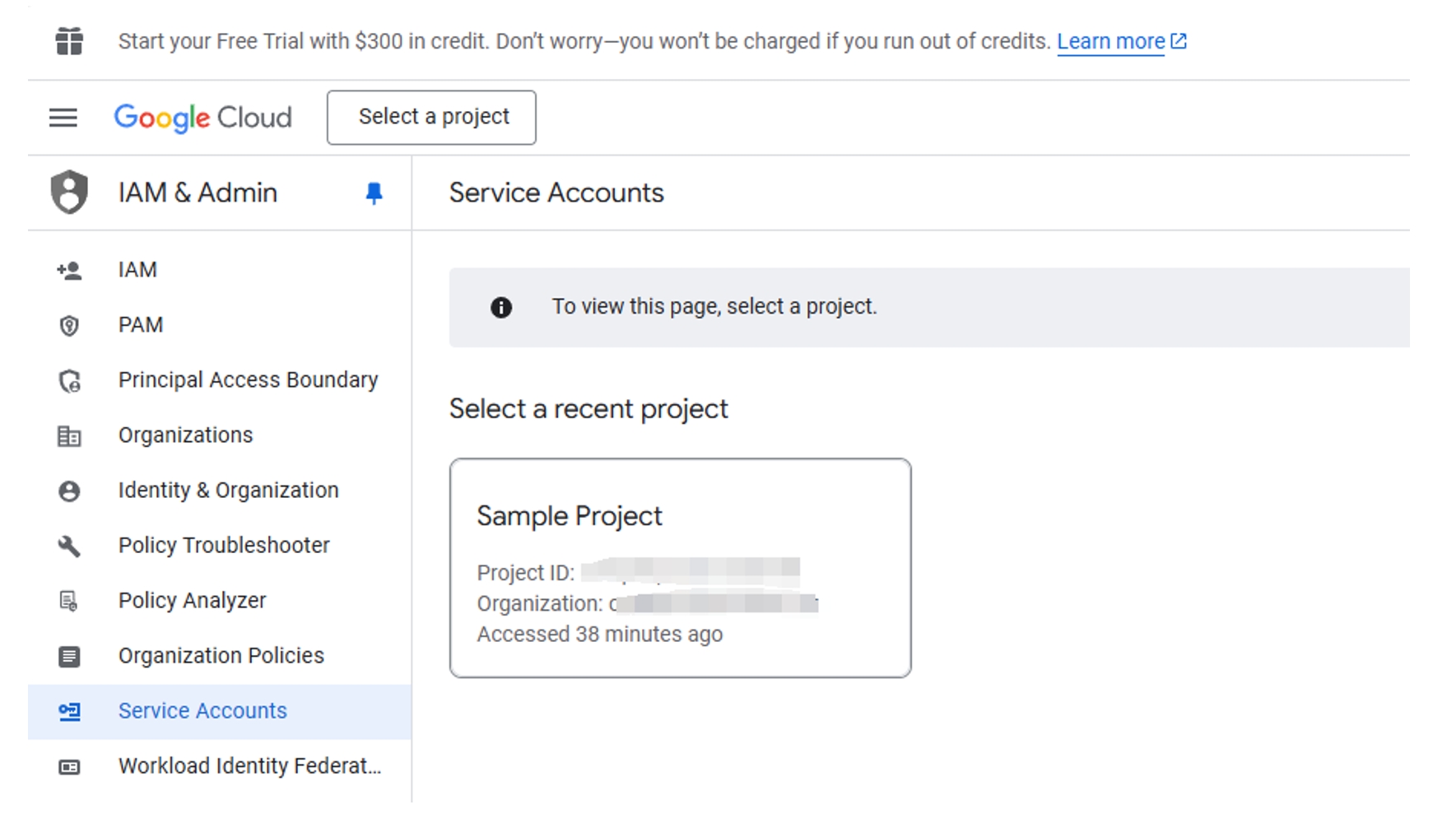

a. Go to the Service Accounts page in the Google Cloud Platform console and click the project you created.

b. Click Create Service Account.

c. Enter the service account name, ID, and description (optional), then click Create and Continue.

Screenshot that shows how to create service account-step3.

Note

The project should be automatically populated from the name.

d. Skip Grant this service account access to project and Grant users access to this service account. Click Done.

Screenshot that shows how to create service account-step4.

e. Back on the Service Accounts page for your project, you should now be able to see the service account that was created. Click the three dots below Actions and click Manage Keys.

f. Click Add Key > Create New Key. In the panel that appears, select the key type JSON, then click Create. Screenshot that shows how to generate service account keys

g. A private JSON key is saved to your computer. Screenshot that shows how to download service account keys

5. Add the OAuth scopes to your service account

a. Go to Google Workspace Admin console and click Security > Access and data control > API controls in main menu.

b. Click MANAGE DOMAIN WIDE DELEGATION in the section Domain wide delegation:

c. Click Add new to add required scopes to the service account:

OAuth scopes (comma-delimited)

https://www.googleapis.com/auth/admin.directory.user.readonly

https://www.googleapis.com/auth/admin.directory.group.readonly

https://www.googleapis.com/auth/drive.readonly

Note

How to obtain Client ID?

Go to Google Cloud console, click service account in main menu, copy the "OAuth 2 Client ID" of the service account. Screenshot that shows how to obtain client id

Setup

1. Display name

A display name is used to identify each reference in Copilot, helping users easily recognize the associated file or item. The display name also represents trusted content.

2. Add Google Apps domain

To sign up for Google Workspace, you need an internet domain name, like your-company.com. This domain can host a website (www.your-company.com) and email (info@your-company.com). For more information, see What is a domain?.

3. Provide Google Apps administrator account email

Enter the email of a Google Apps administrator account in the user@company.com format.

4. Roll out to a limited audience

Deploy this connection to a limited user base if you want to validate it in Copilot and other search surfaces before expanding the rollout to a broader audience.

For other settings, like Access permissions, Data inclusion rules, Schema, Crawl frequency, etc., we set defaults based on what works best with data in Google Drive. The default values settings are as follows.

Page	Settings	Default values
Users	Access Permissions	All files that are accessible to anyone in Google Drive are visible to all Microsoft 365 users in your tenant, from Microsoft Search or Microsoft 365 Copilot.
Content	Index Content	All published posts and pages are selected by default.
Content	Manage Properties	To check default properties and their schema, click here.
Sync	Incremental Crawl	Frequency: Every 15 mins
Sync	Full crawl	Frequency: Every day

Custom setup

In custom setup you can edit any of the default values for users, content, and sync.

Users

Access permissions

The Google Drive Graphs connector supports data visible to Only people with access to this data source (recommended) or Everyone. If you choose Everyone, indexed data appears in the search results for all users.

If you choose Only people with access to this data source, you need to further choose whether your has Microsoft Entra ID provisioned users or non-AAD users.

To identify which option is suitable for your organization:

Choose the Microsoft Entra ID option if the email ID of Google Drive users is the same as the UserPrincipalName (UPN) of users in Microsoft Entra ID.
Choose the non-AAD option if the email ID of Google Drive users is different from the UserPrincipalName (UPN) of users in Microsoft Entra ID.

Important

If you choose Microsoft Entra ID as the type of identity source, the connector maps the email IDs of users obtained from Google Drive directly to UPN property from Microsoft Entra ID.
If you chose "non-AAD" for the identity type, see Map your non-Azure AD Identities for instructions on mapping the identities. You can use this option to provide the mapping regular expression from email ID to UPN.
Updates to users or groups governing access permissions are synced in full crawls only. Incremental crawls do not currently support the processing of updates to permissions.

Content

Manage properties

You can add or remove available properties from your PagerDuty Escalation Policy data source. Assign a schema, change the semantic label, and add an alias to the property. Some properties are indexed by default.

Default property	Label	Description	Schema
createdTime	Created date time	The time at which the file was created.	Search, Query, Retrieve.
description		A short description of the file.
fileExtension	File extension	The final component of fullFileExtension. This parameter is only available for files with binary content in Google Drive.	Query, Refine, Retrieve.
fileType		The type of the file.
iconLink	IconUrl	A static, unauthenticated link to the file's icon.	Retrieve.
lastModifingUser	lastModifiedDateTime	The last user to modify the file. This field is only populated when the last modification was performed by a signed-in user.	Query, Retrieve, Search.
modifiedTime	Last modified by	The last time the file was modified by anyone (Request For Comments 3339 date-time).	Query, Retrieve, Search.
link	url	A link for opening the file in a relevant Google editor or viewer in a browser.	Retrieve.
name	File Name	The name of the file.	Query, Retrieve, Search.
owner	Created by	The owner of this file. Only certain legacy files may have more than one owner. This field isn't populated for items in shared drives.	Search, Query, Retrieve.
parentFolderLink		A link for the parent folder containing the file.	Retrieve.
parentFolderName		The name of the parent folder containing the file.	Search, Query, Retrieve.
size		Size in bytes of blobs and first-party editor files.	Search, Query, Retrieve.

Sync

You can configure full and incremental crawls based on the scheduling options present here. By default, incremental crawl is set for every 15 minutes, and full crawl is set for every day. If needed, you can adjust these schedules to fit your data refresh needs.

Troubleshooting

Invalid credentials detected. Check the credential info and check the permissions of the service account. This error occurs when the service account lacks the necessary permissions for Google Drive access. Check the credentials info of the account and ensure that they're correctly filled in on the setup page.
The required permissions for users/files are missing. Authentication error, one or more required OAuth scopes for your service account are missing. Your service account must include both API scopes:
