Create a new Teams project

  • Article
  • 7 minutes to read

In this section, you can learn how to create new Teams project using Visual Studio Code and Visual Studio.

Create a new Teams project for Visual Studio Code

You can build a new Teams project by selecting Create a new Teams app in Teams Toolkit. You can create following types of app in Teams Toolkit:

App Type Definition
Basic Teams app Basic Teams apps are tab, bot, or message extension app that you can create and customize based on your needs.
Scenario based Teams app Scenario based Teams apps are notification bot, command bot, SSO-enabled tab, or SPFx tab app and it's suitable for one particular scenario. For example, notification bot is suitable only to send notification and not used for chat.

Create a new Teams app

The steps to create a new Teams app is similar for all types of app except SPFx, and notification bot. The following steps help you to build a new tab app:

To create an app

  1. Open Visual Studio Code.

  2. Select the Teams Toolkit icon in the left navigation bar.

  3. Select Create a new Teams app.

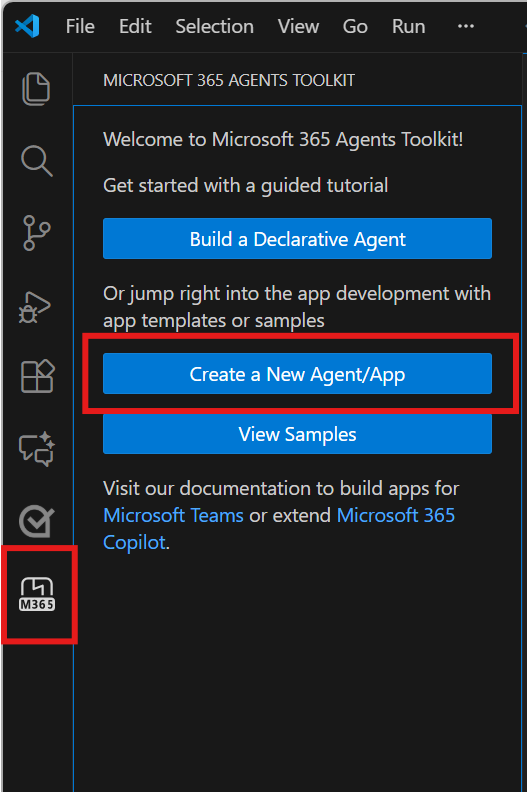

    Location of the Create New Project link in the Teams Toolkit sidebar.

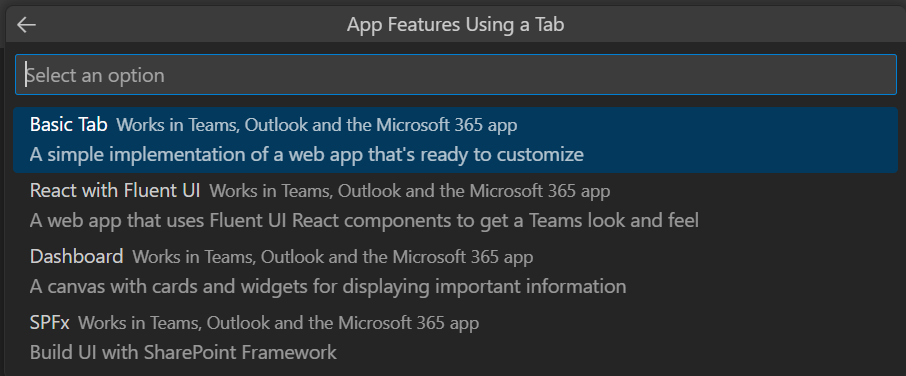

  4. Ensure that Tab is selected as your app capability.

    Select App Capability

  5. Select JavaScript as the programming language.

    Screenshot showing how to select the programming language.

  6. Select Default folder to store your project root folder in default location.

    Select default location

    The following steps guides you to change the default location:

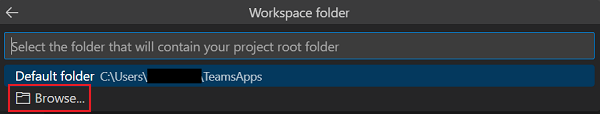

    1. Select Browse.

      Select browse for storage

    2. Select the location for project workspace.

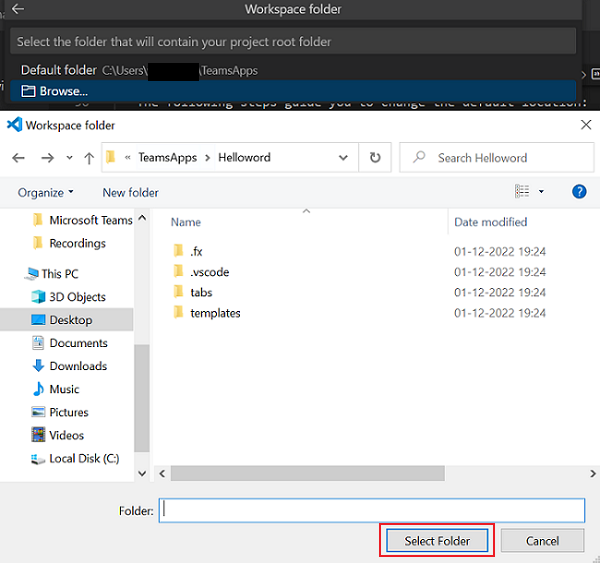

    3. Select the Select Folder.

      select-folder for storage

  7. Enter helloworld as the application name. Ensure that you use only alphanumeric characters. Select Enter.

    Screenshot showing where to enter the app name.

  8. By default, project opens in new window within 10 seconds. If you want to open in current window, select Open in current window.

    New window notification

    The Teams tab app is created in a few seconds.

    Screenshot showing the app created.

Directory structure for different app types

Teams Toolkit provides all components for building an app. After creating the project, you can view the project folders and files under Explorer.


Directory structure for basic Teams app

You have three different types of basic Teams app and directory structure looks similar for all types of apps. The following example shows a basic Teams tab app directory structure:

Folder name Contents
.fx/configs Configuration files that user can customize for the Teams app.
- .fx/configs/config.<envName>.json Configuration file for every environment.
- .fx/configs/azure.parameters.<envName>.json Parameters file for Azure BICEP provision for every environment.
- .fx/configs/projectSettings.json Global project settings that apply to all environments.
tabs Code for the Tab capability needed at runtime, such as the privacy notice, terms of use, and configuration tabs.
- tabs/src/index.jsx Entry point for the front-end app, where the main App component is rendered with ReactDOM.render()
- tabs/src/components/App.jsx Code for handling URL routing in the app. It calls the Microsoft Teams JavaScript client SDK to establish communication between your app and Teams.
- tabs/src/components/Tab.jsx Code to implement the UI of your app.
- tabs/src/components/TabConfig.jsx Code to implement the UI that configures your app.
templates/appPackage App manifest template files, and the app icons: color.png and outline.png.
- templates/appPackage/manifest.template.json App manifest for running the app in local or remote environment.
templates/azure BICEP template files

Note

If you have a bot or message extension app, relevant folders is added to the directory structure.

To learn more about the directory structure of different types of basic Teams app, see the following table:

App Type Links
For tab app Build your first tab app using JavaScript
For bot app Build your first bot app using JavaScript
For message extension app Build your first message extension app using JavaScript

Directory structure for scenario based Teams app

You have four different types of scenario based Teams app and directory structure looks similar for all types of apps. The following example shows a scenario based notification bot Teams app directory structure:

The new project folder contains following content:

Folder name Contents
.fx Project level settings, configuration, and environment information
.vscode VS code files for local debug
bot The bot source code
templates Templates for Teams app manifest and corresponding Azure resources

The core notification implementation in bot folder and it contains:

File name Contents
src/adaptiveCards/ Templates for Adaptive Card
src/internal/ Generated initialize code for notification functionality
src/index.*s The entry point to handle bot messages and send notifications
.gitignore File to exclude local files from bot project
package.json The npm package file for bot project

Note

If you have a command bot, SSO-enabled tab, or SPFx tab app, relevant folders is added to the directory structure.

To learn more about the directory structure of different types of scenario based Teams app, see the following table:

App Type Links
For notification bot app Send notification to Teams
For command bot app Build command bot
For SPFx tab app Build a Teams app with SPFx

Directory structure for multi-capability app

You can add more features to your existing Teams app by using add features. For example, if you add bot app to the existing tab app, Teams Toolkit adds the bot folder with relevant files and code.

The following image shows the directory structure of tab app:

Tab app directory structure

The following image shows the directory structure of tab app with bot feature:

Tab app with bot app directory structure

Create new Teams app in Visual Studio

Teams Toolkit provides Microsoft Teams app templates in Visual Studio to create Teams app. You can search and select Teams app template that you require when you create a new project. You can have Teams app templates for creating:

  • Tab app
  • Command bot
  • Notification bot
  • Message Extension app

Prerequisites

  Install For using...
  Required
  Visual Studio version 17.3 You can install the enterprise edition of Visual Studio, and install the "ASP.NET "workload and Microsoft Teams Development Tools.
  Teams Toolkit A Visual Studio extension that creates a project scaffolding for your app. Use latest version.
  Microsoft Teams Microsoft Teams to collaborate with everyone you work with through apps for chat, meetings, call - all in one place.
  Prepare your Microsoft 365 tenant Access to Teams account with the appropriate permissions to install an app.

Create a new Teams app

The steps to create a new Teams app is similar for all types of app except notification bot. The following steps help you to create a new tab app:

  1. Open Visual Studio.

  2. Create new project by using one of the following two options.

    Create new project with code from get started

    • Select Create a new project under Get started helps you to choose the project template with code scaffolding.

    • Select Continue without Code to create project without code scaffolding and select File > New > Project in Visual Studio.

      Create new project from file menu

    The Create a new project window appears.

  3. Enter teams in the search box and from the list, select Microsoft Teams App and then select Next.

    Search and choose microsoft teams app

    The Configure your new project window appears.

    Name your application

    1. Enter a suitable name for your project.

      Note

      The project name you are entering is automatically filled in the Solution name also. If you want, you can change the solution name with no affect on project name.

    2. Select the folder path where you want to create the project workspace.

    3. Enter a different solution name, if you want.

    4. Check the option to save the project and solution in the same folder, if you want. For this tutorial, you don't need this option.

    5. Select Create.

    The Create a new Teams Application window appears.

  4. In this tutorial, Tab is selected to create new teams application and select Create.

    Select the teams app type

    Note

    You can select required type of Teams app for your project.

    The Getting Started with Welcome to Teams Toolkit window appears.

    Select the Getting Started teams toolkit

Directory Structure

Teams Toolkit provides all components for building an app. After creating the project, you can view the project folders and files under Explorer.

  • Directory structure for basic Teams app

    Select the tab Solution Explorer teams toolkit

  • Directory structure for scenario based Teams app

    Select the Solution Explorer teams toolkit

Teams app templates in Teams Toolkit for Visual Studio

You can see Teams app templates already populated in Teams Toolkit for various Teams app type. The following table lists all the templates available:

Teams app template Description
Notification Bot Notification Bot app can send notification to your Teams client, there are multiple ways to trigger the notification. For example, trigger the notification by HTTP request, or by time. You can also select triggered notification based on your business scenario.
Command Bot Users can type a command to interact with the bot using the Command Bot app.
Tab Tab app shows a webpage inside Teams, and it enables single sign-on using Teams account.
Message Extension Message Extension app implements simple features like create Adaptive Card, search Nugget packages, unfurling links for "dev.botframework.com" domain.

Note

After the project is created, Teams Toolkit automatically opens Get started window. You can now see the instructions in Get started window and check out the different features in Teams Toolkit.
