Microsoft Teams Toolkit helps you to debug and preview your Microsoft Teams app locally. During the debug process, Teams Toolkit automatically starts app services, launches debuggers, and uploads Teams app. You can preview your Teams app in Teams web client locally after debugging.

Debug your Teams app locally for Visual Studio Code

Teams Toolkit in Microsoft Visual Studio Code gives you the features to automate debugging of your Teams app locally. Visual Studio Code allows you to debug tab, bot, and message extension. You need to set up Teams Toolkit before you debug your app.

Note

Your old Teams Toolkit project gets upgraded to use new tasks, for more information, see tasks doc.

Set up your Teams Toolkit for debugging

The following steps help you set up your Teams Toolkit before you initiate the debug process:

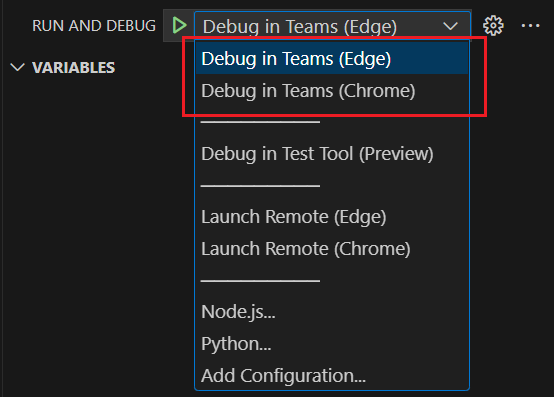

Select Debug in Teams (Edge) or Debug in Teams (Chrome) from the RUN AND DEBUG ▷ dropdown.
Select Run > Start Debugging (F5).
Select Create a Microsoft 365 Testing Tenant to Microsoft 365 account.

Tip

You can select Create a Microsoft 365 Testing Tenant to learn about Microsoft 365 Developer Program. Your default web browser opens to let you sign in to your Microsoft 365 account with your credentials.

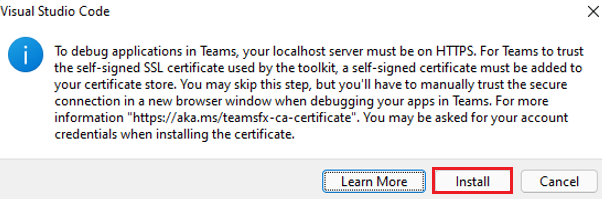

Select Install to install the development certificate for localhost.

Tip

You can select Learn More to know about the development certificate.

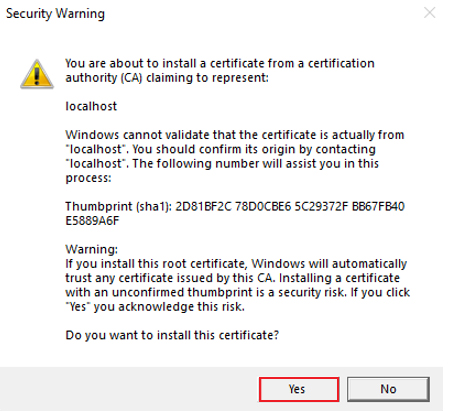

Select Yes in the Security Warning dialog.

Toolkit launches a new Microsoft Edge or Chrome browser instance based on your selection and opens a web page to load Teams client.

Install dev tunnel.
Run the following command to login to dev tunnel:
```
devtunnel user login
```

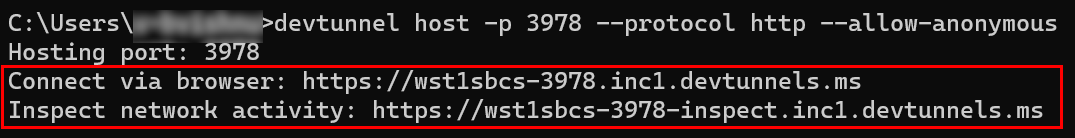

Run the following command to start your local tunnel service:
```
devtunnel host -p 3978 --protocol http --allow-anonymous
```
In a separate terminal, run the following command to update the BOT_DOMAIN and BOT_ENDPOINT values in the env/.env.local file:
```
BOT_DOMAIN=sample-id-3978.devtunnels.ms
BOT_ENDPOINT=https://sample-id-3978.devtunnels.ms/
```

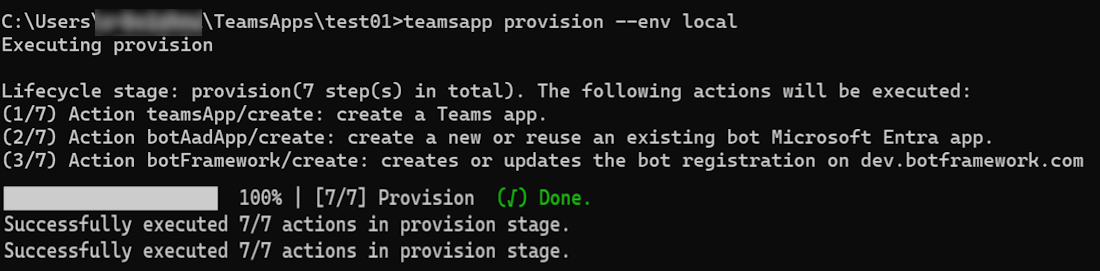

Run the following command to provision the app to Teams:
```
teamsapp provision --env local
```

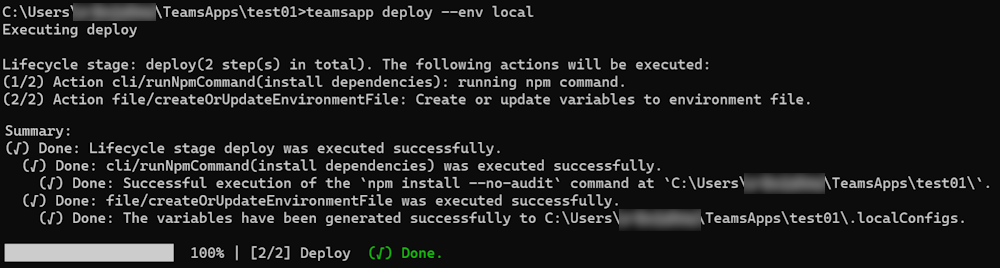

Run the following command to deploy the app to Teams:
```
teamsapp deploy --env local
```
Run the following command to preview your application locally:
```
teamsapp preview --env local
```

If you want to preview a notification bot hosted on Azure Functions, run the following command in your project directory:

npm run prepare-storage:teamsapp

Debug your app

After the initial setup process, Teams Toolkit starts the following processes:

Starts app services
Launches debug configurations
Uploads the Teams app

Starts app services

Runs tasks as defined in .vscode/tasks.json. By default, the task name is "Start application". If your project contains more than one component, there'll be more dependent tasks.

// .vscode/tasks.json
{
    "label": "Start application",
    "dependsOn": [
        "Start Frontend", // Tab
        "Start Backend", // Azure Functions
        "Start Bot" // Bot or message extensions
    ]
}

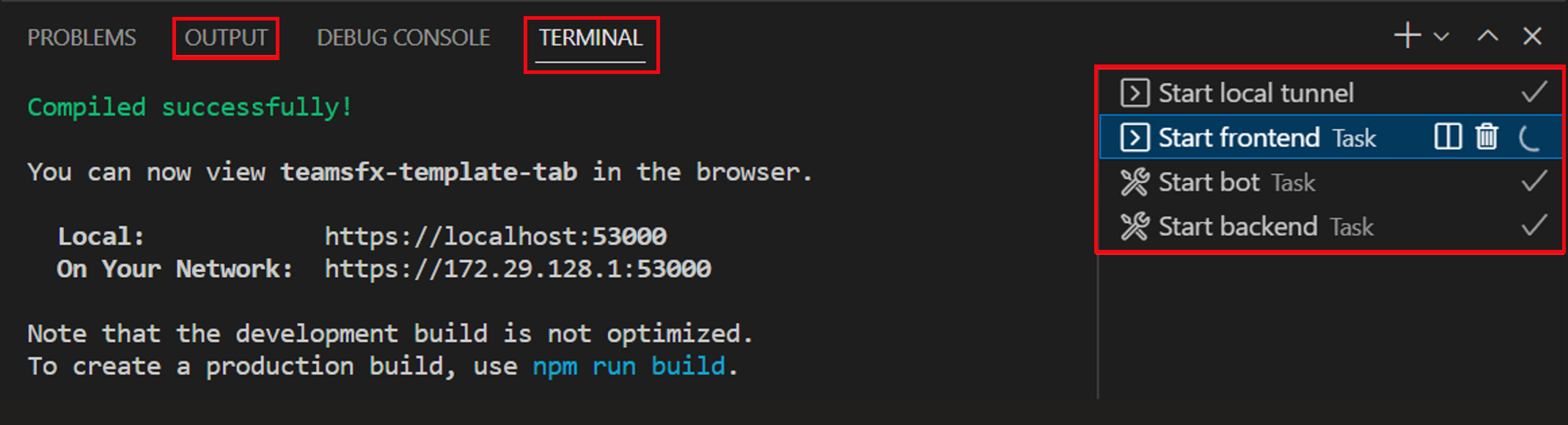

The following image displays task names in the OUTPUT and TERMINAL tabs of the Visual Studio Code while running tab, bot or message extension, and Azure Functions.

Start local tunnel

Use dev tunnel as a local tunnel service to make your local bot message endpoint public.

Dev tunnel

To manually migrate your local tunnel task from a v4 project, update the following code in the .vscode/tasks.json file:

{
      "label": "Start local tunnel",
      "type": "teamsfx",
      "command": "debug-start-local-tunnel",
      "args": {
          "type": "dev-tunnel",
          "ports": [
              {
                  "portNumber": 3978,
                  "protocol": "http",
                  "access": "public",
                  "writeToEnvironmentFile": {
                      "endpoint": "BOT_ENDPOINT",
                      "domain": "BOT_DOMAIN"
                  }
              }
        ],
          "env": "local"
      },
      "isBackground": true,
      "problemMatcher": "$teamsfx-local-tunnel-watch"
    },

To use another port for local bot service, change the portNumber in the .vscode/tasks.json file and also change the portNumber in the index.js or index.ts file.

The following table lists the required arguments:

Arguments	Type	Required	Description
`type`	string	required	The type of tunnel service to use. This argument must be set to `dev-tunnel`.
`env`	string	optional	The environment name. Teams Toolkit writes the environment variables defined in `output` to `.env.<env>` file.
`ports`	array	required	An array of port configurations, each specifying the local port number, protocol, and access control settings.

The ports argument must be an array of objects, with each object specifying the configuration for a particular port. Each object must contain the following fields:

Port	Type	Required	Description
`portNumber`	number	required	The local port number of the tunnel.
`protocol`	string	required	The protocol of the tunnel.
`access`	string	optional	The access control setting for the tunnel. This value can be set to `private` or `public`. If not specified, the default value is `private`.
`writeToEnvironmentFile`	object	optional	The key of tunnel endpoint and tunnel domain environment variables that are written to `.env` file.

The writeToEnvironmentFile object contains two fields:

WriteToEnvironmentFile	Type	Required	Description
`endpoint`	string	optional	The key of tunnel endpoint environment variable.
`domain`	string	optional	The key of tunnel domain environment variable.

When writeToEnvironmentFile is included, the specified environment variables are written to the .env file. When the field is omitted, no environment variables are written to the file.

Launches debug configurations

Launches the debug configurations as defined in .vscode/launch.json.

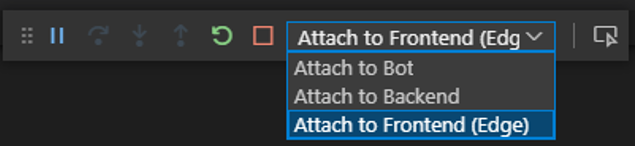

Screenshot shows the Launch debugger.

The following table lists the debug configuration names and types for project with tab, bot or message extension app, and Azure Functions:

Component	Debug configuration name	Debug configuration type
Tab	Attach to Frontend (Edge) or Attach to Frontend (Chrome)	msedge or chrome
Bot or message extensions	Attach to Bot	node
Azure Functions	Attach to Backend	node

The following table lists the debug configuration names and types for project with bot app, Azure Functions, and without tab app:

Component	Debug configuration name	Debug configuration type
Bot or message extension	Launch Bot (Edge) or Launch Bot (Chrome)	msedge or chrome
Bot or message extension	Attach to Bot	node
Azure Functions	Attach to Backend	node

Uploads the Teams app

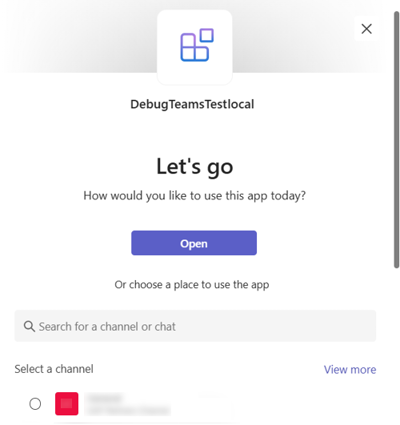

The configuration Attach to Frontend or Launch App launches Microsoft Edge or Chrome browser instance to load Teams client in web page. After the Teams client is loaded, upload Teams app that is controlled by the uploading URL defined in the launch configurations Microsoft Teams. When Teams client loads in the web browser, select Add or select an option from the dropdown as per your requirement.

Your app is added to Teams!
