Singleton Routing in ASP.NET Core OData 8

Applies To:# OData Web API 8 supportedGreen circle with a checkmark inside it. OData Web API v8

This tutorial shows how ASP.NET Core OData 8 supports singleton routing. An understanding of routing fundamentals in ASP.NET Core OData 8 is assumed. If you're unfamiliar with routing in ASP.NET Core OData 8, you may want to go through the routing overview tutorial.

Introduction

You use a singleton to represent a special entity where there can be only one of it's kind. A singleton is not referenced by key. OData allows defining such a special entity that can be addressed directly by it's name from the service root.

OData singleton routing convention supports the following route templates:

Request Method Route Template
GET ~/{singleton}
GET ~/{singleton}/{cast}
PUT ~/{singleton}
PUT ~/{singleton}/{cast}
PATCH ~/{singleton}
PATCH ~/{singleton}/{cast}

Note: {cast} is a placeholder for the fully-qualified name for a derived type

To illustrate singleton routing convention, let's build a sample OData service.

Packages

Install the Microsoft.AspNetCore.OData 8.x Nuget package:

In the Visual Studio Package Manager Console:

Install-Package Microsoft.AspNetCore.OData

Prerequisites

Visual Studio 2022 with the ASP.NET and web development workload

Models

The following are the models for the OData service:

Company class

namespace SingletonRouting.Models
{
    public class Company
    {
        public int Id { get; set; }
        public string Name { get;set; }
    }
}

HoldingCompany class

namespace SingletonRouting.Models
{
    public class HoldingCompany : Company
    {
        public int NumberOfSubsidiaries { get; set; }
    }
}

Edm model and service configuration

The logic for building the Edm model and configuring the OData service is as follows:

// Program.cs
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.OData;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.OData.ModelBuilder;
using SingletonRouting.Models;

var builder = WebApplication.CreateBuilder(args);

var modelBuilder = new ODataConventionModelBuilder();
modelBuilder.Singleton<Company>("Company");

builder.Services.AddControllers()
    .AddOData(options =>
    {
        options.Select().EnableQueryFeatures(null).AddRouteComponents(
            routePrefix: "odata",
            model: modelBuilder.GetEdmModel());
    });

var app = builder.Build();

app.UseODataRouteDebug();
app.UseRouting();
app.UseEndpoints(endpoints => endpoints.MapControllers());

app.Run();

In the above block of code, we define a singleton named Company. Implicitly, Company and HoldingCompany get included in the Edm model as entity types.

Controller

The partial structure of the controller for the OData service is as follows:

using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.OData.Deltas;
using Microsoft.AspNetCore.OData.Query;
using Microsoft.AspNetCore.OData.Routing.Controllers;
using SingletonRouting.Models;

public class CompanyController : ODataController
{
    private static Company company;

    static CompanyController()
    {
        company = new HoldingCompany
        {
            Id = 13,
            Name = "Company LLC",
            NumberOfSubsidiaries = 7
        };
    }
}

Notice how we're making use of a static constructor that is called only once in the lifetime of the service. We are initializing the company static class member to an instance of the derived type HoldingCompany.

Routing conventions for singletons

In this section we cover the conventions for singleton routing and the controller actions (endpoints) required for the request to be routed successfully.

Retrieving a singleton

The route template for this request is GET ~/{singleton}.

The following request returns the Company singleton:

GET http://localhost:5000/odata/Company

For the above request to be conventionally-routed, a controller action named Get (or GetCompany) is expected:

public ActionResult<Company> Get()
{
    return company;
}

The following JSON payload shows the expected response:

{
    "@odata.context": "http://localhost:5000/odata/$metadata#Company/SingletonRouting.Models.HoldingCompany",
    "@odata.type": "#SingletonRouting.Models.HoldingCompany",
    "Id": 13,
    "Name": "Company LLC",
    "NumberOfSubsidiaries": 7
}

Retrieving a derived singleton

The route template for this request is GET ~/{singleton}/{cast}.

The following request returns the HoldingCompany derived singleton:

GET http://localhost:5000/odata/Company/SingletonRouting.Models.HoldingCompany

For the above request to be conventionally-routed, a controller action named GetFromHoldingCompany is expected:

public ActionResult<HoldingCompany> GetFromHoldingCompany()
{
    if (!(company is HoldingCompany holdingCompany))
    {
        return NotFound();
    }

    return holdingCompany;
}

The following JSON payload shows the expected response:

{
    "@odata.context": "http://localhost:5000/odata/$metadata#Company/SingletonRouting.Models.HoldingCompany",
    "Id": 13,
    "Name": "Company LLC",
    "NumberOfSubsidiaries": 7
}

Updating a singleton

The route template for this request is PUT ~/{singleton}

The following PUT request updates the Company singleton:

PUT http://localhost:5000/odata/Company

Here's the request body:

{
    "Id": 13,
    "Name": "Company LLP",
}

For the above request to be conventionally-routed, a controller action named Put (or PutCompany) is expected. The controller action should accept a single parameter of type Company decorated with FromBody attribute:

public ActionResult Put([FromBody] Company updated)
{
    company.Name = updated.Name;

    return Ok();
}

The response status code should be 200. Querying the updated entity should return the following:

{
    "@odata.context": "http://localhost:5000/odata/$metadata#Company/SingletonRouting.Models.HoldingCompany",
    "Id": 13,
    "Name": "Company LLP",
    "NumberOfSubsidiaries": 7
}

Updating a derived singleton

The route template for this request is PUT ~/{singleton}/{cast}

The following PUT request updates the HoldingCompany derived singleton:

PUT http://localhost:5000/odata/Company/SingletonRouting.Models.HoldingCompany

Here's the request body:

{
    "Id": 13,
    "Name": "Company LTD",
    "NumberOfSubsidiaries": 5
}

For the above request to be conventionally-routed, a controller action named PutFromHoldingCompany is expected. The controller action should accept a single parameter of type HoldingCompany decorated with FromBody attribute:

public ActionResult PutFromHoldingCompany([FromBody] HoldingCompany updated)
{
    if (!(company is HoldingCompany holdingCompany))
    {
        return NotFound();
    }

    holdingCompany.Name = updated.Name;
    holdingCompany.NumberOfSubsidiaries = updated.NumberOfSubsidiaries;

    return Ok();
}

The response status code should be 200. Querying the updated derived singleton should return the following:

{
    "@odata.context": "http://localhost:5000/odata/$metadata#Company/SingletonRouting.Models.HoldingCompany",
    "Id": 13,
    "Name": "Company LTD",
    "NumberOfSubsidiaries": 5
}

Patching a singleton

The route template for this request is PATCH ~/{singleton}

The following PATCH request patches the Company singleton:

PATCH http://localhost:5000/odata/Company

Here's the request body:

{
    "Name": "Company (PTY) LTD"
}

For the above request to be conventionally-routed, a controller action named Patch (or PatchCompany) is expected. The controller action should accept a single parameter of type Delta<Company> decorated with FromBody attribute:

public ActionResult Patch([FromBody] Delta<Company> delta)
{
    delta.Patch(company);

    return Ok();
}

The response status code should be 200. Querying the patched singleton should return the following:

{
    "@odata.context": "http://localhost:5000/odata/$metadata#Company/SingletonRouting.Models.HoldingCompany",
    "@odata.type": "#SingletonRouting.Models.HoldingCompany",
    "Id": 13,
    "Name": "Company (PTY) LTD",
    "NumberOfSubsidiaries": 3
}

Patching a derived singleton

The route template for this request is PATCH ~/{singleton}/{cast}

The following PATCH request patches the HoldingCompany derived singleton:

PATCH http://localhost:5000/odata/Company/SingletonRouting.Models.HoldingCompany

Here's the request body:

{
    "Name": "Company A/S",
    "NumberOfSubsidiaries": 3
}

For the above request to be conventionally-routed, a controller action named PatchFromHoldingCompany is expected. The controller action should accept a single parameter of type Delta<HoldingCompany> decorated with FromBody attribute:

public ActionResult PatchFromHoldingCompany([FromBody] Delta<HoldingCompany> delta)
{
    if (!(company is HoldingCompany holdingCompany))
    {
        return NotFound();
    }

    delta.Patch(holdingCompany);

    return Ok();
}

The response status code should be 200. Querying the patched derived singleton should return the following:

{
    "@odata.context": "http://localhost:5000/odata/$metadata#Company/SingletonRouting.Models.HoldingCompany",
    "Id": 13,
    "Name": "Company A/S",
    "NumberOfSubsidiaries": 3
}

Singleton routing endpoint mappings

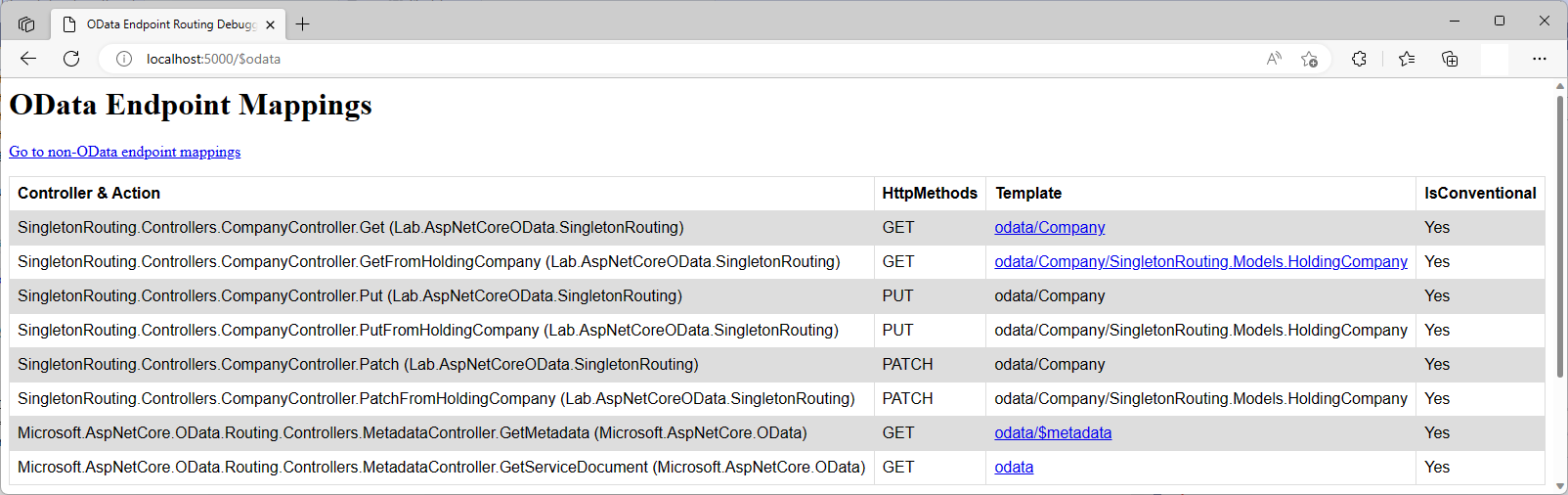

If you went through this tutorial and implemented the logic in an OData service, you can run the application and visit the $odata endpoint (http://localhost:5000/$odata) to view the endpoint mappings:

Screenshot of OData singleton routing endpoint mappings
