Shape.LockAspectRatio property (Project)

Gets or sets a value that indicates whether the shape retains its original proportions when you resize it; that is, whether the aspect ratio of the shape is locked. Read/write MsoTriState

Syntax

expression.LockAspectRatio

expression A variable that represents a Shape object.

Remarks

The LockAspectRatio value is msoTrue if the shape retains its original proportions when it is resized. If you can change the height and width of the shape independently, the value is msoFalse.

Example

The following example creates two triangles of the same size. The left triangle has the aspect ratio unlocked, and the right triangle has the aspect ratio locked. Figure 1 shows the result when each triangle is resized by the same amount.

Sub ResizeTriangles()
    Dim shapeReport As Report
    Dim reportName As String
    Dim triangle1 As shape
    Dim triangle2 As shape

    reportName = "Triangle resize report"
    Set shapeReport = ActiveProject.Reports.Add(reportName)

    With shapeReport.Shapes
        Set triangle1 = .AddShape(msoShapeIsoscelesTriangle, 10, 10, 100, 100)
        Set triangle2 = .AddShape(msoShapeIsoscelesTriangle, 150, 10, 100, 100)
    End With

    triangle1.Select
    triangle1.LockAspectRatio = msoFalse
    triangle1.height = 200

    triangle2.Select
    triangle2.LockAspectRatio = msoTrue
    triangle2.height = 200
End Sub

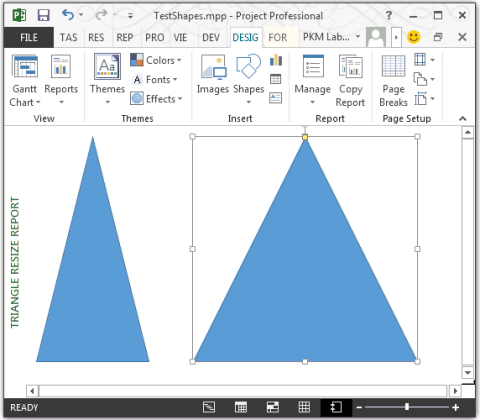

In Figure 1, the right shape with the locked aspect ratio is selected.

Figure 1. Resizing a shape when the aspect ratio is unlocked or locked

Resizing a shape with the aspect ratio unlocked

Property value

MSOTRISTATE

See also

Shape Object ShapeRange.LockAspectRatio Property MsoTriState
