Shape object (Project)

Represents an object in a Project report, such as a chart, report table, text box, freeform drawing, or picture.

Remarks

The Shape object is a member of the Shapes collection, which includes all of the shapes in the report.

Note

Macro recording for the Shape object is not implemented. That is, when you record a macro in Project and manually add a shape or edit shape elements, the steps for adding and manipulating the shape are not recorded.

There are three objects that represent shapes: the Shapes collection, which represents all the shapes on a document; the ShapeRange object, which represents a specified subset of the shapes on a document (for example, a ShapeRange object could represent shapes one and four on the document, or it could represent all the selected shapes on the document); and the Shape object, which represents a single shape on a document. If you want to work with several shapes at the same time or with shapes within the selection, use a ShapeRange collection.

Use Shapes(Index), where Index is the shape name or the index number, to return a single Shape object.

Example

In the following example, the TestTextShape macro creates a textbox shape, adds some text, and changes the shape style, fill, line, shadow, and reflection properties. The FlipShape macro flips the shape from top to bottom.

Sub TestTextShape()
    Dim theReport As Report
    Dim textShape As Shape
    Dim reportName As String

    reportName = "Simple scalar chart"

    Set theReport = ActiveProject.Reports(reportName)
    Set textShape = theReport.Shapes.AddTextbox(msoTextOrientationHorizontal, 30, 30, 300, 100)
    textShape.Name = "TestTextBox"

    textShape.TextFrame2.TextRange.Characters.Text = "This is a test. It's only a test. " _
        & "If it had been real information, there would be some real text here."
    textShape.TextFrame2.TextRange.Characters(1, 15).ParagraphFormat.FirstLineIndent = 0

    ' Set the font for the first 15 characters to dark blue bold.
    With textShape.TextFrame2.TextRange.Characters(1, 15).Font
        .Fill.Visible = msoTrue
        .Fill.ForeColor.ObjectThemeColor = msoThemeColorAccent5
        .Fill.Transparency = 0
        .Fill.Solid
        .Size = 14
        .Bold = msoTrue
    End With

    textShape.ShapeStyle = msoShapeStylePreset42

    With textShape.Fill
        .Visible = msoTrue
        .ForeColor.RGB = RGB(255, 255, 0)
        .Transparency = 0
        '.Solid
    End With

    With textShape.Line
        .Visible = msoTrue
        .ForeColor.ObjectThemeColor = msoThemeColorText1
        .ForeColor.TintAndShade = 0
        .ForeColor.Brightness = 0
        .Transparency = 0
    End With

    textShape.Shadow.Type = msoShadow22
    textShape.Reflection.Type = msoReflectionType3
End Sub

Sub FlipShape()
    Dim theReport As Report
    Dim theShape As Shape
    Dim reportName As String
    Dim shapeName As String

    reportName = "Simple scalar chart"
    shapeName = "TestTextBox"

    Set theShape = ActiveProject.Reports(reportName).Shapes(shapeName)

    theShape.Flip msoFlipVertical
    theShape.Select
End Sub

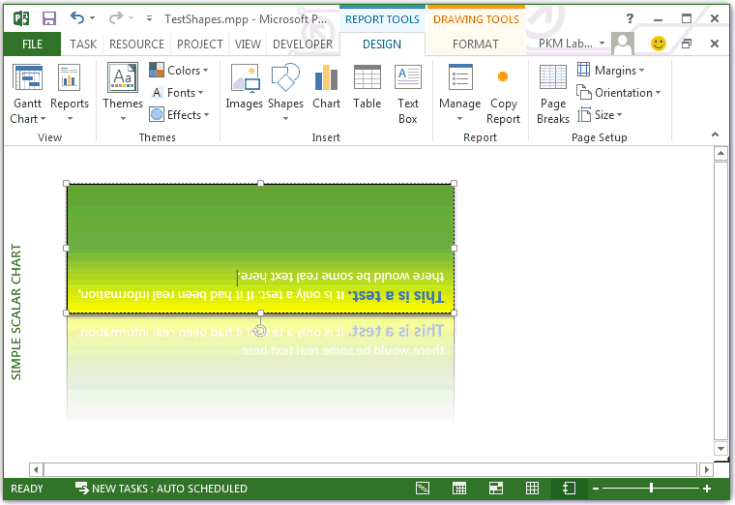

Figure 1 shows the result, where the shape is selected to make the ribbon FORMAT tab under DRAWING TOOLS available, although the active tab is DESIGN under REPORT TOOLS. If the shape were not selected, DRAWING TOOLS and the FORMAT tab would not be visible.

Figure 1. Testing the Shape object model

Testing the Shape object model

Methods

Properties

See also

Report Object Chart Object
