Create an app that uses mobile sensors

  • Article

Sensors enable you to add richer functionality into your apps by leveraging the capabilities of your phone. In this article, you'll learn about using sensors on your mobile device within Power Apps.

To do this, you'll be making a sample app with two screens. The first screen will display the current compass heading, latitude, longitude, altitude, and can scan NFC tags to obtain text information. The second screen will showcase how to display accelerometer data to produce the angle of the device along the X and Y axes.

To set up the scenario behind the first screen, imagine that you are building an app for an NFC-based scavenger hunt. Each participant will use the app to scan an NFC tag which will provide them with a compass heading, latitude, and longitude that will point them to their next destination. At that destination, the participant will then scan another tag and repeat the process until they reach the end of the hunt.

For the second screen, imagine needing a tool to roughly measure angles. When on the second screen, the participant will be able to place or hold their device on a surface, and get the angles on the X and Y axis of the device as well as view a visual representation of those angles.

Watch this video to learn how to build an app that uses mobile sensors:

Prerequisites

  • Any level of Power Apps license can be used for this app, as no data connections are being used.

  • A mobile device such as a mobile phone or tablet with GPS and accelerometer capabilities will be needed as most PCs might not have the necessary sensors.

  • An NFC capable device is needed for the NFC scanning feature. It's also assumed that the NFC tags to be scanned have been pre-configured to produce text values in the following example format:

    "<b>Heading: </b> 80 degrees <br>
<b>Latitude: </b> 44.4604788 <br>
<b>Longitude: </b> -110.82813759"

    This will provide the text in an HTML-friendly format for the app. The setup of the NFC tags is beyond the scope of this article, and the NFC elements can be ignored if needed; the primary focus is using the mobile sensors in Power Apps.

Add header and HTML text for the device sensor outputs

Header label

With an app open for editing in Power Apps, add a Text label to the screen by dragging and dropping it from the Insert pane. Position it at the top-left corner of the screen, and modify the following properties in the Properties pane:

Property Value
Text "Scavenger Hunt"
Font size 24
Font weight FontWeight.Semibold
Text alignment Align.Center
Width Parent.Width

Then in the Advanced pane, modify the following properties:

Property Value
Color RGBA(255, 255, 255, 1)
Fill RGBA(56, 96, 178, 1)

This will provide a header for the screen.

HTML text for the device sensor outputs

Next, add an HTML text control. This will be used to display all the device sensor outputs in one place. Use this code in the HtmlText property:

"<b><u>Current Location</u></b><br>
<br>
<b>Compass Heading: </b>" & Round(Compass.Heading, 2) & Char(0176) &
"<br>
<br>
<b>Lat: </b>" & Location.Latitude & "<br>
<b>Long: </b>" & Location.Longitude & "<br>
<b>Alt: </b>" & Round(Location.Altitude, 2) & " m"

Change the following properties in the Advanced pane:

Property Value
Size 21
BorderStyle BorderStyle.Solid
BorderThickness 2
Width 560
Height 576
PaddingTop 16
PaddingRight 16
PaddingBottom 16
PaddingLeft 16

If you examine what was put in the HtmlText, you may notice that there are two sensor types that are being used.

First is the Compass sensor, which is using the Heading property to provide the compass heading from the device.

Second is the Location sensor, which provides the Latitude, Longitude, and Altitude. There are two considerations about Location. First, if you use just Location without the dot operator and property, you'll get a record that has fields for Latitude, Longitude, and Altitude. Second, the Altitude property is in meters by default. If you would like to convert it to feet, replace the following formula:

Use meters:

Round(Location.Altitude, 2) & " m"

Use feet:

Round(Location.Altitude \* 3.2808, 2) & " ft"

Note

Many sensor properties might not work correctly if you preview the app inside Power Apps Studio. To work with sensor properties for testing, prefer to use a mobile phone instead.

Now position the HTML text control near the lower half of the screen.

Add Button for the NFC scan and HTML text control

NFC scan button

Add a button to the app, positioning in below the HTML text control that you added in the last step, and change the following properties in the Advanced pane:

Property Value
OnSelect ClearCollect(colNFCScan, ReadNFC())
Text "Scan NFC Tag"

The code in the OnSelect property is utilizing the ReadNFC() function, which activates the NFC reader. It then stores what is read from the NFC tag in a collection called colNFCScan. This collection will have four fields: RTD, Text, TNF, and URI. While a full explanation of these fields is beyond the scope of this article, some explanation may be helpful. TNF stands for Type Name Format and is used to define the structure of the Record Type Definition, or RTD, which in turn defines the type of record contained in the Text and/or URI fields. URI stands for Uniform Resource Identifier, which is essentially the address of a resource. For the NFC tags being used in this example, in addition to the Text field containing the example text from the introduction of this topic, they would contain a TNF value of 1, an RTD value of T, and a blank URI value.

Add HTML text control to display the NFC scan information

Add a second HTML text control and use the following formula in the HTMLText property:

"<b><u>Next Destination</u></b><br>
<br>" &
First(colNFCScan).Text

Change the following properties in the Advanced pane:

Property Value
Size 21
BorderStyle BorderStyle.Solid
BorderThickness 2
Width 560
Height 248
PaddingTop 16
PaddingRight 16
PaddingBottom 16
PaddingLeft 16

Without any NFC data present, the control will display Next Destination. When an NFC tag is scanned, it'll display Next Destination, and then the data from the Text field in the data collected from the scan.

Assuming the data for the NFC tags has been configured as described in the introduction, the user will see the next compass heading, latitude, and longitude values for the next scavenger hunt location after scanning one of those tags.

Compass heading latitude and longitude values

Test the app

Save and publish the app. On a mobile device with the necessary sensors, open the app and observe the compass heading, latitude, longitude, and altitude values. Try walking around while turning in various directions to see changes in the various sensor readings.

Try walking around while turning in various directions

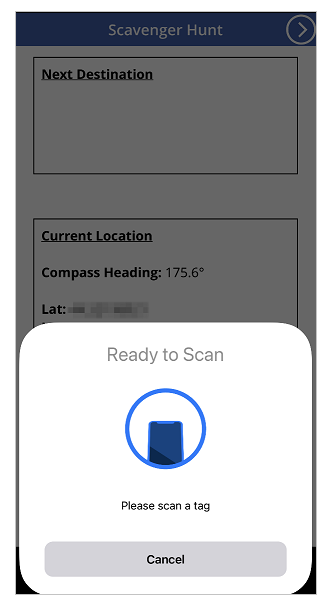

Press the Scan NFC Tag button to observe the NFC reader control. If you have an NFC tag that can produce a Text value, scan the tag to observe the text in the app. If not, select Cancel.

Scan NFC Tag

Add and configure second screen

Add a new Blank screen for the angle measurement portion of the app.

After adding the screen, go back to the first screen and add a Next Arrow icon from + Insert > Icons > choose the Next Arrow icon. Position it in the top-right corner of the screen, and change the following properties in the Advanced pane:

Property Value
OnSelect Navigate(Screen2)
Color RGBA(255, 255, 255, 1)

If you have renamed the second screen that was just added, substitute that name for Screen2 in the Navigate function.

Preview the app, selecting the icon that was just added to verify that it navigates you to the blank screen that was just added.

Add configuration for X and Y angles

Add a Text label to the screen by dragging and dropping it from the Insert pane. Position it at the top-left corner of the screen and modify the following properties in the Properties pane:

Property Value
Text "2 Axis Level"
Font size 24
Font weight FontWeight.Semibold
Text alignment Align.Center
Width Parent.Width

Then in the Advanced pane, modify the following properties:

Property Value
Color RGBA(255, 255, 255, 1)
Fill RGBA(56, 96, 178, 1)

This will provide a header for the second screen.

Next, add a Back Arrow icon from + Insert > Icons > choose the Back Arrow icon. Position it in the top-left corner of the screen and change the following properties in the Advanced pane:

Property Value
OnSelect Navigate(Screen1)
Color RGBA(255, 255, 255, 1)

If you've renamed the first screen that was just added, substitute that name for Screen1 in the Navigate function.

Finally, add an HTML text control. This will be used to display all the device sensor outputs in one place. Use the following formula in the HTML Text property:

"<b><u>Angles:</u></b><br>
<br>
<table width='100%'>
<tr>
<td width='50%'><b>X: </b>" & Abs(Round(Acceleration.X * (90 / 9.81),
0)) & Char(0176) & "</td>
<td width='50%'><b>Y: </b>" & Abs(Round(Acceleration.Y * (90 / 9.81),
0)) & Char(0176) & "</td>
</tr>
</table>"

Change the following properties in the Advanced tab:

Property Value
Size 21
BorderStyle BorderStyle.Solid
BorderThickness 2
Width 560
Height 168
PaddingTop 16
PaddingRight 16
PaddingBottom 16
PaddingLeft 16

Position this control near the top of the app screen.

If you examine what was put in the HtmlText, you may notice that it is using the Acceleration sensor, with X and Y properties. There is also a Z property that we are not using in this scenario.

This sensor detects gravitational forces on the device over three planes. Using a mobile phone as an example, imagine a line extending out of the sides of the phone. This would be the X plane. Lifting the right side of the phone will produce a positive value and lifting the left side will produce a negative value. A line extending out of the top and bottom of the phone would represent the Y plane. Lifting the top of the phone will produce a positive value and lifting the bottom will produce a negative value. Finally, a line coming out of the screen and back of the phone would represent the Z plane. Causing the screen to face upwards will produce a positive value and facing it downward will result in a negative value.

The accelerometer will measure forces acting on the device both in motion, such as if you dropped the device, and at rest, such as tilting the device on one or more of the axes described earlier. At rest, the theoretical values should be between 0 and +/- 9.81 m/s2, with 0 indicating that the relative axis is parallel to the Earth with no gravity acting on the sensor and a reading of 9.81 indicating that the relative axis is perpendicular to the Earth and the full force of gravity is acting on the sensor.

Looking at the code in the HTML text control you just added, notice the following section:

Abs(Round(Acceleration.X * (90 / 9.81), 0))

In this formula, from inside-out, first, the Acceleration on the X plane is being multiplied by (90 / 9.81). This is using the theoretical maximum at-rest value to convert the sensor reading into degrees. The value of 90 is present because at the maximum theoretical value, the device would be perpendicular to the Earth on that plane, giving a measure of 90 degrees.

That value in degrees is then rounded to zero decimal places to provide a whole number degree value. Last, the absolute value of that rounded number is calculated to give a positive reading. This is so it will not matter if the angle is measured from one side or another.

Note

The values shared above are approximates, and don't represent exact measurement.

Add the level visuals

In this step, we're going to use some controls in unconventional ways to achieve a visual goal.

Circular bubble level-like visual

To begin, add a Button control to the screen, renaming it to btnCircleLevel and change the following properties in the Advanced pane:

Property Value
Text ""
BorderColor RGBA(56, 96, 178, 1)
FocusedBorderThickness 2
Fill Transparent
DisabledFill Self.Fill
X (Parent.Width - Self.Width) / 2
Y (Parent.Height - Self.Height) / 2
Width 400
Height Self.Width

The result of these changes should produce a circular button in the center of the screen that cannot be pressed due to being disabled.

Next, add a Circle shape, set it's Border Radius to 400 and change the following properties in the Advanced pane:

Property Value
FocusedBorderThickness 0
X (Parent.Width - Self.Width) / 2 + (Round(Acceleration.X / 9.81 * 90, 0) / 90 * btnCircleLevel.Width / 2)
Y (Parent.Height - Self.Height) / 2 - (Round(Acceleration.Y / 9.81 * 90, 0) / 90 * btnCircleLevel.Width / 2)
Width 42
Height Self.Width
Width 400
Height Self.Width

The X and Y properties allow the Circle shape to move about the center of the app screen, relative change in the Acceleration sensor values but contained within the circular area of btnCircleLevel.

X and Y Axis bubble level-like visuals

Add a Slider control to the app, rename it to sldXValue, and change the following properties in the Advanced pane:

Property Value
Min -90
Max 90
Default Round(Acceleration.X * (90 / 9.81), 0)
ValueFill Self.RailFill
X (Parent.Width - Self.Width) / 2
Y btnCircleLevel.Y + btnCircleLevel.Height + 30
Width btnCircleLevel.Width
Height 70

This Slider control will display the angle similar to how a bubble level does: the Handle will move towards the raised side of the device, similar to the air bubble in a bubble level.

Next, copy btnCircleLevel by selecting it, pressing Ctrl + C and then Ctrl + V. Rename the control to btnXValueOverlay and change the following properties in the Advanced pane:

Property Value
X sldXValue.X - sldXValue.HandleSize / 2
Y sldXValue.Y
Width sldXValue.Width + sldXValue.HandleSize
Height sldXValue.Height

These changes will position it over the sldXValue control, preventing the user from changing its value and providing a visual border.

Copy and paste sldXValue, using the same method used to copy btnCircleLevel. Rename it to sldYValue and change the following properties:

Property Value
Layout Layout.Vertical
X btnCircleLevel.X - Self.Width - 30
Y (Parent.Height - Self.Height) / 2
Width sldXValue.Height
Height sldXValue.Width

Copy and paste btnXValueOverlay, renaming it to btnYValueOverlay, changing the following properties:

Property Value
X sldYValue.X
Y sldYValue.Y - sldYValue.HandleSize / 2
Width sldYValue.Width
Height sldYValue.Height + sldYValue.HandleSize

This completes the bubble level-like visuals.

Test the level app

Test the app

Save and publish the app. On a mobile device with the necessary sensors, open the app and navigate to screen with the bubble level visuals. Tilt the device from left to right, then up and down, and finally in all directions, noting the changes in angle properties as well as the changes in the visuals. Find an angled surface to place the device on and again note the angles and visuals.
