Cryptography actions

Cryptography actions enable you to encrypt and decrypt plain text and text from files providing a key and an encoding format.

The Encrypt text with AES action encrypts a text using the AES algorithm and a user-specified encryption key. You can provide the encryption key directly or through a variable.

To encrypt the text of a file directly, use the Encrypt from file with AES action. This action works similarly to the Encrypt text with AES action but requires a source file instead of a text value.

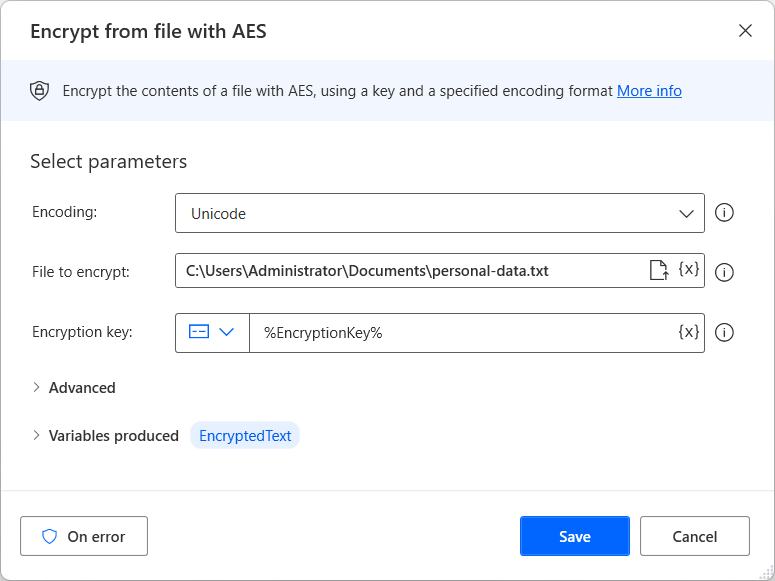

Screenshot of the Encrypt from file with AES action.

To decrypt a text, use the Decrypt text with AES, and enter the encrypted text and the encryption key previously used to encrypt it. To decrypt and store a text in a file, deploy the Decrypt to file with AES and specify a destination path.

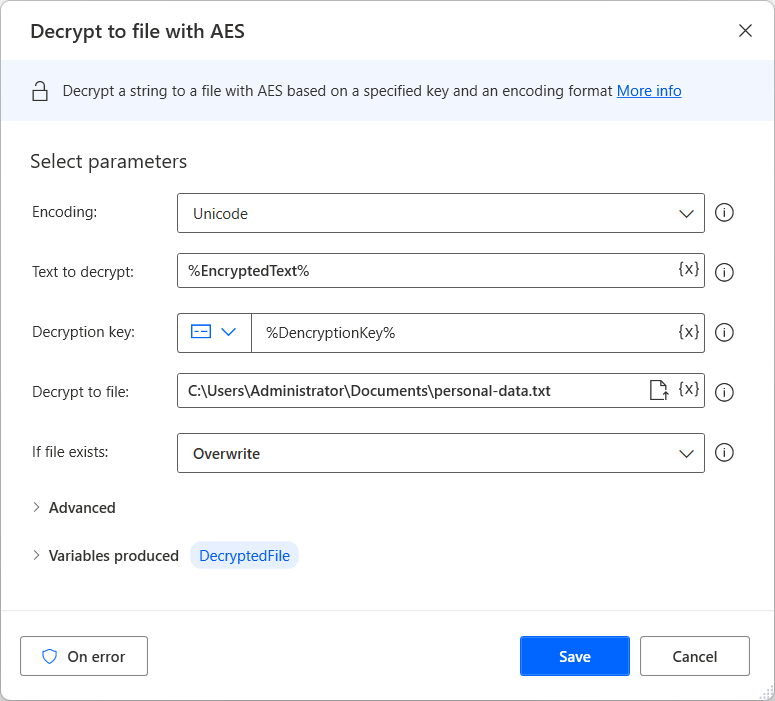

Screenshot of the Decrypt to file with AES action.

Apart from encryption and decryption, the Cryptography group of actions provides actions to hash values with and without a key. Like the encryption actions, you can hash values from files using the Hash from file and Hash from file with key actions.

Screenshot of the Hash from file with key action.

Important

Passwords entered in designated fields only work on the machine where they were initially set. This is due to the machine-specific encryption used for direct password inputs. If the flow is opened on a different machine, these passwords will not be valid and will need to be re-entered.

Encrypt text with AES

Encrypt a string with AES, using a key and a specified encoding format.

Input parameters

Argument Optional Accepts Default Value Description
Encoding N/A System default, ASCII, Unicode, Big-endian Unicode, UTF-8 Unicode The encoding of the text to encrypt
Text to encrypt No Text value The text to encrypt
Encryption key No Direct encrypted input or Text value The encryption key to use
Padding N/A None, PKCS7, Zeros, ANSIX923, ISO10126 PKCS7 The padding to use for the selected encryption algorithm
Key size N/A 128 bits, 192 bits, 256 bits 256 bits The size of the key in bits to use for the encryption
Use salt N/A Boolean value False Specifies whether to use salt for encryption. When this option is enabled, the randomly generated salt becomes an output in the form of a base64 string.
Use initialization vector N/A Boolean value False Specifies whether to use an initialization vector. When this option is enabled, the randomly generated initialization vector becomes an output in the form of a base64 string

Variables produced

Argument Type Description
EncryptedText Text value The encrypted text for later processing
Salt Text value The randomly generated salt value for later processing
InitializationVector Text value The randomly generated initialization vector value for later processing

Exceptions

Exception Description
Failed to encrypt text Indicates that an error occurred during encryption

Decrypt text with AES

Decrypt a string with AES based on a specified key and an encoding format.

Input parameters

Argument Optional Accepts Default Value Description
Encoding N/A System default, ASCII, Unicode, Big-endian Unicode, UTF-8 Unicode The encoding for the decrypted text
Text to decrypt No Text value The text to decrypt in the form of a base64 string
Decryption key No Direct encrypted input or Text value The decryption key to use
Padding N/A None, PKCS7, Zeros, ANSIX923, ISO10126 PKCS7 The padding to use for the selected decryption algorithm
Key size N/A 128 bits, 192 bits, 256 bits 256 bits The size of the key in bits to use for the decryption
Use salt N/A Boolean value False Specifies whether to use salt for the decryption
Salt No Text value The salt to use for decryption in the form of a base64 string
Use initialization vector N/A Boolean value False Specifies whether to use an initialization vector
Initialization vector No Text value The initialization vector to use for decryption in the form of a base64 string

Variables produced

Argument Type Description
DecryptedText Text value The decrypted text for later processing

Exceptions

Exception Description
Failed to decrypt text Indicates that an error occurred during decryption

Encrypt from file with AES

Encrypt the contents of a file with AES, using a key and a specified encoding format.

Input parameters

Argument Optional Accepts Default Value Description
Encoding N/A System default, ASCII, Unicode, Big-endian Unicode, UTF-8 Unicode The encoding of the file to encrypt
File to encrypt No File The text file that stores the contents to encrypt
Encryption key No Direct encrypted input or Text value The encryption key to use
Padding N/A None, PKCS7, Zeros, ANSIX923, ISO10126 PKCS7 The padding to use for the selected encryption algorithm
Key size N/A 128 bits, 192 bits, 256 bits 256 bits The size of the key in bits to use for the encryption
Use salt N/A Boolean value False Specifies whether to use salt for encryption. When this option is enabled, the randomly generated salt becomes an output in the form of a base64 string.
Use initialization vector N/A Boolean value False Specifies whether to use an initialization vector. When this option is enabled, the randomly generated initialization vector becomes an output in the form of a base64 string

Variables produced

Argument Type Description
EncryptedText Text value The text of the encrypted file for later processing
Salt Text value The randomly generated salt value for later processing
InitializationVector Text value The randomly generated initialization vector value for later processing

Exceptions

Exception Description
File not found Indicates that the file doesn't exist
Failed to encrypt the contents of the file Indicates that an error occurred while encrypting the contents of the file

Decrypt to file with AES

Decrypt a string to a file with AES based on a specified key and an encoding format.

Input parameters

Argument Optional Accepts Default Value Description
Encoding N/A System default, ASCII, Unicode, Big-endian Unicode, UTF-8 Unicode The encoding of the text to decrypt
Text to decrypt No Text value The text to decrypt in the form of a base64 string
Decryption key No Direct encrypted input or Text value The decryption key to use
Decrypt to file No File The file to save the decrypted text into
If file exists N/A Overwrite, Don't decrypt to file, Add sequential suffix Add sequential suffix Specifies what to do in case the destination file already exists
Padding N/A None, PKCS7, Zeros, ANSIX923, ISO10126 PKCS7 The padding to use for the selected decryption algorithm
Key size N/A 128 bits, 192 bits, 256 bits 256 bits The size of the key in bits to use for decryption
Use salt N/A Boolean value False Specifies whether to use salt for decryption
Salt No Text value The salt to use for decryption in the form of a base64 string
Use initialization vector N/A Boolean value False Specifies whether to use an initialization vector. Enter the initialization vector in the form of a base64 string
Initialization vector No Text value The initialization vector to use for decryption

Variables produced

Argument Type Description
DecryptedFile File The decrypted file for later processing

Exceptions

Exception Description
Failed to decrypt and store the contents to a file Indicates that an error occurred while decrypting or storing the contents to the specified file

Hash text

Hash a string, using a specified algorithm and an encoding format.

Input parameters

Argument Optional Accepts Default Value Description
Hash algorithm N/A SHA256, SHA384, SHA512 SHA256 The algorithm to use for hashing
Encoding N/A System default, ASCII, Unicode, Big-endian Unicode, UTF-8 Unicode The encoding of the text to hash
Text to hash No Text value The text to hash

Variables produced

Argument Type Description
HashedText Text value The hashed text for later processing

Exceptions

Exception Description
Failed to hash text Indicates that an error occurred during hashing

Hash from file

Hash the contents of a file, using a specified algorithm and an encoding format.

Input parameters

Argument Optional Accepts Default Value Description
Hash algorithm N/A SHA256, SHA384, SHA512 SHA256 The algorithm to use for hashing
Encoding N/A System default, ASCII, Unicode, Big-endian Unicode, UTF-8 Unicode The encoding of the file to hash
File to hash No File The file to hash the contents of

Variables produced

Argument Type Description
HashedText Text value The hashed text for later processing

Exceptions

Exception Description
File not found Indicates that the file doesn't exist
Failed to hash the file Indicates that an error occurred while hashing the contents of the file

Hash text with key

Hash a string with a key, using a specified algorithm and an encoding format.

Input parameters

Argument Optional Accepts Default Value Description
Hash algorithm N/A HMAC SHA256, HMAC SHA384, HMAC SHA512 HMAC SHA256 The algorithm to use for hashing
Encoding N/A System default, ASCII, Unicode, Big-endian Unicode, UTF-8 Unicode The encoding of the text to hash
Text to hash No Text value The text to hash
Hash key No Direct encrypted input or Text value The key to hash the text with

Variables produced

Argument Type Description
HashedText Text value The hashed text for later processing

Exceptions

Exception Description
Failed to hash text with key Indicates that an error occurred during hashing with key

Hash from file with key

Hash the contents of a file with a key, using a specified algorithm and an encoding format.

Input parameters

Argument Optional Accepts Default Value Description
Hash algorithm N/A HMAC SHA256, HMAC SHA384, HMAC SHA512 HMAC SHA256 The algorithm to use for hashing
Encoding N/A System default, ASCII, Unicode, Big-endian Unicode, UTF-8 Unicode The encoding of the file to hash
File to hash No File The file to hash the contents of
Hash key No Direct encrypted input or Text value The hash key to hash the text with

Variables produced

Argument Type Description
HashedText Text value The hashed text for later processing

Exceptions

Exception Description
File not found Indicates that the file doesn't exist
Failed to hash the file with key Indicates that an error occurred while hashing the contents of the file with the specified key
