Getting started with Excel actions

After setting an Excel instance, either with the Launch Excel or the Attach to running Excel action, you may read from or write to an Excel file.

To read and extract data from an Excel document, use the Read from Excel worksheet action. Retrieve the value of a single cell, or a table of data.

In the following example, to read the cells A1 through E5 as seen in the selection below:

Screenshot of some Excel sample data.

The action has to have the following configuration:

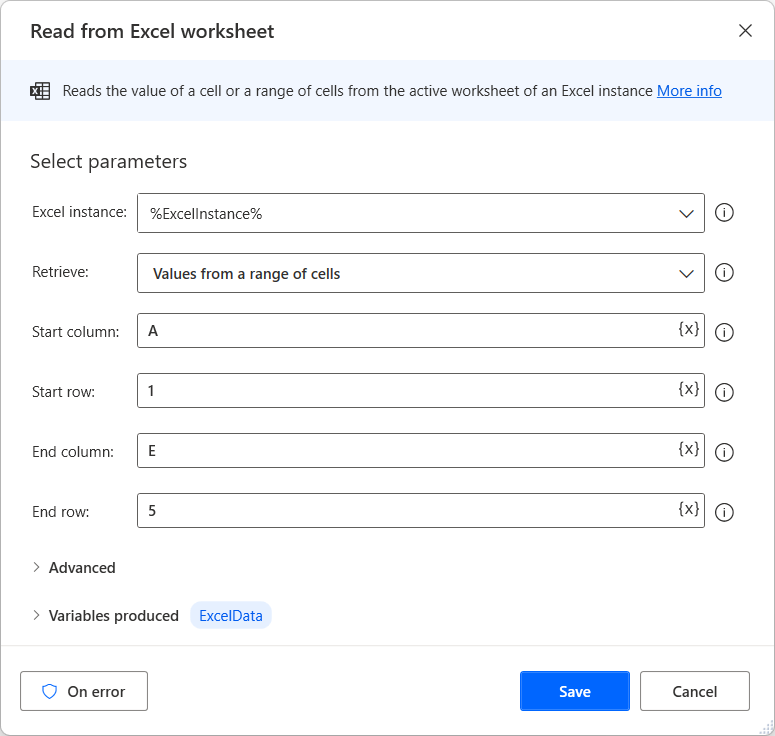

Screenshot of the Read from Excel worksheet action.

When the flow runs, the action stores the data in a datatable type variable:

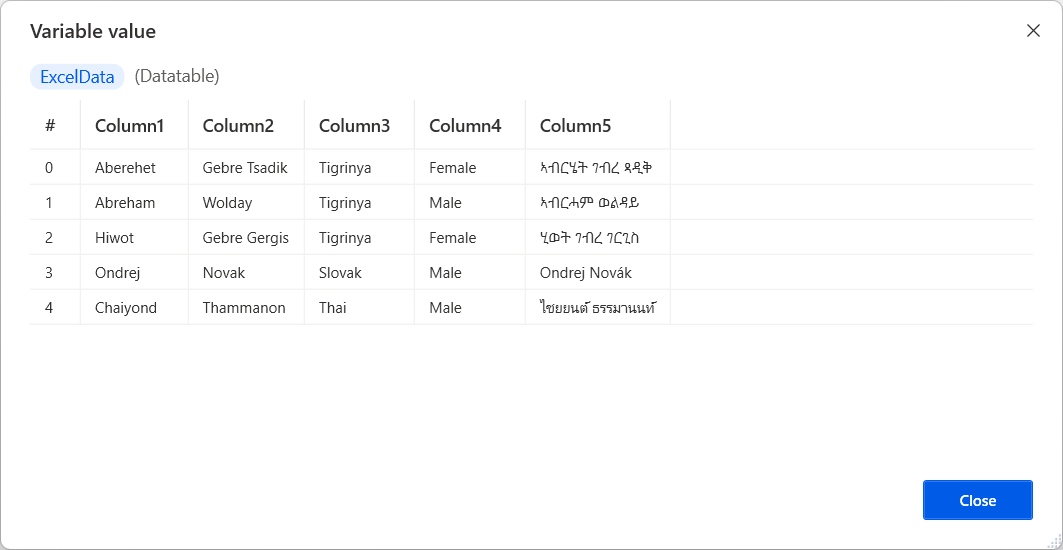

Screenshot of the a datatable displayed in the value viewer.

Write data from the flow to Excel by using the Write to Excel worksheet action. This action can write any static data or variable to a specified cell, or multiple cells in an Excel worksheet.

In the following example, the action writes the above mentioned datatable variable to cell A51.

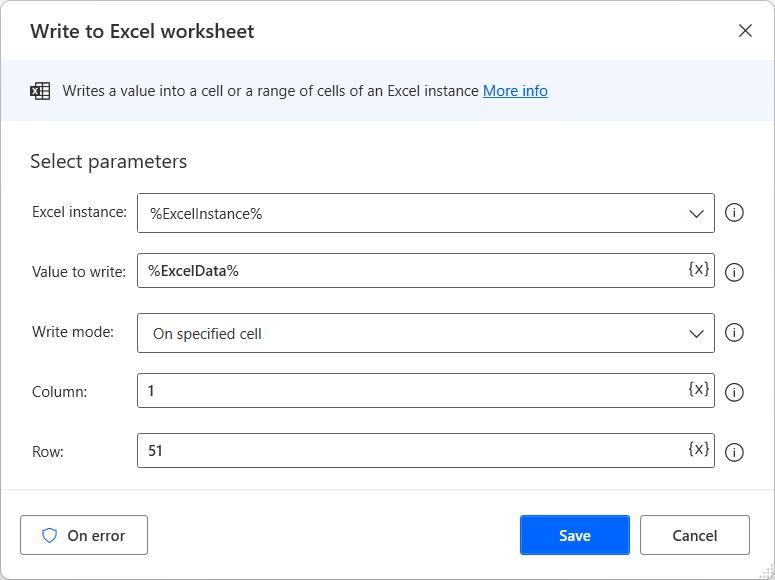

Screenshot of the Write to Excel worksheet action.

Each cell in the workbook is populated with its corresponding cell in the datatable. The result is that the A51 to E55 cell range is filled with the contents of the datatable.

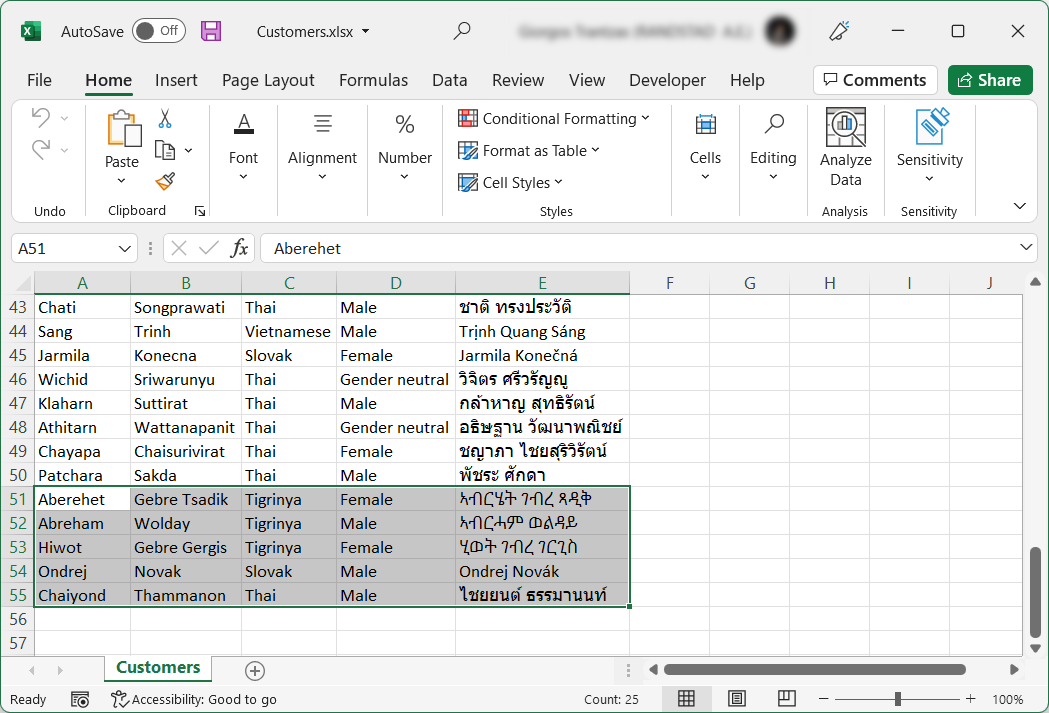

Screenshot of written Excel data.

Excel actions

Advanced

Advanced Excel automation actions

Resize columns/rows in Excel worksheet

Resizes a selection of columns or rows in the active worksheet of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance Specify the Excel instance. This variable must have been previously specified in a Launch Excel action
Resize target N/A Column, Row Column Specify whether to resize columns or rows
Selection range N/A Single, Range, All available Single Specify whether to select a single column/row, a range of columns/rows or all the available columns/rows in the active worksheet
Column No Text value The column's index number or letter. Column numbering starts from index 1
Start column No Text value The index or letter of the first column. Column numbering starts from index 1
End column No Text value The index or letter of the last column. Column numbering starts from index 1
Row No Numeric value The row's index number. The numbering starts from 1
Start row No Numeric value The index or the first row. The numbering starts from 1
End row No Numeric value The index or the last row. The numbering starts from 1
Resize type N/A Autofit, Custom size Autofit Specify whether to autofit selected columns/rows or set a custom size
Width No Numeric value The width of the selected columns
Height No Numeric value The height of the selected rows
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to resize columns/rows Indicates a problem while resizing columns/rows

Run Excel Macro

Runs a specified macro on the document of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Macro No Text value The macro to run. The text should consist of the name of the macro, followed by any arguments (optional), all separated by semicolons
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to run macro Indicates a problem running the specified macro

Get active Excel worksheet

Retrieves an Excel document's active worksheet

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Variables produced
Argument Type Description
SheetName Text value The name of the active worksheet
SheetIndex Numeric value The index of the active worksheet
Exceptions
Exception Description
Failed to retrieve active worksheet Indicates a problem retrieving the active worksheet

Get all Excel worksheets

Retrieves all worksheet names of an Excel document

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance Specify the Excel instance. This variable must have been previously specified in a Launch Excel action
Variables produced
Argument Type Description
SheetNames List of Text values The names of all worksheets
Exceptions
Exception Description
Failed to retrieve all worksheet names Indicates a problem retrieving the names of the Excel worksheet

Delete Excel worksheet

Deletes a specific worksheet from an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Delete worksheet with N/A Index, Name Name Whether to find the worksheet by name or index
Worksheet index No Numeric value The Index number of the worksheet to delete. The numbering starts from 1, meaning that the index of the fist worksheet is 1, the second one is 2 etc.
Worksheet name No Text value The name of the worksheet to delete
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Can't find worksheet Indicates that a worksheet with the specified name could not be found
Failed to delete worksheet Indicates a problem deleting the specified worksheet

Rename Excel worksheet

Renames a specific worksheet of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance Specify the Excel instance. This variable must have been previously specified in a Launch Excel action
Rename worksheet with N/A Index, Name Name Specify whether to find the worksheet by name or index
Worksheet index No Numeric value The index of the worksheet to rename. The numbering starts from 1, meaning that the index of the fist worksheet is 1, of the second is 2 etc.
Worksheet name No Text value The name of the worksheet to rename
Worksheet new name No Text value The new name of the worksheet
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Can't find worksheet Indicates that a worksheet with the specified name could not be found
Failed to rename worksheet Indicates a problem renaming the specified worksheet

Activate Cell in Excel Worksheet

Activate a cell in the active worksheet of an Excel instance, by providing column, row and offset

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance Specify the Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Activate N/A Absolutely specified cell, Relatively specified cell Absolutely specified cell Select whether to specify the cell to activate absolutely, or relatively, by using an offset distance being the number of cells between the currently activated reference cell and the actual cell activate
Column No Text value The numeric value or letter of the cell column
Direction N/A Left, Right, Above, Below Left Select offset direction. Select where to look for the cell to activate based on the position of the currently active cell
Offset from active cell No Numeric value The distance in cells between the currently active cell and the desired cell. The numbering starts from 0
Row No Numeric value The numeric value of the cell row. The numbering starts from 1
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to activate cell Indicates a problem activating an Excel cell

Select cells in Excel worksheet

Selects a range of cells in the active worksheet of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Select N/A Absolutely specified cell, Relatively specified cell Absolutely specified cell Specify whether to select an explicitly specified range of cells or a range of cells relatively to the currently active cell
X Axis Direction N/A Left, Right Left The X-axis offset direction. Where to look along the horizontal axis, based on currently activated cell's position
Start column No Text value The index or letter of the first column
X Offset No Numeric value The X-axis offset
Start row No Numeric value The first row number. The numbering starts from 1
End column No Text value The index or letter of the last column
Y Axis Direction N/A Above, Below Above The Y-axis offset direction. Where to look along the vertical axis, based on the position of the currently active cell
End row No Numeric value The last row number. The numbering starts from 1
Y Offset No Numeric value The Y-axis offset
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to select cells Indicates a problem selecting the specified cells

Get selected cell range from Excel worksheet

Retrieve the selected range of cells in a structure consisting of first column, first row, last column and last row

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Variables produced
Argument Type Description
FirstColumnIndex Numeric value The numeric value of the range's first column
FirstRowIndex Numeric value The numeric value of the range's first row
LastColumnIndex Numeric value The numeric value of the range's last column
LastRowIndex Numeric value The numeric value of the range's last row
Exceptions
Exception Description
Failed to retrieve the selected range of cells Indicates a problem retrieving the selected range of cells

Copy cells from Excel worksheet

Copies a range of cells from the active worksheet of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Copy mode N/A Single Cell's Values, Values from a Range of Cells, Values from Selection Single Cell's Values Specify whether to copy a single cell, a range of cells or the current selection of cells
Start column No Text value The index or letter of the first column
Start row No Numeric value The index of the first row
End column No Text value The index or letter of the last column
End row No Numeric value The index of the last row
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to copy cells Indicates a problem copying the cells from the Excel document

Paste cells to Excel worksheet

Pastes a range of cells to the active worksheet of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance Specify the Excel instance. This variable must have been previously specified in a Launch Excel action
Paste mode N/A On specified cell, On currently active cell On specified cell Specify whether to paste on a specified cell or the currently active cell
Column No Text value The index or letter of the cell column
Row No Numeric value The row number
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to paste cells Indicates a problem pasting the specified cells

Delete from Excel worksheet

Deletes a cell or a range of cells from the active worksheet of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Retrieve N/A The value of a single cell, Values from a range of cells The value of a single cell Whether to delete a single cell or a table from a range of cells
Start column No Text value The cell column (single cell's value) or first column as a numeric value or a letter
Start row No Numeric value The cell row (single cell's value) or first row number
End column No Text value The last column as a numeric value or a letter
End row No Numeric value The last row number
Shift direction N/A Left, Up Left The shift direction
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to delete cell(s) Indicates a problem deleting the specified cell(s)

Insert row to Excel worksheet

Inserts a row above a selected row of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Row index No Numeric value The index of the row to add a new row above. The numbering starts from 1
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Can't find row Indicates that a row with the specified index could not be found
Failed to insert row Indicates a problem inserting a row at the specified Excel instance

Delete row from Excel worksheet

Deletes a selected row from an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance. This variable must have been previously specified in a Launch Excel action
Delete row No Numeric value The Index number of the row to delete. The numbering starts from 1
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Can't find row Indicates that a row with the specified index could not be found
Failed to delete row Indicates a problem deleting the specified row

Insert column to Excel worksheet

Inserts a column to the left of a selected column of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Column No Text value The column's index number or letter. A new column will appear on the left side of the column indicated
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Can't find column Indicates that a column with the specified name could not be found
Failed to insert column Indicates a problem inserting a column at the specified Excel instance

Delete column from Excel worksheet

Deletes a selected column from an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Delete column No Text value The index number or letter of the column to delete
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Can't find column Indicates that a column with the specified name could not be found
Failed to delete column Indicates a problem deleting the specified column

Find and replace cells in Excel worksheet

Finds text and replaces it with another in the active worksheet of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Search mode N/A Find, Find and replace Find The mode to search with
All matches N/A Boolean value False Whether to find/replace text in all the matching cells found or in the first matching cell only
Text to find No Text value The text to find in the worksheet
Text to replace with No Text value The text used to replace the matching cells
Match case N/A Boolean value False Whether to search for case-sensitive data
Match entire cell contents N/A Boolean value False Whether to search for cells that contain just the specified text
Search by N/A Rows, Columns Rows The order in which to search for the text
Variables produced
Argument Type Description
FoundColumnIndex Numeric value The index of the column found
FoundRowIndex Numeric value The index of the row found
Cells Datatable The list of cells matching the criteria
Exceptions
Exception Description
Failed to find and/or replace text Indicates a problem finding and/or replacing the specified text

Get first free row on column from Excel worksheet

Retrieve the first free row, given the column of the active worksheet

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance Specify the Excel instance. This variable must have been previously specified in a Launch Excel action
Column No Text value The index or letter that identifies the column. Column numbering starts from index 1
Variables produced
Argument Type Description
FirstFreeRowOnColumn Numeric value The numeric value of the given column's first fully empty row
Exceptions
Exception Description
Failed to retrieve first free row Indicates a problem retrieving the first free row of an Excel instance

Launch Excel

Launches a new Excel instance or opens an Excel document

Input parameters
Argument Optional Accepts Default Value Description
Launch Excel N/A with a blank document, and open the following document with a blank document Specify whether to open a New Excel document, or an existing one
Document path No File The full path of the existing Excel document to open
Make instance visible N/A Boolean value True Specify whether to make the Excel window visible or hide it
Nest under a new Excel process N/A Boolean value False Specify whether the Excel spreadsheet should be under a unique Excel process. Macros and add-ins from other spreadsheets won't be accesible.
Password Yes Direct encrypted input or Text value The password on the Excel document, if it is password protected
Open as ReadOnly N/A Boolean value False Specify whether to open the stored document in read-only mode or not
Load add-ins and macros N/A Boolean value False Specify whether to load add-ins and macros into the new Excel instance
Variables produced
Argument Type Description
ExcelInstance Excel instance The specific Excel instance for use with later Excel actions. This allows the user to specify which of possibly several Excel spreadsheets to access
Exceptions
Exception Description
Failed to launch Excel Indicates a problem launching an Excel instance
Failed to open Excel document Indicates a problem opening the specified Excel document

Attach to running Excel

Attaches to an Excel document that's already open

Input parameters
Argument Optional Accepts Default Value Description
Document name No File The name or the path of the Excel document to attach to
Variables produced
Argument Type Description
ExcelInstance Excel instance The Excel instance this action has attached to for use with later Excel actions
Exceptions
Exception Description
Specified Excel document not found Indicates that the specified Excel document could not be found
Failed to attach to Excel document Indicates a problem attaching to the Excel document

Read from Excel worksheet

Reads the value of a cell or a range of cells from the active worksheet of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Retrieve N/A The value of a single cell, Values from a range of cells, Values from selection, All available values from worksheet The value of a single cell Whether to retrieve the value of a single cell, a table from a range of cells or the entire worksheet
Start column No Text value The cell column (single cell's value) or first column as a numeric value or a letter
Start row No Numeric value The cell row (single cell's Value) or first row number
End column No Text value The last column as a numeric value or a letter
End row No Numeric value The last row number
Get cell contents as text N/A Boolean value False Specify whether to retrieve the content of the cell(s) purely as text or as the closest matching type such as Date Time for dates, Numeric for numbers and so on
First line of range contains column names N/A Boolean value False Specify whether to consider the first row as column names. In this case, the names won't be read as data into the table and later actions can search the data by column names
Variables produced
Argument Type Description
ExcelData General value The value of the single cell
ExcelData Datatable The value of the range of cells as a DataTable
Exceptions
Exception Description
Failed to read cell value(s) Indicates a problem reading the value(s) of the specified Excel cell(s)

Get active cell on Excel worksheet

Get the active cell in the active worksheet of the Excel document

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Variables produced
Argument Type Description
ActiveCellColumnIndex Numeric value The numeric value of the active cell's column
ActiveCellRowIndex Numeric value The numeric value of the active cell's row
Exceptions
Exception Description
Failed to get active cell Indicates a problem getting the active cell

Save Excel

Saves a previously launched Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to save. This variable must have been previously specified in a Launch Excel action
Save mode N/A Save document, Save document as Save document How to save the document of this instance
Document format N/A Default (From Extension), Excel Workbook (.xlsx), Excel Workbook Macro Enabled (.xlsm), Excel 97-2003 Workbook (.xls), Web Page (.htm, .html), Excel Template (.xltx), Excel Template Macro Enabled (.xltm), Excel 97-2003 Template (.xlt), Text (.txt), Unicode Text (.txt), Text Macintosh (.txt), Text DOS (.txt), XML Spreadsheet (.xml), Excel 95 (.xls), CSV (.csv), DIF (.dif), SYLK (.slk), Excel Add-In (.xlam), Excel 97-2003 Add-In (.xla), Strict Open XML Workbook (.xlsx), OpenDocument Spreadsheet (.ods), XML Data (.xml), Excel Binary Workbook (.xlsb) Default (From Extension) The format to save the document as
Document path No File The full path to save the document as
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to save Excel document Indicates a problem saving the Excel document

Write to Excel worksheet

Writes a value into a cell or a range of cells of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to work with. This variable must have been previously specified in a Launch Excel action
Value to write No General value Enter the text, number or variable to insert. If the variable contains a table, it will fill in cells to the right and below writing over other cell data if need be and a list will fill in cells below
Write mode N/A On specified cell, On currently active cell On specified cell Whether to write into a specified cell or the currently active cell
Column No Text value The column number or letter for the cell to write to
Row No Numeric value The row of the cell to write to. The numbering starts from 1, meaning that the index of the fist worksheet is 1, of the second is 2 etc.
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to write value to Excel Indicates a problem writing the specified value to the Excel instance

Close Excel

Closes an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance The Excel instance to close. This variable must have been previously specified in a Launch Excel action
Before closing Excel N/A Do not save document, Save document, Save document as Do not save document Whether and how to save the document of this instance before closing that instance
Document format N/A Default (From Extension), Excel Workbook (.xlsx), Excel Workbook Macro Enabled (.xlsm), Excel 97-2003 Workbook (.xls), Web Page (.htm, .html), Excel Template (.xltx), Excel Template Macro Enabled (.xltm), Excel 97-2003 Template (.xlt), Text (.txt), Unicode Text (.txt), Text Macintosh (.txt), Text DOS (.txt), XML Spreadsheet (.xml), Excel 95 (.xls), CSV (.csv), DIF (.dif), SYLK (.slk), Excel Add-In (.xlam), Excel 97-2003 Add-In (.xla), Strict Open XML Workbook (.xlsx), OpenDocument Spreadsheet (.ods), XML Data (.xml), Excel Binary Workbook (.xlsb) Default (From Extension) The format of the document
Document path No File The full path of the document
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Failed to save Excel document Indicates a problem saving the Excel document
Failed to close Excel instance Indicates a problem closing the Excel instance

Set active Excel worksheet

Activates a specific worksheet of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance Specify the Excel instance. This variable must have been previously specified in a Launch Excel action
Activate worksheet with N/A Index, Name Name Specify whether to find the worksheet by name or index
Worksheet index No Numeric value The index number of the worksheet to activate. The numbering starts from 1, meaning that the index of the fist worksheet is 1, of the second is 2, etc.
Worksheet name No Text value The name of the worksheet to activate
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
Can't find worksheet Indicates that a worksheet with the specified name could not be found
Failed to activate worksheet Indicates a problem activating the specified worksheet

Add new worksheet

Adds a new worksheet to the document of an Excel instance

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance Specify the Excel instance. This variable must have been previously specified in a Launch Excel action
New worksheet name No Text value Specify the name of the new worksheet
Add worksheet as N/A First worksheet, Last worksheet First worksheet Specify whether the new Excel worksheet will be added before or after the existing worksheets
Variables produced

This action doesn't produce any variables.

Exceptions
Exception Description
A worksheet with the same name already exists Indicates that the worksheet could not be added because a worksheet with the same name already exists
Failed to add worksheet Indicates a problem adding the worksheet

Get first free column/row from Excel worksheet

Retrieves the first free column and/or row of the active worksheet. This is useful for adding new data into a worksheet that already has data in it

Input parameters
Argument Optional Accepts Default Value Description
Excel instance No Excel instance Specify The Excel instance. This variable must have been previously specified in a Launch Excel action
Variables produced
Argument Type Description
FirstFreeColumn Numeric value The numeric value of the first fully empty column. For example, if column F is the first empty column, it will be stored as '6'
FirstFreeRow Numeric value The numeric value of the first fully empty row. For example, if row 7 is the first empty row, it will be stored as '7'
Exceptions
Exception Description
Failed to retrieve first free column/row Indicates a problem retrieving the first free column/row of an Excel instance

Get column name on Excel worksheet

Gets the name of the column

Input parameters
Argument Optional Accepts Default Value Description
Column number No Numeric value The column number
Variables produced
Argument Type Description
ColumnName Text value The name of the column
Exceptions

This action doesn't include any exceptions.
