Add conditional formatting

Conditional formatting lets a report creator specify how colors are displayed in a report, according to a numerical value.

This article describes how to add the conditional formatting functionality to your Power BI visual.

Conditional formatting can only be applied to the following property types:

  • Color
  • Text
  • Icon
  • Web URL

Add conditional formatting to your project

This section shows how to add conditional formatting to an existing Power BI visual. The example code in this article is based on the SampleBarChart visual. You can examine the source code in barChart.ts.

Add a conditional color formatting entry in the format pane

In this section you'll learn how to add a conditional color formatting entry, to a data point in format pane.

  1. You'll use the propertyInstanceKind array in VisualObjectInstance, which is exposed by powerbi-visuals-api. Your first step is to verify that your file includes this import:

    import powerbiVisualsApi from "powerbi-visuals-api";

  2. To specify the appropriate type of formatting (Constant, ConstantOrRule, or Rule), you'll use the VisualEnumerationInstanceKinds enum. Add the following import to your file:

    import VisualEnumerationInstanceKinds = powerbiVisualsApi.VisualEnumerationInstanceKinds;

  3. Set formatting property instance kind

To format properties that support conditional formatting, set the required instance kind in their descriptor.

 public getFormattingModel(): powerbi.visuals.FormattingModel {
    // ...
    formattingGroup.slices.push(
        {
            uid: `colorSelector${barDataPoint_indx}_uid`,
            displayName: barDataPoint.category,
            control: {
                type: powerbi.visuals.FormattingComponent.ColorPicker,
                properties: {
                    descriptor: {
                        objectName: "colorSelector",
                        propertyName: "fill",
                        selector: dataViewWildcard.createDataViewWildcardSelector(dataViewWildcard.DataViewWildcardMatchingOption.InstancesAndTotals),
                        altConstantValueSelector: barDataPoint.selectionId.getSelector(),
                        instanceKind: powerbi.VisualEnumerationInstanceKinds.ConstantOrRule // <=== Support conditional formatting
                    },
                    value: { value: barDataPoint.color }
                }
            }
        }
    );
    // ...
 }

VisualEnumerationInstanceKinds.ConstantOrRule will create the conditional formatting UI entry alongside the constant formatting UI element.

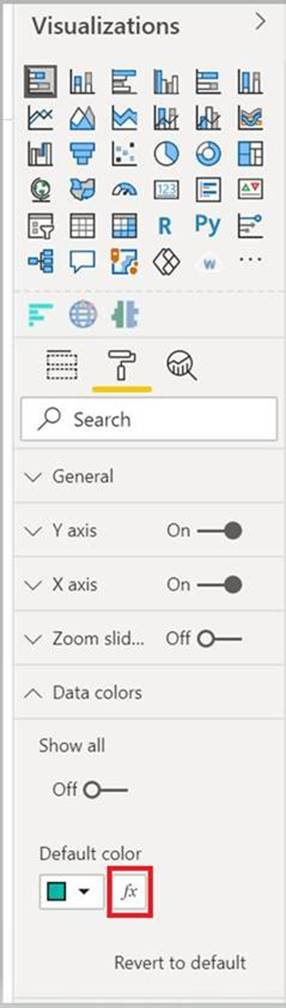

Screenshot of the conditional formatting button, as it appears in Power BI, next to the regular color button.

Define how conditional formatting behaves

Define how formatting will be applied to your data points.

Using createDataViewWildcardSelector declared under powerbi-visuals-utils-dataviewutils, specify whether conditional formatting will be applied to instances, totals, or both. For more information, see DataViewWildcard.

Make the following changes to the properties you want to apply conditional formatting to:

  • Replace the selector value with the dataViewWildcard.createDataViewWildcardSelector(dataViewWildcardMatchingOption) call. DataViewWildcardMatchingOption defines whether conditional formatting is applied to instances, totals, or both.

  • Add the altConstantValueSelector property with the value previously defined for the selector property.

For formatting properties that support conditional formatting, set the required instance kind in their descriptor.


 public getFormattingModel(): powerbi.visuals.FormattingModel {
    // ...

    formattingGroup.slices.push(
        {
            uid: `colorSelector${barDataPoint_indx}_uid`,
            displayName: barDataPoint.category,
            control: {
                type: powerbi.visuals.FormattingComponent.ColorPicker,
                properties: {
                    descriptor: {
                        objectName: "colorSelector",
                        propertyName: "fill",
                        // Define whether the conditional formatting will apply to instances, totals, or both
                        selector: dataViewWildcard.createDataViewWildcardSelector(dataViewWildcard.DataViewWildcardMatchingOption.InstancesAndTotals),

                        // Add this property with the value previously defined for the selector property
                        altConstantValueSelector: barDataPoint.selectionId.getSelector(),

                        instanceKind: powerbi.VisualEnumerationInstanceKinds.ConstantOrRule
                    },
                    value: { value: barDataPoint.color }
                }
            }
        }
    );

    // ...
 }


Considerations and limitations

Conditional formatting isn't supported for the following visuals:

  • Table based visuals

  • Matrix based visuals

We recommend that you don’t use conditional formatting with series. Instead, you should allow customers to format each series individually, making it easy to visually distinguish between series. Most out-of-the-box visuals with series, share this approach.
