Edit code with Visual Studio Code for the Web (preview)

[This topic is prerelease documentation and is subject to change.]

From the design studio, you can edit site code using Visual Studio Code for the Web. This feature allows you to edit static content, HTML, CSS, Liquid, and JavaScript for the following website metadata:

Metadata Content
Advanced forms (multistep forms) JavaScript
Basic forms JavaScript
Content snippets All supported content snippet content
Lists JavaScript
Web files View and download media files. Edit text (code) files.
Web pages All supported content (per language), JavaScript, and CSS
Web templates All supported content

Note

You will not be able to create metadata records, only add and edit content, code, and view/download file attachments.

Visual Studio Code for the Web provides a free, zero-install Microsoft Visual Studio Code experience running entirely in your browser, allowing you to browse site code and make lightweight code changes quickly and safely. More information: Visual Studio Code for the Web experience.

Important

  • This is a preview feature.
  • Preview features aren’t meant for production use and may have restricted functionality. These features are available before an official release so that customers can get early access and provide feedback.

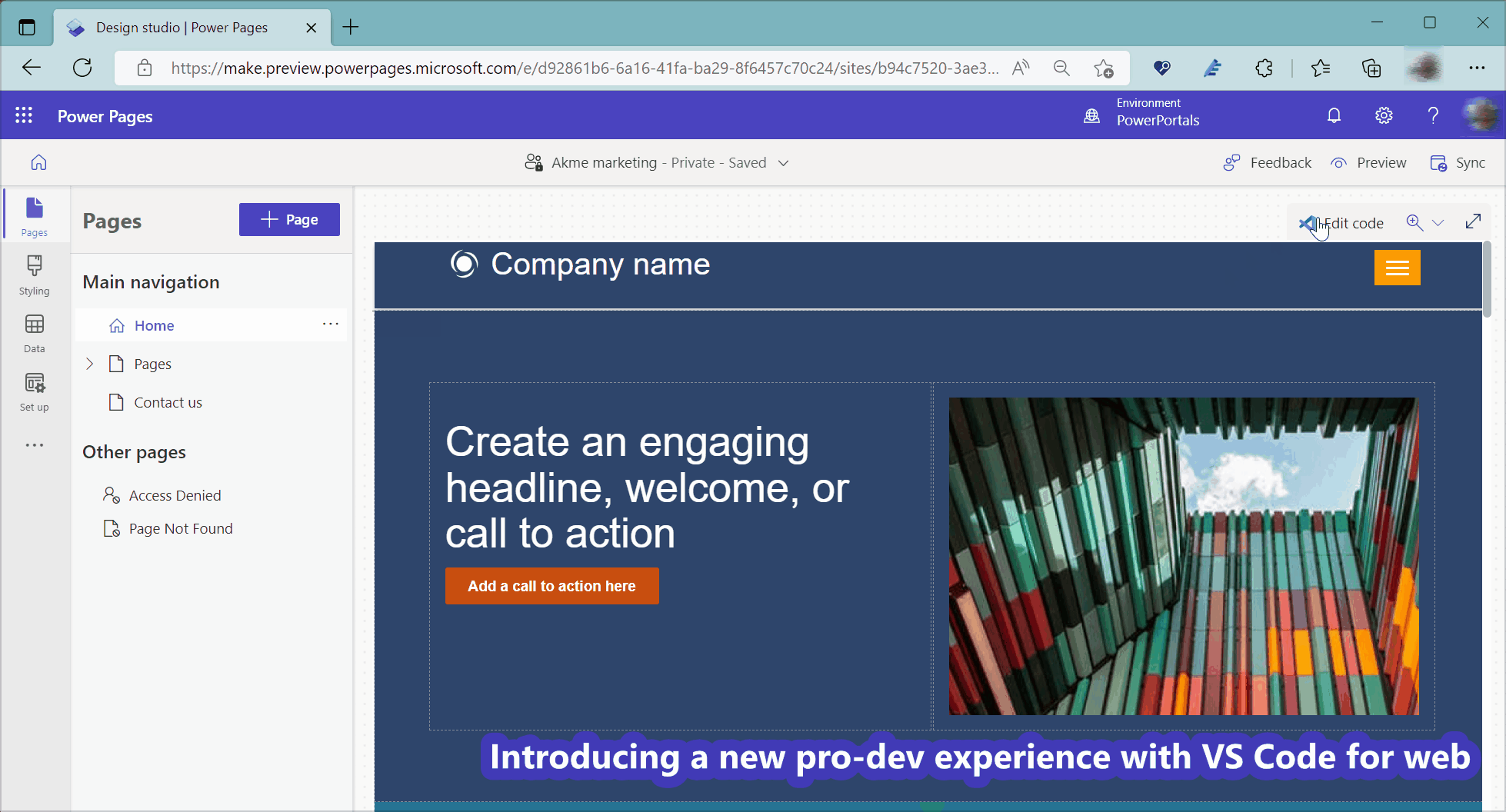

Demo of using Visual Studio Code for Web to edit Power Pages site.

Note

  • First time Visual Studio Code for the Web load may take some time as it will be installing required extensions for this feature.
  • File Create, Delete and Rename operations are not supported.
  • This feature utilizes Power Platform Tools web extension. Web extensions are restricted by the browser sandbox and therefore have limitations compared to normal extensions.
    • Power Platform CLI is not supported.
    • Power Platform Tools web extension features are limited to Power Pages code editing experience.
    • This feature is not available in Government Community Cloud (GCC), Government Community Cloud (GCC High), and Department of Defense (DoD). Users in these regions will use the Portals Management app for editing code. See Editing code in the Portals Management app for more information.

Edit code available in design studio

You can start editing your site's code using Visual Studio Code for the Web from the Power Pages home page by choosing the Edit site code option from the Edit drop down menu.

You can also edit code in the design studio from the following areas:

Let's take a look how to edit code using these areas.

Edit web page code from Pages workspace

When you open Power Pages design studio, you see Edit code option in Pages menu1 and upper-right corner of the screen2.

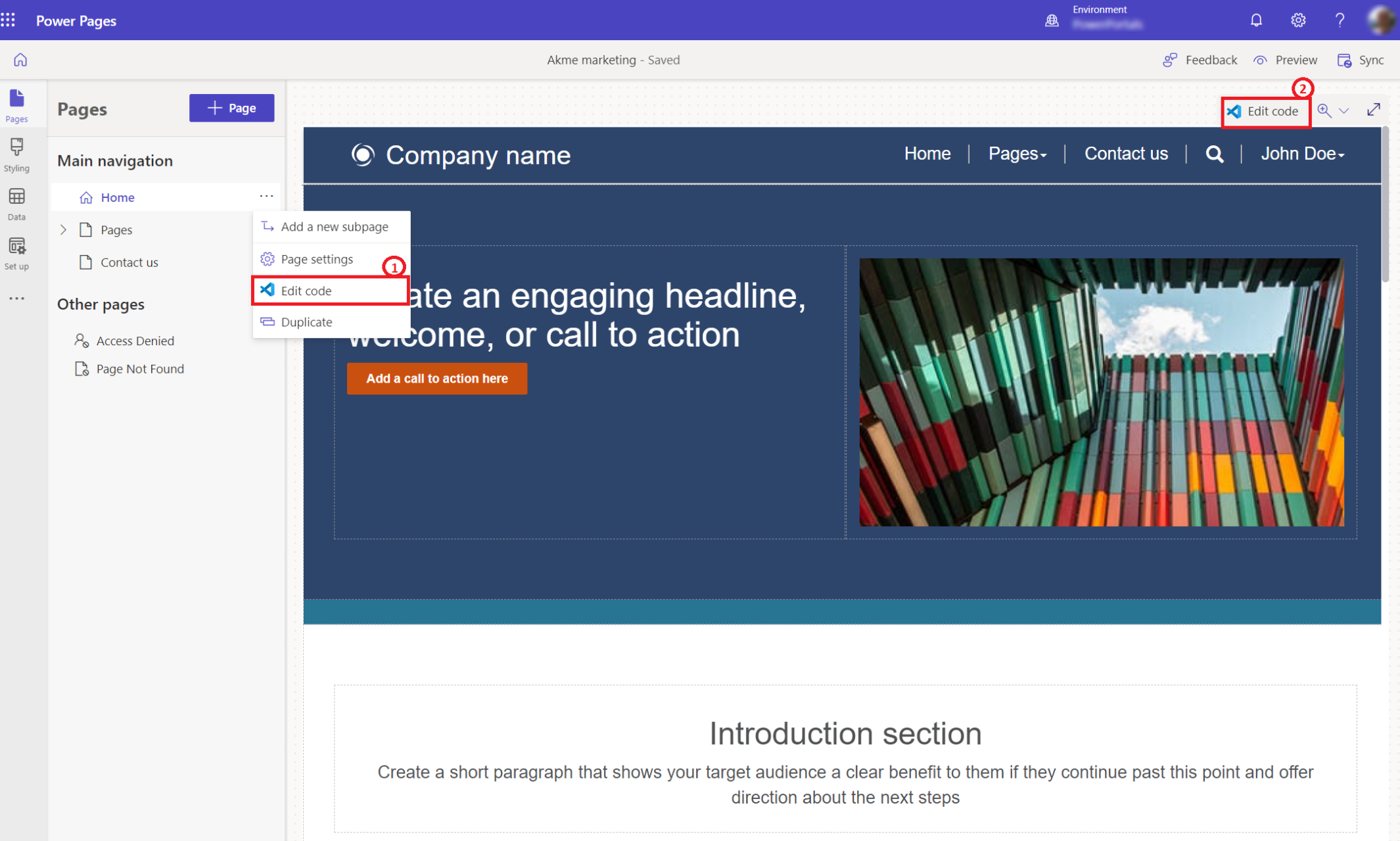

Edit code from Pages workspace.

Header template code from Pages workspace

Select Edit site header and then select Edit code to open code editor.

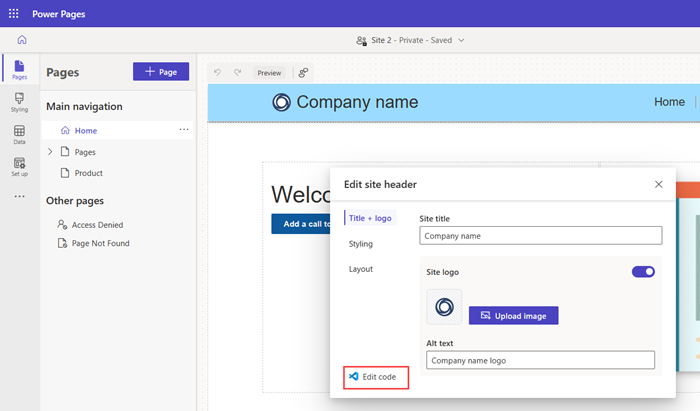

Edit code from Pages header.

Edit custom CSS code from Styling workspace

Go to Styling workspace and select available custom CSS Edit code menu to open code editor.

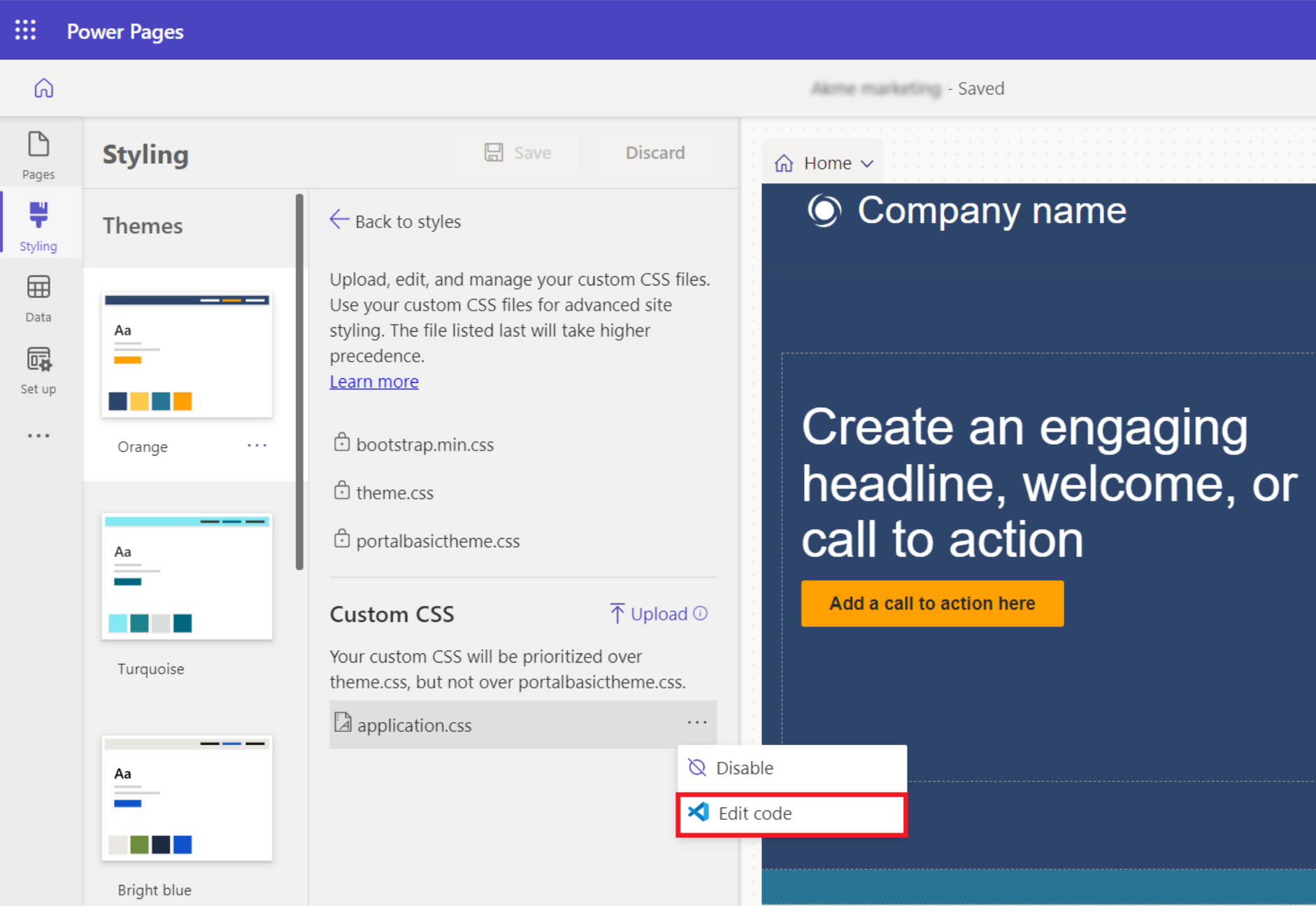

Edit code from Custom CSS.

Merge conflict notification

If you are collaborating with other developers, there may be situations where you'll be working on the same source code. In the event you attempt to save changes to an outdated file you'll get a notification to Compare or Overwrite changes.

Comparing the code will show current code alongside your code and allow you to revert to the existing changes, accept each change individually or use your changes and overwrite the existing contents.

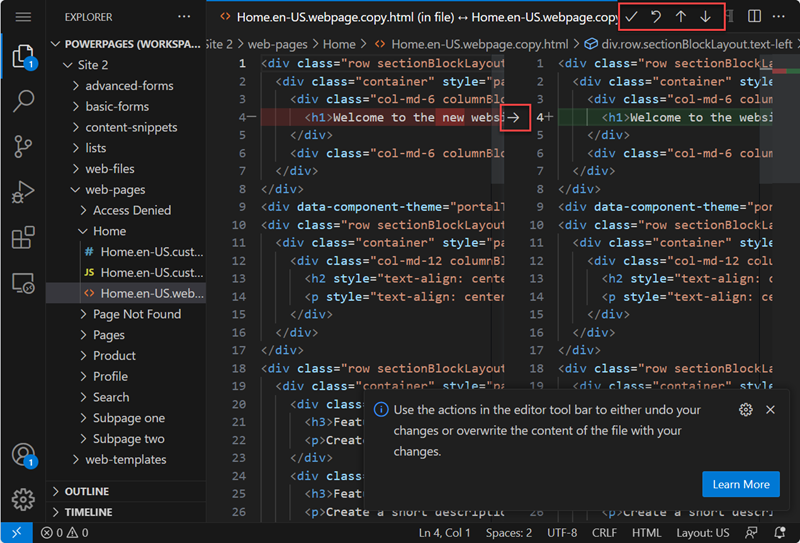

Merge conflicts in code.

You'll be able to review the latest content and either merge or overwrite the code or discard the changes.

Tutorial: Edit site code using Visual Studio Code for the Web

In this tutorial, you walk through editing the site code using Visual Studio Code for Web.

Step 1: Edit site code using Visual Studio Code for the Web

  1. Open your site in Power Pages design studio

  2. On the top right corner, select Edit code

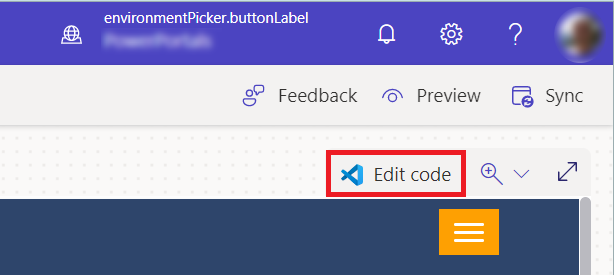

    Opening in Visual Studio Code from the design studio.

  3. Select Open Visual Studio Code from the confirmation dialog.

  4. Sign in to Visual Studio Code using your environments credentials.

  5. Wait for Power Platform Tools web extension to initialize, and web page code to load in left-pane.

Step 2: Update content and code

  1. The explorer on the left-side of the screen loads respective website configuration metadata that can be edited using Visual Code for the Web.

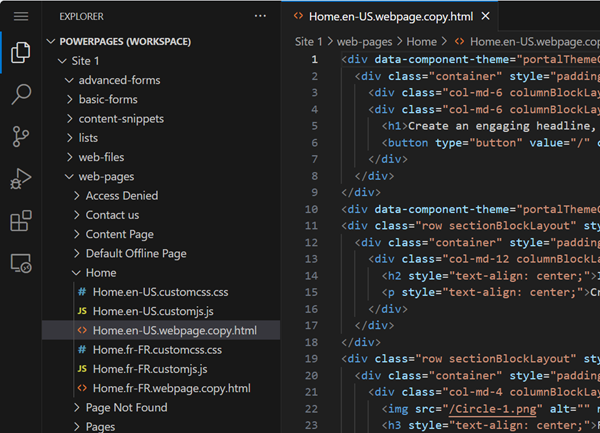

    Explorer menu for an untitled workspace showing web files.

  2. Make changes to the respective metadata files and press Ctrl+S to save the changes.

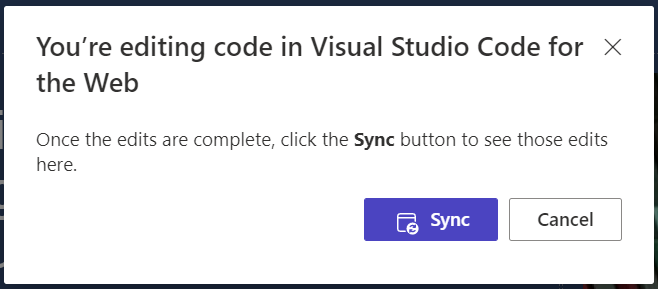

  3. Go to design studio and select Sync to pull all the updates in your current design studio session.

    Interface to allow user to select Sync button to synchronize changes made in Visual Studio Code to design studio.

  4. Select Preview to see changes on the Power Pages site.

Using Visual Studio Code for the Web or Visual Studio Code Desktop

Users can edit, debug, and preview changes to page edits using Visual Studio Code for the Web without needing to use external tools. Visual Studio Code Desktop provides other advanced features for editing all site metadata and integrating with GitHub, frameworks, and continuous integration/continuous development (CI/CD) processes.

Feature VS Code for the Web VS Code Desktop
Create new website configuration metadata records No Limited to web pages, page templates, web templates, content snippets, and web files.
Direct site editing Yes No
Site metadata editing Limited to editing web pages, content snippets, basic forms, multi-step forms, lists, and web templates. All Power Pages metadata configuration
Site preview Planned Planned
Power Platform CLI support No Yes
Advanced CPU and storage bound workflow - ReactJS or other framework build tool support No Yes
GitHub integration with capabilities such as code check-in, check-out, managing conflicts, and merge. No Yes

Editing code in the Portals Management app

Note

  • Using Visual Studio Code for the Web to edit websites is not supported in Government Community Cloud (GCC), Government Community Cloud (GCC High), and Department of Defense (DoD). Users in these regions can use the Portals Management app to make their changes.

If the region doesn't support the Visual Studio Code for the Web, selecting the code editor icon </> in the command bar will open the Portals Management app.

Navigate to the corresponding Web Pages, Basic Forms, Multistep Forms, Lists, or Web Templates records to edit code.

Type Code location
Web page Select web page record.
Select web page content record from the Localized Content section.
Page copy can be edited in the Copy (HTML) field on the General tab.
Custom JavaScript and Custom CSS code can be edited from the Advanced tab.
Basic form Select the basic form record.
Edit Custom JavaScript on the Additional Settings tab.
Multistep form Select the multistep form record.
Select the multistep form step from the Form Steps tab.
Edit Custom JavaScript on the Form Options tab.
List Select the list record.
Edit Custom JavaScript on the Options tab.
Web template Select the web template record.
Edit Source on the General tab.

Save the record, and preview your website to test your code.
