Set up a connector to archive WeChat data

Use the TeleMessage connector to import and archive WeChat and WeCom calls, chats, attachments, files, and recalled messages. After you set up and configure a connector, it connects to your organization's TeleMessage account, and imports the mobile communication of employees using the TeleMessage WeChat Archiver to mailboxes in Microsoft 365.

After WeChat Archiver connector data is stored in user mailboxes, you can apply Microsoft Purview features such as Litigation Hold, eDiscovery, In-Place Archiving, Auditing, Communication compliance, and Microsoft 365 retention policies to WeChat communication data. For example, you can search WeChat communication using Content Search or associate the mailbox that contains the WeChat Archiver connector data with a custodian in an eDiscovery (Premium) case. Using a WeChat Archiver connector to import and archive data in Microsoft 365 can help your organization stay compliant with corporate governance regulations and regulatory policies.


If you're not an E5 customer, use the 90-day Microsoft Purview solutions trial to explore how additional Purview capabilities can help your organization manage data security and compliance needs. Start now at the Microsoft Purview compliance portal trials hub. Learn details about signing up and trial terms.

Overview of archiving WeChat communication data

The following overview explains the process of using a connector to archive WeChat communications data in Microsoft 365.

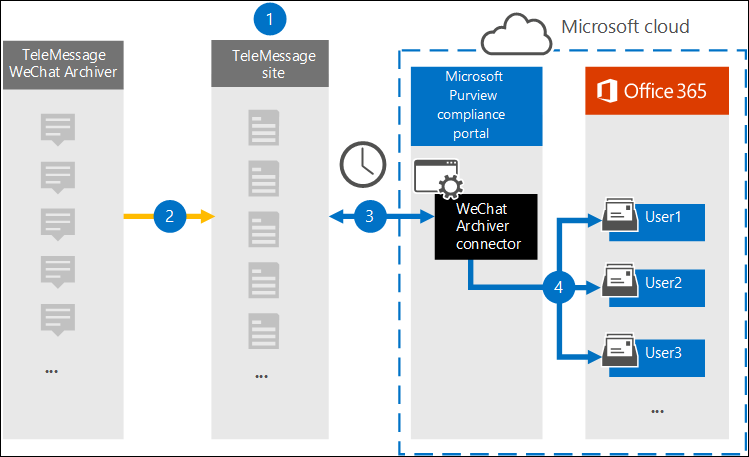

Archiving workflow for WeChat Archiver data.

  1. Your organization works with TeleMessage to set up a WeChat Archiver connector.

  2. In real time, your organization's WeChat data is copied to the TeleMessage site.

  3. The WeChat Archiver connector that you create in the Microsoft Purview portal or the Microsoft Purview compliance portal connects to the TeleMessage site every day and transfers the email messages from the previous 24 hours to a secure Azure Storage area in the Microsoft Cloud.

  4. The connector imports the mobile communication items to the mailbox of a specific user. A new folder named WeChat Archiver will be created in the specific user's mailbox and the items will be imported to it. The connector does mapping by using the value of the User's Email address property. Every email message contains this property, which is populated with the email address of every participant of the email message. In addition to automatic user mapping using the value of the User's Email address property, you can also define a custom mapping by uploading a CSV mapping file. This mapping file should contain User's mobile Number and the corresponding Microsoft 365 mailbox address for each user. If you enable automatic user mapping and provide a custom mapping, for every email item the connector will first look at custom mapping file. If it doesn't find a valid Microsoft 365 user that corresponds to a user's mobile number, the connector will use the User ‘s email address property of the email item. If the connector doesn't find a valid Microsoft 365 user in either the custom mapping file or the user's email address property of the email item, the item won't be imported.

Before you set up a connector

  • Work with TeleMessage to set up a WeChat archive connector. For more information, see Activating the TeleMessage WeChat Archiver for Microsoft 365.

  • Set up a TeleMessage connector for Microsoft 365 and get a valid company administration account. For more information, see Order Microsoft 365 Mobile Archiving.

  • Register all users that require WeChat archiving in the TeleMessage account with the same email address that is used for the user's Microsoft 365 account.

  • You'll need to install the Tencent WeCom app on the mobile phones of users in your organization and activate it. The WeCom app lets users communicate and chat with other WeChat and WeCom users.

  • The user who creates a WeChat Archiver connector in the compliance portal must be assigned the Data Connector Admin role. This role is required to add connectors on the Data connectors page in the Microsoft Purview portal or the compliance portal. This role is added by default to multiple role groups. For a list of these role groups, see Roles in Microsoft Defender for Office 365 and Microsoft Purview compliance. Alternatively, an admin in your organization can create a custom role group, assign the Data Connector Admin role, and then add the appropriate users as members. For instructions, see:

  • This TeleMessage data connector is available in GCC environments in the Microsoft 365 US Government cloud. Third-party applications and services might involve storing, transmitting, and processing your organization's customer data on third-party systems that are outside of the Microsoft 365 infrastructure and therefore aren't covered by the Microsoft Purview and data protection commitments. Microsoft makes no representation that use of this product to connect to third-party applications implies that those third-party applications are FEDRAMP compliant.

Create a WeChat Archiver connector

Follow the steps in this section to create a WeChat Archiver connector in the Microsoft Purview portal or the compliance portal. The connector uses the information you provide to connect to the TeleMessage site and transfer WeChat communications data to the corresponding user mailboxes in Microsoft 365.

Select the appropriate tab for the portal you're using. To learn more about the Microsoft Purview portal, see Microsoft Purview portal. To learn more about the Compliance portal, see Microsoft Purview compliance portal.

  1. Sign into the Microsoft Purview portal.

  2. Select Settings > Data connectors.

  3. Select My connectors, then select Add connector.

  4. From the list, choose WeChat Archiver.

  5. On the Terms of service page, select Accept.

  6. On the Login to TeleMessage page, under Step 3, enter the required information in the following boxes and then select Next.

    • Username: Your TeleMessage user name.
    • Password: Your TeleMessage password.
  7. After the connector is created, you can close the pop-up window go to the next page.

  8. On the User mapping page, enable automatic user mapping. You can also upload a custom user mapping CSV file.

  9. Select Next, review your settings, and then select Finish to create the connector.

Known issues

At this time, we don't support importing attachments or items that are larger than 10 MB. Support for larger items will be available at a later date.
