Authentication complete sample

Experience seamless authentication with this sample application, which integrates Azure AD and Facebook authentication across Microsoft Teams bots, tabs, and messaging extensions. It supports single sign-on (SSO), Adaptive Cards, Task Modules, and Microsoft Graph API, ensuring a rich and secure user experience.

Included Features

  • Teams SSO (tabs, bots, messaging extensions, link unfurling)
  • Facebook Authentication (tabs, bots, messaging extensions, link unfurling)
  • Adaptive Cards
  • Task Modules
  • Graph API
  • MSAL.js 2.0 support

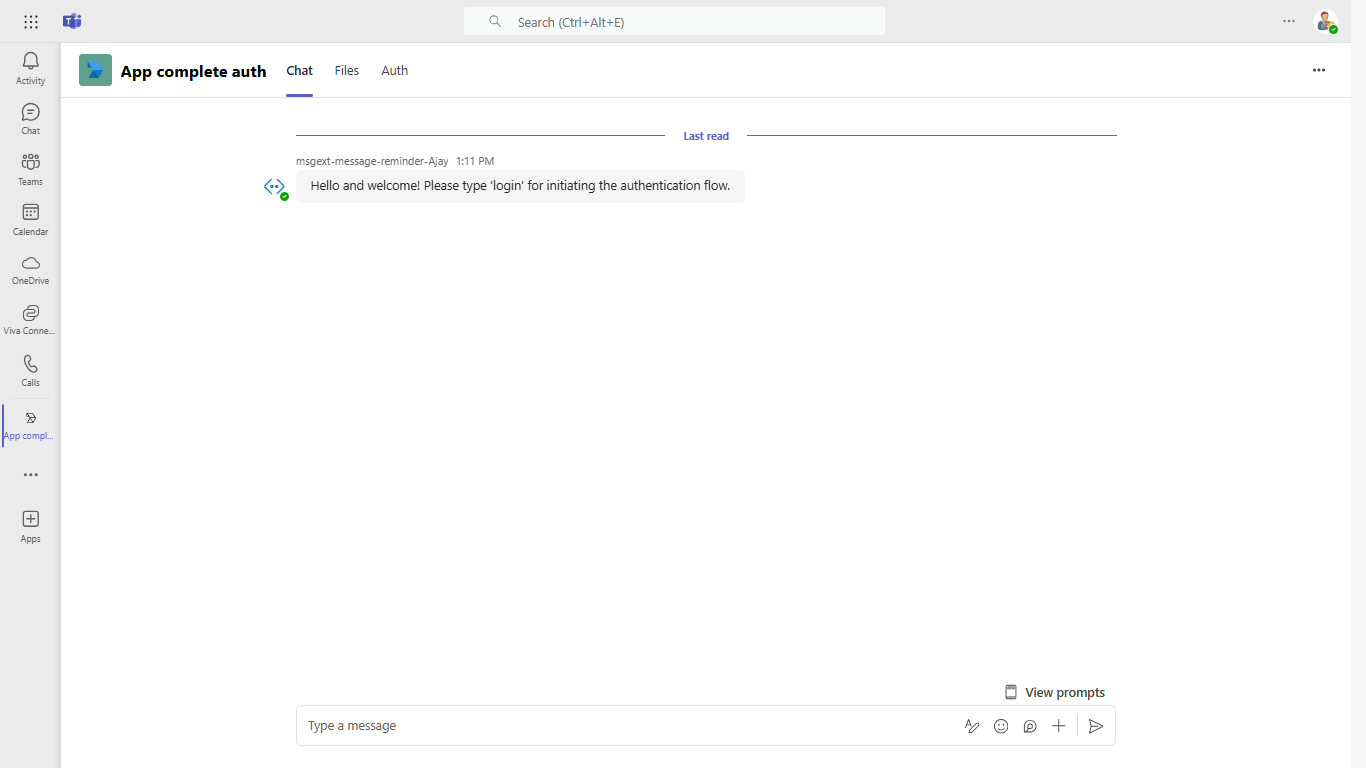

Interaction with app

app-complete-auth-sample

Try it yourself - experience the App in your Microsoft Teams client

Please find below demo manifest which is deployed on Microsoft Azure and you can try it yourself by uploading the app package (.zip file link below) to your teams and/or as a personal app. (Sideloading must be enabled for your tenant, see steps here).

App Complete Auth: Manifest

Prerequisites

Run the app (Using Teams Toolkit for Visual Studio Code)

The simplest way to run this sample in Teams is to use Teams Toolkit for Visual Studio Code.

  1. Ensure you have downloaded and installed Visual Studio Code
  2. Install the Teams Toolkit extension
  3. Select File > Open Folder in VS Code and choose this samples directory from the repo
  4. Using the extension, sign in with your Microsoft 365 account where you have permissions to upload custom apps
  5. Select Debug > Start Debugging or F5 to run the app in a Teams web client.
  6. In the browser that launches, select the Add button to install the app to Teams.

If you do not have permission to upload custom apps (sideloading), Teams Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Setup

1. Setup for App Registration

  1. Register a new application in the Microsoft Entra ID – App Registrations portal.
  2. Select New Registration and on the register an application page, set following values:
    • Set name to your app name.
    • Choose the supported account types (any account type will work)
    • Leave Redirect URI empty.
    • Choose Register.
  3. On the overview page, copy and save the Application (client) ID, Directory (tenant) ID. You’ll need those later when updating your Teams application manifest and in the appsettings.json.
  4. Under Manage, select Expose an API.
  5. Select the Set link to generate the Application ID URI in the form of api://{base-url}/botid-{AppID}. Insert your fully qualified domain name (with a forward slash "/" appended to the end) between the double forward slashes and the GUID. The entire ID should have the form of: api://fully-qualified-domain-name/botid-{AppID}
    • ex: api://%ngrokDomain%.ngrok-free.app/botid-00000000-0000-0000-0000-000000000000.
  6. Select the Add a scope button. In the panel that opens, enter access_as_user as the Scope name.
  7. Set Who can consent? to Admins and users
  8. Fill in the fields for configuring the admin and user consent prompts with values that are appropriate for the access_as_user scope:
    • Admin consent title: Teams can access the user’s profile.
    • Admin consent description: Allows Teams to call the app’s web APIs as the current user.
    • User consent title: Teams can access the user profile and make requests on the user's behalf.
    • User consent description: Enable Teams to call this app’s APIs with the same rights as the user.
  9. Ensure that State is set to Enabled
  10. Select Add scope
    • The domain part of the Scope name displayed just below the text field should automatically match the Application ID URI set in the previous step, with /access_as_user appended to the end:
      • `api://[ngrokDomain].ngrok-free.app/botid-00000000-0000-0000-0000-000000000000/access_as_user.
  11. In the Authorized client applications section, identify the applications that you want to authorize for your app’s web application. Each of the following IDs needs to be entered:
    • 1fec8e78-bce4-4aaf-ab1b-5451cc387264 (Teams mobile/desktop application)
    • 5e3ce6c0-2b1f-4285-8d4b-75ee78787346 (Teams web application) Note If you want to test or extend your Teams apps across Office and Outlook, kindly add below client application identifiers while doing Azure AD app registration in your tenant:
  • 4765445b-32c6-49b0-83e6-1d93765276ca (Office web)
  • 0ec893e0-5785-4de6-99da-4ed124e5296c (Office desktop)
  • bc59ab01-8403-45c6-8796-ac3ef710b3e3 (Outlook web)
  • d3590ed6-52b3-4102-aeff-aad2292ab01c (Outlook desktop)
  1. Navigate to API Permissions, and make sure to add the follow permissions:
  • Select Add a permission
  •  Select Microsoft Graph -> Delegated permissions.
    • User.Read (enabled by default)
  • Click on Add permissions. Please make sure to grant the admin consent for the required permissions.
  1. Navigate to Authentication If an app hasn't been granted IT admin consent, users will have to provide consent the first time they use an app.
  • Set a redirect URI:
    • Select Add a platform.
    • Select Single-page application.
    • Enter the redirect URI for the app in the following format: https://{Base_Url}/auth-end.
  • Set another redirect URI:
    • Select Add a platform.
    • Select web.
    • Enter the redirect URI https://token.botframework.com/.auth/web/redirect. This will be use for bot authenticaiton.
  1. Navigate to the Certificates & secrets. In the Client secrets section, click on "+ New client secret". Add a description(Name of the secret) for the secret and select “Never” for Expires. Click "Add". Once the client secret is created, copy its value, it need to be placed in the appsettings.json.

  2. Create a Bot Registration

  • Register a bot with Azure Bot Service, following the instructions here.
  • Ensure that you've enabled the Teams Channel
  • While registering the bot, use https://<your_tunnel_domain>/api/messages as the messaging endpoint.
  • Select Configuration section.
  • Under configuration -> Add OAuth connection string.
  • Provide connection Name : for eg ssoconnection
  • Select service provider ad Azure Active Directory V2
  • Complete the form as follows:
a. **Name:** Enter a name for the connection. You'll use this name in your bot in the appsettings.json file.
b. **Client id:** Enter the Application (client) ID that you recorded for your Azure identity provider app in the steps above.
c. **Client secret:** Enter the secret that you recorded for your Azure identity provider app in the steps above.
d. **Tenant ID**  Enter value as `common`.
e. **Token Exchange Url** Enter the url in format `api://%ngrokDomain%.ngrok-free.app/botid-00000000-0000-0000-0000-000000000000`(Refer step 1.5)
f. Provide **Scopes** like "User.Read openid"
  1. To test facebook auth flow create a facebookapp and get client id and secret for facebook app. Now go to your bot channel registartion -> configuration -> Add OAuth connection string
  • Provide connection Name : for eg facebookconnection. You'll use this name in your bot in the appsettings.json file.
  • Select service provider ad facebook
  • Add clientid and secret of your facebook app that was created using Step 16.
  • For scopes, add email public_profile

2. Setup NGROK

  1. Run ngrok - point to port 3978

    ngrok http 3978 --host-header="localhost:3978"


    Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:

    devtunnel host -p 3978 --allow-anonymous


3. Setup for code

  1. Clone the repository

    git clone https://github.com/OfficeDev/Microsoft-Teams-Samples.git

  2. In a terminal, navigate to samples/app-complete-auth/nodejs

  3. Install node modules

    Inside node js folder, open your local terminal and run the below command to install node modules. You can do the same in Visual Studio code terminal by opening the project in Visual Studio code.

    npm install

  4. Modify the .env file in your project folder (or in Visual Studio Code) and fill in below details:

  • {{MicrosoftAppId}} - Generated from Step 1 (Application (client) ID)is the application app id
  • {{TenantId}} - Generated from Step 1(Directory (tenant) ID) is the tenant id
  • {{MicrosoftAppPassword}} - Generated from Step 14, also referred to as Client secret
  • {{ApplicationBaseUrll}} - Your application's base url. E.g. https://12345.ngrok-free.app if you are using ngrok and if you are using dev tunnels then your base url will be like: https://12345.devtunnels.ms.
  • {{ Connection Name }} - Generated from step 15.
  • {{FacebookAppId}} and {{FacebookAppPassword}} and {{ FBConnectionName}}- Generated from step 16.
  • {{AppType}} - The value for app type will me MultiTenant.
  1. Run your app

    npm start


4. Setup Manifest for Teams

  1. Modify the manifest.json in the /appManifest folder and replace the following details:
    • {{MicrosoftAppId}} with Application id generated from Step 3
    • {Base_URL_Domain} - Your application's base url domain. E.g. for https://12345.ngrok-free.app the base url domain will be 12345.ngrok-free.app when you are using ngrok and if you are using dev tunnels then your domain will be like: 12345.devtunnels.ms.

Note: If you want to test your app across multi hub like: Outlook/Office.com, please update the manifest.json in the app-complete-auth\nodejs folder with the required values.

  1. Zip the contents of the appManifest folder to create a manifest.zip or appManifest_Hub folder into a manifest.zip.(Make sure that zip file does not contains any subfolder otherwise you will get error while uploading your .zip package)

  2. Upload the manifest.zip to Teams (in the Apps view click "Upload a custom app")

    • Go to Microsoft Teams and then go to side panel, select Apps
    • Choose Upload a custom App
    • Go to your project directory, the ./appManifest folder, select the zip folder, and choose Open.
    • Select Add in the pop-up dialog box. Your app is uploaded to Teams.

Note: To test facebook auth flow please setup the sample locally as due to limitations from facebook you cannot test the facebook auth flow in the deployed version of app.

  • If you are facing any issue in your app, please uncomment this line and put your debugger for local debug.

Running the sample

Bot Authentication

Install the bot in personal scope. A welcome card will be sent. Welcome card

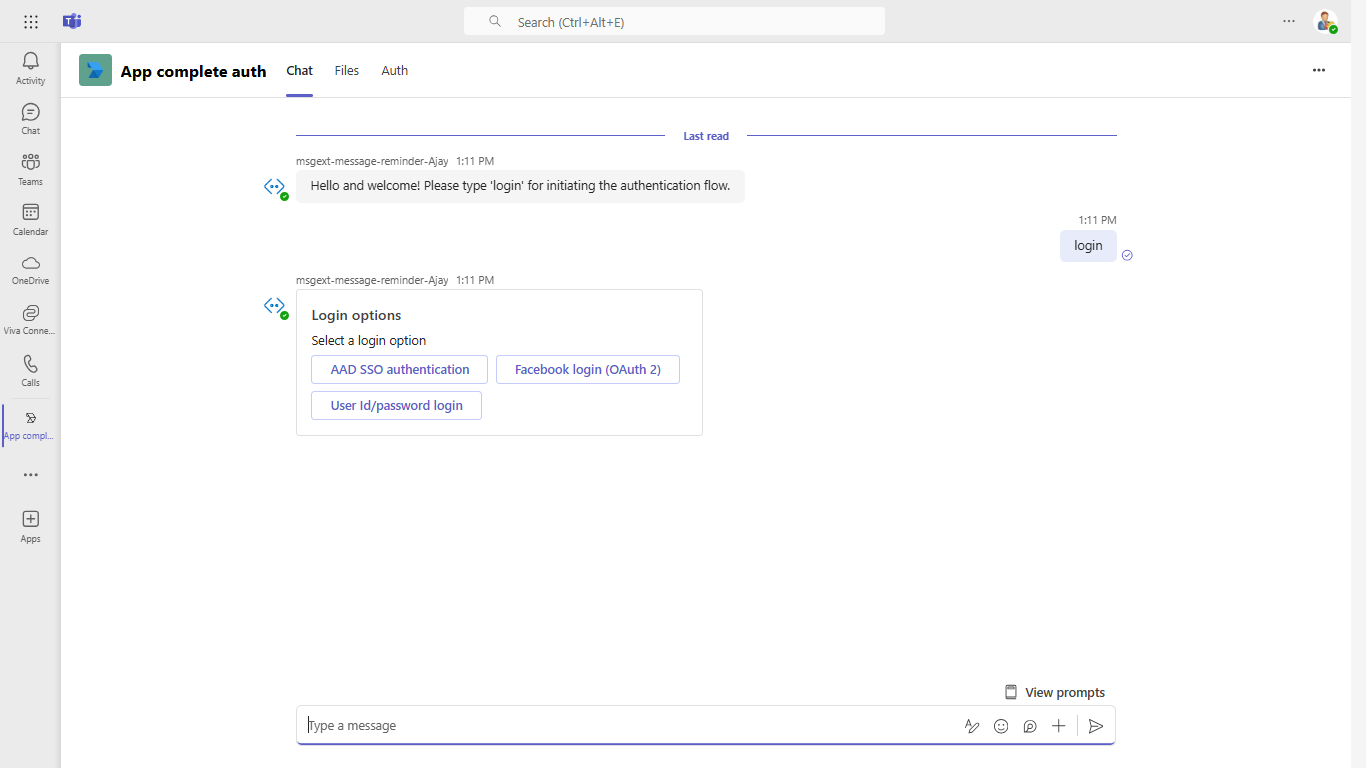

Type login. A login card will be sent to user. Login card

  • SSO

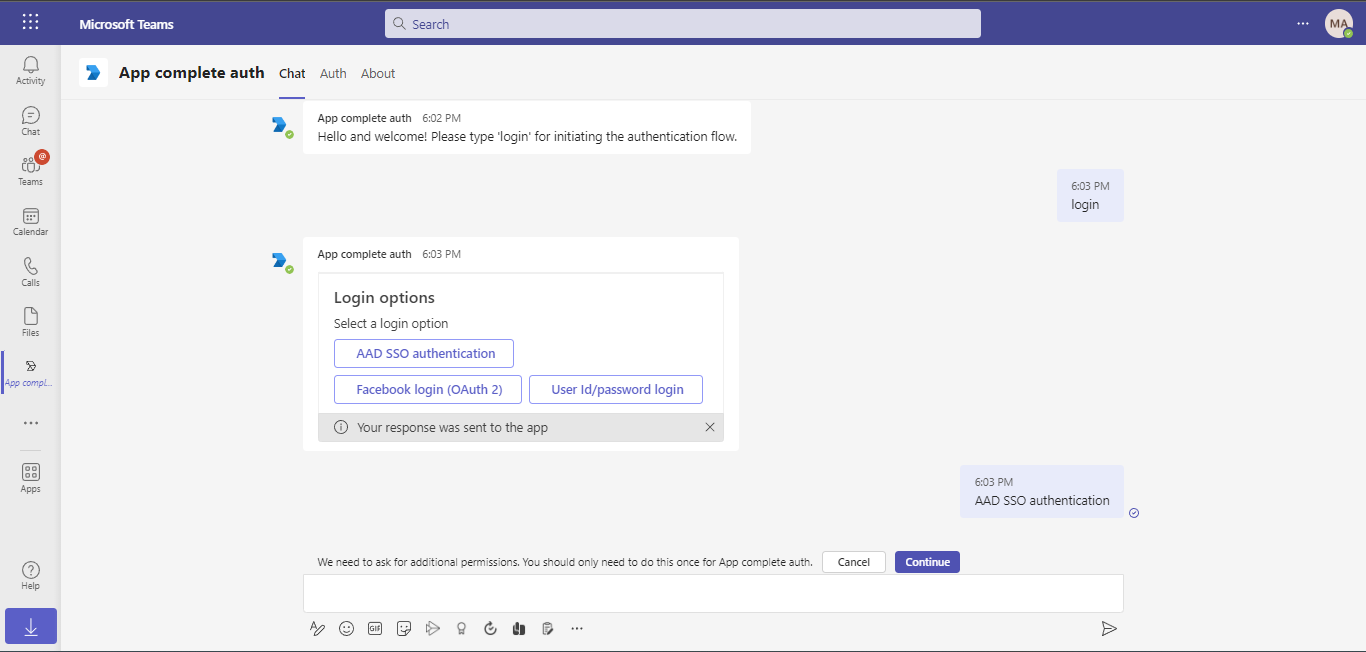

Select Microsoft Entra SSO login option. A consent popup will be sent. Click continue. SSO login

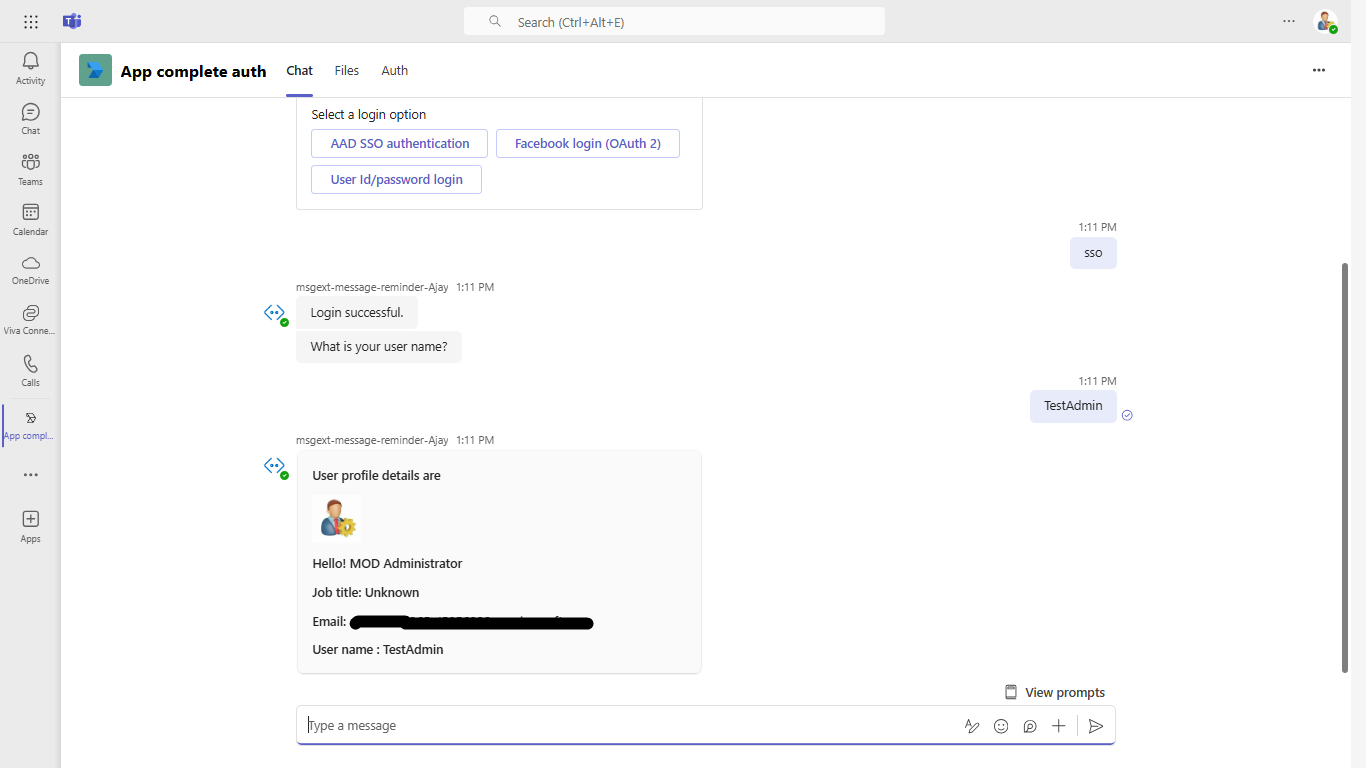

After the consent is granted, card will be sent containing user's profile details. SSO profile

  • Authentication using user name and password

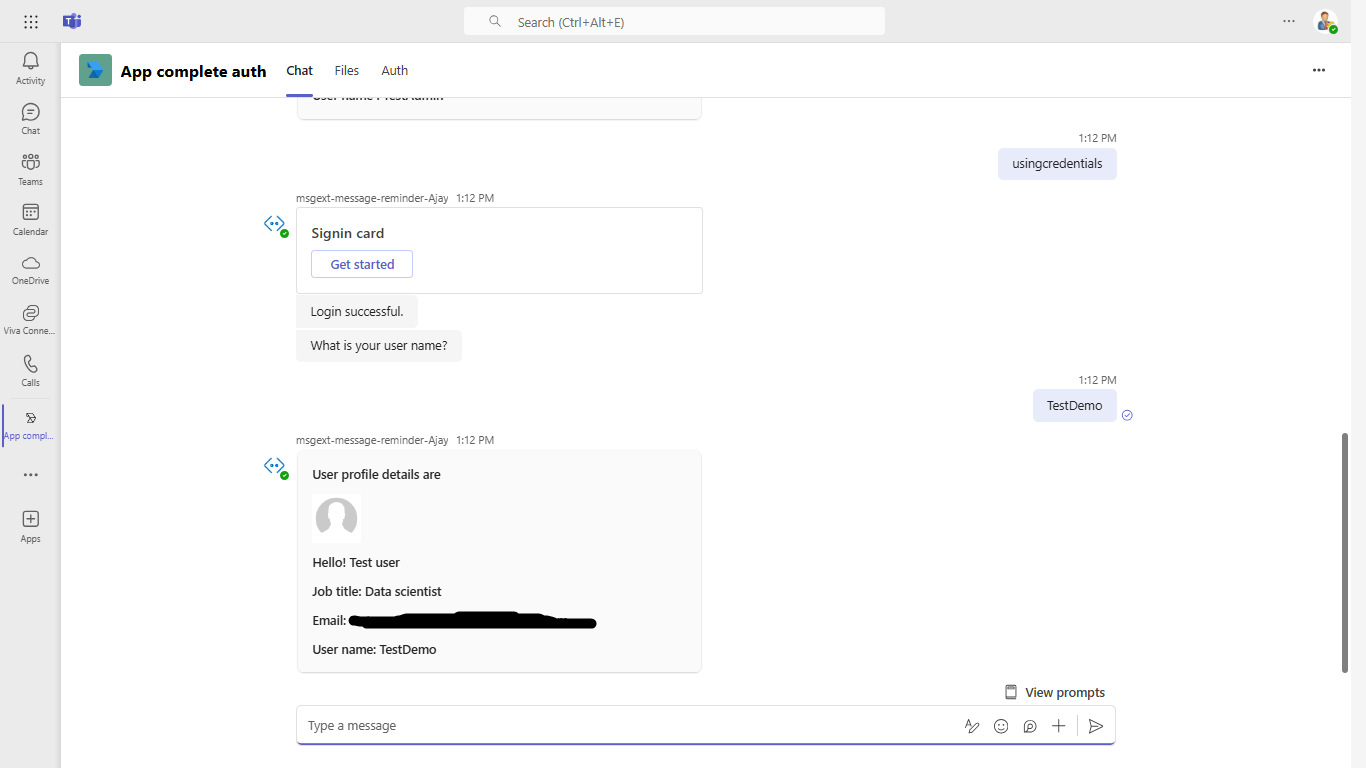

using credentials

Tab Authentication

Tab

  • SSO

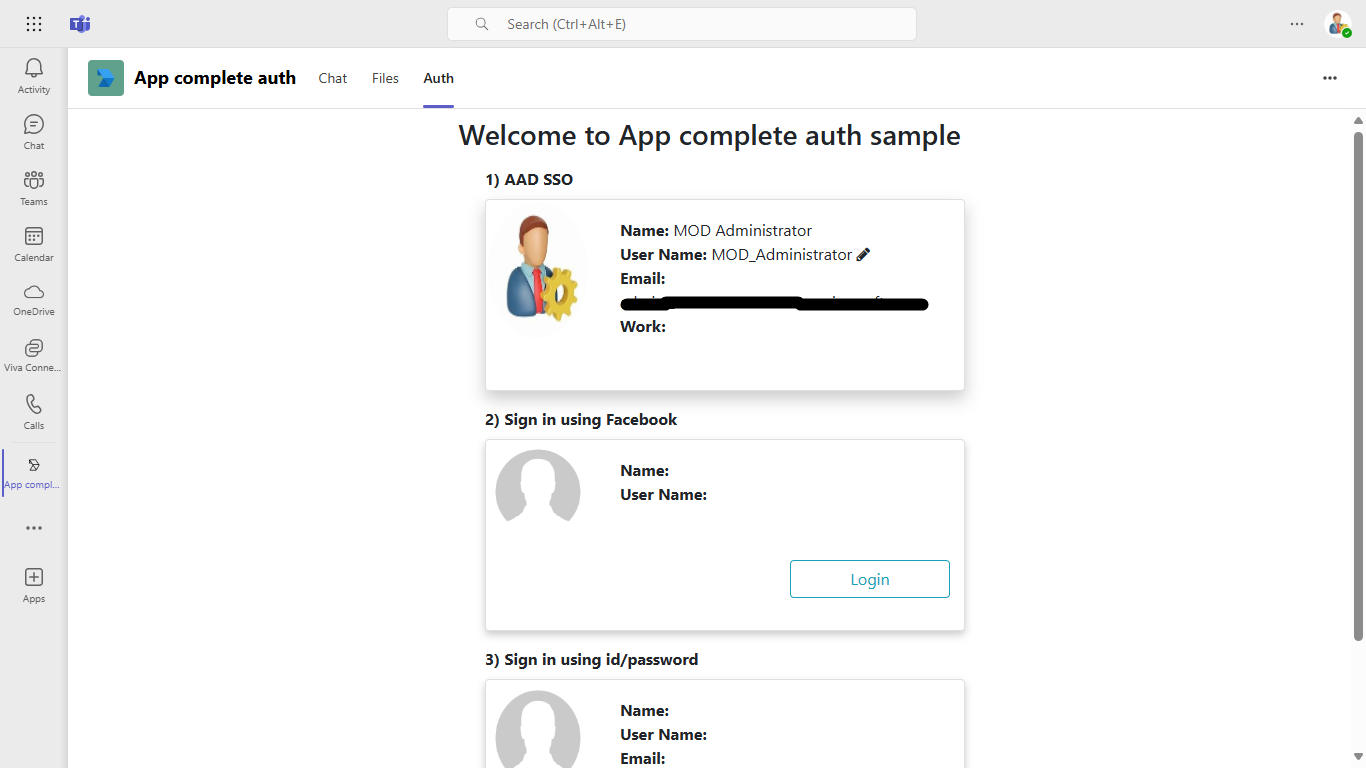

Tab SSO login

  • Authentication using user name and password

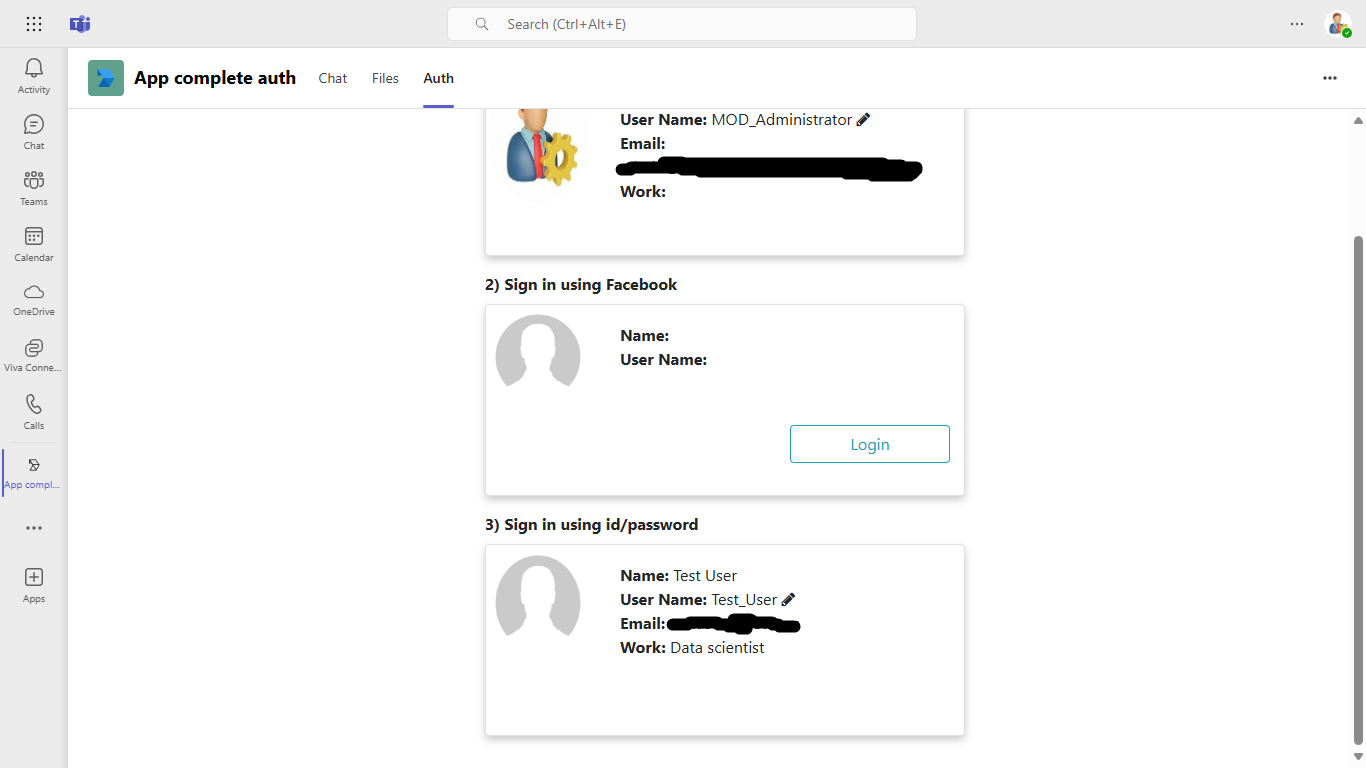

Tab using credentials

Messaging Extention Authentication

  • ME Action

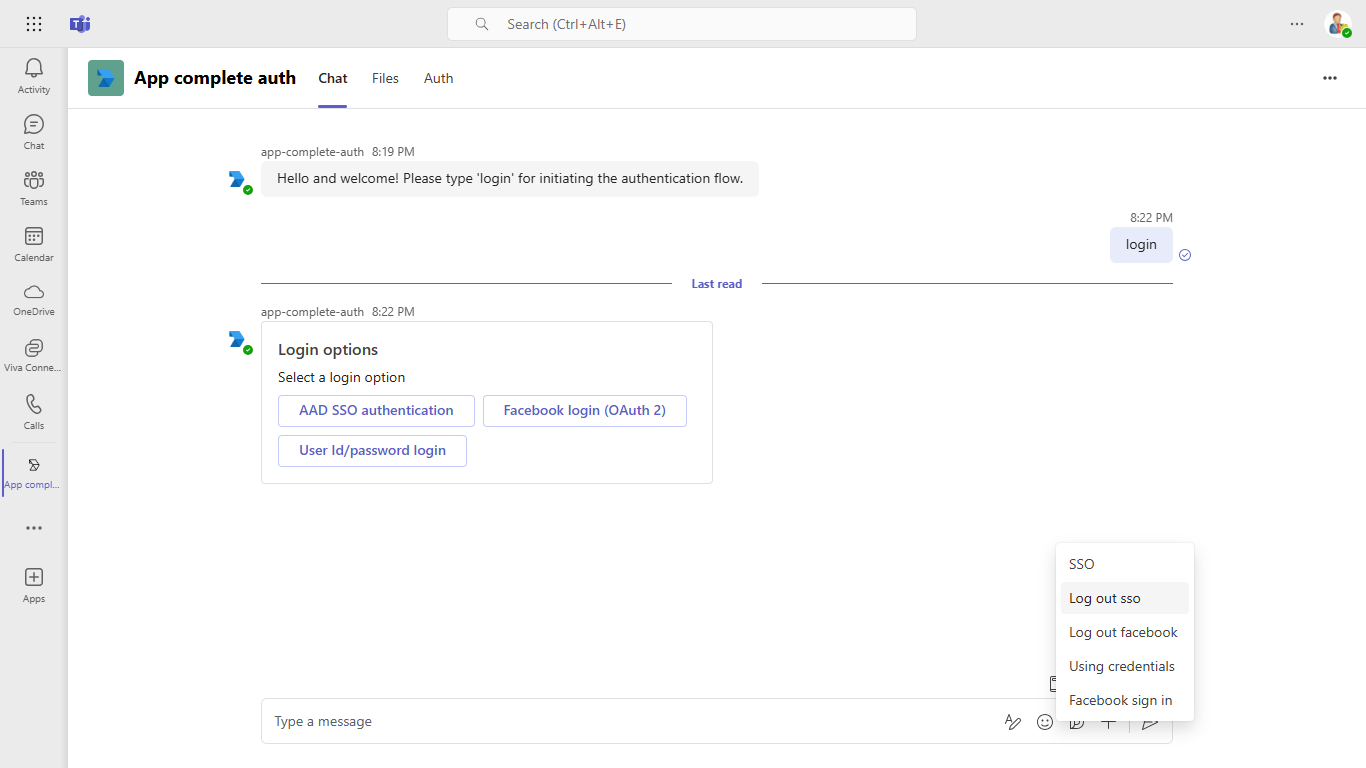

ME action

  • SSO

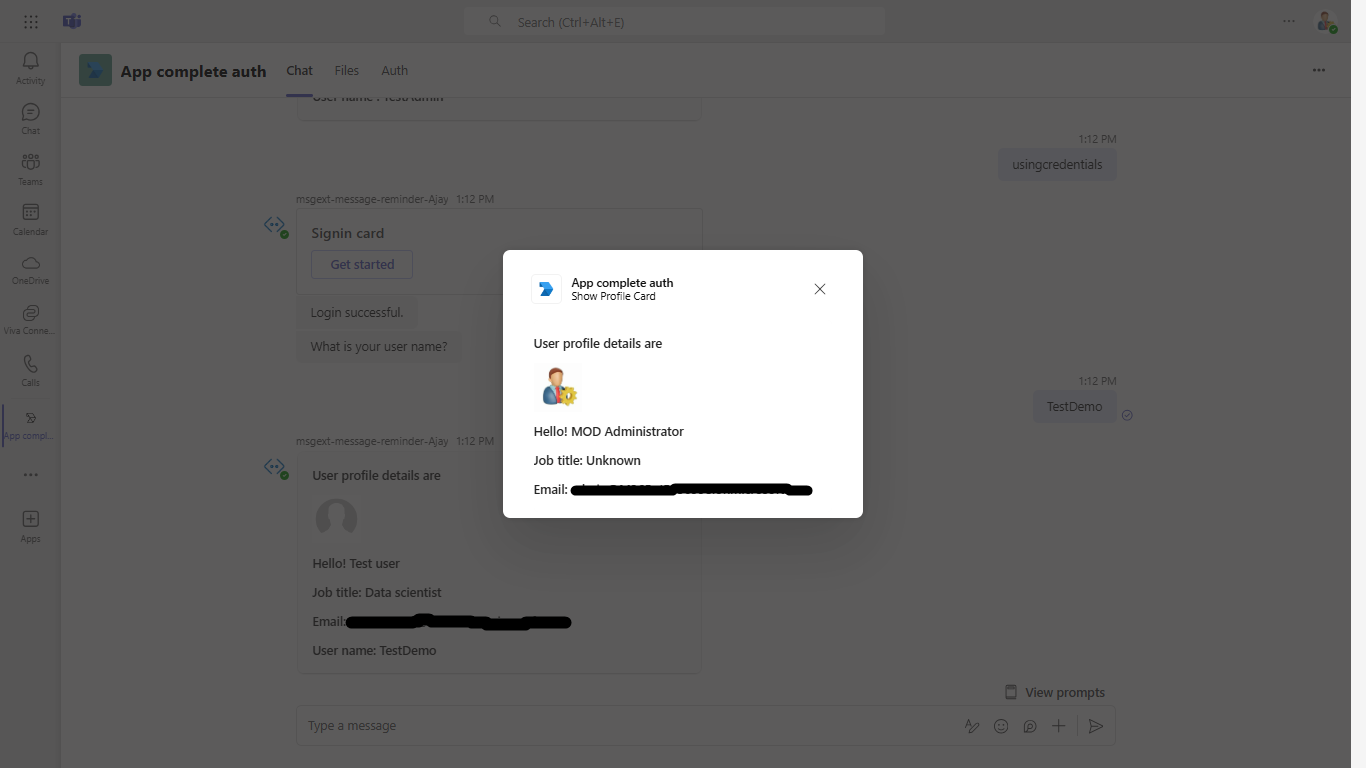

ME SSO login

  • Authentication using user name and password

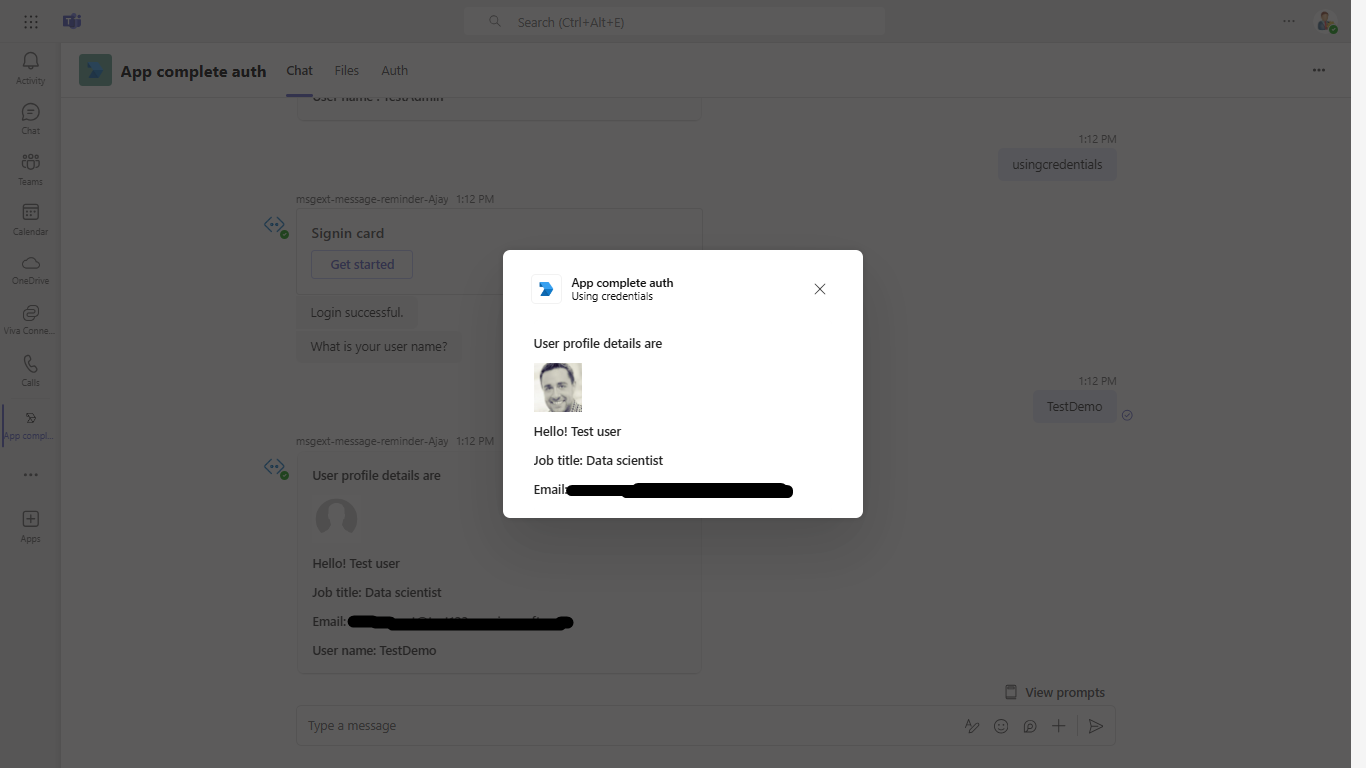

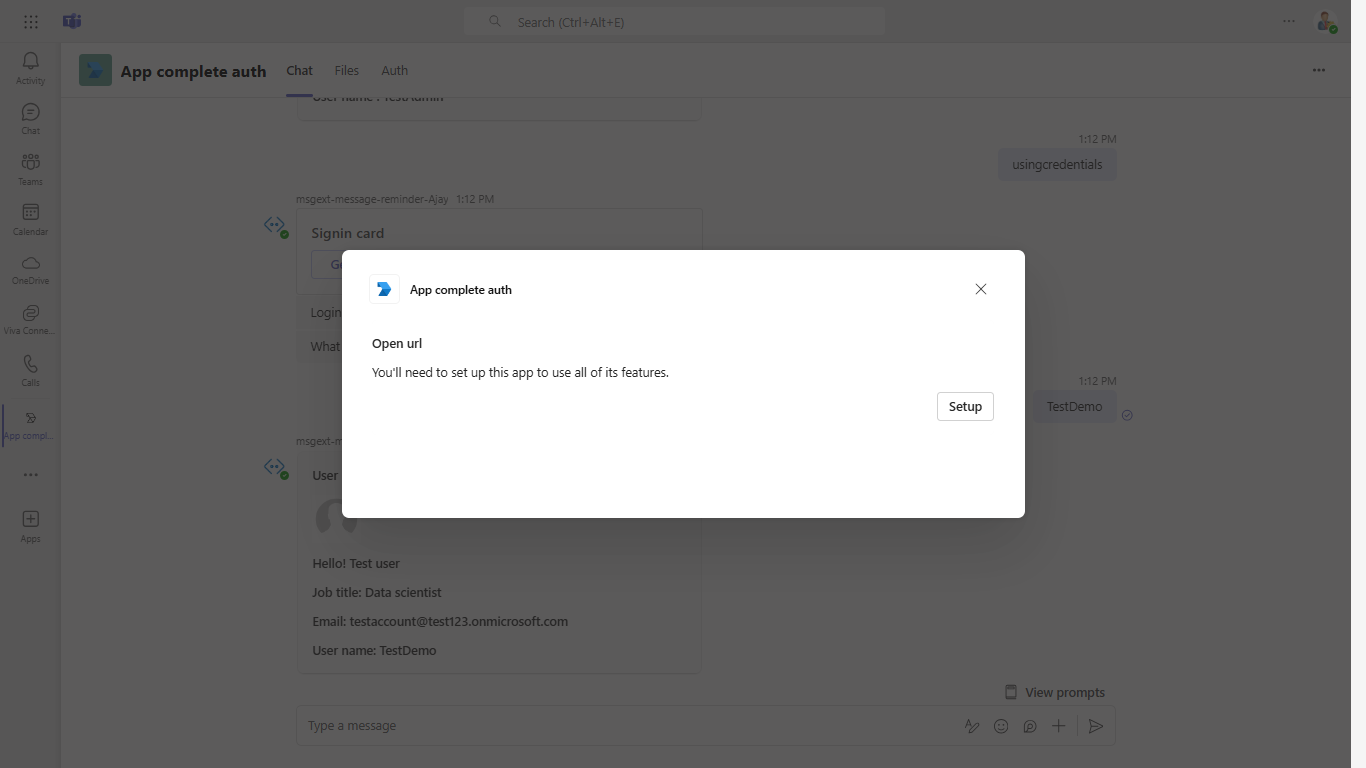

ME using credentials

ME using credentials details

  • ME Search

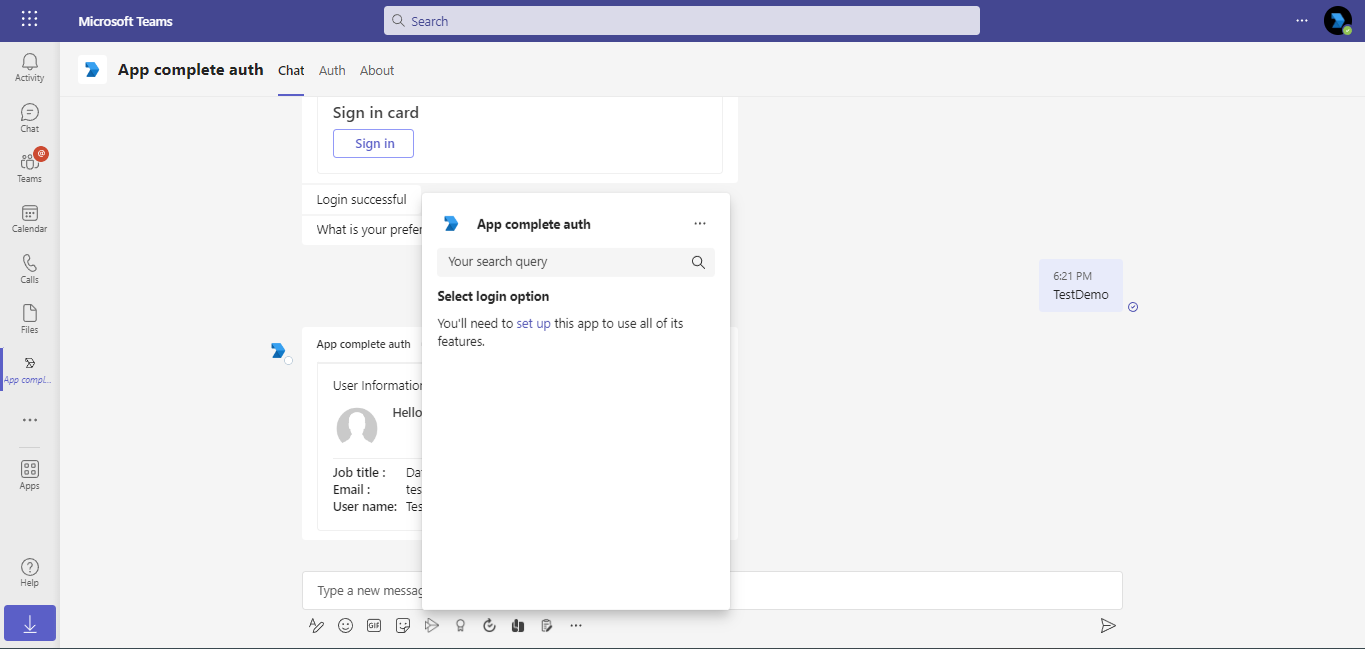

ME search ME search

  • SSO

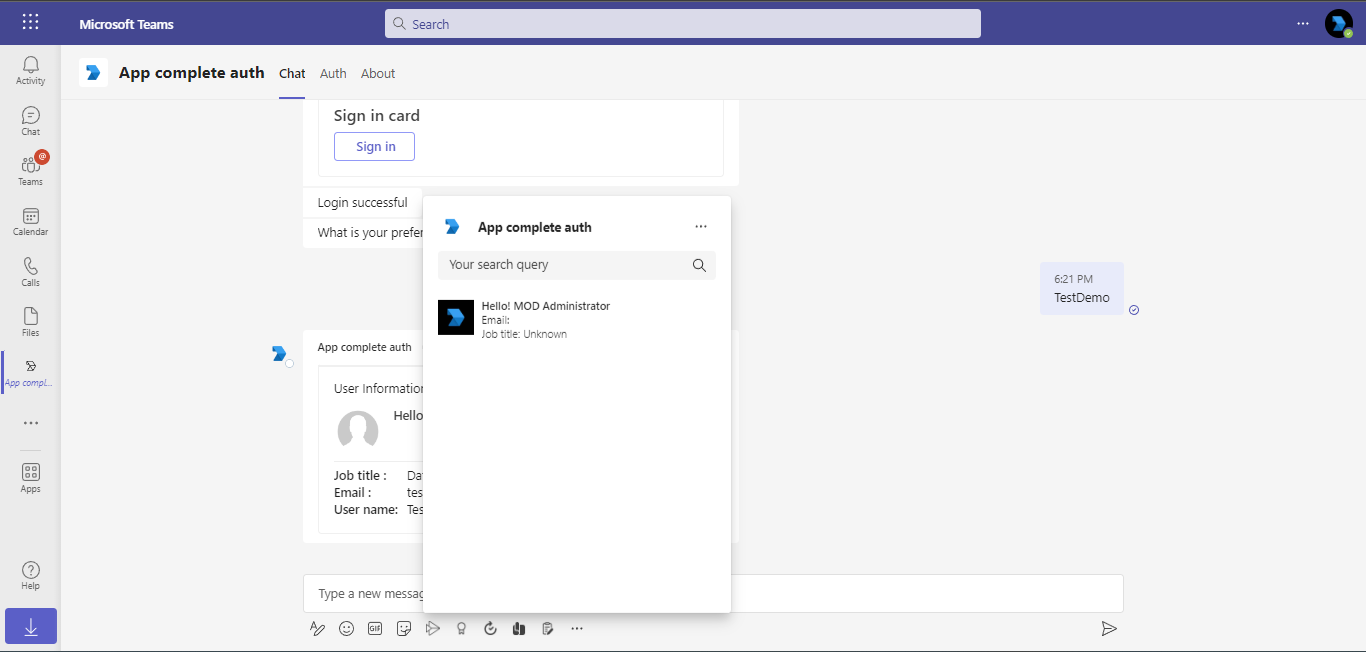

ME search SSO login

  • Authentication using user name and password

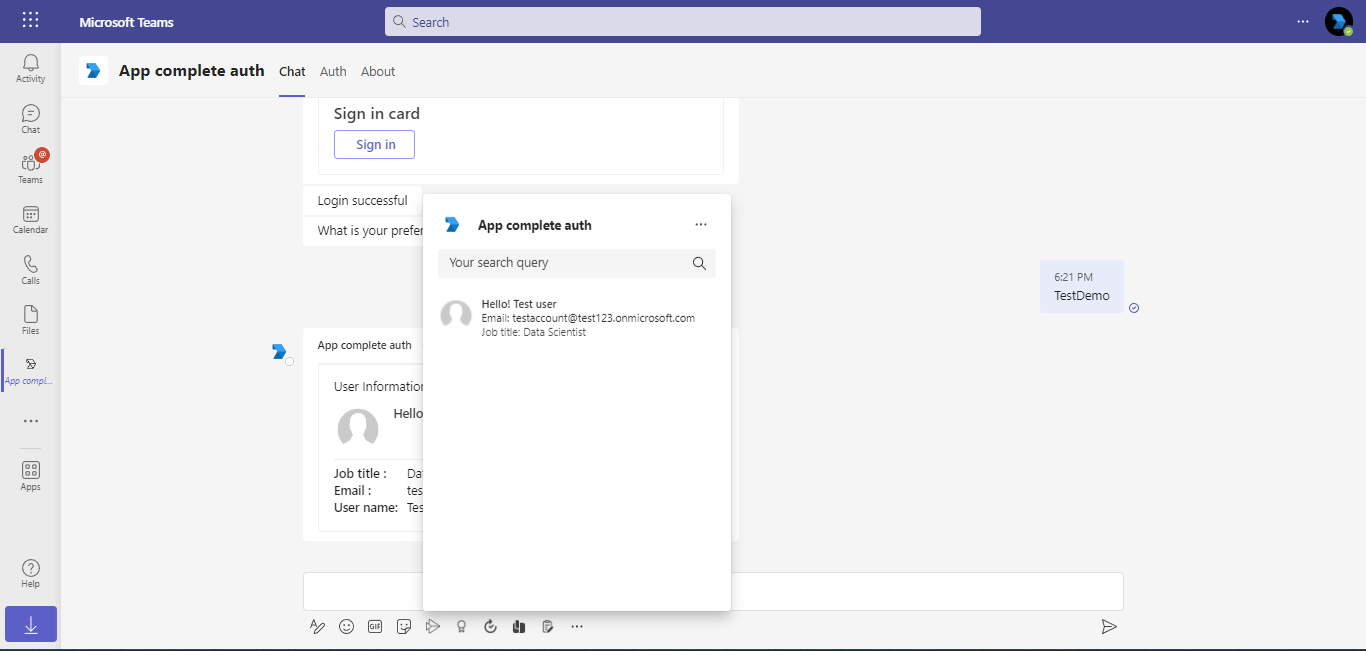

ME search using credentials details

  • ME Link unfurling

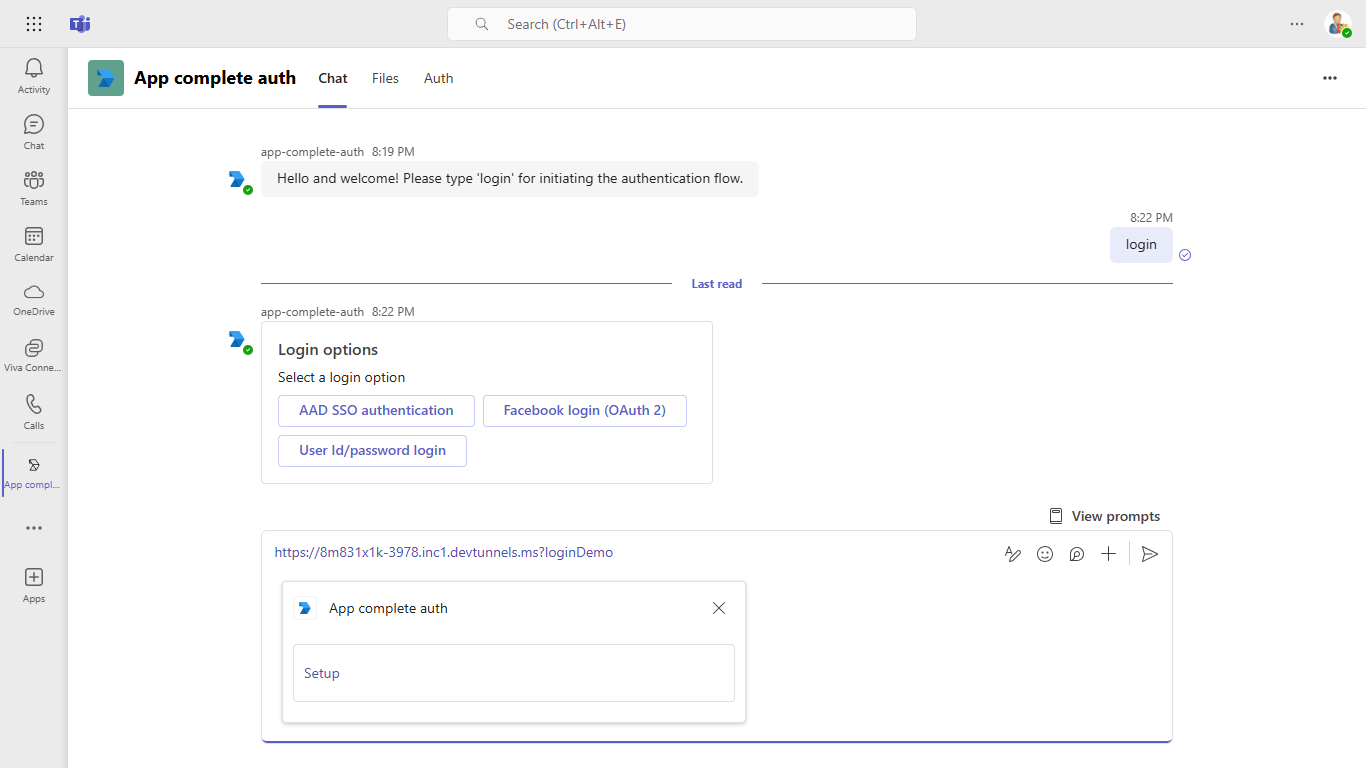

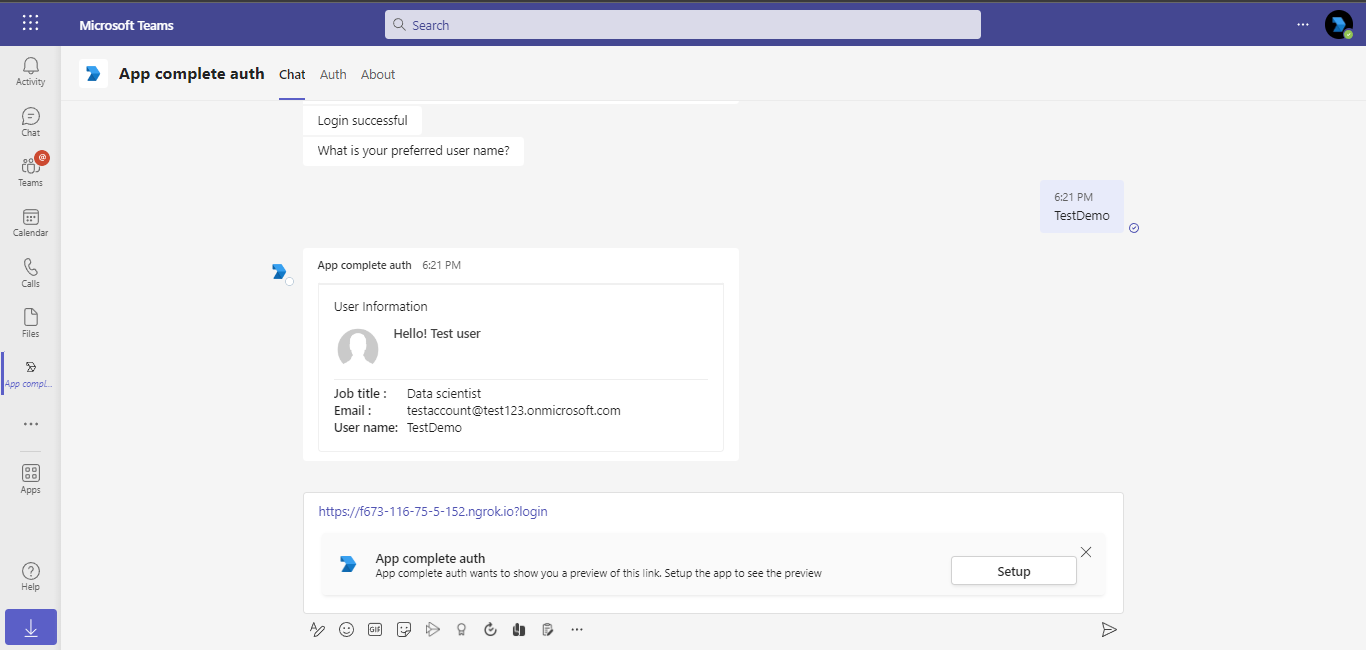

ME Link unfurling

  • SSO

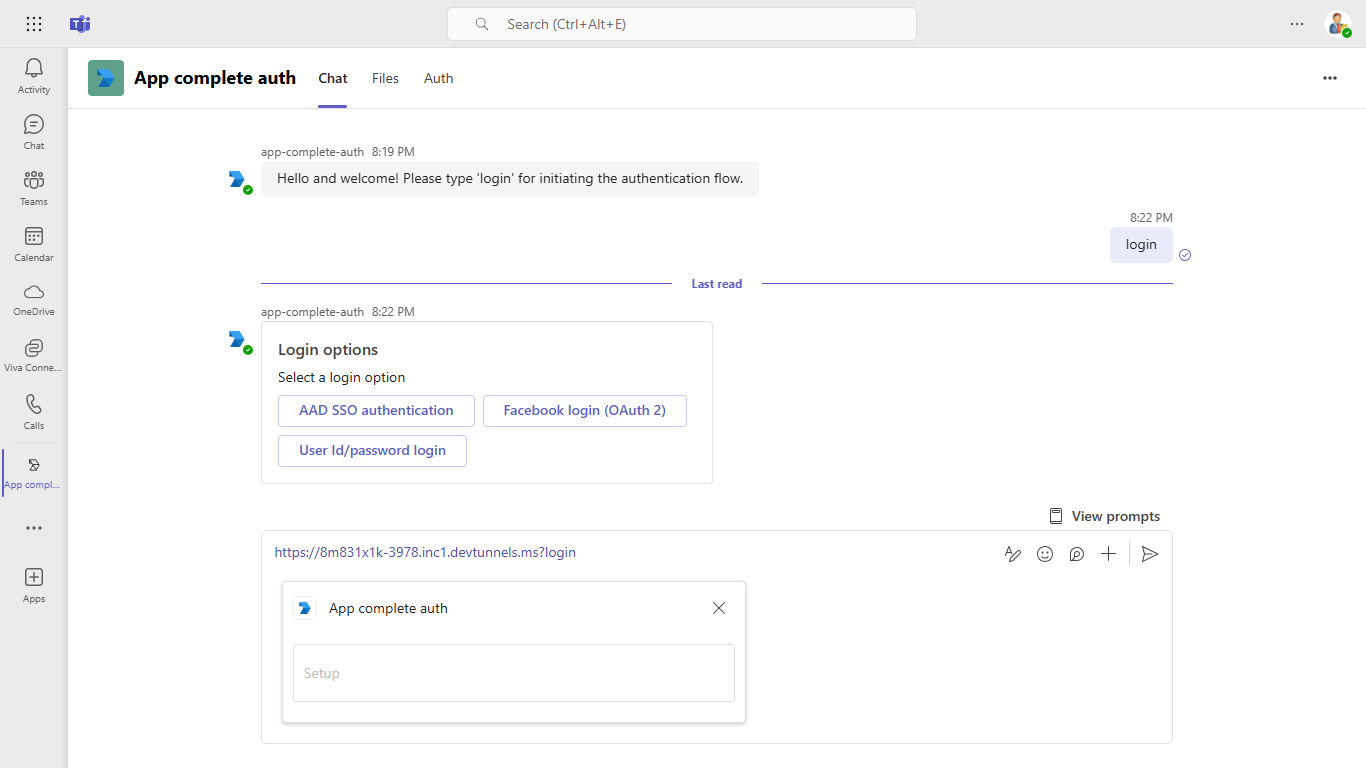

ME Link unfurling SSO login

  • Authentication using user name and password

ME Link unfurling using credentials details

Outlook on the web

  • To view your app in Outlook on the web.

  • Go to Outlook on the weband sign in using your dev tenant account.

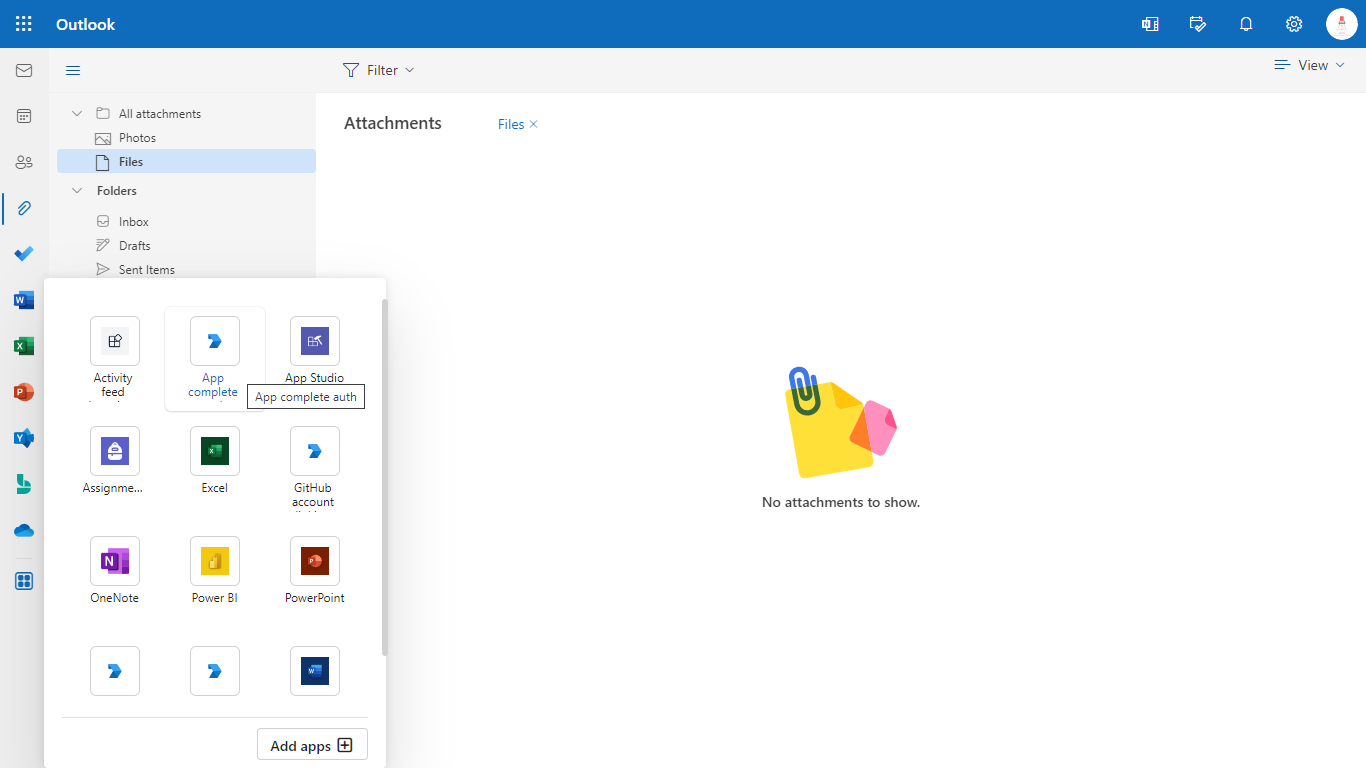

On the side bar, select More Apps. Your sideloaded app title appears among your installed apps

InstallOutlook

Select your app icon to launch and preview your app running in Outlook on the web

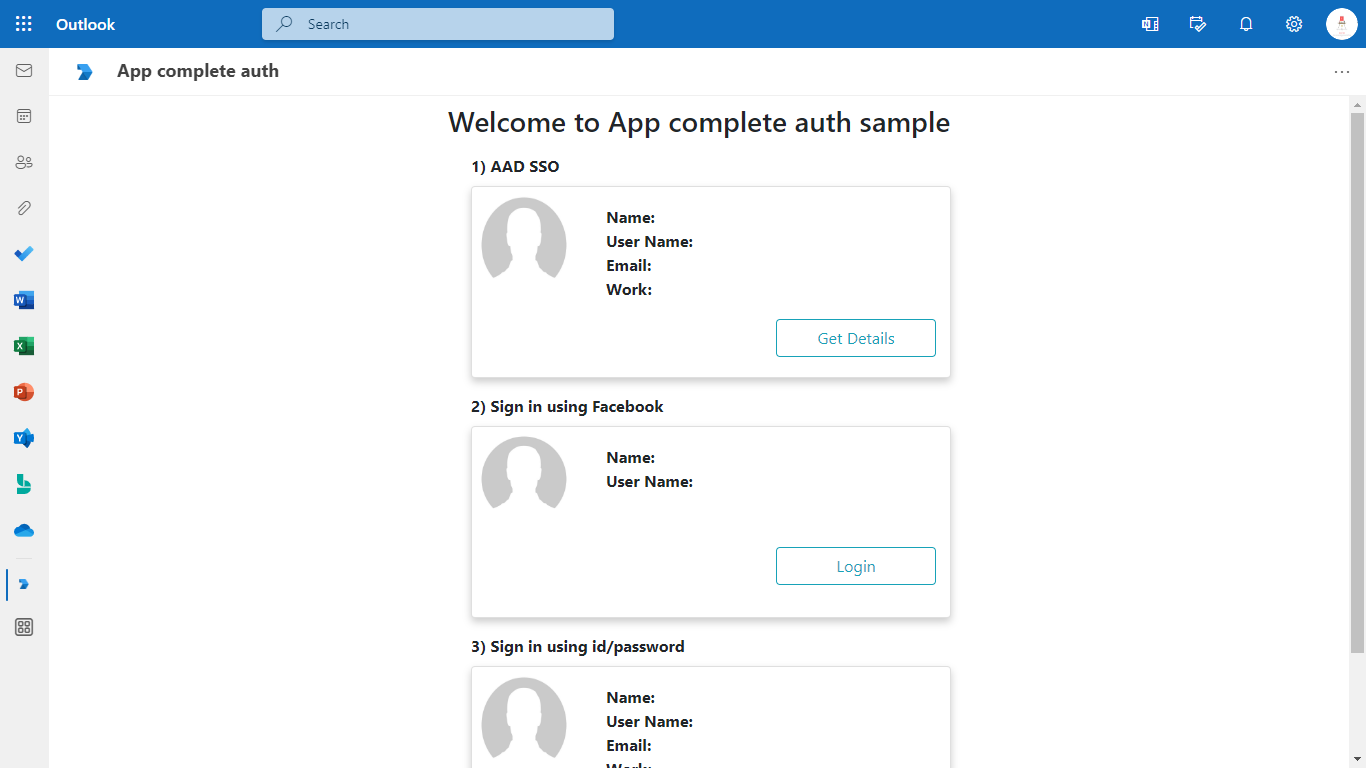

AppOutlook

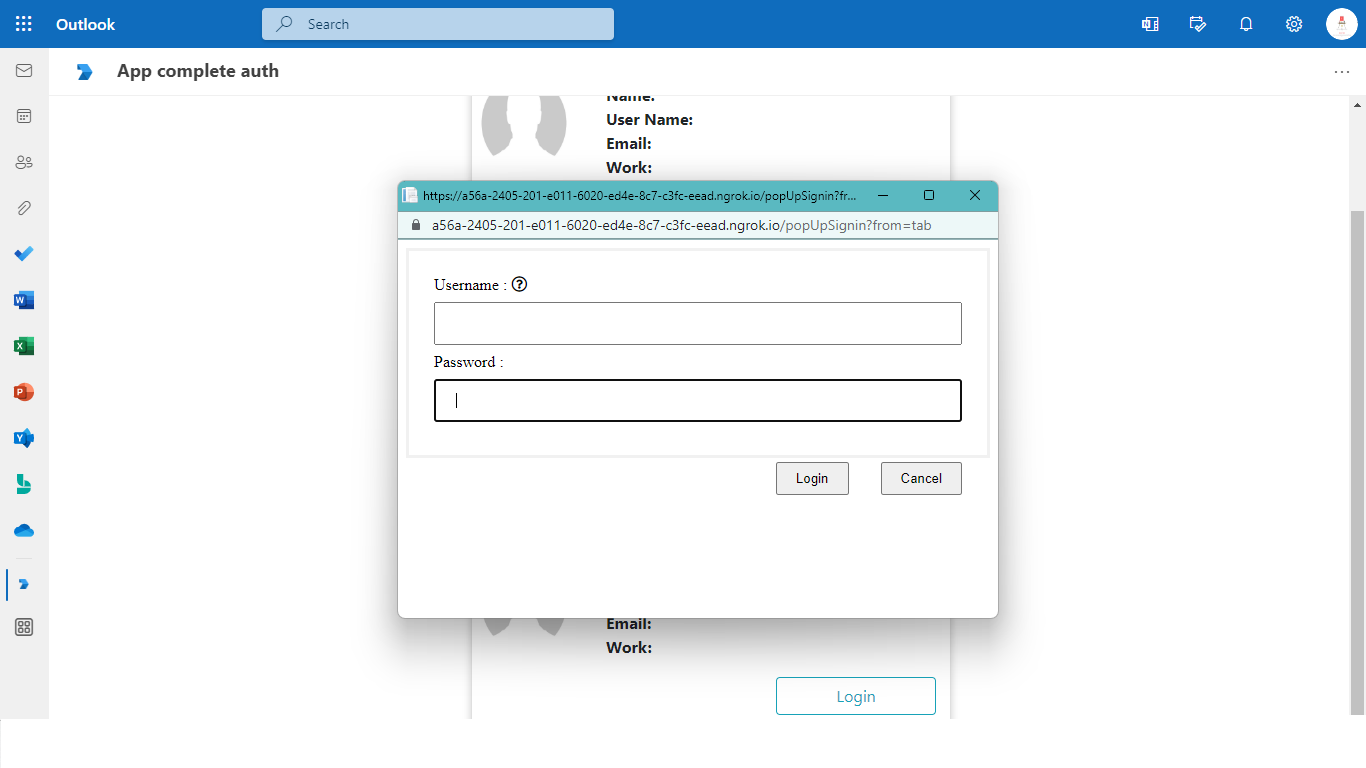

AppOutlookLogin

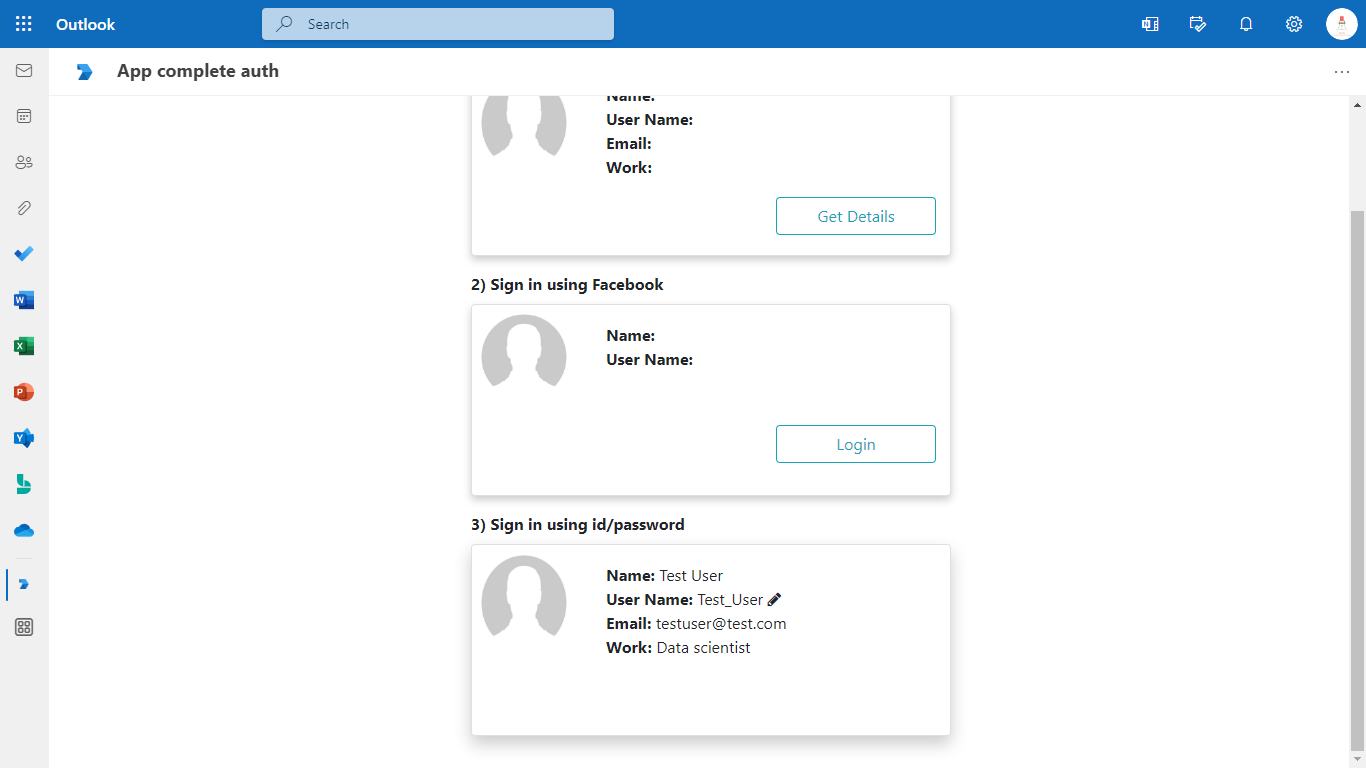

AppOutlookloginDetails

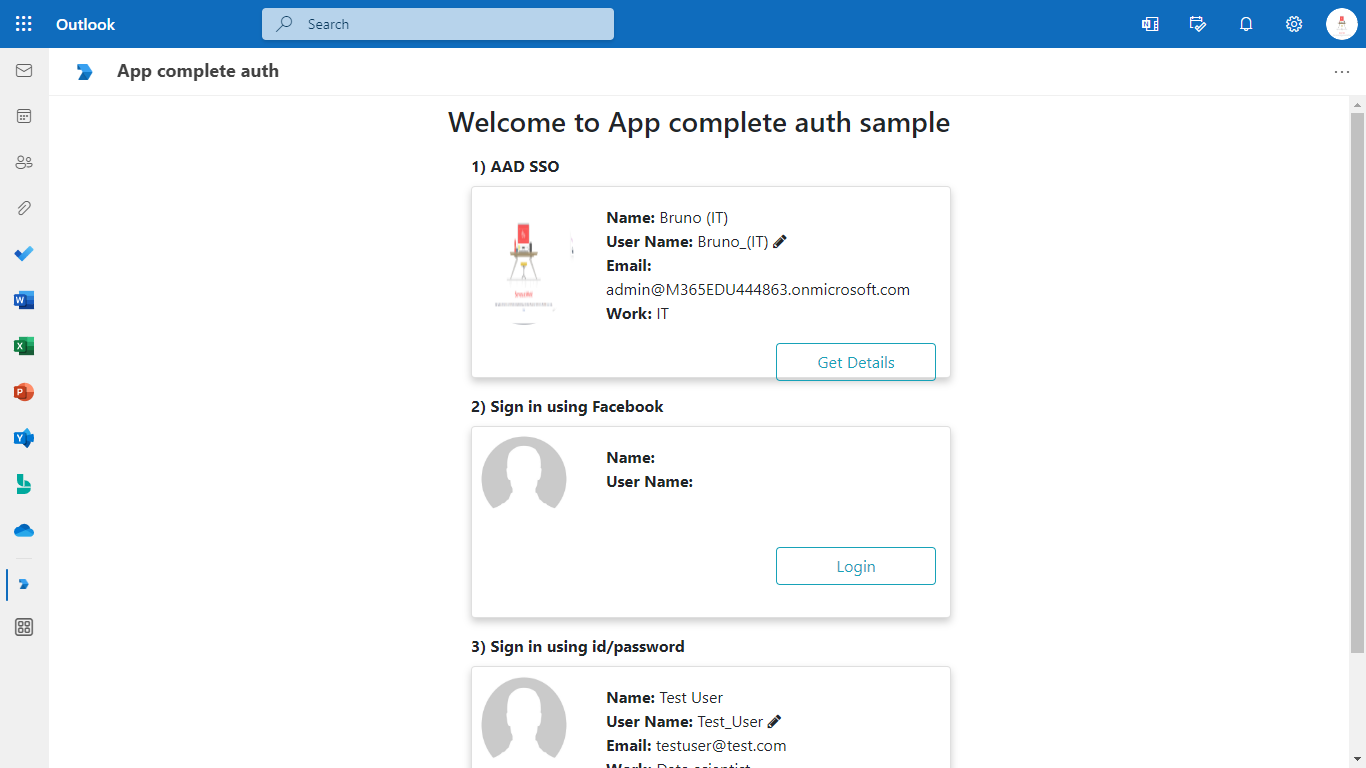

AppOutlookSSODetails

Note: Similarly, you can test your application in the Outlook desktop app as well.

Office on the web

  • To preview your app running in Office on the web.

  • Log into office.com with test tenant credentials

Select the Apps icon on the side bar. Your sideloaded app title appears among your installed apps

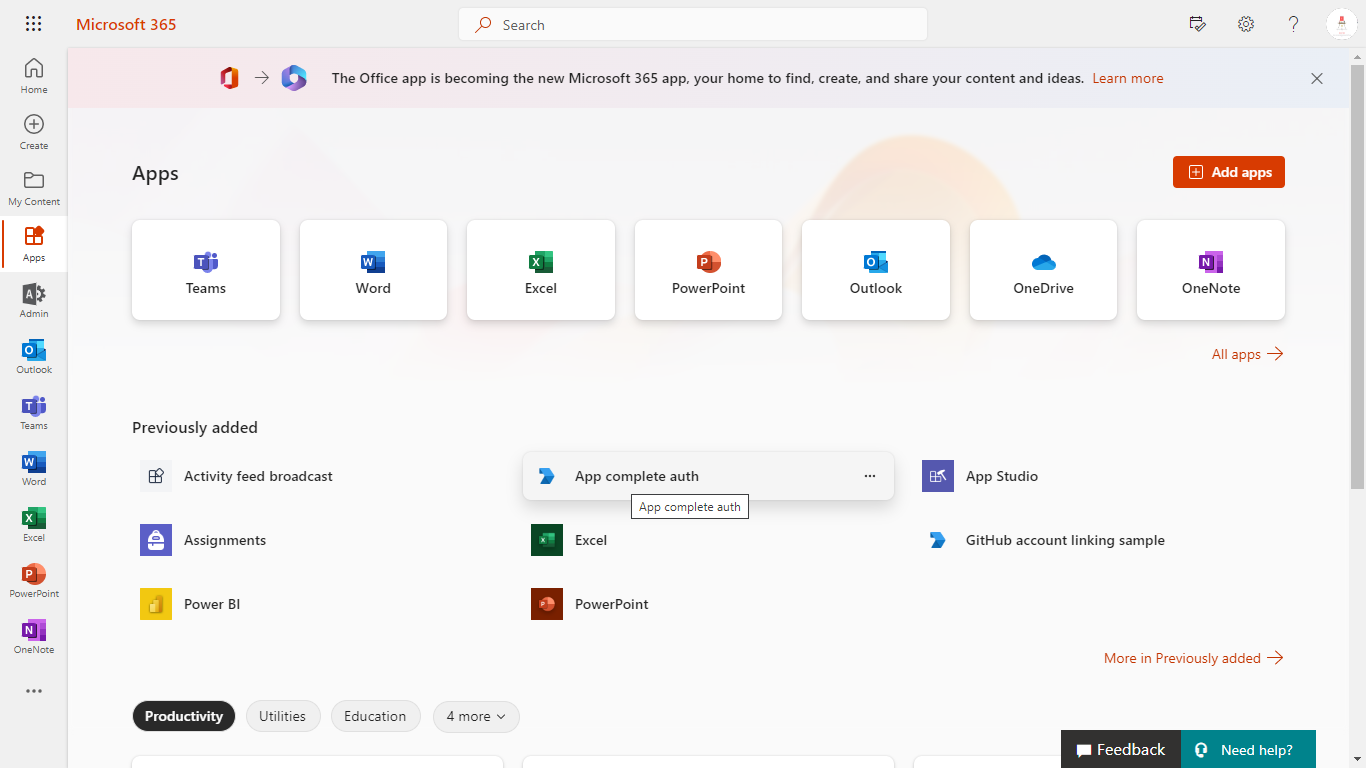

InstallOffice

Select your app icon to launch your app in Office on the web

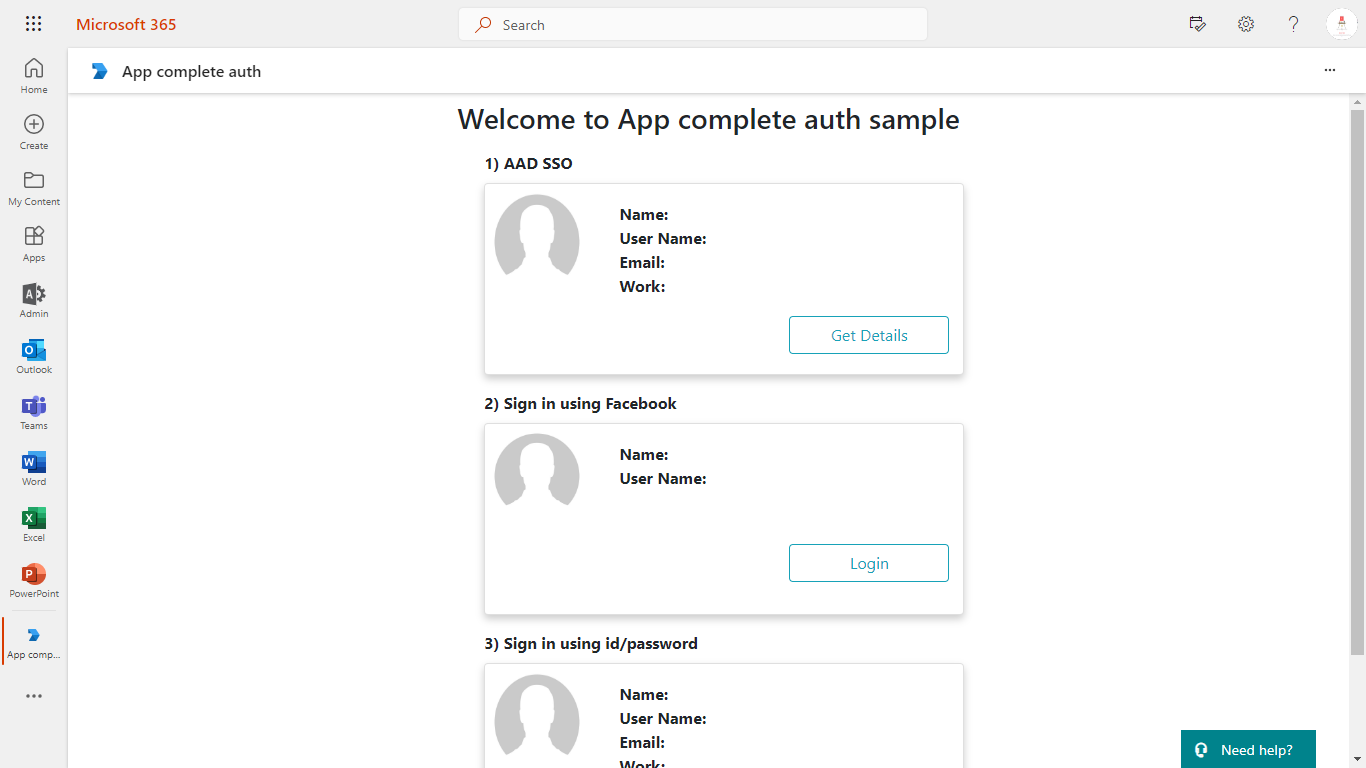

AppOffice

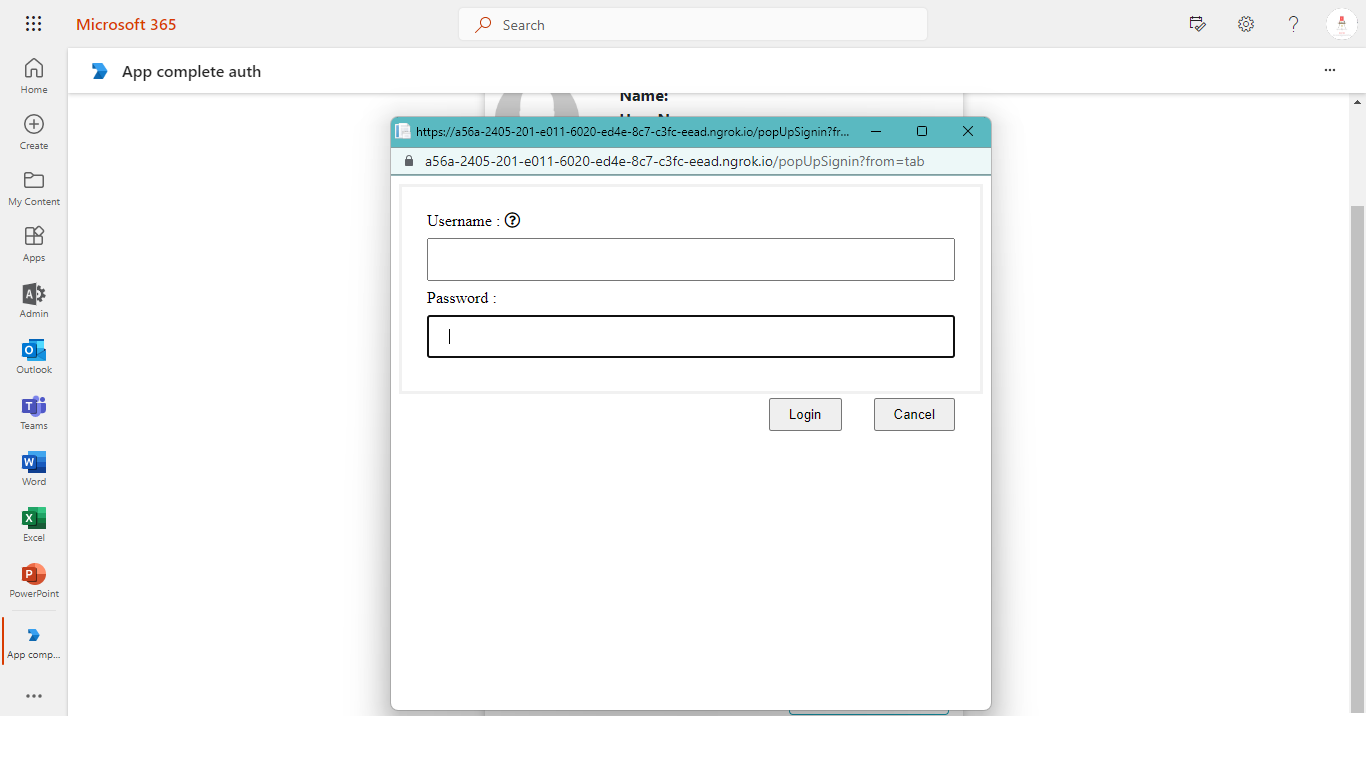

AppOfficePop

AppOfficeDetails

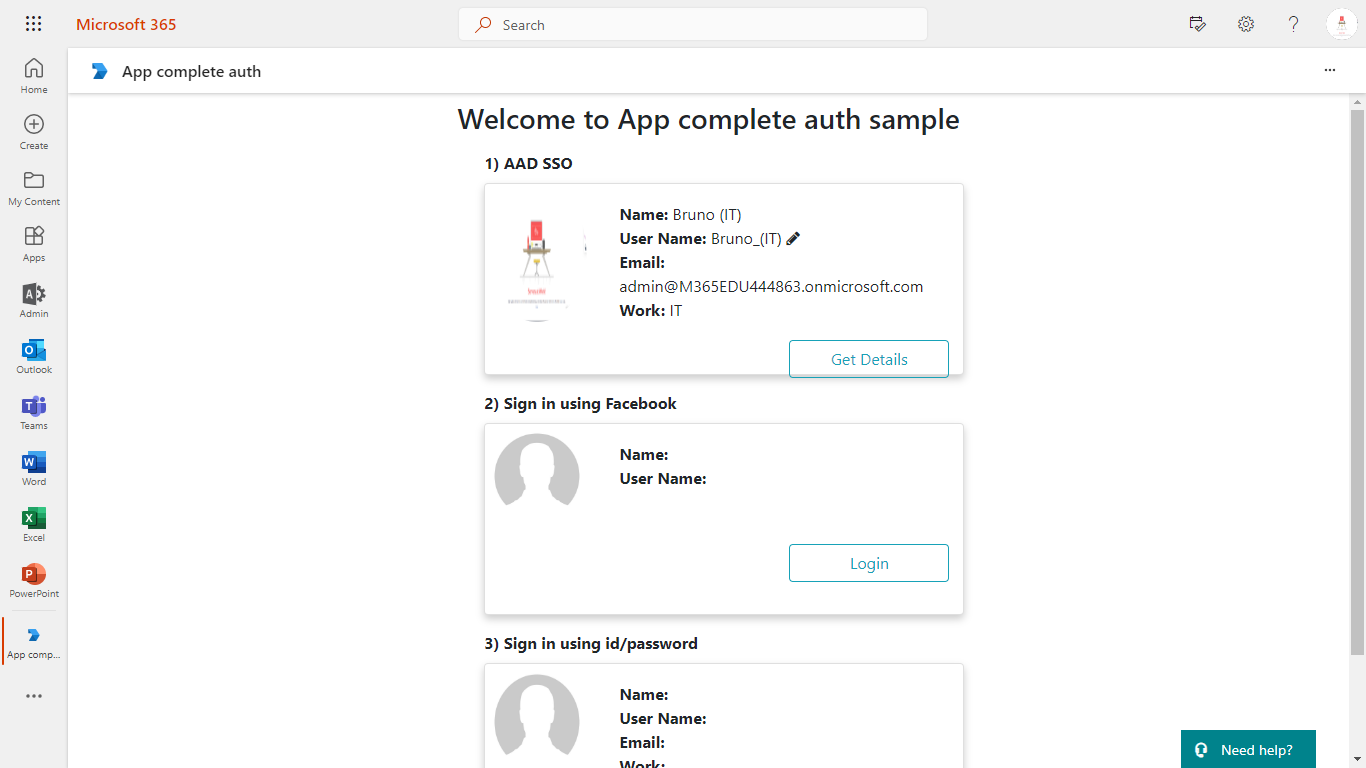

AppOfficeLoginDetails

Note: Similarly, you can test your application in the Office 365 desktop app as well.

Deploy the bot to Azure

To learn more about deploying a bot to Azure, see Deploy your bot to Azure for a complete list of deployment instructions.
