Teams Meeting Context Sample Python

Browse code

This sample application illustrates how to display the meeting context object in a Microsoft Teams meeting tab, utilizing the bot's Meeting API to fetch participant and meeting details. Users can interact with the bot to obtain comprehensive information about participants and meeting specifics, such as start times, end times, and joining URLs, thereby enriching the collaborative experience within Teams.

Included Features

  • Bots
  • Meeting Chat
  • Meeting Details
  • RSC Permissions

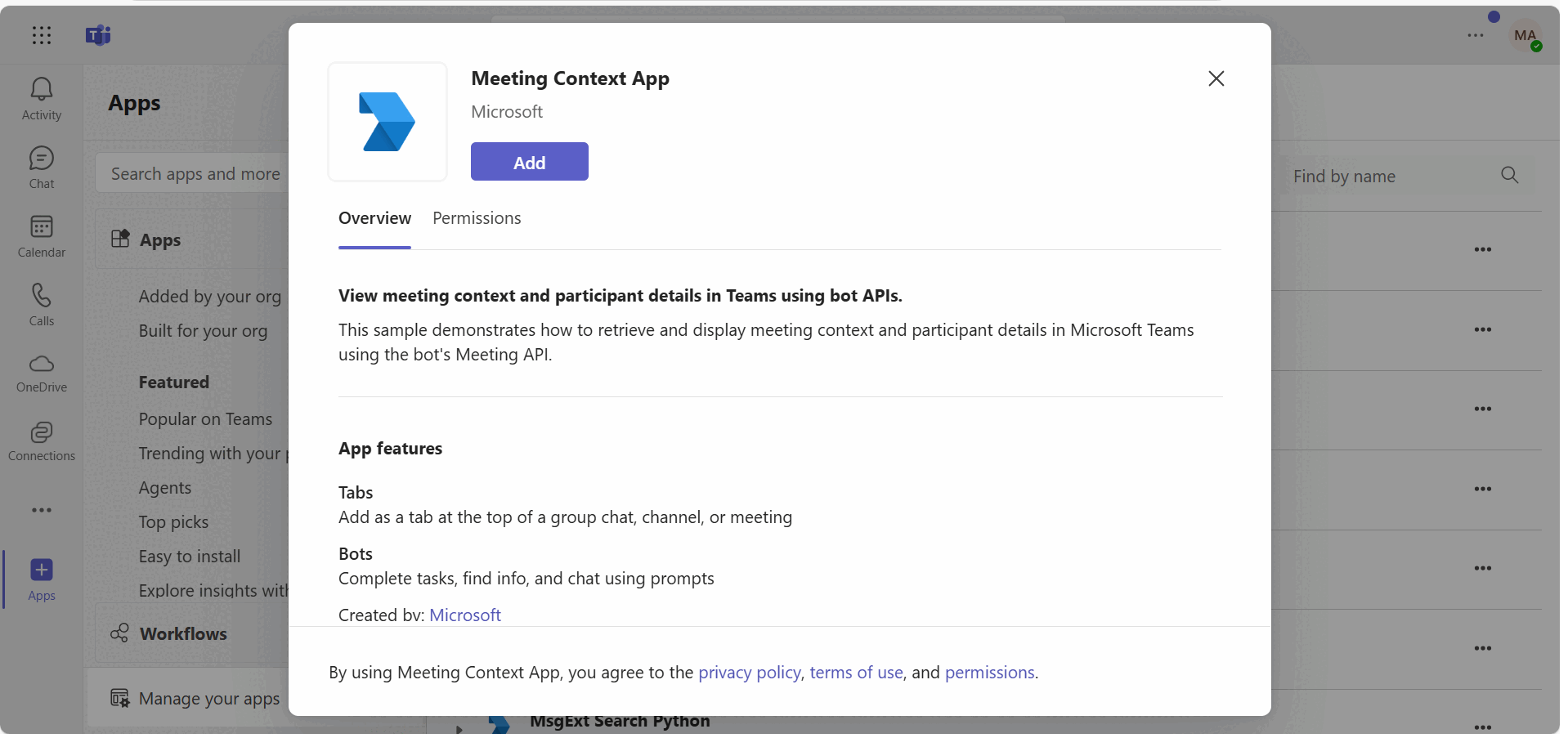

Interaction with bot

meeting-context

Try it yourself - experience the App in your Microsoft Teams client

Please find below demo manifest which is deployed on Microsoft Azure and you can try it yourself by uploading the app package (.zip file link below) to your teams and/or as a personal app. (Uploading must be enabled for your tenant, see steps here).

Teams Meeting Context Sample: Manifest

Prerequisites

Run the app (Using Microsoft 365 Agents Toolkit for Visual Studio Code)

The simplest way to run this sample in Teams is to use Microsoft 365 Agents Toolkit for Visual Studio Code.

  1. Ensure you have downloaded and installed Visual Studio Code
  2. Install the Microsoft 365 Agents Toolkit extension and Python Extension
  3. Select File > Open Folder in VS Code and choose this samples directory from the repo
  4. Press CTRL+Shift+P to open the command box and enter Python: Create Environment to create and activate your desired virtual environment. Remember to select requirements.txt as dependencies to install when creating the virtual environment.
  5. Using the extension, sign in with your Microsoft 365 account where you have permissions to upload custom apps
  6. Select Debug > Start Debugging or F5 to run the app in a Teams web client.
  7. In the browser that launches, select the Add button to install the app to Teams.

If you do not have permission to upload custom apps (uploading), Microsoft 365 Agents Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Run the app (Manually Uploading to Teams)

Note these instructions are for running the sample on your local machine, the tunnelling solution is required because the Teams service needs to call into the bot.

  1. Clone the repository

    git clone https://github.com/OfficeDev/Microsoft-Teams-Samples.git

  2. Run ngrok - point to port 3978

    ngrok http 3978 --host-header="localhost:3978"

    Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:

    devtunnel host -p 3978 --allow-anonymous

  3. Create Azure Bot resource resource in Azure

    • Use the current https URL you were given by running the tunneling application. Append with the path /api/messages used by this sample
    • Ensure that you've enabled the Teams Channel
    • If you don't have an Azure account you can use this Azure free account here

  4. In a terminal, go to samples\meeting-context-app\python

  5. Activate your desired virtual environment

  6. Install dependencies by running pip install -r requirements.txt in the project folder.

  7. Update the config.py configuration for the bot to use the Microsoft App Id and App Password from the Bot Framework registration. (Note the App Password is referred to as the "client secret" in the azure portal and you can always create a new client secret anytime.)

  8. Run your app with python app.py

4. Setup Manifest for Teams

  • This step is specific to Teams.

    • Edit the manifest.json contained in the meetings-context-app/python/appManifest folder to replace your Microsoft App Id (that was created when you registered your bot earlier) everywhere you see the place holder string <<Your Microsoft App Id>> (depending on the scenario the Microsoft App Id may occur multiple times in the manifest.json)
    • Edit the manifest.json for configurationUrl inside configurableTabs and validDomains. Replace {{domain-name}} with base Url domain. E.g. if you are using ngrok it would be https://1234.ngrok-free.app then your domain-name will be 1234.ngrok-free.app and if you are using dev tunnels then your domain will be like: 12345.devtunnels.ms.

    Note: If you want to test your app across multi hub like: Outlook/Office.com, please update the manifest.json in the meetings-context-app/python/appManifest_Hub folder with the required values.

    • Zip up the contents of the meetings-context-app/python/appManifest folder to create a manifest.zip(Make sure that zip file does not contains any subfolder otherwise you will get error while uploading your .zip package)
    • Upload the manifest.zip to Teams (In Teams Apps/Manage your apps click "Upload an app". Browse to and Open the .zip file. At the next dialog, click the Add button.)
    • Add the app to personal/team/groupChat scope (Supported scopes)

This app has a default landing capability that determines whether the opening scope is set to the Bot or a static tab. Without configuring this, Microsoft Teams defaults to landing on the bot in desktop clients and tab in mobile clients.

Running the sample

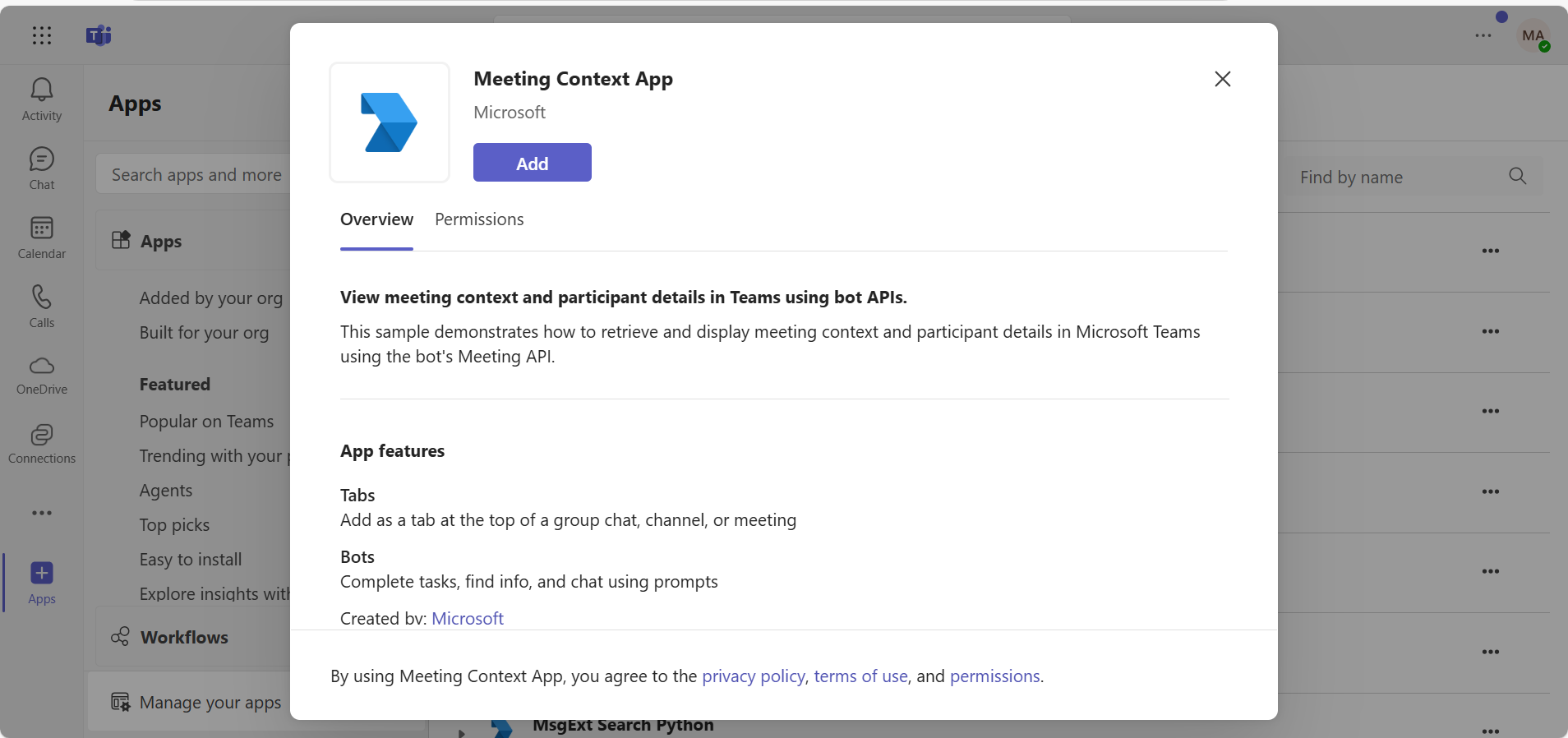

Install

  • Add the app in meeting/group channel.

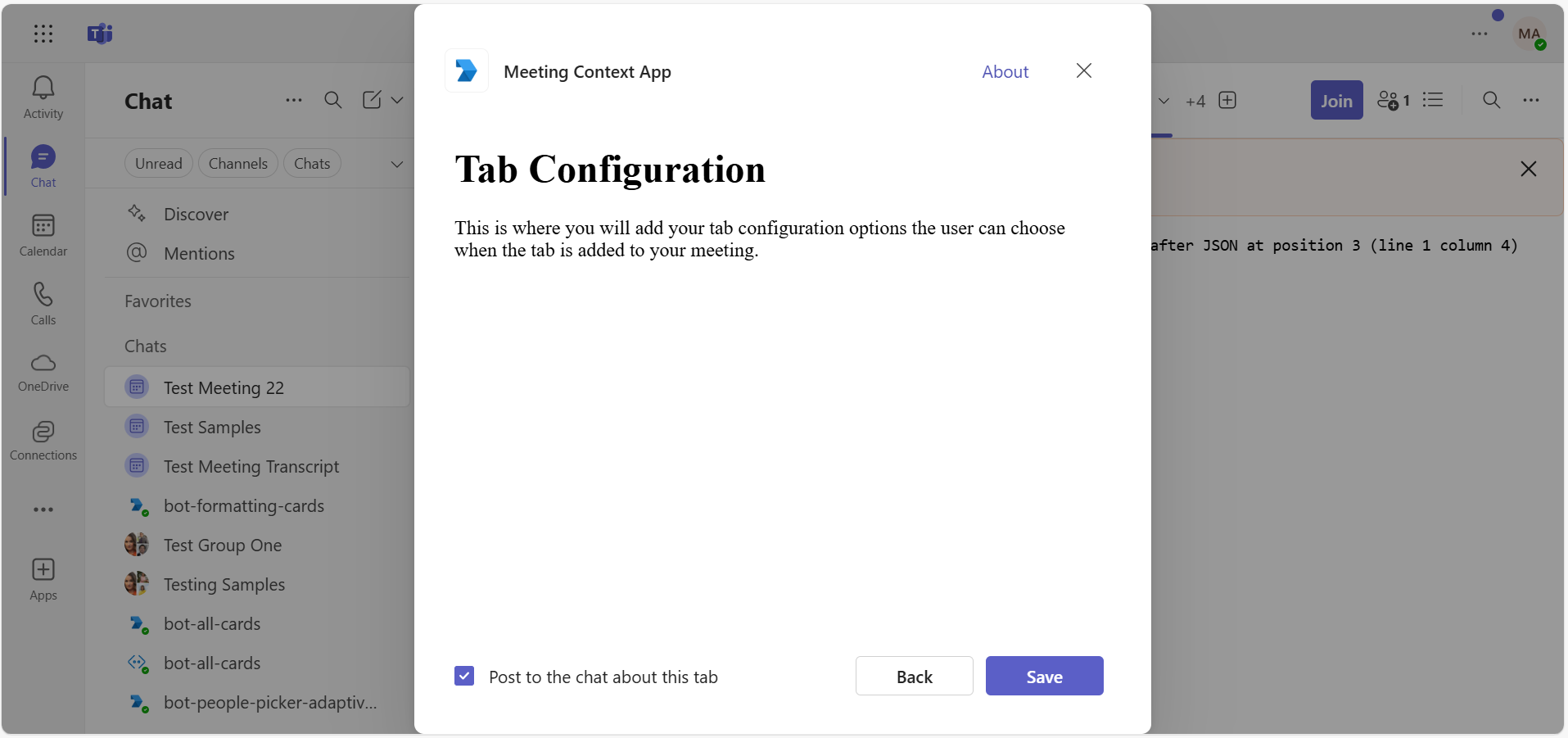

  • The details of the meeting context object will be shown on tab based. Config Tab

  • You can expand/reduce the JSON for the context object and can also copy a particular object slice.

  • You can send one of these two commands: Meeting Context or Participant Context

  • It will send you the output of TeamsInfo.getMeetingInfo and TeamsInfo.getMeetingParticipant

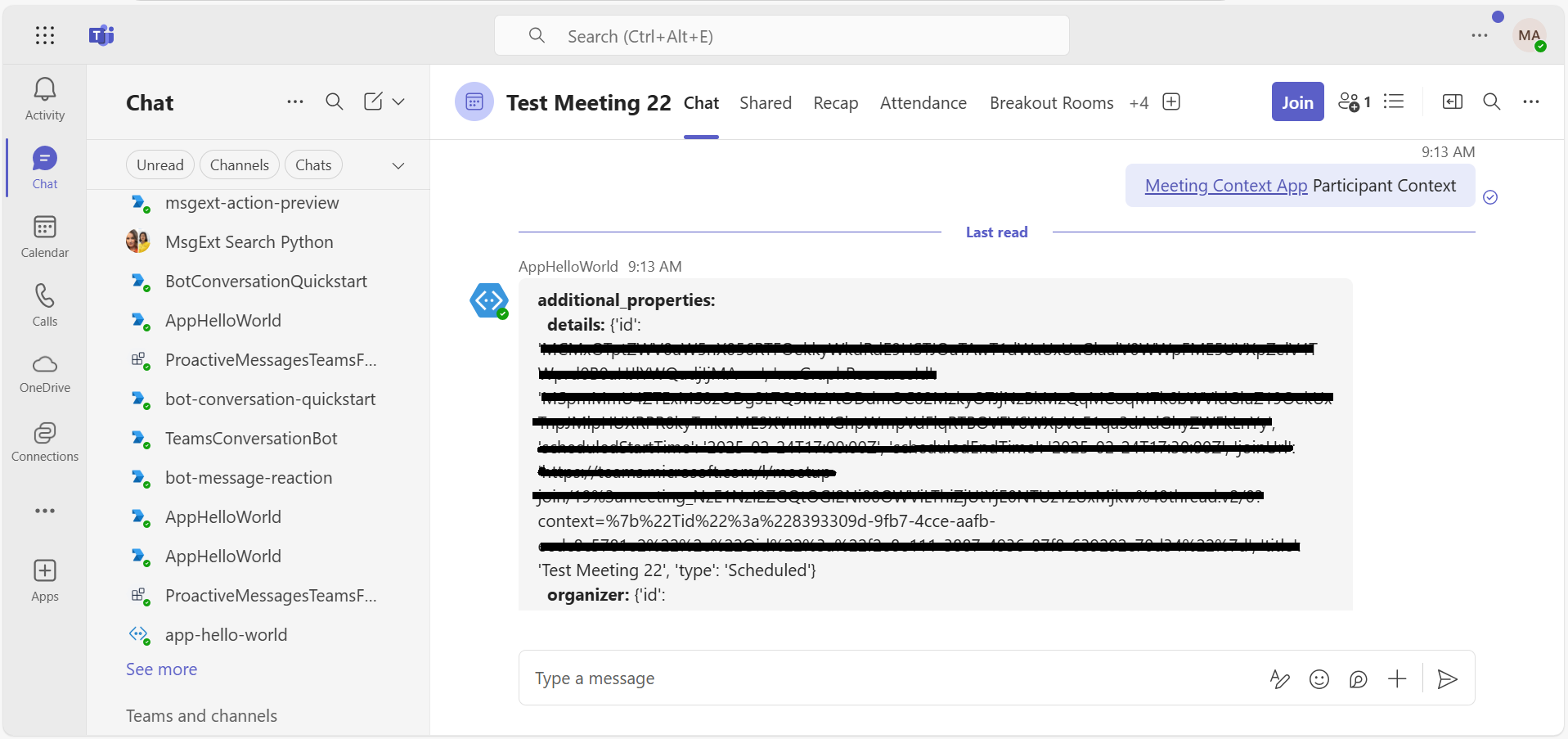

  1. Participant Details : User can see the details of current participant by the name id and other fields respectively. participant context

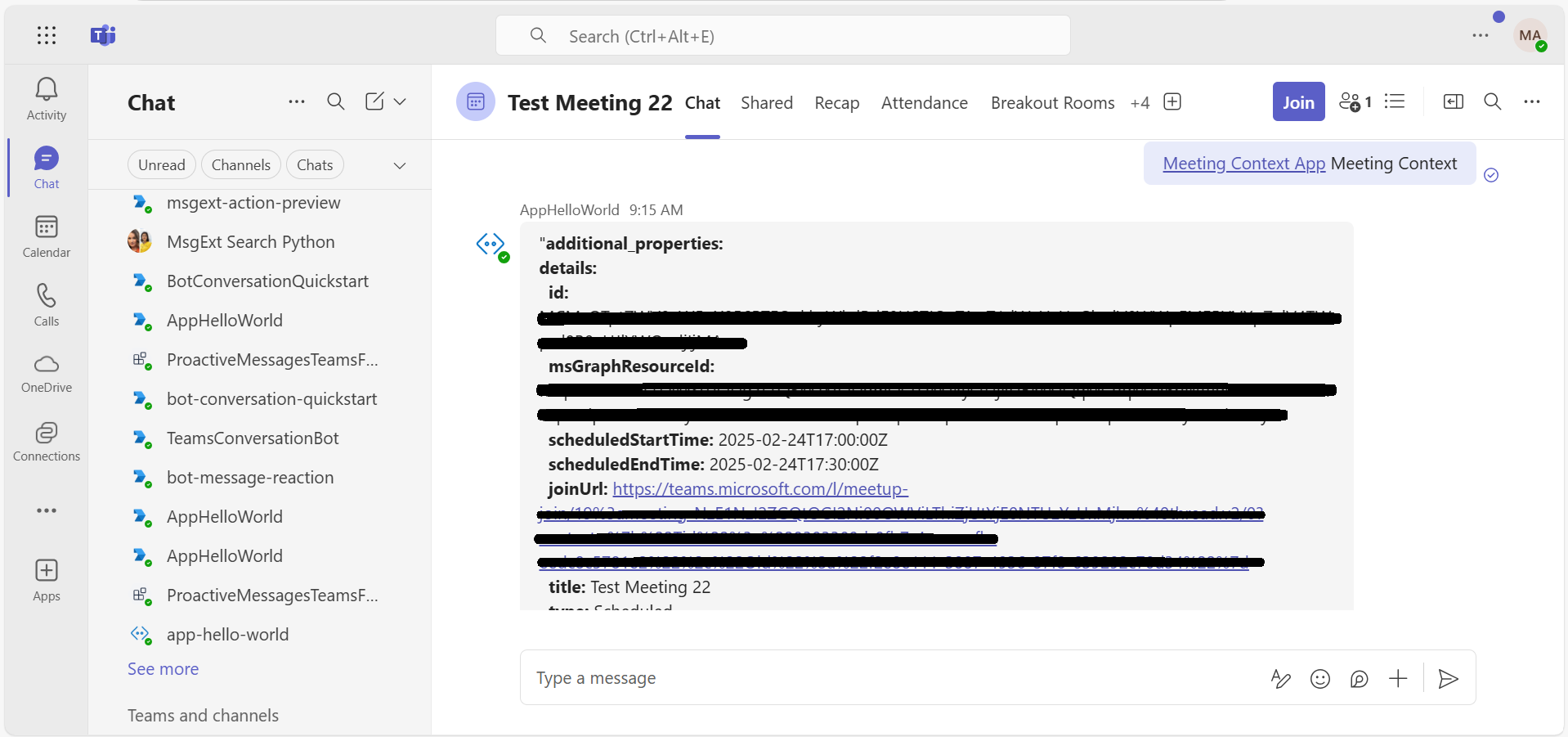

  2. Meeting Details : In this user can track the details of meeting start time, end time, joining url and other details respectively. meeting context

Deploy the bot to Azure

To learn more about deploying a bot to Azure, see Deploy your bot to Azure for a complete list of deployment instructions.

Further reading
