Teams Tab SSO Authentication Sample C#

Code Sample
08/29/2024

Browse code

Interaction with app.

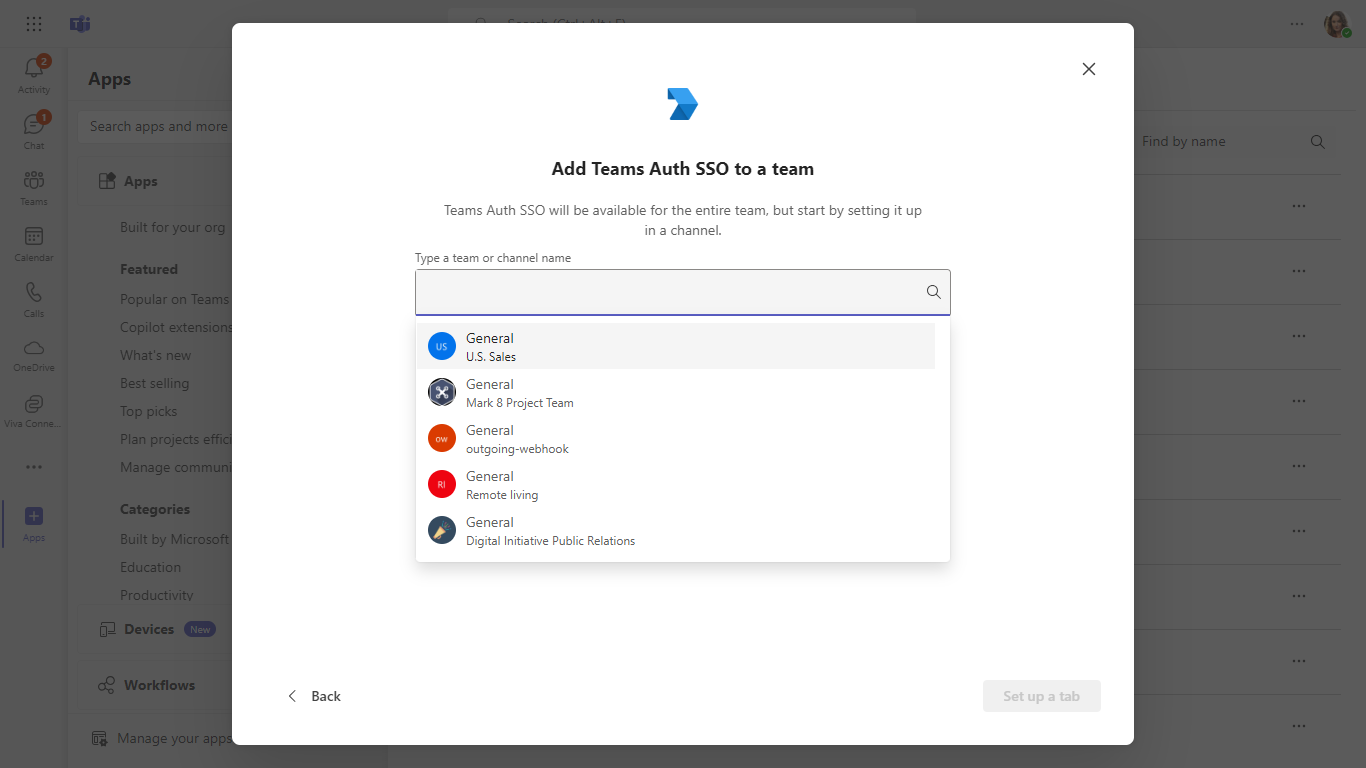

setupteams

Prerequisites

.NET Core SDK version 6.0

determine dotnet version
```
dotnet --version
```
dev tunnel or Ngrok (For local environment testing) latest version (any other tunneling software can also be used)
Teams Microsoft Teams is installed and you have an account

Run the app (Using Teams Toolkit for Visual Studio)

The simplest way to run this sample in Teams is to use Teams Toolkit for Visual Studio.

Install Visual Studio 2022 Version 17.10 Preview 4 or higher Visual Studio
Install Teams Toolkit for Visual Studio Teams Toolkit extension
In the debug dropdown menu of Visual Studio, select default startup project > Microsoft Teams (browser)
In Visual Studio, right-click your TeamsApp project and Select Teams Toolkit > Prepare Teams App Dependencies
Using the extension, sign in with your Microsoft 365 account where you have permissions to upload custom apps.
Select Debug > Start Debugging or F5 to run the menu in Visual Studio.
In the browser that launches, select the Add button to install the app to Teams.

If you do not have permission to upload custom apps (sideloading), Teams Toolkit will recommend creating and using a Microsoft 365 Developer Program account - a free program to get your own dev environment sandbox that includes Teams.

Setup

Register your Teams Auth SSO with Azure AD

Select New Registration and on the register an application page, set following values:
- Set name to your app name.
- Choose the supported account types (any account type will work)
- Leave Redirect URI empty.
- Choose Register.
On the overview page, copy and save the Application (client) ID, Directory (tenant) ID. You’ll need those later when updating your Teams application manifest and in the appsettings.json.
Under Manage, select Expose an API.
Select the Set link to generate the Application ID URI in the form of api://{AppID}. Insert your fully qualified domain name (with a forward slash "/" appended to the end) between the double forward slashes and the GUID. The entire ID should have the form of: api://fully-qualified-domain-name/{AppID}
- ex: api://%ngrokDomain%.ngrok-free.app/00000000-0000-0000-0000-000000000000.
Select the Add a scope button. In the panel that opens, enter access_as_user as the Scope name.
Set Who can consent? to Admins and users
Fill in the fields for configuring the admin and user consent prompts with values that are appropriate for the access_as_user scope:
- Admin consent title: Teams can access the user’s profile.
- Admin consent description: Allows Teams to call the app’s web APIs as the current user.
- User consent title: Teams can access the user profile and make requests on the user's behalf.
- User consent description: Enable Teams to call this app’s APIs with the same rights as the user.
Ensure that State is set to Enabled
Select Add scope
- The domain part of the Scope name displayed just below the text field should automatically match the Application ID URI set in the previous step, with /access_as_user appended to the end:
  - `api://[ngrokDomain].ngrok-free.app/00000000-0000-0000-0000-000000000000/access_as_user.
In the Authorized client applications section, identify the applications that you want to authorize for your app’s web application. Each of the following IDs needs to be entered:
- 1fec8e78-bce4-4aaf-ab1b-5451cc387264 (Teams mobile/desktop application)
- 5e3ce6c0-2b1f-4285-8d4b-75ee78787346 (Teams web application)
Navigate to API Permissions, and make sure to add the follow permissions:
Select Add a permission
Select Microsoft Graph -> Delegated permissions.
- User.Read (enabled by default)
- email
- offline_access
- OpenId
- profile
Click on Add permissions. Please make sure to grant the admin consent for the required permissions.
Navigate to Authentication If an app hasn't been granted IT admin consent, users will have to provide consent the first time they use an app. Set a redirect URI:
- Select Add a platform.
- Select web.
- Enter the redirect URI for the app in the following format: https://<your_tunnel_domain>/Auth/End. This will be the page where a successful implicit grant flow will redirect the user.
Enable implicit grant by checking the following boxes:
✔ ID Token
✔ Access Token
Navigate to the Certificates & secrets. In the Client secrets section, click on "+ New client secret". Add a description (Name of the secret) for the secret and select “Never” for Expires. Click "Add". Once the client secret is created, copy its value, it need to be placed in the appsettings.json.

Setup NGROK

Run ngrok - point to port 3978
```
ngrok http 3978 --host-header="localhost:3978"
```
Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:
```
devtunnel host -p 3978 --allow-anonymous
```

Setup for code

Clone the repository

git clone https://github.com/OfficeDev/Microsoft-Teams-Samples.git

Modify the /appsettings.json and fill in the following details:
- {{YOUR-TENANT-ID}} - Generated from Step 1 while doing Microsoft Entra ID app registration in Azure portal Directory (tenant) ID.
- {{YOUR-MICROSOFT-APP-ID}} - Generated from Step 1 while doing Microsoft Entra ID app registration in Azure portal Application (client) ID.
- {{ YOUR-CLIENT-SECRET}} - Generated from Step 1, also referred to as Client secret
- {{ ApplicationIdURI}} - Your application's ApplicationIdURI. E.g. api://%ngrokDomain%.ngrok-free.app/00000000-0000-0000-0000-000000000000`
If you are using Visual Studio
- Launch Visual Studio
- File -> Open -> Project/Solution
- Navigate to samples/tab-personal-sso-quickstart/csharp_dotnetcore folder
- Select PersonalTabSSO.csproj file
Run ngrok - point to port 3978
```
ngrok http 3978 --host-header="localhost:3978"
```
Alternatively, you can also use the dev tunnels. Please follow Create and host a dev tunnel and host the tunnel with anonymous user access command as shown below:
```
devtunnel host -p 3978 --allow-anonymous
```

Setup Manifest for Teams

This step is specific to Teams.
- Edit the manifest.json contained in the ./appPackage folder to replace your Microsoft App Id (that was created when you registered your app registration earlier) everywhere you see the place holder string {{Microsoft-App-Id}} (depending on the scenario the Microsoft App Id may occur multiple times in the manifest.json)
- Edit the manifest.json for validDomains and replace {{domain-name}} with base Url of your domain. E.g. if you are using ngrok it would be https://1234.ngrok-free.app then your domain-name will be 1234.ngrok-free.app and if you are using dev tunnels then your domain will be like: 12345.devtunnels.ms.
- Edit the manifest.json for webApplicationInfo resource "api://<<your_tunnel_domain>>/<<YOUR-MICROSOFT-APP-ID>>"" with MicrosoftAppId. E.g. "api://ngrok-free.app/0000000000-0000000000-0000000".
- Zip up the contents of the appPackage folder to create a manifest.zip (Make sure that zip file does not contains any subfolder otherwise you will get error while uploading your .zip package)
Upload the manifest.zip to Teams (in the Apps view click "Upload a custom app")
- Go to Microsoft Teams. From the lower left corner, select Apps
- From the lower left corner, choose Upload a custom App
- Go to your project directory, the ./appPackage folder, select the zip folder, and choose Open.
- Select Add in the pop-up dialog box. Your app is uploaded to Teams.
