Outlook add-in with SSO using nested app authentication including Internet Explorer fallback

Browse code

Summary

This sample shows how to use MSAL.js nested app authentication (NAA) in an Outlook Add-in to access Microsoft Graph APIs for the signed-in user. The sample displays the signed-in user's name and email. It also retrieves file names from the user's Microsoft OneDrive account. This sample includes an auth fallback when NAA isn't available, which also supports Outlook versions that still use Internet Explorer 11. @azure/msal-browser version 2.x is used to support Internet Explorer. Version 3.x is the first version with NAA support. This sample uses both versions of the library for maximum browser support.

Features

  • Use MSAL.js NAA to get an access token to call Microsoft Graph APIs.
  • Use MSAL.js NAA to get information about the user signed in to Office.

Applies to

  • Outlook on Windows (new and classic), Mac, mobile, and on the web.

Prerequisites

  • Office connected to a Microsoft 365 subscription (including Office on the web).
  • Node.js version 16 or greater.
  • npm version 8 or greater.

Build and run the solution

Create an application registration

  1. Go to the Azure portal - App registrations page to register your app.

  2. Sign in with the admin credentials to your Microsoft 365 tenancy. For example, MyName@contoso.onmicrosoft.com.

  3. Select New registration. On the Register an application page, take the following actions.

    • Set Name to Outlook-Add-in-SSO-NAA-IE.
    • Set Supported account types to Accounts in any organizational directory (Any Microsoft Entra ID tenant - Multitenant) and personal Microsoft accounts (e.g. Skype, Xbox).
    • In the Redirect URI section, ensure that Single-page application (SPA) is selected in the drop down and then set the URI to brk-multihub://localhost:3000.
    • Select Register.

  4. On the Outlook-Add-in-SSO-NAA page, copy and save the value for the Application (client) ID. You'll use it in the next section.

  5. Select the link to modify redirect URIs which should appear as 0 web, 1 spa, 0 public client.

    The redirect URIs link.

  6. In the Single-page application Redirect URIs section, select Add URI.

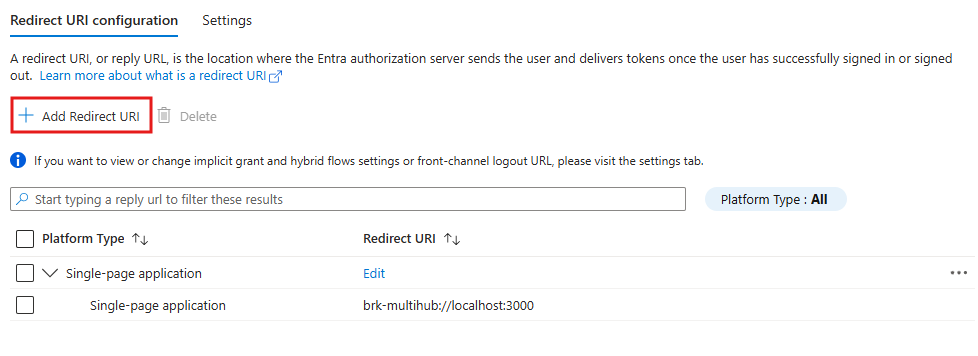

    The Add URI link.

  7. Register the following redirect URIs (brk-multihub://localhost:3000 should already be registered from previous step):

    1. brk-multihub://localhost:3000
    2. https://localhost:3000/auth.html
    3. https://localhost:3000/dialog.html
    4. https://localhost:3000/dialoginternetexplorer.html

  8. Press Save button.

The completed redirects in the application registration.

For more information on how to register your application, see Register an application with the Microsoft Identity Platform.

Configure the sample

  1. Clone or download this repository.
  2. From the command line, or a terminal window, go to the root folder of this sample at /samples/auth/Outlook-Add-in-SSO-NAA-IE.
  3. Open the src/taskpane/msalConfig.ts file.
  4. Replace the placeholder "Enter_the_Application_Id_Here" with the Application ID that you copied.
  5. Save the file.

Run the sample

  1. Run the following commands.

    npm install npm run start

    This will start the web server and sideload the add-in to Outlook.

  2. In Outlook, compose a new email message.

  3. On the ribbon for the message, look for the Show task pane button and select it.

  4. When the task pane opens, there are two buttons: Get user data and Get user files.

  5. To see the signed in user's name and email, select Get user data.

  6. To insert the first 10 filenames from the signed in user's Microsoft OneDrive, select Get user files.

You will be prompted to consent to the scopes the sample needs when you select the buttons.

Debugging steps

You can debug the sample by opening the project in VS Code.

  1. Select the Run and Debug icon in the Activity Bar on the side of VS Code. You can also use the keyboard shortcut Ctrl+Shift+D.
  2. Select the launch configuration you want from the Configuration dropdown in the Run and Debug view. For example, Outlook Desktop (Edge Chromium).
  3. Start your debug session with F5, or Run > Start Debugging.

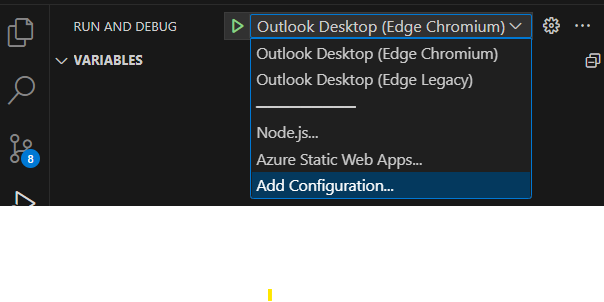

The VS Code debug view.

For more information on debugging with VS Code, see Debugging. For more information on debugging Office Add-ins in VS Code, see Debug Office Add-ins on Windows using Visual Studio Code and Microsoft Edge WebView2 (Chromium-based)

Key parts of this sample

The src/taskpane/msalAuth.ts file contains the MSAL code for configuring and using NAA. It contains a class named AccountManager which manages getting user account and token information.

  • The initialize function is called from Office.onReady to configure and initialize MSAL to use NAA.
  • The ssoGetAccessToken function gets an access token for the signed in user to call Microsoft Graph APIs.

The src/taskpane/taskpane.ts file contains code that runs when the user chooses buttons in the task pane. They use the AccountManager class to get tokens or user information depending on which button is chosen.

The src/taskpane/authHelper.ts file contains code that uses msal-browser 3.x for auth when it is supported through dynamic load, or falls back to dialog API if needed.

The src/taskpane/fallback/fallbackauthdialoginternetexplorer.ts file contains dialog API fallback code that runs when internet explorer is being used, since it cannot use @azure/msal-browser 3.x.

The src/taskpane/msgraph-helper.ts file contains code to construct and make a REST call to the Microsoft Graph API.
