Custom content processing with the Content Enrichment web service callout

  • Article

Learn about the content enrichment web service callout in SharePoint that enables developers to create an external web service to modify managed properties for crawled items during content processing.

Search in SharePoint enables users to modify the managed properties of crawled items before they are indexed by calling out to an external content enrichment web service. The ability to modify managed properties for items during content processing is helpful when performing tasks such as data cleansing, entity extraction, classification, and tagging.

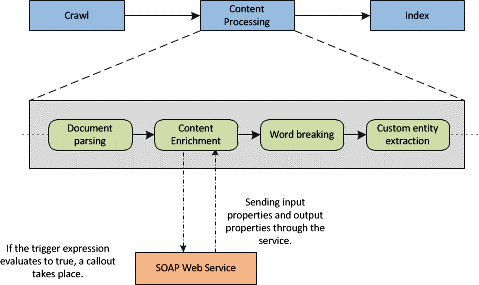

Content enrichment within content processing

Figure 1. Content enrichment within content processing

Figure 1 shows a part of the process that takes place in the content processing component. The content enrichment web service is a SOAP-based service that you can create to receive a callout from the web service client inside the content processing component. Based on Figure 1, the web service client refers to the Content Enrichment operator inside the content processing component; the web service refers to the SOAP web service that you implement.The web service receives a configurable payload from the content processing component. Then, the resulting response from the web service is merged into the crawled item before it is added to the search index. The web service client works with managed properties that you can configure as input properties or as output properties. Input properties are sent to the web service; output properties are returned by the web service. Certain managed properties are hidden or are read-only and can't be sent to the web service or received from the web service. See How to list all read-only managed properties for the Content Enrichment web service for information about how to verify which managed properties are read-only.

Important

The content enrichment callout step can only be configured with a single web service endpoint. Any kind of fault tolerance, or routing capabilities to support multiple implementations must be handled by the developer implementing the web service. In addition, the developer may have various web service implementations hosted at different endpoints; however, at any given time, only one of these endpoints can be used in the configuration.

Content enrichment web service contract

The web service client is a SOAP (version 1.1) RPC client with a predefined behavior. The web service contract has the following characteristics:

  • The content processing component sends a SOAP RPC call to a configurable endpoint over HTTP.
  • The payload contains an array of property objects.
  • The web service performs some custom logic on the array of property objects, and returns an array of modified or new property objects.
  • The web service must send a response to the web service client within a given timeout.
  • No specific authentication or encryption mechanisms are supported as part of the contract. You can, however, apply your own security on the transport mechanism.

Configuring the Content Enrichment web service client

To configure the web service client, you use the following Windows PowerShell cmdlets:

Table 1 lists the properties you can configure through the Windows PowerShell cmdlets mentioned previously.

Table 1. Properties that are configurable for the client by using Windows PowerShell cmdlets

Configuration property Description Default value
Endpoint Specifies the URL of the external web service. Empty.
InputProperties The managed properties that the external web service receives. Empty.
OutputProperties The managed properties that the external web service returns. Empty.
Timeout The amount of time until the web service times out in milliseconds. Depending on FailureMode, the item fails to be processed or a warning is written to the ULS log. 5000 milliseconds; Valid range [100, 30000].
SendRawData Enables or disables sending raw data to the web service. False.
MaxRawDataSize The maximum size of raw data sent to the web service in kilobytes (KB). If the binary data of an item exceeds this limit, the item is not sent. This does not prevent the InputProperties from being sent, and the OutputProperties from being received. 5120 kilobytes.
FailureMode Controls the behavior of the web service client when errors occur. When FailureMode is set to ERROR, any problems that occur during content enrichment processing send a failed callback for that particular item. When FailureMode is set to WARNING, the item is indexed, without any modifications by the web service and a warning is written to the ULS log. Error.
DebugMode A mode that when set to true enables the content enrichment client to send all managed properties to the client without expecting any properties in return. Any configured Trigger property, InputProperties property, and OutputProperties property are ignored. False.
Trigger A Boolean predicate that is executed on every crawled item. If the predicate evaluates to true, the record is sent to the web service. Otherwise, the item is passed through to the search index. Empty.

How to list all read-only managed properties for the Content Enrichment web service

Certain managed properties are read-only and cannot be output from the web service. These properties can be listed by using the Get-SPEnterpriseSearchServiceApplication and Get-SPEnterpriseSearchMetadataManagedPropertyWindows PowerShell cmdlets, shown in the following example:

$ssa = Get-SPEnterpriseSearchServiceApplication
Get-SPEnterpriseSearchMetadataManagedProperty -SearchApplication $ssa  | ?{$_.IsReadOnly -or $_.MappingDisallowed -or $_.DeleteDisallowed}

About trigger conditions for configuring the web service callout

A trigger condition is an expression that is used to configure the web service callout. If a trigger condition evaluates to true, the web service client performs a callout for that record. If a trigger condition evaluates to false, the web service client does not perform a callout and passes the crawled item to the search index. Alternatively, if no trigger condition is configured; all items are sent to the web service.

Trigger conditions use an expression language to refer to the values of managed properties. You can use the operators and functions in the expression language to build simple or complex trigger conditions so you can determine when to perform a web service callout.

Table 2 lists examples of trigger conditions.

Table 2. Trigger condition examples for configuring the Content Enrichment web service callout

Expression Description Requirements
MP1 > 2 Returns true if the value of the managed property named MP1 is greater than 2. MP1 must have a numeric type.
IsNull(MP2) Returns true if the managed property named MP2 is not present for the crawled item or is empty/null. MP2 can be of any type.
StartsWith(MP1, "sample") AND MP2 != 18 Returns true if the value in the managed property MP1 starts with "sample" and the value of managed property MP2 is not 18. MP1 must be of type string and MP2 must be a numeric type.
IsDay(MP1, 2009, 12, 24) Checks whether the managed property MP1 contains a DateTime that falls on December 24, 2009. MP1 must be of type DateTime.

See Trigger expressions syntax in SharePoint for the elements that can be used in a trigger expression and a list of supported functions.

Implementing the Content Enrichment external web service

For a basic implementation, do the following:

  1. Include the Microsoft.Office.Server.Search.ContentProcessingEnrichment.dll located in C:\\Program Files\\Microsoft Office Servers\\15.0\\Search\\Applications\\External in your project as a reference.
  2. Implement IContentProcessingEnrichmentService as a web service.
