Lesson 1: Connecting to the Database Engine

Applies to: SQL Server

When you install the SQL Server Database Engine, the tools that are installed depend upon the edition and your setup choices. This lesson reviews the principal tools, and shows you how to connect and perform a basic function (authorizing more users).

This lesson contains the following tasks:

Tools for getting started

  • The SQL Server Database Engine ships with various tools. This topic describes the first tools you'll need, and helps you select the right tool for the job. All tools can be accessed from the Start menu. Some tools, such as SQL Server Management Studio (SSMS), aren't installed by default. Select the tools you want as part of the client components during setup. For a complete description of the tools described below, search for them in SQL Server Books Online. SQL Server Express contains only a subset of the tools.

Basic tools

  • SQL Server Management Studio (SSMS) is the principal tool for administering the Database Engine and writing Transact-SQL code. It's hosted in the Visual Studio shell. SSMS is available as a free download. The latest version can be used with older versions of the Database Engine.

  • SQL Server Configuration Manager installs with both SQL Server and the client tools. It lets you enable server protocols, configure protocol options such as TCP ports, configure server services to start automatically, and configure client computers to connect in your preferred manner. This tool configures the more advanced connectivity elements but doesn't enable features.

Sample database

The sample databases and samples aren't included with SQL Server. Most of the examples that are described in SQL Server Books Online use the AdventureWorks sample databases.

To start SQL Server Management Studio
  • On current versions of Windows, on the Start page, type SSMS, and then select Microsoft SQL Server Management Studio.
  • When using older versions of Windows, on the Start menu, point to All Programs, point to Microsoft SQL Server, and then select SQL Server Management Studio.
To start SQL Server Configuration Manager
  • On current versions of Windows, on the Start page, type Configuration Manager, and then click SQL Server version Configuration Manager.
  • When using older versions of Windows, on the Start menu, point to All Programs, point to Microsoft SQL Server, point to Configuration Tools, and then click SQL Server Configuration Manager.

Connecting with Management Studio

  • It's easy to connect to the Database Engine from tools that are running on the same computer if you know the name of the instance, and if you're connecting as a member of the local Administrators group on the computer. The following procedures must be performed on the same computer that hosts SQL Server.


This topic discusses connecting to an on-premises SQL Server. To connect to Azure SQL Database, see Quickstart: Use SSMS to connect to and query Azure SQL Database or Azure SQL Managed Instance.

To determine the name of the instance of the Database Engine
  1. Log into Windows as a member of the Administrators group, and open Management Studio.
  2. In the Connect to Server dialog box, select Cancel.
  3. If Registered Servers isn't displayed, on the View menu, select Registered Servers.
  4. With Database Engine selected on the Registered Servers toolbar, expand Database Engine, right-click Local Server Groups, point to Tasks, and then select Register Local Servers. Expand Local Server Groups to see all the instances of the Database Engine installed on the computer displayed. The default instance is unnamed and is shown as the computer name. A named instance displays as the computer name followed by a backward slash (\) and then the name of the instance. For SQL Server Express, the instance is named <computer_name>\sqlexpress unless the name was changed during setup.
To verify that the Database Engine is running
  1. In Registered Servers, if the name of your instance of SQL Server has a green dot with a white arrow next to the name, the Database Engine is running and no further action is necessary.

  2. If the name of your instance of SQL Server has a red dot with a white square next to the name, the Database Engine is stopped. Right-click the name of the Database Engine, select Service Control, and then select Start. After a confirmation dialog box, the Database Engine should start and the circle should turn green with a white arrow.

To connect to the Database Engine

At least one administrator account was selected when SQL Server was being installed. Perform the following step while logged into Windows as an administrator.

  1. In Management Studio, on the File menu, select Connect Object Explorer.
  • The Connect to Server dialog box opens. The Server type box displays the type of component that was last used.
  1. Select Database Engine.

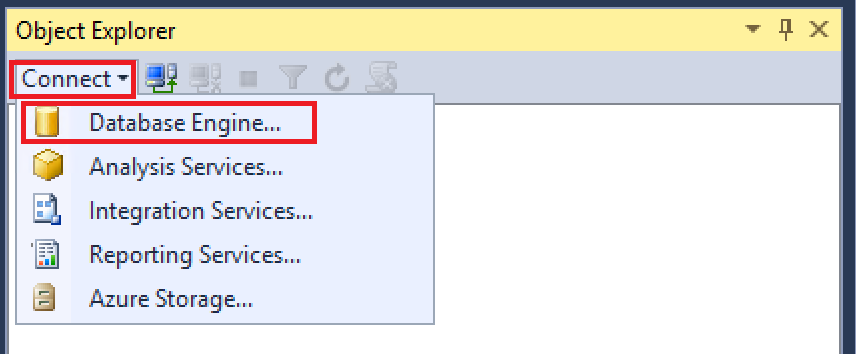

Screenshot of the Object Explorer showing the Connect dropdown list and the Database Engine option called out.

  1. In the Server name box, type the name of the instance of the Database Engine. For the default instance of SQL Server, the server name is the computer name. For a named instance of SQL Server, the server name is the <computer_name>\<instance_name>, such as ACCTG_SRVR\SQLEXPRESS. The following screenshot shows connecting to the default (unnamed) instance of SQL Server on a computer named PracticeComputer. The user logged into Windows is Mary from the Contoso domain. When using Windows Authentication, you cannot change the user name.

Screenshot of the Connect to Server dialog box with the Server name text box called out.

  1. Select Connect.


This tutorial assumes you are new to SQL Server and have no special problems connecting. This should be sufficient for most people and this keeps this tutorial simple. For detailed troubleshooting steps, see Troubleshooting Connecting to the SQL Server Database Engine.

Authorizing extra connections

Now that you've connected to SQL Server as an administrator, one of your first tasks is to authorize other users to connect. You do this by creating a login and authorizing that login to access a database as a user. Logins can be either Windows Authentication logins, which use credentials from Windows, or SQL Server Authentication logins, which store the authentication information in SQL Server and are independent of your Windows credentials. Extra login options include Azure Active Directory logins, which you can find out more information by following the article, Use Azure Active Directory authentication.

Use Windows Authentication whenever possible.


Most organizations have domain users and will use Windows Authentication. You can experiment on your own, by creating additional local users on your computer. Local users will be authenticated by your computer, so the domain is the computer name. For example if your computer is named MyComputer and you create a user named Test, then the Windows description of the user is Mycomputer\Test.

Create a Windows Authentication login
  1. In the previous task, you connected to the Database Engine using Management Studio. In Object Explorer, expand your server instance, expand Security, right-click Logins, and then select New Login. The Login - New dialog box appears.

  2. On the General page, in the Login name box, type a Windows login in the format: <domain>\<login>

Screenshot of the Login - New dialog box with the Login name text box called out.

  1. In the Default database box, select the AdventureWorks database if available. Otherwise select master database.
  2. On the Server Roles page, if the new login is to be an administrator, select sysadmin, otherwise leave this blank.
  3. On the User Mapping page, select Map for the AdventureWorks2022 database if it's available. Otherwise select master. The User box is populated with the login. When closed, the dialog box will create this user in the database.
  4. In the Default Schema box, type dbo to map the login to the database owner schema.
  5. Accept the default settings for the Securables and Status boxes and select OK to create the login.


This is basic information to get you started. SQL Server provides a rich security environment, and security is obviously an important aspect of database operations.

Next Lesson

Lesson 2: Connecting from Another Computer
