Exercise - Use route parameters to improve your apps navigation - Training

5 minutes

Blazor route parameters let components access data passed in the URL. Route parameters will let our app access specific orders by their OrderId.

Customers want to be able to see more information about specific orders. You'll update the checkout page to take customers directly to their placed orders. Then you'll update the orders page to allow them to track any currently open order.

In this exercise, you'll add a new order detail page that makes use of route parameters. You'll see how you can add a constraint to the parameter to check the correct data type.

Create an order detail page

In Visual Studio Code, on the menu, select File > New Text File.
Select ASP.NET Razor as the language.

Create an order detail page component with this code:

@page "/myorders/{orderId}"
@inject NavigationManager NavigationManager
@inject HttpClient HttpClient

<div class="top-bar">
    <a class="logo" href="">
        <img src="img/logo.svg" />
    </a>

    <NavLink href="" class="nav-tab" Match="NavLinkMatch.All">
        <img src="img/pizza-slice.svg" />
        <div>Get Pizza</div>
    </NavLink>

    <NavLink href="myorders" class="nav-tab">
        <img src="img/bike.svg" />
        <div>My Orders</div>
    </NavLink>

</div>

<div class="main">
    @if (invalidOrder)
    {
        <h2>Order not found</h2>
        <p>We're sorry but this order no longer exists.</p>
    }
    else if (orderWithStatus == null)
    {
        <div class="track-order">
            <div class="track-order-title">
                <h2>
                  <text>Loading...</text>
                </h2>
                <p class="ml-auto mb-0">
                    ...
                </p>
            </div>
        </div>
    }
    else
    {
        <div class="track-order">
            <div class="track-order-title">
                <h2>
                    Order placed @orderWithStatus.Order.CreatedTime.ToLongDateString()
                </h2>
                <p class="ml-auto mb-0">
                    Status: <strong>@orderWithStatus.StatusText</strong>
                </p>
            </div>
            <div class="track-order-body">
                <div class="track-order-details">
                  @foreach (var pizza in orderWithStatus.Order.Pizzas)
                  {
                      <p>
                          <strong>
                              @(pizza.Size)"
                              @pizza.Special.Name
                              (£@pizza.GetFormattedTotalPrice())
                          </strong>
                      </p>
                  }
                </div>
            </div>
        </div>
    }
</div>

@code {
    [Parameter] public int OrderId { get; set; }

    OrderWithStatus orderWithStatus;
    bool invalidOrder = false;

    protected override async Task OnParametersSetAsync()
    {
      try
      {
          orderWithStatus = await HttpClient.GetFromJsonAsync<OrderWithStatus>(
              $"{NavigationManager.BaseUri}orders/{OrderId}");
      }
      catch (Exception ex)
      {
          invalidOrder = true;
          Console.Error.WriteLine(ex);
      }
    }
}

This page will look similar to the MyOrders component. We're making a call to the OrderController, but this time we're asking for a specific order. We want the one that matches OrderId. Let's add the code to process this request.

Select Ctrl+S to save your changes.
For the filename, use OrderDetail.razor. Make sure you save the file in the Pages directory.
In the file explorer, select OrderController.cs.

Under the PlaceOrder method, add a new method to return orders with a status.

[HttpGet("{orderId}")]
public async Task<ActionResult<OrderWithStatus>> GetOrderWithStatus(int orderId)
{
    var order = await _db.Orders
        .Where(o => o.OrderId == orderId)
        .Include(o => o.Pizzas).ThenInclude(p => p.Special)
        .Include(o => o.Pizzas).ThenInclude(p => p.Toppings).ThenInclude(t => t.Topping)
        .SingleOrDefaultAsync();

    if (order == null)
    {
        return NotFound();
    }

    return OrderWithStatus.FromOrder(order);
}

This code enabled the Order controller to respond to an HTTP request with orderId in the URL. The method then uses this ID to query the database and, if an order is found, return an OrderWithStatus object.

Let's use this new page when a customer checks out. You need to update the Checkout.razor component.

In the file explorer, expand Pages. Then select Checkout.razor.
Change the call to the following to use the order ID of the placed order.
```
NavigationManager.NavigateTo($"myorders/{newOrderId}");
```
The existing code was already capturing newOrderId as the response from placing the order. You can use it now to go directly to that order.

Restrict the route parameter to the correct data type

The app should only respond to requests with numeric order IDs, such as (http://localhost:5000/myorders/6). There's nothing stopping someone from trying to use non-numeric orders. Let's change that.

In the file explorer, expand Pages. Then select OrderDetail.razor.
Change the route parameter so that the component will only accept integers.
```
@page "/myorders/{orderId:int}"
```
Now if someone tries to go to(http://localhost:5000/myorders/non-number), Blazor routing won't find a match for the URL and return the page not found.
In Visual Studio Code, select F5. Or on the Run menu, select Start Debugging.

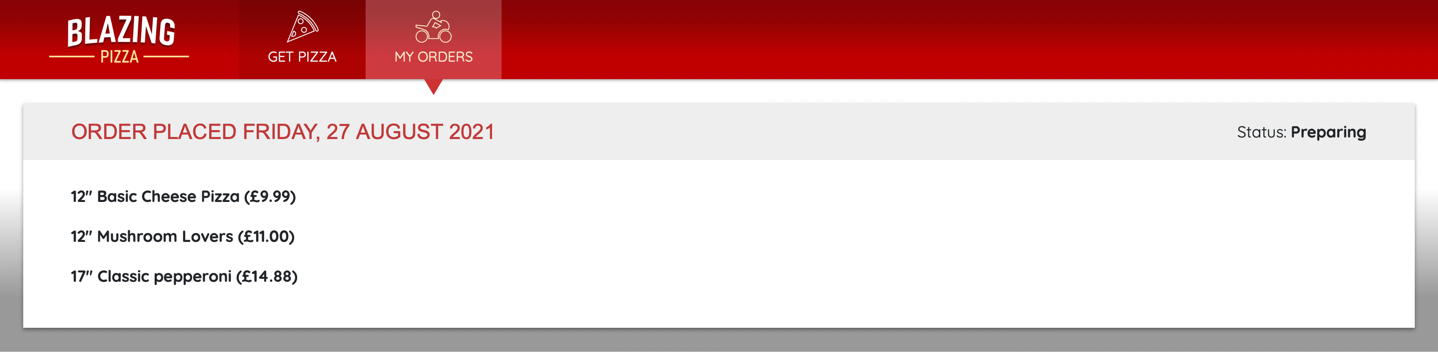

Go through the app, order, and checkout. You'll be taken to the detailed order screen and see the status of the order.

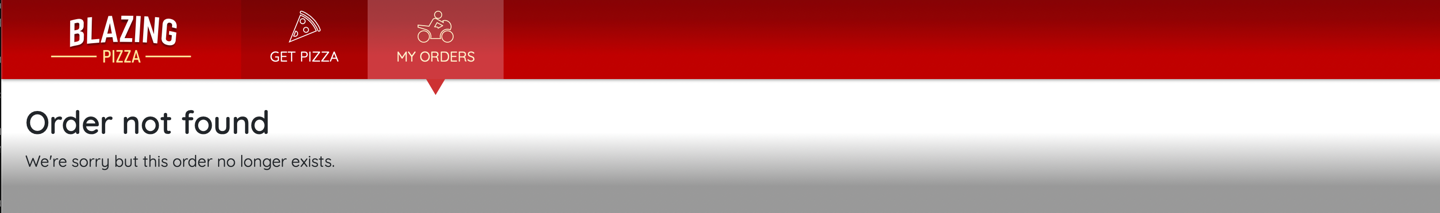

Try different order IDs. If you use an integer that isn't a valid order, you'll get an Order not found message.

If you use non-integer order IDs, you'll see the page not found. More important, the app won't have an unhandled exception.
Select Shift + F5 to stop the app.

Update the orders page

At the moment, the My Orders page has links to view more detail, but the URL is wrong.

In the file explorer, expand Pages. Then select MyOrders.razor.
Replace the <a href="myorders/" class="btn btn-success"> element with this code:
```
<a href="myorders/@item.Order.OrderId" class="btn btn-success">
```

You can test how this works by making your last pizza order for this exercise. Then select My Orders, and follow the Track > link.
