Writing a WPF app - Training

15 minutes

Screenshot that shows the UWP, WPF, and Windows Forms logo.

Windows Presentation Foundation (WPF) in Visual Studio provides developers with an API interface for building apps for desktop, notepad, and tablet computers. WPF is built on the powerful DirectX graphics system and provides many great UI features and effects with little programming effort.

In this unit, we:

Use Visual Studio to create a WPF project.
Add UI and code elements to the project to create a fun variation of a "hello world" program. The "Hello there!" text and the border change color randomly each time you select the Say hello button.
Learn how to set properties and create events.

Note

We're assuming you've set up your computer with Windows and Visual Studio, as described in the Learn module Introduction to Windows 10 development.

WPF "Say hello" tutorial

Create the project

Open Visual Studio and select File > New > Project from the menu. Select C# as the project language. Next, select the WPF Application project type, and, in the Name field, enter a friendly name like Say hello. Select Next when you're done.
Select your .NET version, and then select Create.
When the project opens, it's a good idea to make sure that the Solution Explorer and Properties panes are open. They're located, by default, on the right side of the Visual Studio window. If they aren't visible, open the View menu and select both of them.

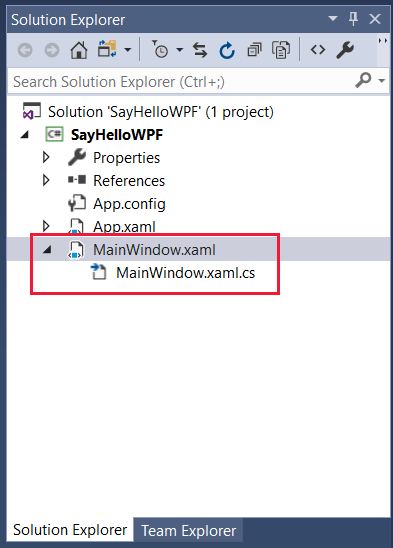

In Solution Explorer make sure you can see the names of the two files we're working on: MainWindow.xaml and its code behind file, MainWindows.xaml.cs. Select MainWindow.xaml to open it.

Design the UI

If the Toolbox isn't open, select the View menu, and then select Toolbox. In the Toolbox, select Common WPF Controls.
Drag a Button onto the lower part of the designer layout. Then drag a TextBox to the upper part of the layout, and drag its corners out a bit so it looks like what you see here:

Note

Notice how button and TextBox entries are added to <Grid> in the XAML definition that displays below the layout.
Next, we want to update the text that appears in the title bar of the window. Select the Window in the designer layout so that its properties are visible in the Properties pane, and then, change the Title to Say hello.
Now we want to set some properties on the new UI elements. Select the button so that its properties appear in the Properties pane. Change the Name to something simple like SayHelloButton, and change the Content in the Common properties to Say hello.
We need to attach an event to the button. You can select the button itself, but that only works if the designer layout is in the required state. A more certain way to enter an event is to open the events available for that UI item. You do that by selecting the lightning bolt icon shown here in the Properties pane and then simply selecting the entry for the Click event. Doing so automatically creates the named event SayHelloButton_Click, adds the appropriate code entry in the MainWindow.xaml.cs file, and opens the file for you.
We don't enter any code yet, so select MainWindow.xaml in the main view. We're continuing to work on the UI for now.
Select the text box you created in the designer to bring up its properties. We're going to make quite a few changes to the properties for the text box. If the events are showing in the Properties pane, select the wrench icon next to the name to return to the named properties.

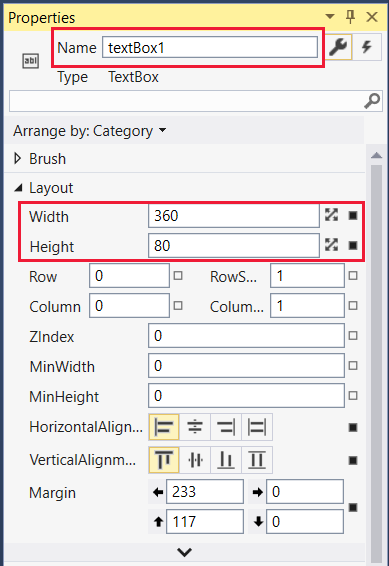

Change the Name entry to textBox1, and then, in the Layout properties, change Width and Height to 360 and 80, respectively.
Collapse the Layout section.
In the Text size list, change the point size to 36: something nice and visible!
The font tab, labeled with an A, is open by default for the Text section. Select the paragraph icon and change the alignment to Center.
Collapse the Text section and expand Appearance. Select the down arrow at the bottom of the exposed list of appearance properties to expose the full list. Change the border thickness to 1 for the left and top borders and to 8 for the right and bottom borders. Now the box has a bit of a drop shadow effect!
Collapse Appearance and expand Common. Enter the text for the text box: something friendly like Hello there!.

You're almost finished with the UI elements for your app. The <Grid> entry in your XAML file should look like the following:

Screenshot that shows an example of the the XAML file, with a Button and TextBox element inside the Grid element. All of the Button and Textbox properties are displayed.

Note

You can edit the XAML directly, changing numerical values or even adding entire UI elements. We won't do that in this tutorial.

Write the code behind

We can now move from the UI to the code for our app. It's time to reopen the MainWindow.xaml.cs file. Select the file from above the main view or in Solution Explorer. The class MainWindow should look like the following:
```
public partial class MainWindow : Window
{
    public MainWindow()
    {
        InitializeComponent();
    }

    private void SayHelloButton_Click(object sender, RoutedEventArgs e)
    {

    }
}
```
Let's make sure we have all the necessary using statements. Make sure you have the ones shown here, and add them if you don't. After you're finished editing the file, you can optionally remove any unnecessary using statements that Visual Studio included when it created the project. (Unused namespaces appear in gray.)
```
using System;
using System.Windows;
using System.Windows.Media;
```

The app renders the hello text in a random color each time the button is selected. So we need to add a class-level Random object and the GetRandomBytes method that randomly fills in values that we use as RGB settings. Copy and paste this code, or type it in yourself, so that your class MainWindow looks like this:

public partial class MainWindow : Window
{
    private Random rand;

    public MainWindow()
    {
        InitializeComponent();
        rand = new Random();
    }

    private byte[] GetRandomBytes(int n)
    {
        // Fill an array of bytes of length "n" with random numbers.
        var randomBytes = new byte[n];
        rand.NextBytes(randomBytes);
        return randomBytes;
    }

    private void SayHelloButton_Click(object sender, RoutedEventArgs e)
    {

    }
}

Finally, we need to call GetRandomBytes from the button click event, create a random color from the returned array of bytes, and then change the text box properties to that color. Your completed SayHelloButton_Click method should look like the following:

    private void SayHelloButton_Click(object sender, RoutedEventArgs e)
    {
        byte[] rgb = GetRandomBytes(3);

        // Create a solid color brush using the three random numbers.
        var randomColorBrush = new SolidColorBrush(Color.FromArgb(255, rgb[0], rgb[1], rgb[2]));

        // Set both the text color and the text box border to the random color.
        textBox1.BorderBrush = randomColorBrush;
        textBox1.Foreground = randomColorBrush;
    }

Take a second or two to check over your code. If anything is underlined in red, something isn't right. It could be a misspelled word or a piece of code where it shouldn't be.

Run

Let's compile and run the program!

In Visual Studio, on the Debug menu, select Start Without Debugging (or Start Debugging, though we're not doing any debugging in this tutorial), or just select the F5 key. If you've entered everything correctly, you should see a running app similar to this one:
Select the Say hello button repeatedly to see the Hello there! text and border change to random colors.

If that's what you see, well done! You've finished this tutorial. If not, carefully reexamine your code and UI property settings for something that's gone amiss.
