Use a log analysis test scenario to troubleshoot Kerberos authentication

2025-06-17

This article uses a hypothetical client and server deployment to demonstrate troubleshooting approaches for Kerberos authentication issues.

Environment and configuration

User "John" belongs to the contoso.com domain.
All the domain's Domain Name System (DNS) servers are domain controllers.
John is signed in to a client computer that's configured as follows:
- Name and domain: Client1.contoso.com
- Operating system: Windows 11
- Browser: Microsoft Edge
- Monitoring application: Network Monitor (Installed from Microsoft Network Monitor)

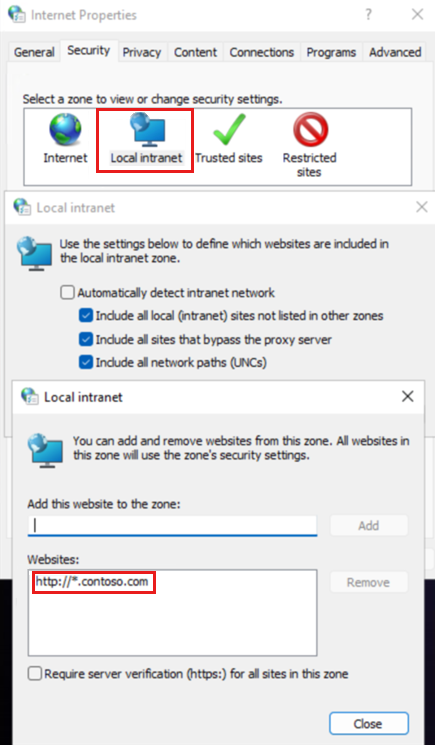

- Internet options configuration: all contoso.com sites belong to the local intranet zone
On the client computer, John connects to a target server that's configured as follows:
- Name and domain: IISServer.contoso.com
- Operating system: Windows Server 2019
- Target service: Web site that runs on Internet Information Services (IIS)
- Target service account: the computer account (the service runs under the context of IISServer.contoso.com)
- Target service port: TCP port 80

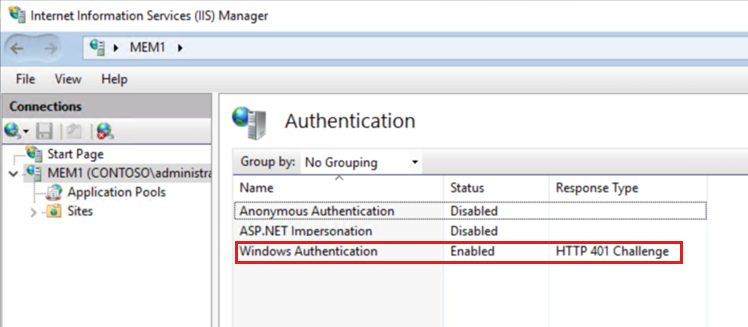

- Authentication configuration (configured in Internet Information Services Manager):
  - Windows Authentication is Enabled.
  - The list of enabled authentication providers includes Negotiate, as shown in the following screenshot:
- Logon auditing configuration: Logon Success auditing and Logon Failure auditing are both enabled.
  Note

  By default, all Windows Server operating systems have Success and Failure logon auditing enabled. To verify this setting, open an administrative Command Prompt window, and then run the following command:
```
auditpol /get /Subcategory:"logon"
```
  If the setting is enabled, this command generates the following output:
```
System audit policy
Category/Subcategory                    Setting
Logon/Logoff
  Logon                                 Success and Failure
```
  If you don't see this result, run the following command to enable Success and Failure audit logging:
```
auditpol /set /subcategory:"Logon" /Success:enable /Failure:enable
```

Expected authentication flow

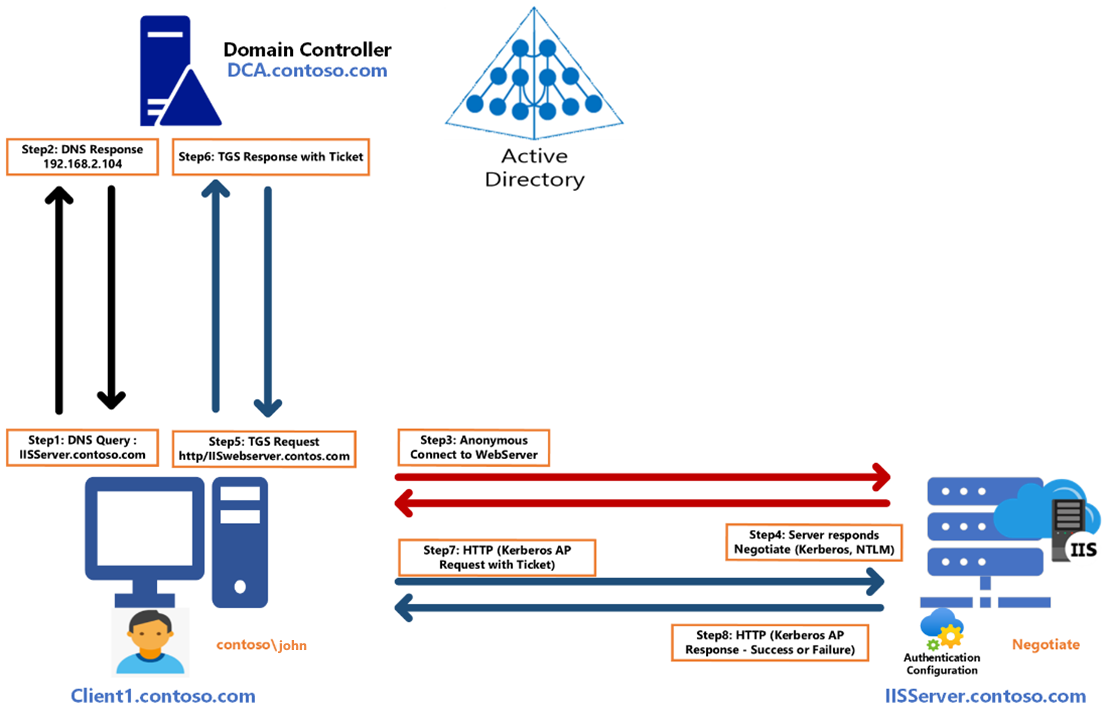

The following diagram shows the sequence of Kerberos request and response messages and the paths of those messages in the environment that's described in the previous section.

Screenshot of an authentication flow.

The process starts when user John, who is signed in to the client computer Client1.contoso.com, opens a Microsoft Edge browser and connects to IISServer.contoso.com.

Step 1 occurs on the client computer, and includes the following steps:

The DNS resolver service caches IISServer.contoso.com to check whether this information is already cached.
The DNS resolver service checks the HOSTS file (C:\Windows\System32\drivers\etc\Hosts) for any mapping of IISServer.contoso.com.
The DNS client service sends a DNS query to the preferred DNS server (as configured on the IP configuration settings).

Step 2 occurs on the DNS server (domain controller), and includes the following steps:

The DNS server service checks its configured zones, locates the Host "A" record, and resolves IISServer.contoso.com to the IP address 192.168.2.104.
The DNS server returns the IP address to the client computer.

Step 3 occurs on the client computer, and includes the following steps:

The client computer performs a TCP three-way handshake with IISServer.contoso.com by using TCP port 80.
The client computer sends an anonymous HTTP request to IISServer.contoso.com.

Step 4 occurs on the target server, and includes the following steps:

The web service (running as IISServer.contoso.com) receives the request from Client1.contoso.com.
The web service sends a response message to Client1.contoso.com that contains an "HTTP 401" challenge response. the message specifies Negotiate as the preferred authentication provider and NTLM as the secondary authentication provider.

Step 5 occurs on the client computer, and includes the following steps:

The client computer receives the challenge response message from IISServer.contoso.com.
The Microsoft Edge process verifies that IISServer.contoso.com belongs to the local intranet zone. Therefore, the authentication process should use Kerberos instead of NTLM.
The Microsoft Edge process calls LSASS.exe to look for a service ticket for IISServer.contoso.com.
In this case, the client computer doesn't have an appropriate service ticket. The Microsoft Edge process sends a request to the Kerberos Distribution Center (KDC) for a ticket.

Step 6 occurs on the domain controller, and includes the following steps:

The domain controller (KDC service) receives the request from Client1.contoso.com and searches for the service that uses the SPN HTTP\IISServer.contoso.com (or HOST\IISServer.contoso.com).
The domain controller identifies the requested service as the web service that runs under the context of IISServer.contoso.com.
The domain controller sends a response to the client computer that includes a service ticket for the IISServer.contoso.com web service.

Step 7 occurs on the domain controller, and includes the following steps:

The Microsoft Edge process creates a Kerberos Application Protocol (AP) message that includes the service ticket.
The Microsoft Edge process sends the AP message to IISServer.contoso.com in response to the "HTTP 401" challenge response message.

Step 8 occurs on the web server, and includes the following steps:

The IIS process queries the local LSASS.exe process.
The LSASS.exe process decrypts the ticket, and then creates a token for the user that includes a SessionID and John's group memberships.
The LSASS.exe process returns a handle for the token to the IIS process.
The IIS process checks the group information in the token to make sure that John has permission to access the requested page.
The IIS process sends the requested page to the browser.

Use Network Monitor to record an authentication test

Use the following steps to gather trace data on an environment that resembles the one that's described in the Environment and configuration section. During this test, the system components should interact in the manner that's described in the Expected authentication flow section.

Note

To use the procedures in this section, you must belong to the local Administrators group:

On the client computer, open an administrative Command Prompt window, and then run ipconfig /flushdns.
Open Network Monitor, and start recording.
Open Microsoft Edge. In the address bar, enter http://iisserver.contoso.com.
When the Microsoft Edge operation finishes, stop recording in Network Monitor.

Review the data that the authentication test generates

The authentication test generates the following information:

Network Monitor trace data
Ticket data
Audit Success and Audit Failure event data for authentication events

The rest of this section provides more detail about what data the authentication flow produces.

Review the trace data for significant events

In the trace data, look for information that resembles the following trace excerpts:

DNS query to the domain controller for the Host "A" record forIISServer.contoso.com:

3005    00:59:30.0738430    Client1.contoso.com    DCA.contoso.com    DNS    DNS:QueryId = 0x666A, QUERY (Standard query), Query  for iisserver.contoso.com of type Host Addr on class Internet

DNS response from the DNS service on the domain controller:

3006    00:59:30.0743438    DCA.contoso.com    Client1.contoso.com    DNS    DNS:QueryId = 0x666A, QUERY (Standard query), Response - Success, 192.168.2.104

Anonymous request from the Microsoft Edge process on Client1.contoso.com to the IISServer.contoso.com IIS web server:

3027    00:59:30.1609409    Client1.contoso.com    iisserver.contoso.com    HTTP    HTTP:Request, GET /
Host:  iisserver.contoso.com

HTTP 401 challenge response message from IISServer.contoso.com to Client1.contoso.com:

3028    00:59:30.1633647    iisserver.contoso.com    Client1.contoso.com    HTTP    HTTP:Response, HTTP/1.1, Status: Unauthorized, URL: /favicon.ico Using Multiple Authetication Methods, see frame details

WWWAuthenticate: Negotiate
WWWAuthenticate: NTLM

Service ticket request from Client1.contoso.com to the domain controller DCA.contoso.com for the service that uses HTTP/iisserver.contoso.com as its SPN (also known as the TGS request message):
```
3034    00:59:30.1834048    Client1.contoso.com    DCA.contoso.com    KerberosV5    KerberosV5:TGS Request Realm: CONTOSO.COM Sname: HTTP/iisserver.contoso.com
```

Service ticket response from DCA.contoso.com that includes the service ticket for IISServer.contoso.com (also known as the TGS response message):

3036    00:59:30.1848687    DCA.contoso.com    Client1.contoso.com    KerberosV5    KerberosV5:TGS Response Cname: John
Ticket: Realm: CONTOSO.COM, Sname: HTTP/iisserver.contoso.com
Sname: HTTP/iisserver.contoso.com

Second request from the Microsoft Edge process on Client1.contoso.com to IISServer.contoso.com. This message includes the service ticket:

3040    00:59:30.1853262    Client1.contoso.com    iisserver.contoso.com    HTTP    HTTP:Request, GET /favicon.ico , Using GSS-API Authorization
Authorization: Negotiate
Authorization:  Negotiate YIIHGwYGKwYBBQUCoIIHDzCCBwugMDAuBgkqhkiC9xIBAgIGCSqGSIb3EgECAgYKKwYBBAGCNwICHgYKKwYBBAGCNwICCqKCBtUEggbRYIIGzQYJKoZIhvcSAQICAQBugga8MIIGuKADAgEFoQMCAQ6iBwMFACAAAACjggTvYYIE6zCCBOegAwIBBaENGwtDT05UT1NPLkNPTaIoMCagAwIBAqEfMB0bBEhUVFAbF
SpnegoToken: 0x1
NegTokenInit:
ApReq: KRB_AP_REQ (14)
Ticket: Realm: CONTOSO.COM, Sname: HTTP/iisserver.contoso.com

Message from the IIS server to Client1.contoso.com. This message indicates that the user is authenticated and authorized:

3044    00:59:30.1875763    iisserver.contoso.com    Client1.contoso.com    HTTP    HTTP:Response, HTTP/1.1, Status: Not found, URL: / , Using GSS-API Authentication
WWWAuthenticate: Negotiate oYG2MIGzoAMKAQChCwYJKoZIgvcSAQICooGeBIGbYIGYBgkqhkiG9xIBAgICAG+BiDCBhaADAgEFoQMCAQ+ieTB3oAMCARKicARuIF62dHj2/qKDRV5XjGKmyFl2/z6b9OHTCTKigAatXS1vZTVC1dMvtNniSN8GpXJspqNvEfbETSinF0ee7KLaprxNgTYwTrMVMnd95SoqBkm/FuY7WbTAuPvyRmUuBY3EKZEy
NegotiateAuthorization:
GssAPI: 0x1
NegTokenResp:
ApRep: KRB_AP_REP (15)

Review the ticket information on the client computer

At a command prompt on the client computer, run klist tickets. The output should resemble the following excerpt:

Client: John @ CONTOSO.COM
Server: HTTP/iisserver.contoso.com @ CONTOSO.COM
KerbTicket Encryption Type: AES-256-CTS-HMAC-SHA1-96
Ticket Flags 0x40a10000 -> forwardable renewable pre_authent name_canonicalize
Start Time: 11/28/2022 0:59:30 (local)
End Time:   11/28/2022 10:58:56 (local)
Renew Time: 12/5/2022 0:58:56 (local)
Session Key Type: AES-256-CTS-HMAC-SHA1-96
Cache Flags: 0
Kdc Called: DCA.contoso.com

Review audit events on the target server

In Event Viewer on IISServer.contoso.com, go to the Windows Logs > Security log to review sign-in (logon) events. Look for instances of event ID 4624 or 4625, and check the following fields:

Keywords: Audit Success or Audit Failure
Logon type: 3 (network logon)
Security ID in New Logon field: Contoso\John
Source Network Address: IP address of the client computer
Logon Process and Authentication Package: Kerberos

The full text of the event record resembles the following excerpt:

Log Name:      Security
Source:        Microsoft-Windows-Security-Auditing
Date:          11/28/2022 12:59:30 AM
Event ID:      4624
Task Category: Logon
Level:         Information
Keywords:      Audit Success
User:          N/A
Computer:      IISServer.contoso.com
Description:
An account was successfully logged on.

Subject:
    Security ID:        NULL SID
    Account Name:        -
    Account Domain:        -
    Logon ID:        0x0

Logon Information:
    Logon Type:        3
    Restricted Admin Mode:    -
    Virtual Account:        No
    Elevated Token:        No

Impersonation Level:        Impersonation

New Logon:
    Security ID:        CONTOSO\John
    Account Name:        John
    Account Domain:        CONTOSO.COM
    Logon ID:        0x1B64449
    Linked Logon ID:        0x0
    Network Account Name:    -
    Network Account Domain:    -
    Logon GUID:        {<GUID>}

Process Information:
    Process ID:        0x0
    Process Name:        -

Network Information:
    Workstation Name:    -
    Source Network Address:    192.168.2.101
    Source Port:        52655

Detailed Authentication Information:
    Logon Process:        Kerberos
    Authentication Package:    Kerberos

Troubleshoot the authentication workflow

Review the network traces to observe which step fails so that you can narrow down the location in the process where the issue occurs. Use this information to determine which troubleshooting methods can help you fix the issue.

Verify network connectivity

If there seems to be an issue in the DNS or TCP communications, check the following interactions:

Verify that you can resolve the name of the target server (IISServer.contoso.com) from the client computer (Client1.contoso.com).

Verify that the DNS server correctly resolves the target server IP address. To do this, open a PowerShell window, and then run the following cmdlet:

Resolve-DnsName -Name IISServer.contoso.com

The output of this cmdlet should resemble the following excerpt:

Name                                       Type   TTL   Section    IPAddress
----                                       ----   ---   -------    ---------
IISServer.contoso.com                      A      1200  Answer     192.168.2.104

Verify that the required network ports are open between the client computer and the target server. To do this, run the following cmdlet:

Test-NetConnection -Port 80 IISServer.contoso.com

The output of this cmdlet should resemble the following excerpt:

ComputerName     : IISServer.contoso.com
RemoteAddress    : 192.168.2.104
RemotePort       : 80
InterfaceAlias   : Ethernet 2
SourceAddress    : 192.168.2.101
TcpTestSucceeded : True

Verify the ticket information on the client computer

Open a standard Command Prompt window (instead of an administrative Command Prompt window) in the context of the user who is trying to access the website.

Run the following commands, in the given order:

klist purge
klist get http/iisserver.contoso.com

The output of these commands should resemble the following excerpt:

Current LogonId is 0:0xa8a98b
A ticket to http/iisserver.contoso.com has been retrieved successfully.

Cached Tickets: (2)

#0>     Client: John @ CONTOSO.COM
        Server: krbtgt/CONTOSO.COM @ CONTOSO.COM
        KerbTicket Encryption Type: AES-256-CTS-HMAC-SHA1-96
        Ticket Flags 0x40e10000 -> forwardable renewable initial pre_authent name_canonicalize
        Start Time: 11/28/2022 1:28:11 (local)
        End Time:   11/28/2022 11:28:11 (local)
        Renew Time: 12/5/2022 1:28:11 (local)
        Session Key Type: AES-256-CTS-HMAC-SHA1-96
        Cache Flags: 0x1 -> PRIMARY
        Kdc Called: DCA.contoso.com

#1>     Client: John @ CONTOSO.COM
        Server: http/iisserver.contoso.com @ CONTOSO.COM
        KerbTicket Encryption Type: AES-256-CTS-HMAC-SHA1-96
        Ticket Flags 0x40a10000 -> forwardable renewable pre_authent name_canonicalize
        Start Time: 11/28/2022 1:28:11 (local)
        End Time:   11/28/2022 11:28:11 (local)
        Renew Time: 12/5/2022 1:28:11 (local)
        Session Key Type: AES-256-CTS-HMAC-SHA1-96
        Cache Flags: 0
        Kdc Called: DCA.contoso.com

This excerpt indicates that the ticket was successfully retrieved. The details of the ticket are labeled "#1>" in the Cached Tickets section.

Verify that the IIS web service is running on the IIS server by using the default credentials

Open a standard PowerShell Prompt window (instead of an administrative PowerShell Prompt window) in the context of the user who is trying to access the website:

invoke-webrequest -Uri http://IIsserver.contoso.com -UseDefaultCredentials

The output of these commands should resemble the following excerpt:

StatusCode        : 200
StatusDescription : OK
Content           : <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
                    "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
                    <html xmlns="http://www.w3.org/1999/xhtml">
                    <head>
                    <meta http-equiv="Content-Type" cont...
RawContent        : HTTP/1.1 200 OK
                    Persistent-Auth: true
                    Accept-Ranges: bytes
                    Content-Length: 703
                    Content-Type: text/html
                    Date: Mon, 28 Nov 2022 09:31:40 GMT
                    ETag: "3275ea8a1d91:0"
                    Last-Modified: Fri, 25 Nov 2022...

Review the Security event log on the target server

In Event Viewer on the target server, go to the Windows Logs > Security log. Look for instances of event ID 4624 (Audit Success) or 4625 (Audit Failure).

Verify that other services function correctly

To verify that other services on the target server can process Kerberos authentication, follow these steps:

On the target server, create a file share or identify an existing file share to use for testing. Make sure that you (in the role of "John") have Read permission on the folder.
On the client computer, sign in (as the user "John"), and then open Windows Explorer.
In the address bar, enter \\IISServer.contoso.com \Software$.
On the target server, open Event Viewer, and then review the Security events. Verify that there are new event ID 4624 events, or event ID 4625 events.

On the client computer, run the klist tickets command at the command prompt. The command output should include a service ticket for CIFS/IISServer.contoso.com, as shown in the following excerpt:

#1>     Client: John @ CONTOSO.COM
        Server: cifs/iisserver.contoso.com @ CONTOSO.COM
        KerbTicket Encryption Type: AES-256-CTS-HMAC-SHA1-96
        Ticket Flags 0x40a10000 -> forwardable renewable pre_authent name_canonicalize
        Start Time: 11/28/2022 1:40:22 (local)
        End Time:   11/28/2022 11:28:11 (local)
        Renew Time: 12/5/2022 1:28:11 (local)
        Session Key Type: AES-256-CTS-HMAC-SHA1-96
        Cache Flags: 0
        Kdc Called: DCA.contoso.com

Share via
