InkPresenterRuler Class

Reference

Definition

Namespace:: Windows.UI.Input.Inking

Important

Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.

Edit

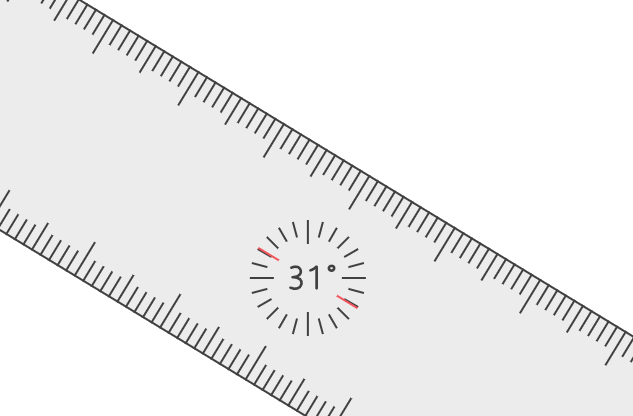

Represents a visual stencil, in the form of a straight rule for drawing straight lines, displayed as a semi-transparent overlay on an InkCanvas.

The stencil transforms how an ink stroke is rendered:

It snaps the ink stroke to the stencil edge if the pen tip is within a distance threshold (gutter).
It acts as a mask and prevents the drawing of an ink stroke within the area obscured by the stencil.

The InkPresenterRuler can be manipulated both programmatically and by the user. It also scales and translates with the InkCanvas.

public ref class InkPresenterRuler sealed

/// [Windows.Foundation.Metadata.Activatable(Windows.UI.Input.Inking.IInkPresenterRulerFactory, 196608, "Windows.Foundation.UniversalApiContract")]
/// [Windows.Foundation.Metadata.ContractVersion(Windows.Foundation.UniversalApiContract, 196608)]
/// [Windows.Foundation.Metadata.MarshalingBehavior(Windows.Foundation.Metadata.MarshalingType.Agile)]
class InkPresenterRuler final

[Windows.Foundation.Metadata.Activatable(typeof(Windows.UI.Input.Inking.IInkPresenterRulerFactory), 196608, "Windows.Foundation.UniversalApiContract")]
[Windows.Foundation.Metadata.ContractVersion(typeof(Windows.Foundation.UniversalApiContract), 196608)]
[Windows.Foundation.Metadata.MarshalingBehavior(Windows.Foundation.Metadata.MarshalingType.Agile)]
public sealed class InkPresenterRuler

Public NotInheritable Class InkPresenterRuler

Inheritance: Object Platform::Object IInspectable InkPresenterRuler

Attributes: ActivatableAttribute ContractVersionAttribute MarshalingBehaviorAttribute

Implements: IInkPresenterStencil

Windows requirements

Device family	Windows 10 Anniversary Edition (introduced in 10.0.14393.0)
API contract	Windows.Foundation.UniversalApiContract (introduced in v3.0)

Remarks

The opacity of the stencil is set at 75% when static, and 50% during manipulation.

Version history

Windows version	SDK version	Value added
1703	15063	AreTickMarksVisible
1703	15063	IsCompassVisible

Constructors

InkPresenterRuler(InkPresenter)

Initializes a new instance of the InkPresenterRuler class.

Properties

AreTickMarksVisible	Gets or sets whether the tick marks are displayed on the ruler stencil. Tick marks represent the distance marks on the ruler.
BackgroundColor	Gets or sets the background color of the InkPresenterRuler.
ForegroundColor	Gets or sets the color of the foreground elements on an InkPresenterRuler.
IsCompassVisible	Gets or sets whether a compass is displayed on the ruler stencil.
IsVisible	Gets or sets whether the InkPresenterRuler is visible.
Kind	Gets the type of stencil to display on the InkCanvas.
Length	Gets or sets the length of the InkPresenterRuler.
Transform	Gets or sets the position and rotation angle of the ruler stencil within the 2-D coordinate space of the InkCanvas. Both position and rotation are based on the top left corner of the ruler relative to the origin of the InkCanvas.
Width	Gets or sets the width of the InkPresenterRuler.
