Optimizing Windows configuration for VDI desktops

Article
07/03/2024
Applies to:

✅ Windows Server 2025, ✅ Windows Server 2022, ✅ Windows Server 2019, ✅ Windows Server 2016, ✅ Windows 11, ✅ Windows 10

Although the Windows operating system is well tuned out of the box, there are opportunities for you to refine it further, specifically for the corporate Microsoft Virtual Desktop Infrastructure (VDI) environment. In the VDI environment, many background services and tasks are disabled by default.

This article is a guide or starting point for how you might optimize your configuration. Some recommendations disable functionality that you prefer to use, so you must consider the cost versus the benefit of adjusting a particular setting in your scenario.

Note

Any settings not specifically mentioned in this topic can be left at their default values (or set per your requirements and policies) without appreciable impact on VDI functionality.

VDI optimization principles

A "full" virtual desktop environment can present a complete desktop session, including applications, to a computer user over a network. The network delivery vehicle can be an on-premises network, the Internet, or both. Some implementations of virtual desktop environments use a "base" operating system image, which then becomes the basis for the desktops then presented to the users for work. There are variations of virtual desktop implementations such as persistent, non-persistent, and desktop session.

The persistent type preserves changes to the virtual desktop operating system from one session to the next.
The non-persistent type doesn't preserve changes to the virtual desktop operating system from one session to the next.
The desktop session is like sessions on other virtual or physical devices, and accessed over a network.

The optimization settings could take place on a reference machine. A virtual machine (VM) is an ideal place to build the VM, because state is saved, there are checkpoints, and backups are made. A default OS installation is performed to the base VM. That base VM is then optimized by doing things like removing unneeded apps, installing updates, deleting temporary files, and applying settings.

Security and stability are among the highest priorities for Microsoft when it comes to products and services. In the virtual desktop realm, security isn't handled much differently than physical devices. Enterprise customers may choose to utilize the built-in to Windows services of Windows Security, which comprises a suite of services that work well connected or not connected to the Internet. For those virtual desktop environments not connected to the Internet, security signatures can be downloaded proactively several times per day, because Microsoft may release more than one signature update per day. Those signatures can then be provided to the virtual desktop devices and scheduled to be installed during production, regardless of persistent or non-persistent. That way the VM protection is as current as possible.

There are some security settings not applicable to virtual desktop environments not connected to the internet and unable to participate in cloud-enabled security. There are other settings that "normal" Windows devices may utilize such as Cloud Experience, or The Windows Store. Removing access to unused features reduces footprint, network bandwidth, and attack surface.

Windows utilizes a monthly update rhythm. In some cases, virtual desktop administrators control the update process by shutting down VMs based on a "master" or "gold" image, unsealing that read-only image, patching the image, then resealing it and bringing it back into production. Therefore, there's no need to have virtual desktop devices checking Windows Update. However, there are cases where normal patching procedures take place, like the case of persistent "personal" virtual desktop devices. In some cases, Windows Update can be utilized. In some cases, Intune could be utilized. In some cases, Microsoft Endpoint Configuration Manager (formerly SCCM) is utilized to handle update and other package delivery. It's up to each organization to determine the best approach to updating virtual desktop devices, while reducing overhead cycles.

The local policy settings, and many other settings in this guide, can be overridden with domain-based policy. We recommended that you go through the policy settings thoroughly and remove or not use any that aren't desired or applicable to your environment. The settings listed in this document try to achieve the best balance of performance optimization in virtual desktop environments, while maintaining a quality user experience.

Note

There's a set of scripts available on GitHub that'll do all the work items documented in this paper. The scripts are designed to be easily customizable for your environment and requirements. The main code is PowerShell, and the work is done by calling input files, which are plain text (now .JSON), with also Local Group Policy Object (LGPO) tool export files. These text files contain lists of the apps to be removed, services to be disabled, and so on. If you don't want to remove a particular app or disable a particular service, you can edit the corresponding text file and remove the item you don't want acted upon. Finally, there's an export of local policy settings that can be imported into your environment machines. It's better to have some of the settings within the base image, than to have the settings applied through group policy, as some of the settings take effect on the next restart or when a component is first used.

Non-persistent virtual desktop environments

When a non-persistent virtual desktop implementation is based on a base or "gold" image, the optimizations are mostly performed in the base image, and then through local settings and local policies.

With image-based non-persistent (NP) virtual desktop environments, the base image is read-only. When an NP virtual desktop device (VM) is started, a copy of the base image is streamed to the VM. Activity that occurs during startup and thereafter until the next reboot is redirected to a temporary location. Users are provided network locations to store their data. In some cases, the user’s profile is merged with the standard VM to provide the user with their settings.

One important aspect of NP virtual desktop that is based on a single image, is servicing. Updates to the operating system (OS) and components of the OS are delivered once per month. With image based virtual desktop environment, there's a set of processes that must be performed to get updates to the image:

On a given host, all the VMs on that host, based on the base image must be shut down or turned off. This means the users are redirected to other VMs.
In some implementations, this is referred to as "draining." The virtual machine or session host, when set to draining mode, stops accepting new requests, but continues servicing users currently connected to the device.
In draining mode, when the last user logs off the device, that device is then ready for servicing operations.
The base image is then opened and started up. All maintenance activities are then performed, such as OS updates, .NET updates, app updates, and so on.
Any new settings that need to be applied are applied at this time.
Any other maintenance is performed at this time.
The base image is then shut down.
The base image is sealed and set to go back into production.
Users are allowed to log back on.

Note

Windows performs a set of maintenance tasks, automatically, on a periodic basis. There's a scheduled task that is set to run at 3:00 AM every day by default. This scheduled task performs a list of tasks, including Windows Update cleanup. You can view all the categories of maintenance that take place automatically with this PowerShell command:

Get-ScheduledTask | Where-Object {$_.Settings.MaintenanceSettings}

One of the challenges with non-persistent virtual desktop is that when a user logs off, nearly all the OS activity is discarded. The user’s profile and/or state may be saved to a centralized location, but the virtual machine itself discards nearly all changes that were made since last boot. Therefore, optimizations intended for a Windows computer that saves state from one session to the next aren't applicable.

Depending on the architecture of virtual desktop device, things like PreFetch and SuperFetch aren't going to help from one session to the next, as all the optimizations are discarded on VM restart. Indexing may be a partial waste of resources, as would be any disk optimizations such as a traditional defragmentation.

Note

If preparing an image using virtualization, and if connected to the Internet during image creation process, on first logon you should postpone Feature Updates by going to Settings > Windows Update.

To sysprep or not sysprep

Windows has a built-in capability called the System Preparation Tool, also known as sysprep. The sysprep tool is used to prepare a customized Windows 10 or Windows 11 image for duplication. The sysprep process assures the resulting OS is properly unique to run in production.

There are reasons for and against running sysprep. For virtual desktop environments, you may want the ability to customize the default user profile, which would be used as the profile template for later users that sign in using this image. You may have apps that you want installed, but also want to be able to control per-app settings.

The alternative is to use a standard .ISO to install from, possibly using an unattended installation answer file, and a task sequence to install applications or remove applications. You can also use a task sequence to set local policy settings in the image, perhaps using the Local Group Policy Object Utility (LGPO) tool.

To learn more about image preparation for Azure, see Prepare a Windows VHD or VHDX to upload to Azure

Supportability

Anytime that Windows defaults are changed, questions arise regarding supportability. Once a virtual desktop image (VM or session) is customized, every change made to the image needs to be tracked in a change log. If a time comes to troubleshoot, often an image can be isolated in a pool and configured for problem analysis. Once a problem is tracked to the root cause, that change can then be rolled out to the test environment first, and ultimately to the production workload.

This document intentionally avoids touching system services, policies, or tasks that affect security. After that comes Windows servicing. The ability to service virtual desktop images outside of maintenance windows is removed, as maintenance windows are when most servicing events take place in virtual desktop environments, except for security software updates. Microsoft's guidance for Windows Security in virtual desktop environments is documented in the Deployment guide for Windows Defender Antivirus in a virtual desktop infrastructure (VDI) environment

Consider supportability when altering default Windows settings. Occasionally, difficult to solve problems arise when altering system services, policies, or scheduled tasks, in the name of hardening, "lightening," and so on. Consult the Microsoft Knowledge Base for current known issues regarding altered default settings. The guidance in this document, and the associated script on GitHub are maintained with respect to known issues, if any arise. In addition, you can report issues in many ways to Microsoft.

You can use your favorite search engine with the terms "start value" site:support.microsoft.com to bring up known issues regarding default start values for services.

This document and the associated scripts on GitHub don't modify any default permissions. If you're interested in increasing your security settings, start with the project known as AaronLocker. For more information, "AaronLocker" overview.

Virtual desktop optimization categories

The following categories are ways in which the virtual desktop can be optimized:

Universal Windows Platform (UWP) app cleanup
Optional features cleanup
Local policy settings
System services
Scheduled tasks
Apply Windows (and other) updates
Automatic Windows traces
Windows Defender optimization with VDI
Client network performance tuning by registry settings
Other settings from the "Windows Restricted Traffic Limited Functionality Baseline" guidance.
Disk cleanup

The following sections explain each category in more detail.

Universal Windows Platform (UWP) application cleanup

One of the goals of a virtual desktop image is to be as light as possible with respect to persistent storage. One way to reduce the size of the image is to remove unused UWP applications (apps). With UWP apps, there are the main application files, also known as the payload. There's a small amount of data stored in each user’s profile for application-specific settings. There's also a small amount of data in the "All Users" profile.

In addition, all UWP apps are registered at either the user or machine level at some point after startup for the device, and login for the user. The UWP apps, which include the Start Menu and the Windows Shell, perform various tasks at or after installation, and again when a user logs in for the first time, and to a lesser extent at subsequent logins. For all UWP apps, there are occasional evaluations that take place, such as:

Do you need to update the app to the latest version?
The app, if pinned to the Start Menu, might have live tile data to download
Does the app have a cache of data that needs to be updated, such as maps or weather?
Does the app have persistent data from the user's profile that needs to be presented at login (for example, Sticky Notes)

With a default installation of Windows, it's unlikely that all UWP apps are used by an organization. Therefore, if those apps are removed, there are fewer evaluations that need to take place, less caching, and so on. The second method here's to direct Windows to disable "consumer experiences." This reduces Store activity by having to check for every user what apps are installed, what apps are available, and then to start downloading some UWP apps. The performance savings can be significant when there are hundreds or thousands of users, all start work at approximately the same time, or even starting work at rolling times across time zones.

Connectivity and timing are important factors when it comes to UWP app cleanup. If you deploy your base image to a device with no network connectivity, Windows can't connect to the Microsoft Store and download apps and try to install them while you're trying to uninstall them. This might be a good strategy to allow you time to customize your image, and then update what remains at a later stage of the image creation process.

If you modify your base .WIM that you use to install Windows and remove unneeded UWP apps from the .WIM before you install, the apps don't install and your subsequent profile creation times are shorter. There's a link later in this section with information on how to remove UWP apps from your installation .WIM file.

A good strategy for the virtual desktop environment is to provision the apps you want in the base image, then limit or block access to the Microsoft Store afterward. Store apps are updated periodically in the background on normal computers. The UWP apps can be updated during the maintenance window when other updates are applied.

Delete the payload of UWP apps

UWP apps that aren't needed are still in the file system consuming a small amount of disk space. For apps that aren't needed, the payload of unwanted UWP apps can be removed from the base image using PowerShell commands. If you delete UWP app payloads out of the installation .WIM file using the links provided later in this section, you can start from the beginning with a slim list of UWP apps.

Run the following PowerShell command to enumerate provisioned UWP apps currently running on the local computer:

Get-AppxProvisionedPackage -Online

UWP apps that are provisioned to a system can be removed during OS installation as part of a task sequence, or later after the OS is installed. This may be the preferred method because it makes the overall process of creating or maintaining an image modular. Once you develop the scripts, if something changes in a subsequent build you edit an existing script rather than repeat the process from scratch.

Then run the following PowerShell command to remove UWP app payloads:

Remove-AppxProvisionedPackage -Online - PackageName MyAppxPackage

As a final note on this topic, each UWP app should be evaluated for applicability in each unique environment. Install a default installation of Windows 10 or Windows 11, and then note which apps are running and consuming memory. For example, you might remove apps that start automatically, or apps that automatically display information on the Start Menu, such as Weather and News.

Note

If you're using the scripts from GitHub, you can easily control which apps are removed before running the script. After downloading the script files, locate the AppxPackage.json file, edit that file, and remove entries for apps that you want to keep, such as Calculator, Sticky Notes, and so on.

Optional features cleanup

This section describes optional features that can be optimized.

Managing optional features with PowerShell

You can manage Windows Optional Features using PowerShell. To enumerate currently installed Windows Features, run the following PowerShell command:

Get-WindowsOptionalFeature -Online

Using PowerShell, an enumerated Windows Optional Feature can be configured as enabled or disabled, as in the following example:

Enabled-WindowsOptionalFeature -Online -FeatureName "DirectPlay" -All

Here's an example command that disables the Windows Media Player feature in the virtual desktop image:

Disable-WindowsOptionalFeature -Online -FeatureName "WindowsMediaPlayer"

Next, you may want to remove the Windows Media Player package. This example command shows you how to find the package name:

Get-WindowsPackage -Online -PackageName *media*

The output of that command shows something like the following information:

PackageName              : Microsoft-Windows-MediaPlayer-Package~31bf3856ad364e35~amd64~~10.0.19041.153
Applicable               : True
Copyright                : Copyright (c) Microsoft Corporation. All Rights Reserved
...

If you want to remove the Windows Media Player package (to free up about 60 MB disk space), you can run this command:

PS C:\Windows\system32> Remove-WindowsPackage -PackageName Microsoft-Windows-MediaPlayer-Package~31bf3856ad364e35~amd64~~10.0.19041.153 -Online

Enable or disabling Windows features using DISM

You can use the built-in Dism.exe tool to enumerate and control Windows Optional Features. A Dism.exe script could be developed and run during an operating system installation task sequence with Features on Demand.

Default user settings

You can customize the Windows registry file at C:\Users\Default\NTUSER.DAT. Any setting changes you make to this file are applied to any subsequent user profiles created from a machine running this image. You can control which settings you wish to apply to the default user profile by editing the DefaultUserSettings.txt file.

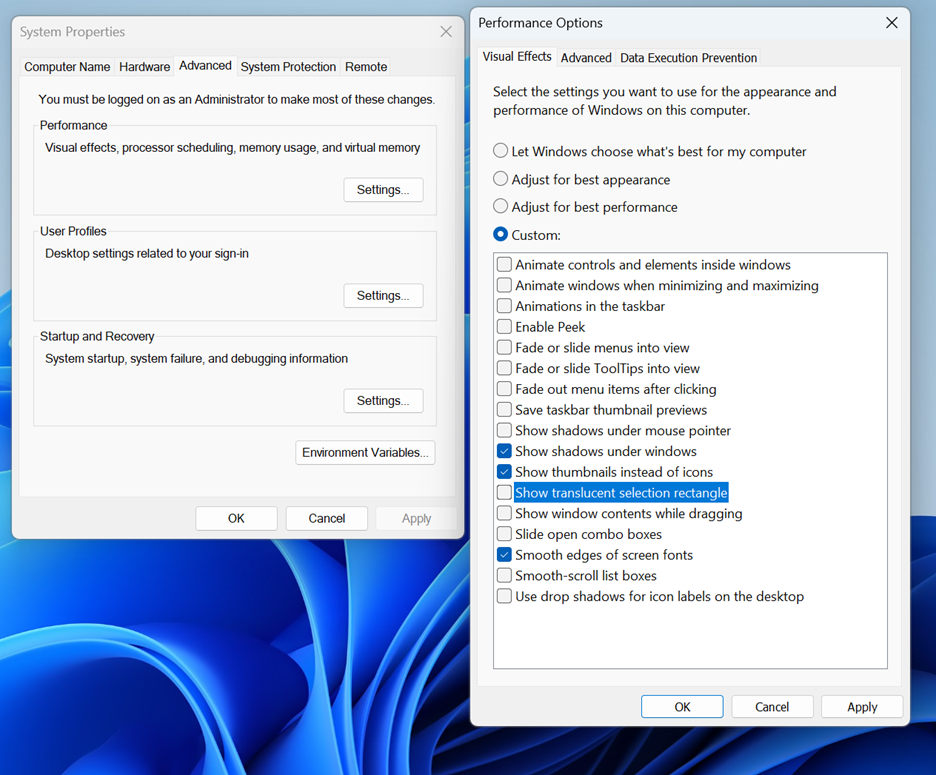

To reduce transmission of graphical data over the virtual desktop infrastructure, you can set the default background to a solid color instead of the default Windows image. You can also set the sign-in screen to be a solid color, and turn off the opaque blurring effect on sign-in.

The following settings are applied to the default user profile registry hive, mainly to reduce animations. If some or all of these settings aren't desired, delete out the settings that you don't wish to apply to new user profiles based on this image. The goal with these settings is to enable the following equivalent settings:

Show shadows under mouse pointer
Show shadows under windows
Smooth edges of screen fonts

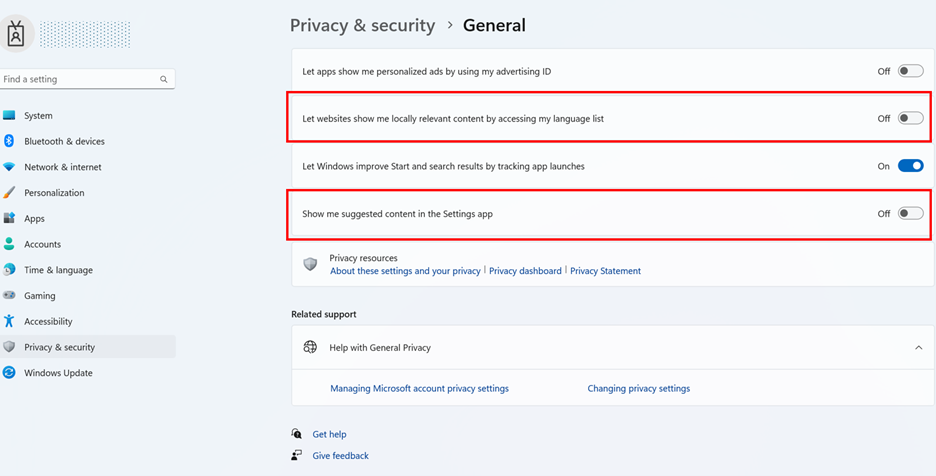

And there's a method to disable the following two privacy settings for any user profile created after you run the optimization:

Let websites provide locally relevant content by accessing my language list
Show me suggested content in the Settings app

Optionally, disable the following two privacy settings for any user profile created after you run the optimization:

Let websites provide locally relevant content by accessing my language list
Show me suggested content in the Settings app

The following are the optimization settings applied to the default user profile registry hive to optimize performance. This operation is performed by first loading the default user profile registry hive NTUser.dat, as the ephemeral key name Temp, and then making the following modifications:

Load HKLM\Temp C:\Users\Default\NTUSER.DAT
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\Explorer" /v ShellState /t REG_BINARY /d 240000003C2800000000000000000000 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\Explorer\Advanced" /v IconsOnly /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\Explorer\Advanced" /v ListviewAlphaSelect /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\Explorer\Advanced" /v ListviewShadow /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\Explorer\Advanced" /v ShowCompColor /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\Explorer\Advanced" /v ShowInfoTip /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\Explorer\Advanced" /v TaskbarAnimations /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\Explorer\VisualEffects" /v VisualFXSetting /t REG_DWORD /d 3 /f
add "HKLM\Temp\Software\Microsoft\Windows\DWM" /v EnableAeroPeek /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\DWM" /v AlwaysHiberNateThumbnails /t REG_DWORD /d 0 /f
add "HKLM\Temp\Control Panel\Desktop" /v DragFullWindows /t REG_SZ /d 0 /f
add "HKLM\Temp\Control Panel\Desktop" /v FontSmoothing /t REG_SZ /d 2 /f
add "HKLM\Temp\Control Panel\Desktop" /v UserPreferencesMask /t REG_BINARY /d 9032078010000000 /f
add "HKLM\Temp\Control Panel\Desktop\WindowMetrics" /v MinAnimate /t REG_SZ /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\StorageSense\Parameters\StoragePolicy" /v 01 /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\ContentDeliveryManager" /v SubscribedContent-338393Enabled /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\ContentDeliveryManager" /v SubscribedContent-353694Enabled /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\ContentDeliveryManager" /v SubscribedContent-353696Enabled /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\ContentDeliveryManager" /v SubscribedContent-338388Enabled /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\ContentDeliveryManager" /v SubscribedContent-338389Enabled /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\ContentDeliveryManager" /v SystemPaneSuggestionsEnabled /t REG_DWORD /d 0 /f
add "HKLM\Temp\Control Panel\International\User Profile" /v HttpAcceptLanguageOptOut /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\BackgroundAccessApplications\Microsoft.Windows.Photos_8wekyb3d8bbwe" /v Disabled /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\BackgroundAccessApplications\Microsoft.Windows.Photos_8wekyb3d8bbwe" /v DisabledByUser /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\BackgroundAccessApplications\Microsoft.YourPhone_8wekyb3d8bbwe" /v Disabled /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\BackgroundAccessApplications\Microsoft.YourPhone_8wekyb3d8bbwe" /v DisabledByUser /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\BackgroundAccessApplications\Microsoft.MicrosoftEdge_8wekyb3d8bbwe" /v Disabled /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\BackgroundAccessApplications\Microsoft.MicrosoftEdge_8wekyb3d8bbwe" /v DisabledByUser /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\InputPersonalization" /v RestrictImplicitInkCollection /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\InputPersonalization" /v RestrictImplicitTextCollection /t REG_DWORD /d 1 /f
add "HKLM\Temp\Software\Microsoft\Personalization\Settings" /v AcceptedPrivacyPolicy /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\InputPersonalization\TrainedDataStore" /v HarvestContacts /t REG_DWORD /d 0 /f
add "HKLM\Temp\Software\Microsoft\Windows\CurrentVersion\UserProfileEngagement" /v ScoobeSystemSettingEnabled /t REG_DWORD /d 0 /f
Unload HKLM\Temp

Disable settings for Windows apps from starting and running in the background. While not significant on a single device, Windows starts multiple processes for each user session on a given device, or session host. If this functionality is desired as-is, delete the lines in the DefaultUserSettings.txt file that include the app names like Windows.Photos and/or MicrosoftEdge.

Local policy settings

Many optimizations for Windows in a virtual desktop environment can be made using Windows policy. The settings listed in the table in this section can be applied locally to the base/gold image. If the equivalent settings aren't specified in any other way, such as group policy, the settings still apply.

Some decisions may be based on the specifics of the environment.

Is the virtual desktop environment allowed to access the Internet?
Is the virtual desktop solution persistent or non-persistent?

The following settings were chosen to not counter or conflict with any setting that has anything to do with security. These settings were chosen to remove settings or disable functionality that may not be applicable to virtual desktop environments.

Policy setting	Item	Sub-item	Possible setting and comments
Local Computer Policy \ Computer Configuration \ Windows Settings \ Security Settings	N/A	N/A	N/A
Network List Manager policies	All networks properties	Network location	User can't change location (This setting is set to prevent the right-hand side pop-up when a new network is detected)
Local Computer Policy \ Computer Configuration \ Administrative Templates \ Control Panel	N/A	N/A
Control Panel	Allow Online Tips	N/A	Disabled (Settings can't contact Microsoft content services to retrieve tips and help content)
Control Panel \ Personalization	Force a specific default lock screen and logon image	N/A	Enabled (This setting allows you to force a specific default lock screen and logon image by entering the path (location) of the image file. The same image is used for both the lock and logon screens. The reason for this recommendation is to reduce bytes transmitted over the network for virtual desktop environments. This setting can be removed or customized for each environment.)
Control Panel\ Regional and Language Options\Handwriting personalization	Turn off automatic learning	N/A	Enabled (With this policy setting enabled, automatic learning stops, and any stored data is deleted. Users can't configure this setting in Control Panel)
Local Computer Policy \ Computer Configuration \ Administrative Templates \ Network	N/A	N/A	N/A
Background Intelligent Transfer Service (BITS)	Allow BITS Peer caching	N/A	Disabled (This policy setting determines if the Background Intelligent Transfer Service (BITS) peer caching feature is enabled on a specific computer.)
Background Intelligent Transfer Service (BITS)	Don't allow the BITS client to use Windows Branch Cache	N/A	Enabled (With this policy setting enabled, the BITS client doesn't use Windows Branch Cache.) The reason for this recommendation is so that virtual desktop devices aren't used for content caching, and the devices aren't allowed to use the network bandwidth.
Background Intelligent Transfer Service (BITS)	Don't allow the computer to act as a BITS Peer caching client	N/A	Enabled (With this policy setting enabled, the computer doesn't use the BITS peer caching feature to download files; files are downloaded only from the origin server.)
Background Intelligent Transfer Service (BITS)	Don't allow the computer to act as a BITS Peer caching server	N/A	Enabled (With this policy setting enabled, the computer can't cache downloaded files and offer them to its peers.)
BranchCache	Turn on BranchCache	N/A	Disabled (With this selection disabled, BranchCache is turned off for all client computers where the policy is applied.)
*Fonts	Enabled Font Providers	N/A	Disabled (With this setting disabled, Windows doesn't connect to an online font provider and only enumerates locally installed fonts)
Hotspot Authentication	Enable hotspot Authentication	N/A	Disabled (This policy setting defines whether WLAN hotspots are probed for Wireless Internet Service Provider roaming (WISPr) protocol support. With this policy setting disabled, WLAN hotspots aren't probed for WISPr protocol support, and users can only authenticate with WLAN hotspots using a web browser.)
Microsoft Peer-to-Peer Networking Services	Turn off Microsoft Peer-to-Peer Networking Services	N/A	Enabled (This setting turns off Microsoft Peer-to-Peer Networking Services in its entirety and causes all dependent applications to stop working. If you enable this setting, peer-to-peer protocols are turned off.)
Network Connectivity Status Indicator (There are other settings in this section that can be used in isolated networks)	Specify passive polling	Disable passive poling (checkbox)	Enabled (This Policy setting enables you to specify passive polling behavior. NCSI polls various measurements throughout the network stack on a frequent interval to determine if network connectivity is lost. Use the options to control the passive polling behavior.) Disabling NCIS passive polling can improve CPU workload on servers or other machines whose network connectivity is static.
Offline Files	Allow or Disallow use of the Offline Files feature	N/A	Disabled (This policy setting determines whether the Offline Files feature is enabled. Offline Files saves a copy of network files on the user's computer for use when the computer isn't connected to the network. With this policy setting disabled, Offline Files feature is disabled and users can't enable it.)
*TCPIP Settings\ IPv6 Transition Technologies	Set Teredo State	Disabled State	Enabled (With this setting enabled, and set to "Disabled State", no Teredo interfaces are present on the host)
*WLAN Service\ WLAN Settings	Allow Windows to automatically connect to suggested open hot spots, to networks shared by contacts, and to hot spots offering paid services	N/A	Disabled (This policy setting determines whether users can enable the following WLAN settings: "Connect to suggested open hotspots," "Connect to networks shared by my contacts," and "Enable paid services." With this policy setting disabled, "Connect to suggested open hotspots," "Connect to networks shared by my contacts," and "Enable paid services" are turned off and users on this device are prevented from enabling them.)
WWAN Service\ Cellular Data Access	Let Windows apps access cellular data	Default for all apps: Force Deny	Enabled (If you choose the "Force Deny" option, Windows apps aren't allowed to access cellular data and users can't change it.)
Local Computer Policy \ Computer Configuration \ Administrative Templates \ Start Menu and Taskbar	N/A	N/A
*Notifications	Turn off notifications network usage	N/A	Enabled (With this policy setting enabled, applications and system features aren't able to receive notifications from the network from WNS or via notification polling APIs)
Local Computer Policy \ Computer Configuration \ Administrative Templates \ System	N/A	N/A	N/A
Device Installation	Don't send a Windows error report when a generic driver is installed on a device	N/A	Enabled (With this policy setting enabled, an error report isn't sent when a generic driver is installed.)
Device Installation	Prevent creation of a system restore point during device activity that would normally prompt creation of a restore point	N/A	Enabled (With this policy setting enabled, Windows doesn't create a system restore point when one would normally be created.)
Device Installation	Prevent device metadata retrieval from the Internet	N/A	Enabled (This policy setting allows you to prevent Windows from retrieving device metadata from the Internet. With this policy setting enabled, Windows doesn't retrieve device metadata for installed devices from the Internet. This policy setting overrides the setting in the Device Installation Settings dialog box (Control Panel > System and Security > System > Advanced System Settings > Hardware tab).)
Device Installation	Turn off "Found New Hardware" balloons during device installation	N/A	Enabled (This policy setting allows you to turn off "Found New Hardware" balloons during device installation. With this policy setting enabled, "Found New Hardware" balloons don't appear while a device is being installed.)
Filesystem\NTFS	Short name creation options	Short name creation options: Disabled on all volumes	Enabled (These settings provide control over whether or not short names are generated during file creation. Some applications require short names for compatibility, but short names have a negative performance impact on the system. With short names disabled on all volumes, then they aren't generated.)
*Group Policy	Continue experiences on this device	N/A	Disabled (This policy setting determines whether the Windows device is allowed to participate in cross-device experiences (continue experiences). Disabling this policy prevents this device from being discoverable by other devices, and thus can't participate in cross-device experiences.)
Internet Communication Management\ Internet Communication settings	Turn off Event Viewer "Events.asp" links	N/A	Enabled (This policy setting specifies whether "Events.asp" hyperlinks are available for events within the Event Viewer application.)
Internet Communication Management\ Internet Communication settings	Turn off handwriting personalization data sharing	N/A	Enabled (Turns off data sharing from the handwriting recognition personalization tool.)
Internet Communication Management\ Internet Communication settings	Turn off handwriting recognition error reporting	N/A	Enabled (Turns off the handwriting recognition error reporting tool.)
Internet Communication Management\ Internet Communication settings	Turn off Help and Support Center Microsoft Knowledge Base search	N/A	Enabled (This policy setting specifies whether users can perform a Microsoft Knowledge Base search from the Help and Support Center.)
Internet Communication Management\ Internet Communication settings	Turn off Internet Connection Wizard if URL connection is referring to Microsoft.com	N/A	Enabled (This policy setting specifies whether the Internet Connection Wizard can connect to Microsoft to download a list of Internet Service Providers (ISPs).)
Internet Communication Management\ Internet Communication settings	Turn off Internet download for Web publishing and online ordering wizards	N/A	Enabled (This policy setting specifies whether Windows should download a list of providers for the web publishing and online ordering wizards.)
Internet Communication Management\ Internet Communication settings	Turn off Internet File Association service	N/A	Enabled (This policy setting specifies whether to use the Microsoft Web service for finding an application to open a file with an unhandled file association.)
Internet Communication Management\ Internet Communication settings	Turn off Registration if URL connection is referring to Microsoft.com	N/A	Enabled (This policy setting specifies whether the Windows Registration Wizard connects to Microsoft.com for online registration.)
Internet Communication Management\ Internet Communication settings	Turn off Search Companion content file updates	N/A	Enabled (This policy setting specifies whether Search Companion should automatically download content updates during local and Internet searches.)
Internet Communication Management\ Internet Communication settings	Turn off the "Order Prints" picture task	N/A	Enabled (If you enable this policy setting, the task "Order Prints Online" is removed from Picture Tasks in File Explorer folders.)
Internet Communication Management\ Internet Communication settings	Turn off the "Publish to Web" task for files and folders	N/A	*Enabled (This policy setting specifies whether the tasks "Publish this file to the Web," "Publish this folder to the Web," and "Publish the selected items to the Web" are available from File and Folder Tasks in Windows folders.)
Internet Communication Management\ Internet Communication settings	Turn off Windows Customer Experience Improvement Program	N/A	Enabled (The Windows Customer Experience Improvement Program (CEIP) collects information about your hardware configuration and how you use our software and services to identify trends and usage patterns. If you enable this policy setting, all users are opted out of the Windows CEIP.)
Internet Communication Management\ Internet Communication settings	Turn off Windows Error Reporting	N/A	Enabled (This policy setting controls whether or not errors are reported to Microsoft. If you enable this policy setting, users aren't given the option to report errors.)
Internet Communication Management\ Internet Communication settings	Turn off Windows Update device driver searching	N/A	Enabled (This policy setting specifies whether Windows searches Windows Update for device drivers when no local drivers for a device are present. If you enable this policy setting, Windows Update isn't searched when a new device is installed.)
Logon	Don't display the Getting Started welcome screen at logon	N/A	Enabled (With this setting enabled, the welcome screen is hidden from the user logging on to a Windows device.)
Logon	Don't enumerate connected users on domain-joined computers	N/A	Enabled (With this setting enabled, the Logon UI doesn't enumerate any connected users on domain-joined computers.)
Logon	Enumerate local users on domain-joined computers	N/A	Disabled (With this setting disabled, the Logon UI doesn't enumerate local users on domain-joined computers.)
Logon	Show clear logon background	N/A	Enabled (This policy setting disables the acrylic blur effect on logon background image. With this setting enabled, the logon background image shows without blur.)
Logon	Show first sign-in animation	N/A	Disabled (This policy setting allows you to control whether users see the first sign-in animation when signing in to the computer for the first time. This applies to both the first user of the computer who completes the initial setup and users who are added to the computer later. It also controls if Microsoft account users are offered the opt-in prompt for services during their first sign-in. With this setting disabled, users don't see the first logon animation and Microsoft account users don't see the opt-in prompt for services.)
Logon	Turn off app notifications on the lock screen	N/A	Enabled (This policy setting allows you to prevent app notifications from appearing on the lock screen. With this setting enabled, no app notifications are displayed on the lock screen.)
Power Management	Select an active power plan	Active Power Plan: High Performance	Enabled (If you enable this policy setting, specify a power plan from the Active Power Plan list.) With the "Power" service disabled, the Powercfg.cpl UI isn't able to display these power options, and instead returns an RPC error.
Power Management \ Video and Display Settings	Turn on desktop background slideshow (plugged-in)	N/A	Disabled (This policy setting allows you to specify if Windows should enable the desktop background slideshow.) With this setting disabled, the desktop background slideshow is disabled. This setting likely has no effect on a VM.
Recovery	Allow restore of system to default state	N/A	Disabled (With this setting disabled, the items "Use a system image you created earlier to recover your computer" and "Reinstall Windows" (or "Return your computer to factory condition") in Recovery (in Control Panel) are unavailable.)
*Storage Health	Allow downloading updates to the Disk Failure Prediction Model	N/A	Disabled (Updates wouldn't be downloaded for the Disk Failure Prediction Failure Model)
System Restore	Turn off System Restore	N/A	Enabled (With this setting enabled, System Restore is turned off, and the System Restore Wizard can't be accessed. The option to configure System Restore or create a restore point through System Protection is also disabled.)
Troubleshooting and Diagnostics\ Scheduled Maintenance	Configure Scheduled Maintenance Behavior	N/A	Disabled (Determines whether scheduled diagnostics run to proactively detect and resolve system problems. With this policy setting disabled, Windows can't detect, troubleshoot, or resolve problems on a scheduled basis.)
Troubleshooting and Diagnostics\ Scripted Diagnostics	Troubleshooting: Allow users to access and run Troubleshooting wizards	N/A	Disabled (With this setting disabled, users can't access or run the troubleshooting tools from the Control Panel.)
Troubleshooting and Diagnostics\ Scripted Diagnostics	Troubleshooting: Allow users to access online troubleshooting content on Microsoft servers from the Troubleshooting Control Panel (via the Windows Online Troubleshooting Service – WOTS)	N/A	Disabled With this setting disabled, users can only access and search troubleshooting content that is available locally on their computers, even if they're connected to the Internet. They're prevented from connecting to the Microsoft servers that host the Windows Online Troubleshooting Service.
Troubleshooting and Diagnostics\ Windows Boot Performance Diagnostics	Configure Scenario Execution Level	N/A	Disabled (Determines the execution level for Windows Boot Performance Diagnostics. If you disable this policy setting, Windows can't detect, troubleshoot or resolve any Windows Boot Performance problems that are handled by the DPS.) This setting can be useful during design, test, development, or maintenance phases. This setting could be enabled on an isolated VM or session host, measurements taken, and results noted in event logs under "Microsoft-Windows-Diagnostics-Performance/Operational" Source: Diagnostics-Performance, Task Category "Boot Performance Monitoring." ALSO: With the DPS service disabled, this setting has no effect, as Windows doesn't log performance data.
Troubleshooting and Diagnostics\ Windows Memory Leak Diagnostics	Configure Scenario Execution Level	N/A	Disabled (This policy setting determines whether Diagnostic Policy Service (DPS) diagnoses memory leak problems. With this setting disabled, the DPS isn't able to diagnose memory leak problems.) Many diagnostics modes can be enabled, and tools used such as WPT, though these are done in dev/test/maintenance scenarios and not enabled and used on production VMs or sessions
Troubleshooting and Diagnostics\ Windows Performance PerfTrack	Enable/Disable PerfTrack	N/A	Disabled (This policy setting specifies whether to enable or disable tracking of responsiveness events. With this setting disabled, responsiveness events aren't processed.)
Troubleshooting and Diagnostics\ Windows Resource Exhaustion Detection and Resolution	Configure Scenario Execution Level	N/A	Disabled (Determines the execution level for Windows Resource Exhaustion Detection and Resolution. With this setting disabled, Windows can't detect, troubleshoot or resolve any Windows Resource Exhaustion problems that are handled by the DPS.)
Troubleshooting and Diagnostics\ Windows Shutdown Performance Diagnostics	Configure Scenario Execution Level	N/A	Disabled (Determines the execution level for Windows Shutdown Performance Diagnostics. With this setting disabled, Windows can't detect, troubleshoot or resolve any Windows Shutdown Performance problems that are handled by the DPS.)
Troubleshooting and Diagnostics\ Windows Standby/Resume Performance Diagnostics	Configure Scenario Execution Level	N/A	Disabled (Determines the execution level for Windows Standby/Resume Performance Diagnostics. With this setting disabled, Windows can't detect, troubleshoot or resolve any Windows Standby/Resume Performance problems that are handled by the DPS.)
Troubleshooting and Diagnostics\ Windows System Responsiveness Performance Diagnostics	Configure Scenario Execution Level	N/A	Disabled (Determines the execution level for Windows System Responsiveness Diagnostics. With this setting disabled, Windows can't detect, troubleshoot or resolve any Windows System Responsiveness problems that are handled by the DPS.)
*User Profiles	Turn off the advertising ID	N/A	Enabled (With this setting enabled, the advertising ID is turned off. Apps can't use the ID for experiences across apps)
Local Computer Policy \ Computer Configuration \ Administrative Templates \ Windows Components	N/A	N/A	N/A
*App Privacy	Let Windows apps access diagnostic information about other apps	Default for all apps: Force Deny	Enabled (With this setting enabled, and using the "Force Deny" option, Windows apps aren't allowed to get diagnostic information about other apps and employees in your organization can't change it.)
*App Privacy	Let Windows apps access location	Default for all apps: Force Deny	Enabled With this setting enabled, and using the "Force Deny" option, Windows apps aren't allowed to access location and users can't change the setting.
*App Privacy	Let Windows apps access motion	Default for all apps: Force Deny	Enabled (With this setting enabled, and using the "Force Deny" option, Windows apps aren't allowed to access motion data and users can't change the setting.)
*App Privacy	Let Windows apps access notifications	Default for all apps: Force Deny	Enabled (With this setting enabled, and using the "Force Deny" option, Windows apps aren't allowed to access notifications and users can't change the setting)
*App Privacy	Let Windows apps activate with voice	Default for all apps: Force Deny	Enabled (This policy setting specifies whether Windows apps can be activated by voice.)
*App Privacy	Let Windows apps activate with voice while the system is locked	Default for all apps: Force Deny	Enabled (This policy setting specifies whether Windows apps can be activated by voice while the system is locked.)
*App Privacy	Let Windows apps control radios	Default for all apps: Force Deny	Enabled (If you choose the "Force Deny" option, Windows apps don't have access to control radios and employees in your organization can't change it)
Application Compatibility	Turn off Inventory Collector	N/A	Enabled (This policy setting controls the state of the Inventory Collector. The Inventory Collector inventories applications, files, devices, and drivers on the system and sends the information to Microsoft. With this policy setting enabled, the Inventory Collector is turned off and data isn't sent to Microsoft. Collection of installation data through the Program Compatibility Assistant is also disabled.)
AutoPlay Policies	Set the default behavior for AutoRun	Don't execute any autorun commands	Enabled (This policy setting sets the default behavior for Autorun commands.)
*AutoPlay Policies	Turn off Autoplay	All drives	Enabled (If you enable this policy setting, Autoplay is disabled on all drives.)
*Cloud Content	Don't show Windows tips	N/A	Enabled (This policy setting prevents Windows tips from being shown to users)
*Cloud Content	Turn off Microsoft consumer experiences	N/A	Enabled (With this policy setting enabled, users don't see personalized recommendations from Microsoft and notifications about their Microsoft account)
*Data Collection and Preview Builds	Allow Telemetry	0 – Security [Enterprise Only]	Enabled (Setting a value of 0 applies to devices running Enterprise, Education, IoT, or Windows Server editions only, and reduces telemetry sent to the most basic level supported)
Data Collection and Preview Builds	Configure collection of browsing data for Desktop Analytics	Configure telemetry collection: Don't allow sending intranet or internet history	Enabled (You can configure Microsoft Edge to send intranet history only, internet history only, or both to Desktop Analytics for enterprise devices with a configured Commercial ID. If disabled or not configured, Microsoft Edge doesn't send browsing history data to Desktop Analytics.)
*Data Collection and Preview Builds	Don't show feedback notifications	N/A	Enabled (This policy setting allows an organization to prevent its devices from showing feedback questions from Microsoft.)
Delivery Optimization	Download Mode	Download Mode: Simple (99)	Enabled (99 = Simple download mode with no peering. Delivery Optimization downloads using HTTP only and doesn't attempt to contact the Delivery Optimization cloud services.)
Desktop Window Manager	Don't allow window animations	N/A	Enabled (This policy setting controls the appearance of window animations such as those found when restoring, minimizing, and maximizing windows. With this policy setting enabled, window animations are turned off.)
Desktop Window Manager	Use solid color for Start background	N/A	Enabled (This policy setting controls the Start background visuals. With this policy setting enabled, the Start background uses a solid color.)
Edge UI	Allow edge swipe	N/A	Disabled (If you disable this policy setting, users can't invoke any system UI by swiping in from any screen edge.)
Edge UI	Disable help tips	N/A	Enabled (If this setting is enabled, Windows doesn't show any help tips to the user.)
File Explorer	Don't show the "new application installed" notification	N/A	Enabled (This policy removes the end-user notification for new application associations. These associations are based on file types (for example, TXT files) or protocols (for example, HTTP). If this policy is enabled, no notifications are shown to the end-user)
File History	Turn off File History	N/A	Enabled (With this policy setting enabled, File History can't be activated to create regular, automatic backups.)
*Find My Device	Turn On/Off Find My Device	N/A	Disabled (When Find My Device is off, the device and its location aren't registered, and the "Find My Device" feature doesn't work. The user can't view the location of the last use of their active digitizer on their device.)
Homegroup	Prevent the computer from joining a homegroup	N/A	Enabled (If you enable this policy setting, users can't add computers to a homegroup. This policy setting doesn't affect other network sharing features.)
Internet Information Services	Prevent IIS installation	N/A	Enabled (With this policy setting enabled, IIS can't be installed, and you can't install Windows components or applications that require IIS.)
*Location and Sensors	Turn off location	N/A	Enabled (With this setting enabled, the location feature is turned off, and all programs on this device are prevented from using location information from the location feature)
Location and Sensors	Turn off sensors	N/A	Enabled (This policy setting turns off the sensor feature for this device. With this policy setting enabled, the sensor feature is turned off, and all programs on this computer can't use the sensor feature.)
Locations and Sensors / Windows Location Provider	Turn off Windows Location Provider	N/A	Enabled (This policy setting turns off the Windows Location Provider feature for this device.)
*Maps	Turn off Automatic Download and Update of Map Data	N/A	Enabled (With this setting enabled, the automatic download and update of map data is turned off.)
*Maps	Turn off unsolicited network traffic on the Offline Maps settings page	N/A	Enabled (With this setting enabled, features that generate network traffic on the Offline Maps settings page are turned off. Note: This may turn off the entire settings page)
*Messaging	Allow Message Service Cloud Sync	N/A	Disabled (This policy setting allows backup and restore of cellular text messages to Microsoft's cloud services.)
*Microsoft Edge	Allow configuration updates for the Books Library	N/A	Disabled (With this setting disabled, Microsoft Edge doesn't automatically download updated configuration data for the Books Library.)
*Microsoft Edge	Allow extended telemetry for the Books tab	N/A	Disabled (With this setting disabled, Microsoft Edge only sends basic telemetry data, depending on your device configuration.)
Microsoft Edge	Allow Microsoft Edge to pre-launch at Windows startup, when the system is idle, and each time Microsoft Edge is closed	Configure pre-launch: Prevent pre-launching	Enabled (With this setting enabled and configured to prevent pre-launch, Microsoft Edge won’t pre-launch during Windows sign in, when the system is idle, or each time Microsoft Edge is closed.)
Microsoft Edge	Allow Microsoft Edge to start and load the Start and New Tab page at Windows startup and each time Microsoft Edge is closed	Configure tab preloading: Prevent tab-preloading	Enabled (This policy setting lets you decide whether Microsoft Edge can load the Start and New Tab page during Windows sign in and each time Microsoft Edge is closed. By default this setting is to allow preloading. With preloading disabled, Microsoft Edge won’t load the Start or New Tab page during Windows sign in and each time Microsoft Edge is closed.)
Microsoft Edge	Allow web content on New Tab page	N/A	Disabled (With this setting disabled, Edge opens a new tab with a blank page. If this setting is configured, users can't change the setting.)
*Microsoft Edge	Prevent the First Run webpage from opening on Microsoft Edge	N/A	Enabled (users won’t see the First Run page when opening Microsoft Edge for the first time)
OneDrive	Prevent OneDrive from generating network traffic until the user signs in to OneDrive	N/A	Enabled (Enable this setting to prevent the OneDrive sync client (OneDrive.exe) from generating network traffic (checking for updates, and so on.) until the user signs in to OneDrive or starts syncing files to the local computer)
Online Assistance	Turn off Active Help	N/A	Enabled (With this policy setting enabled, active content links aren't rendered. The text is displayed, but there are no clickable links for these elements.)
OOBE	Don’t launch privacy settings experience on user logon	N/A	Enabled (When logging into a new user account for the first time or after an upgrade in some scenarios, that user may be presented with a screen or series of screens that prompts the user to choose privacy settings for their account. Enable this policy to prevent this experience from launching.)
RSS Feeds	Prevent automatic discovery of feeds and Web Slices	N/A	Enabled (This policy setting prevents users from having Microsoft Edge automatically discover whether a feed or Web Slice is available for an associated webpage.)
*RSS Feeds	Turn off background synchronization for feeds and Web Slices	N/A	Enabled (With this policy setting enabled, the ability to synchronize feeds and Web Slices in the background is turned off.)
*Search	Allow Cortana	N/A	Disabled (This policy setting specifies whether Cortana is allowed on the device. When Cortana is off, users are able to use search to find things on the device.)
Search	Allow Cortana above lock screen	N/A	Disabled (This policy setting determines whether or not the user can interact with Cortana using speech while the system is locked.)
*Search	Allow search and Cortana to use location	N/A	Disabled (This policy setting specifies whether search and Cortana can provide location aware search and Cortana results.)
Search	Control rich previews for attachments	Control Rich Previews for Attachments:.docx;.xlsx;.txt;.xls	Enabled (Enabling this policy defines a semicolon-delimited list of file extensions which are allowed to have rich attachment previews.) NOTE: This setting can be used to limit what types of attachments are previewed, which can also help prevent automatically previewing some potentially dangerous contents types.
Search	Don't allow web search	N/A	Enabled (Enabling this policy removes the option of searching the Web from Windows Desktop Search.)
*Search	Don’t search the web or display web results in Search	N/A	Enabled (With this policy setting enabled, queries aren't performed on the web and web results aren't displayed when a user performs a query in Search.)
Search	Enable indexing uncached Exchange folders	N/A	Disabled (Enabling this policy allows indexing of mail items on a Microsoft Exchange server when Microsoft Outlook isn't running in cached mode. The default behavior for search is to not index uncached Exchange folders. Disabling this policy blocks any indexing of uncached Exchange folders.)
Search	Prevent indexing files in offline files cache	N/A	Enabled (If enabled, files on network shares made available offline aren't indexed. Otherwise they're indexed. Disabled by default.)
*Search	Set what information is shared in Search	Anonymous info	Enabled (Anonymous info: Share usage information but don't share search history, Microsoft account info, or specific location)
Search	Stop indexing if there's limited hard drive space	MB Limit: 5000	Enabled (Enabling this policy prevents indexing from continuing after less than the specified amount of hard drive space is left on the same drive as the index location. Select between 0 and 2147483647 MB.)
Software Protection Platform	Turn off KMS Client Online AVS Validation	N/A	Enabled (With this setting enabled, the device doesn't send data to Microsoft regarding its activation state)
*Speech	Allow Automatic Update of Speech Data	N/A	Disabled (Specifies whether the device receives updates to the speech recognition and speech synthesis models.)
Store	Turn off the offer to update to the latest version of Windows	N/A	Enabled (Enables or disables the Store offer to update to the latest version of Windows. If you enable this setting, the Store application doesn't offer updates to the latest version of Windows.)
Text Input	Improve inking and typing recognition	N/A	Disabled (This policy setting controls the ability to send inking and typing data to Microsoft to improve the language recognition and suggestion capabilities of apps and services running on Windows.)
Windows Error Reporting	Disable Windows Error Reporting	N/A	Enabled (With this policy setting enabled, Windows Error Reporting doesn't send any problem information to Microsoft. And solution information isn't available in Security and Maintenance in Control Panel.)
Windows Game Recording and Broadcasting	Enables or disables Windows Game Recording and Broadcasting	N/A	Disabled (With this setting disabled, Windows Game Recording aren't allowed.)
Windows Ink Workspace	Allow Windows Ink Workspace	Choose one of the following actions: Disabled	Enabled (With this setting enabled and sub-setting set to disabled, Windows Ink Workspace functionality is unavailable.)
Windows Installer	Control maximum size of baseline file cache	5	Enabled (This policy controls the percentage of disk space available to the Windows Installer baseline file cache. With this policy setting enabled, you can modify the maximum size of the Windows Installer baseline file cache.)
Windows Installer	Turn off creation of System Restore checkpoints	N/A	Enabled (With this policy setting enabled, the Windows Installer doesn't generate System Restore checkpoints when installing applications.)
Windows Mobility Center	Turn off Windows Mobility Center	N/A	Enabled (With this policy setting enabled, the user is unable to invoke Windows Mobility Center. The Windows Mobility Center UI is removed from all shell entry points and the .exe file doesn't launch it.)
Windows Reliability Analysis	Configure Reliability WMI Providers	N/A	Disabled (With this policy setting disabled, Reliability Monitor doesn't display system reliability information, and WMI-capable applications are unable to access reliability information from the listed providers.)
Windows Security \ Notifications	Hide noncritical notifications	N/A	Enabled (With this setting enabled, local users only see critical notifications from Windows Security. They don't see other types of notifications, such as regular PC or device health information.)
Windows Update	Turn on Software Notifications	N/A	Disabled (This policy setting allows you to control whether users see detailed enhanced notification messages about featured software from the Microsoft Update service. Enhanced notification messages convey the value and promote the installation and use of optional software. This policy setting is intended for use in loosely managed environments in which you allow the end user access to the Microsoft Update service.)
*Windows Update\ Windows Update for Business	Manage preview builds	Set the behavior for receiving preview builds: Disable preview builds	Enabled (Selecting "Disable preview builds" prevents preview builds from installing on the device. This prevents users from opting into the Windows Insider Program, through Settings -> Update and Security)
*Windows Update\ Windows Update for Business	Select when Preview Builds and Feature Updates are received	Select the Windows readiness level for the updates you want to receive: Semi-Annual Channel After a Preview Build or Feature Update is released, defer receiving it for this many days: 365 Pause Preview Builds or Feature Updates starting: yyyy-mm-dd	Enabled (Enable this policy to specify the level of Preview Build or Feature Updates to receive, and when. Semi-Annual Channel: Receive feature updates when they're released to the general public. When Selecting Semi-Annual Channel: - You can defer receiving Feature Updates for up to 365 days. - To prevent Feature Updates from being received on their scheduled time, you can temporarily pause them. The pause remains in effect for 35 days from the start time provided. - To resume receiving Feature Updates that are paused, clear the start date field.)
Windows Update\ Windows Update for Business	Select when Quality Updates are received	After a quality update is released, defer receiving it for this many days: 30 Pause Quality Updates starting: yyyy-mm-dd	Enabled (Enable this policy to specify when to receive quality updates. You can defer receiving quality updates for up to 30 days. To prevent quality updates from being received on their scheduled time, you can temporarily pause quality updates. The pause remains in effect for 35 days or until you clear the start date field. To resume receiving Quality Updates that are paused, clear the start date field.) This recommendation is to help control when updates are applied, and to ensure updates don’t get offered and installed unexpectedly
Local Computer Policy \ User Configuration \ Administrative Templates	N/A	N/A	N/A
Control Panel\ Regional and Language Options	Turn off offer text predictions as I type	N/A	Enabled (This policy turns off the offer text predictions as I type option. This doesn't, however, prevent the user or an application from changing the setting programmatically. With this policy setting enabled, the option is locked to not offer text predictions.)
Desktop	Don't add shares of recently opened documents to Network Locations	N/A	Enabled (With this setting enabled, shared folders aren't added to Network Locations automatically when you open a document in the shared folder.)
Desktop	Turn off Aero Shake window minimizing mouse gesture	N/A	Enabled (Prevents windows from being minimized or restored when the active window is shaken back and forth with the mouse. With this policy enabled, application windows aren't minimized or restored when the active window is shaken back and forth with the mouse.)
Desktop / Active Directory	Maximum size of Active Directory searches	Number of objects returned:1500	Enabled (Specifies the maximum number of objects the system displays in response to a command to browse or search Active Directory. This setting affects all browse displays associated with Active Directory, such as those in Local Users and Groups, Active Directory Users and Computers, and dialog boxes used to set permissions for user or group objects in Active Directory.)
Start Menu and Taskbar	Don't display or track items in Jump Lists from remote locations	N/A	Enabled (This policy setting allows you to control displaying or tracking items in Jump Lists from remote locations.)
Start Menu and Taskbar	Don't search Internet	N/A	Enabled (With this policy setting enabled, the Start Menu search box doesn't search for internet history or favorites.)
Start Menu and Taskbar	Don't use the search-based method when resolving shell shortcuts	N/A	Enabled (This policy setting prevents the system from conducting a comprehensive search of the target drive to resolve a shortcut.)
Start Menu and Taskbar	Turn off all balloon notifications	N/A	Enabled (With this policy setting enabled, no notification balloons are shown to the user.)
Start Menu and Taskbar	Turn off feature advertisement balloon notifications	N/A	Enabled (With this policy setting enabled, certain notification balloons that are marked as feature advertisements aren't shown.)
Start Menu and Taskbar	Turn off user tracking	N/A	Enabled (With this policy setting enabled, the system doesn't track the programs that the user runs and doesn't display frequently used programs in the Start Menu.)
Start Menu and Taskbar / Notifications	Turn off toast notifications	N/A	Enabled (With this policy setting enabled, applications can't raise toast notifications.)
*Start Menu and Taskbar / Notifications	Turn off toast notifications on the lock screen	N/A	Enabled (With this policy setting enabled, applications can't raise toast notifications on the lock screen.)
Local Computer Policy / User Configuration	N/A	N/A	N/A
Windows Components / Cloud Content	Configure Windows spotlight on lock screen	N/A	Disabled (With this policy disabled, Windows spotlight is turned off and users can't select it as their lock screen. Users see the default lock screen image and are able to select another image, unless you have enabled the "Prevent changing lock screen image" policy.)
*Windows Components / Cloud Content	Don't suggest third-party content in Windows spotlight	N/A	Enabled (With this policy enabled, Windows spotlight features like lock screen spotlight, suggested apps in Start menu or Windows tips doesn't suggest apps and content from third-party software publishers. Users may still see suggestions and tips to make them more productive with Microsoft features and apps.)
Windows Components / Cloud Content	Don't use diagnostic data for tailored experiences	N/A	Enabled (With this policy setting enabled, Windows doesn't use diagnostic data from this device (this data may include browser, app and feature usage, depending on the "diagnostic data" setting value) to customize content shown on lock screen, Windows tips, Microsoft consumer features, and other related features.)
Windows Components / Cloud Content	Turn off all Windows spotlight features	N/A	Enabled (Windows spotlight on lock screen, Windows tips, Microsoft consumer features, and other related features are turned off. You should enable this policy setting if your goal is to minimize network traffic from target devices.)
Edge UI	Turn off tracking of app usage	N/A	Enabled (This policy setting prevents Windows from keeping track of the apps that are used and searched most frequently. If you enable this policy setting, apps are sorted alphabetically in: - search results - the Search and Share panes - the drop-down app list in the Picker)
File Explorer	Turn off caching of thumbnail pictures	N/A	Enabled (With this policy setting enabled, thumbnail views aren't cached.)
File Explorer	Turn off common control and window animations	N/A	Enabled (Disabling animations can improve usability for users with some visual disabilities and improve performance and battery life in some scenarios.)
File Explorer	Turn off display of recent search entries in the File Explorer search box	N/A	Enabled (Disables suggesting recent queries for the Search Box and prevents entries into the Search Box from being stored in the registry for future references.)
File Explorer	Turn off the caching of thumbnails in hidden thumbs.db files	N/A	Enabled (With this policy setting enabled, File Explorer doesn't create, read from, or write to thumbs.db files.)

* Comes from the Windows Restricted Traffic Limited Functionality Baseline.

System services

If you're considering disabling system services to conserve resources, make sure the service isn't a component of some other service. In this paper and with the available GitHub scripts, some services aren't in the list because they can't be disabled in a supported manner.

Most of these recommendations mirror recommendations for Windows Server 2016, installed with the Desktop Experience, based on the instructions in Guidance on disabling system services on Windows Server 2016 with Desktop Experience.

Many services that may seem like good candidates to disable are set to manual service start type. This means that the service doesn't automatically start and start only if an event triggers a request to the service. Services that are already set to start type manual aren't listed here.

Note

You can enumerate running services with this PowerShell sample code, outputting only the service short name:

Get-Service | Where-Object {$_.Status -eq 'Running'} | Select-Object -ExpandProperty Name

The following table contains some services that may be considered to disable in virtual desktop environments:

Windows Service	Service Name	Item	Comment
Cellular Time	autotimesvc	This service sets time based on NITZ messages from a Mobile Network	Virtual desktop environments may not have such devices available. To learn more, see the MB NITZ support article.
GameDVR and Broadcast user service	BcastDVRUserService	This (per-user) service is used for Game Recordings and Live Broadcasts	NOTE: This is a "per-user service", and as such, the template service must be disabled. This user service is used for Game Recordings and Live Broadcasts. To learn more, see the MB NITZ support article.
CaptureService	CaptureService	Enables optional screen capture functionality for applications that call the Windows.Graphics.Capture API.	OneCore capture service: enables optional screen capture functionality for applications that call the Windows.Graphics.Capture API For more information, see the Windows.Graphics.Capture Namespace API docs.
Connected Devices Platform Service	CDPSvc	This service is used for Connected Devices Platform scenarios	Connected Devices Platform Service. To learn more, see the Connected Devices Platform overview article
CDP User Service	CDPUserSvc	N/A	Connected Devices Platform User Service. To learn more, see the Connected Devices Platform Protocol Version 3 article. This user service is used for Connected Devices Platform scenarios This is a "per-user service", and as such, the template service must be disabled (CDPUserSvc).
Optimize drives	defragsvc	Helps the computer run more efficiently by optimizing files on storage drives.	Virtual desktop solutions don't normally benefit from disk optimization. The "drives" are often not traditional drives and often just a temporary storage allocation.
Diagnostic Execution Service	DiagSvc	Executes diagnostic actions for troubleshooting support	Disabling this service disables the ability to run Windows diagnostics Diagnostic Execution Service.
Connected User Experiences and Telemetry	DiagTrack	This service enables features that support in-application and connected user experiences. This service manages the event driven collection and transmission of diagnostic and usage information (used to improve the experience and quality of the Windows Platform) when the diagnostics and usage privacy option settings are enabled under Feedback and Diagnostics.	Consider disabling if on disconnected network. To learn more, see how-to configure Windows diagnostic data in your organization.
Diagnostic Policy Service	DPS	The Diagnostic Policy Service enables problem detection, troubleshooting, and resolution for Windows components. If this service is stopped, diagnostics don't work.	Disabling this service disables the ability to run Windows diagnostics. For more information, see the Windows.System.Diagnostics Namespace reference.
Device Setup Manager	DsmSvc	Enables the detection, download, and installation of device-related software.	If this service is disabled, devices may be configured with outdated software, and may not work correctly. Virtual desktop environments closely control what software is installed and maintain that consistency across the environment.
Data Usage service	DusmSvc	Network data usage, data limit, restrict background data, metered networks.	For more information, see the DUSM schema.
Windows Mobile Hotspot Service	icssvc	Provides the ability to share a cellular data connection with another device.	To learn more, see the NetworkOperatorTetheringAccessPointConfiguration Class reference.
Microsoft Store Install Service	InstallService	Provides infrastructure support for the Microsoft Store.	This service is started on demand and if disabled then installations don't work properly. Consider disabling this service on non-persistent virtual desktop, leave as-is for persistent virtual desktop solutions.
Geolocation Service	Lfsvc	Monitors the current location of the system and manages geofences (a geographical location with associated events).	If you turn off this service, applications are unable to use or receive notifications for geolocation or geofences. To learn more, see the Windows.Devices.Geolocation Namespace reference.
Downloaded Maps Manager	MapsBroker	Windows service for application access to downloaded maps. This service is started on-demand by application accessing downloaded maps.	Disabling this service prevents apps from accessing maps. To learn more, see the Windows.Services.Maps Namespace API docs.
MessagingService	MessagingService	Service supporting text messaging and related functionality.	This is a "per-user service", and as such, the template service must be disabled.
Sync Host	OneSyncSvc	This service synchronizes mail, contacts, calendar, and various other user data.	(UWP) Mail and other applications dependent on this functionality don't work properly when this service isn't running. This is a "per-user service", and as such, the template service must be disabled.
Contact Data	PimIndexMaintenanceSvc	Indexes contact data for fast contact searching. If you stop or disable this service, contacts might be missing from your search results.	This is a "per-user service", and as such, the template service must be disabled.
Power	Power	Manages power policy and power policy notification delivery.	Virtual machines have virtually no influence on power properties. If this service is disabled, power management and reporting aren't available. To learn more, see the User-Mode Power Service article.
Payments and NFC/SE Manager	SEMgrSvc	Manages payments and Near Field Communication (NFC) based secure elements.	May not need this service for payments, in the enterprise environment.
Microsoft Windows SMS Router Service	SmsRouter	Routes messages based on rules to appropriate clients.	May not need this service, if other tools are used for messaging, such as Teams. To learn more, see this routing service article.
Superfetch (SysMain)	SysMain	Maintains and improves system performance over time.	Superfetch generally doesn't improve performance in virtual desktop environments for various reasons. The underlying storage is often virtualized and possibly striped across multiple drives. In some virtual desktop solutions, the accumulated user state is discarded when the user logs off. The SysMain feature should be evaluated in each environment.
Update Orchestrator Service	UsoSvc	Manages Windows Updates. If stopped, your devices can't download and install the latest updates.	Virtual desktop devices are often carefully managed with respect to updates. Servicing is performed during maintenance windows. In some cases, an update client may be utilized, such as SCCM. The exception is for security signature updates that are applied at any time, and to any virtual desktop device, in order to maintain up-to-date signatures. If you disable this service, test to ensure that security signatures can still be installed.
Volume Shadow Copy	VSS	Manages and implements Volume Shadow Copies used for backup and other purposes.	If this service is stopped, shadow copies are unavailable for backup and the backup may fail. If this service is disabled, any services that explicitly depend on it fail to start. To learn more, see this volume shadow copy service article.
Diagnostic System Host	WdiSystemHost	The Diagnostic System Host is used by the Diagnostic Policy Service to host diagnostics that need to run in a Local System context. If this service is stopped, any diagnostics that depend on it doesn't function.	Disabling this service disables the ability to run Windows diagnostics
Windows Error Reporting	WerSvc	Allows errors to be reported when programs stop working or responding and allows existing solutions to be delivered. Also allows logs to be generated for diagnostic and repair services. If this service is stopped, error reporting might not work correctly, and results of diagnostic services and repairs might not be displayed.	With virtual desktop environments, diagnostics are often performed in an "offline" scenario, and not in mainstream production. In addition, some customers disable WER anyway. WER incurs a tiny amount of resources for many different things, including failure to install a device, or failure to install an update. To learn more, see Windows Error Reporting.
Windows Search	WSearch	Provides content indexing, property caching, and search results for files, e-mail, and other content.	Disabling this service prevents indexing of e-mail and other things. Test before disabling this service. To learn more, see Windows search service overview.
Xbox Live Auth Manager	XblAuthManager	Provides authentication and authorization services for interacting with Xbox Live.	If this service is stopped, some applications may not operate correctly.
Xbox Live Game Save	XblGameSave	This service syncs save data for Xbox Live save enabled games.	If this service is stopped, game save data doesn't upload to or download from Xbox Live.
Xbox Accessory Management Service	XboxGipSvc	This service manages connected Xbox Accessories.	N/A
Xbox Live Networking Service	XboxNetApiSvc	This service supports the Windows.Networking.XboxLive application programming interface.	N/A

Per-user services in Windows

Per-user services are services created when a user signs into Windows or Windows Server and stopped and deleted when that user signs out. These services run in the security context of the user account - this provides better resource management than the previous approach of running these kinds of services in Explorer, associated with a preconfigured account, or as tasks. For more information, see Per-user services in Windows.

Scheduled tasks

Like other items in Windows, ensure an item isn't needed before disabling a scheduled task. Some tasks in virtual desktop environments, such as StartComponentCleanup, may not be desirable to run in production, but may be good to run during a maintenance window on the "gold image" (reference image).

The following list of tasks includes tasks that perform optimizations or data collections on computers that maintain their state across reboots. When a virtual desktop device reboots and discards all changes since last boot, optimizations intended for physical computers aren't helpful.

You can get all the current scheduled tasks, including descriptions, with the following PowerShell code:

  Get-ScheduledTask | Select-Object -Property TaskPath,TaskName,State,Description

Note

There are several tasks that can't be disabled with a script, even when run on an elevated command prompt. The recommendations here, and in the GitHub scripts don't attempt to disable tasks that can't be disabled with a script.

Scheduled Task Name	Description
MNO	Mobile broadband account experience metadata parser
AnalyzeSystem	This task analyzes the system looking for conditions that may cause high energy use
Cellular	Related to cellular devices
Compatibility	Collects program telemetry information if opted-in to the Microsoft Customer Experience Improvement Program.
Consolidator	If the user consents to participate in the Windows Customer Experience Improvement Program, this job collects and sends usage data to Microsoft
Diagnostics	(DiskFootprint in task path) 'DiskFootprint' is the combined contribution of all processes that issue storage I/O in the form of storage reads, writes, and flushes.
FamilySafetyMonitor	Initializes Family Safety monitoring and enforcement.
FamilySafetyRefreshTask	Synchronizes the latest settings with the Microsoft family features service.
MapsToastTask	This task shows various Map-related toasts
Microsoft-Windows-DiskDiagnosticDataCollector	The Windows Disk Diagnostic reports general disk and system information to Microsoft for users participating in the Customer Experience Program.
NotificationTask	Background task for performing per user and web interactions
ProcessMemoryDiagnosticEvents	Schedules a memory diagnostic in response to system events
Proxy	This task collects and uploads autochk SQM data if opted-in to the Microsoft Customer Experience Improvement Program.
QueueReporting	Windows Error Reporting task to process queued reports.
RecommendedTroubleshootingScanner	Check for recommended troubleshooting from Microsoft
RegIdleBackup	Registry Idle Backup Task
RunFullMemoryDiagnostic	Detects and mitigates problems in physical memory (RAM).
Scheduled	The Windows Scheduled Maintenance Task performs periodic maintenance of the computer system by fixing problems automatically or reporting them through Security and Maintenance.
ScheduledDefrag	This task optimizes local storage drives.
SilentCleanup	Maintenance task used by the system to launch a silent auto disk cleanup when running low on free disk space.
SpeechModelDownloadTask
Sqm-Tasks	This task gathers information about the Trusted Platform Module (TPM), Secure Boot, and Measured Boot.
SR	This task creates regular system protection points.
StartComponentCleanup	Servicing task that may be better performed during maintenance windows
StartupAppTask	Scans startup entries and raises notification to the user if there are too many startup entries.
SyspartRepair
WindowsActionDialog	Location Notification
WinSAT	Measures a system's performance and capabilities
XblGameSaveTask	Xbox Live GameSave standby task

Apply Windows (and other) updates

Whether from Microsoft Update, or from your internal resources, apply available updates including Windows Defender signatures. This is a good time to apply other available updates including Microsoft Office if installed, and other software updates. If PowerShell remains in the image you can download the latest available help for PowerShell by running the command Update-Help.

Servicing OS and apps

At some point during the image optimization process, available Windows updates should be applied. There's a setting in Windows update settings that can provide more updates. You can find it at Settings > Advanced options. Once there, set Give me updates for other uMirosoft products when I update Windows to On.

This would be a good setting in case you're going to install Microsoft applications such as Microsoft Office to the base image. That way Office is up to date when the image is put in service. There are also .NET updates and certain third-party components such as Adobe that have updates available through Windows Update.

One important consideration for non-persistent virtual desktop devices is security updates, including security software definition files. These updates may be released once or more times per day.

For Windows Defender it may be best to allow the updates to occur, even on non-persistent virtual desktop environments. The updates are going to apply nearly every time you sign in, but the updates are small and shouldn't be a problem. Plus, the device won’t be behind on updates because only the latest available applies. The same may be true for third-party definition files.

Note

Store apps (UWP apps) update through the Windows Store. Modern versions of Office such as Office 365 update through their own mechanisms when directly connected to the Internet, or through management technologies when not.

Windows system startup event traces (AutoLoggers)

Windows is configured by default to collect and save diagnostic data. The purpose is to enable diagnostics, or to record data if further troubleshooting is necessary. Automatic system traces can be found opening Computer Management and navigating to System Tools > Performance > Data Collector Sets.

Some of the traces displayed under Event Trace Sessions and Startup Event Trace Sessions can't and shouldn't be stopped. Others, such as the WiFiSession trace can be stopped. To stop a running trace under Event Trace Sessions, right-click the trace and then select Stop. Use the following procedure to prevent the traces from starting automatically on startup:

Select the Startup Event Trace Sessions folder.
Find and select the trace file you want to look at to open it.
Select the Trace Session tab.
Uncheck the box labeled Enabled.
Select Ok.

The following table lists some system traces that you should consider disabling in your virtual desktop environments:

Name	Comment
Cellcore	Cellular Architecture documentation
CloudExperienceHostOOBE	Plan a Windows Hello for Business deployment.
DiagLog	A log generated by the Diagnostic Policy Service, which is documented in Guidance on disabling system services with Desktop Experience
RadioMgr	Near-field communication (NFC) device drivers
ReadyBoot	ReadyBoot Analysis.
WDIContextLog	WDI Miniport Driver Design Guide.
WiFiDriverIHVSession	User-initiated feedback - normal mode.
WiFiSession	Diagnostic log for WLAN technology. If Wi-Fi isn't implemented, there's no need for this logger
WinPhoneCritical	Diagnostic log for phone (Windows?). If not using phones, no need for this logger

Windows Defender optimization in the virtual desktop environment

For more details about how to optimize Windows Defender in a virtual desktop environment, check out the Deployment guide for Windows Defender Antivirus in a virtual desktop infrastructure (VDI) environment.

The deployment guide contains procedures to service the "gold" virtual desktop image, and how to maintain the virtual desktop clients as they're running. To reduce network bandwidth when virtual desktop devices need to update their Windows Defender signatures, stagger reboots, and schedule reboots during off hours where possible. The Windows Defender signature updates can be contained internally on file shares, and where practical, have those files shares on the same or close networking segments as the virtual desktop devices.

Client network performance tuning by registry settings

There are some registry settings that can increase network performance. This is especially important in environments where the virtual desktop device or physical computer has a workload that is primarily network-based. The settings in this section are recommended to tune performance for the networking workload profile, by setting up extra buffering and caching of things like directory entries and so on.

Note

Some settings in this section are registry-based only and should be incorporated in the base image before the image is deployed for production use.

The following settings are documented in Performance tuning guidelines for Windows Server.

DisableBandwidthThrottling

HKLM\System\CurrentControlSet\Services\LanmanWorkstation\Parameters\DisableBandwidthThrottling

Applies to Windows 10 and Windows 11. The default is 0. By default, the SMB redirector throttles throughput across high-latency network connections, in some cases to avoid network-related timeouts. Setting this registry value to 1 disables this throttling, enabling higher file transfer throughput over high-latency network connections. Consider setting this value to 1.

FileInfoCacheEntriesMax

HKLM\System\CurrentControlSet\Services\LanmanWorkstation\Parameters\FileInfoCacheEntriesMax

Applies to Windows 10 and Windows 11. The default is 64, with a valid range of 1 to 65536. This value is used to determine the amount of file metadata that can be cached by the client. Increasing the value can reduce network traffic and increase performance when many files are accessed. Try increasing this value to 1024.

DirectoryCacheEntriesMax

HKLM\System\CurrentControlSet\Services\LanmanWorkstation\Parameters\DirectoryCacheEntriesMax

Applies to Windows 10 and Windows 11. The default is 16, with a valid range of 1 to 4096. This value is used to determine the amount of directory information that can be cached by the client. Increasing the value can reduce network traffic and increase performance when large directories are accessed. Consider increasing this value to 1024.

FileNotFoundCacheEntriesMax

HKLM\System\CurrentControlSet\Services\LanmanWorkstation\Parameters\FileNotFoundCacheEntriesMax

Applies to Windows 10 and Windows 11. The default is 128, with a valid range of 1 to 65536. This value is used to determine the amount of file name information that can be cached by the client. Increasing the value can reduce network traffic and increase performance when many file names are accessed. Consider increasing this value to 2048.

DormantFileLimit

HKLM\System\CurrentControlSet\Services\LanmanWorkstation\Parameters\DormantFileLimit

Applies to Windows 10 and Windows 11. The default is 1023. This parameter specifies the maximum number of files that should be left open on a shared resource after the application has closed the file. Where many thousands of clients are connecting to SMB servers, consider reducing this value to 256.: Windows Server 2022, Windows Server 2019,

You can configure many of these SMB settings by using the Set-SmbClientConfiguration and Set-SmbServerConfiguration Windows PowerShell cmdlets. Registry-only settings can be configured by using Windows PowerShell as well, as in the following example:

Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\LanmanWorkstation\Parameters" RequireSecuritySignature -Value 0 -Force

More settings from the Windows Restricted Traffic Limited Functionality Baseline guidance

Microsoft has released a baseline, created using the same procedures as the Windows Security Baselines, for environments that are either not connected directly to the Internet, or wish to reduce data sent to Microsoft and other services.

The Windows Restricted Traffic Limited Functionality Baseline settings are called out in the group policy table with an asterisk.

Disk cleanup

Disk cleanup can be especially helpful with gold/master image virtual desktop implementations. After the gold/master image is prepared, updated, and configured, one of the last tasks to perform is disk cleanup. The optimization scripts on Github.com have PowerShell code to perform common disk cleanup tasks

Note

Disk cleanup settings and are in the Settings category "System" called "Storage." By default, Storage Sense runs when a low disk free space threshold is reached.

To learn more about how to use Storage Sense with Azure custom VHD images, see Prepare and customize a master VHD image.

For Azure Virtual Desktop session host that use Windows Enterprise or Windows Enterprise multi-session, we recommend disabling Storage Sense. You can disable Storage Sense in the Settings menu under Storage.

Here are suggestions for various disk cleanup tasks. These should all be tested before implementing:

Storage Sense may be utilized manually or automatically. For more information on Storage Sense, see Manage drive space with Storage Sense.

Manually cleanup temporary files and logs. From an elevated command prompt, run these commands:

Del C:\*.tmp /s
C:\*.etl /s
C:\*.evtx /s

Get-ChildItem -Path c:\ -Include *.tmp, *.dmp, *.etl, *.evtx, thumbcache*.db, *.log -File -Recurse -Force -ErrorAction SilentlyContinue | Remove-Item -ErrorAction SilentlyContinue

Remove-Item -Path $env:ProgramData\Microsoft\Windows\WER\Temp\* -Recurse -Force -ErrorAction SilentlyContinue

Remove-Item -Path $env:ProgramData\Microsoft\Windows\WER\ReportArchive\* -Recurse -Force -ErrorAction SilentlyContinue

Remove-Item -Path $env:ProgramData\Microsoft\Windows\WER\ReportQueue\* -Recurse -Force -ErrorAction SilentlyContinue

Clear-RecycleBin -Force -ErrorAction SilentlyContinue

Clear-BCCache -Force -ErrorAction SilentlyContinue

Delete any unused profiles on the system by running the following command:

wmic path win32_UserProfile where LocalPath="C:\\users\\<users>" Delete

For any questions or concerns about the information in this paper, contact your Microsoft account team, research the Microsoft virtual desktop IT Pro blog, post a message to Microsoft Virtual Desktop forums, or contact Microsoft for questions or concerns.

Re-enable Windows Update

If you'd like to enable the use of Windows Update after disabling it, follow these steps:

Re-enable group policy settings:
- Go to Local Computer Policy > Computer Configuration > Administrative Templates > System > Internet Communication Management > Internet Communication settings.
  - Turn off access to all Windows Update features by changing the setting from enabled to not configured.
- Go to Local Computer Policy > Computer Configuration > Administrative Templates > Windows Components > Windows Update.
  - Remove access to all Windows Update features by changing the setting from enabled to not configured.
  - Don't connect to any Windows Update Internet locations by changing the setting from enabled to not configured.
- Go to Local Computer Policy > Computer Configuration > Administrative Templates > Windows Components > Windows Update > Windows Update for Business.
  - Select when Quality Updates are received (change from enabled to not configured)
- Go to Local Computer Policy > Computer Configuration > Administrative Templates > Windows Components > Windows Update > Windows Update for Business.
  - Select when Preview Builds and Feature Updates are received (change from enabled to not configured)
Re-enable services:
- Change Update Orchestrator service from disabled to Automatic (Delayed Start).
Edit the Windows registry (warning, be careful when editing the registry).
- Go to HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\WindowsUpdate\UpdatePolicy\PolicyState.
  - Change DeferQualityUpdates from '1' to '0'.
- HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\WindowsUpdate\UpdatePolicy\Settings
  - Delete any existing value for PausedQualityDate .
- Go to HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\Explorer\WAU
  - Set to Disabled.
Re-enable scheduled tasks:
- Go to Task Scheduler Library > Microsoft > Windows > InstallService > ScanForUpdates.
- Go to Task Scheduler Library > Microsoft > Windows > InstallService > ScanForUpdatesAsUser.
Restart your device to make all these settings take effect.
If you don't want this device offered Feature Updates, go to Settings > Windows Update > Advanced options > Choose when updates are installed and manually set the option A feature update includes new capabilities and improvements. It can be deferred for this many days to any nonzero value, such as 180, 365, and so on.

More information

Learn more about Microsoft's VDI architecture at our Azure Virtual Desktop documentation.

If you need more help with troubleshooting sysprep, check out Sysprep fails after you remove or update Microsoft Store apps that include built-in Windows images.

Share via

Optimizing Windows configuration for VDI desktops

VDI optimization principles

Non-persistent virtual desktop environments

To sysprep or not sysprep

Supportability

Virtual desktop optimization categories

Universal Windows Platform (UWP) application cleanup

Delete the payload of UWP apps

Optional features cleanup

Managing optional features with PowerShell

Enable or disabling Windows features using DISM

Default user settings

Local policy settings

System services

Per-user services in Windows

Scheduled tasks

Apply Windows (and other) updates

Servicing OS and apps

Windows system startup event traces (AutoLoggers)

Windows Defender optimization in the virtual desktop environment

Client network performance tuning by registry settings

DisableBandwidthThrottling

FileInfoCacheEntriesMax

DirectoryCacheEntriesMax

FileNotFoundCacheEntriesMax

DormantFileLimit

More settings from the Windows Restricted Traffic Limited Functionality Baseline guidance

Disk cleanup

Re-enable Windows Update

More information

Feedback

Additional resources
