Conversion maps

Important

  • Heatmap is only displayed on the site pages where the Clarity tracking code is installed. Check the Setup process to know how to install it.
  • Currently, Conversion maps is only available to Shopify sites.

Conversion maps provide specific data of key business metrics of your E-Commerce sites. Through Conversion maps, you can understand your website interactions that effect your purchase rate.

conversion maps.

Tip

Check the Heatmaps overview to know the types of Clarity Heatmaps.

Edit Conversion maps

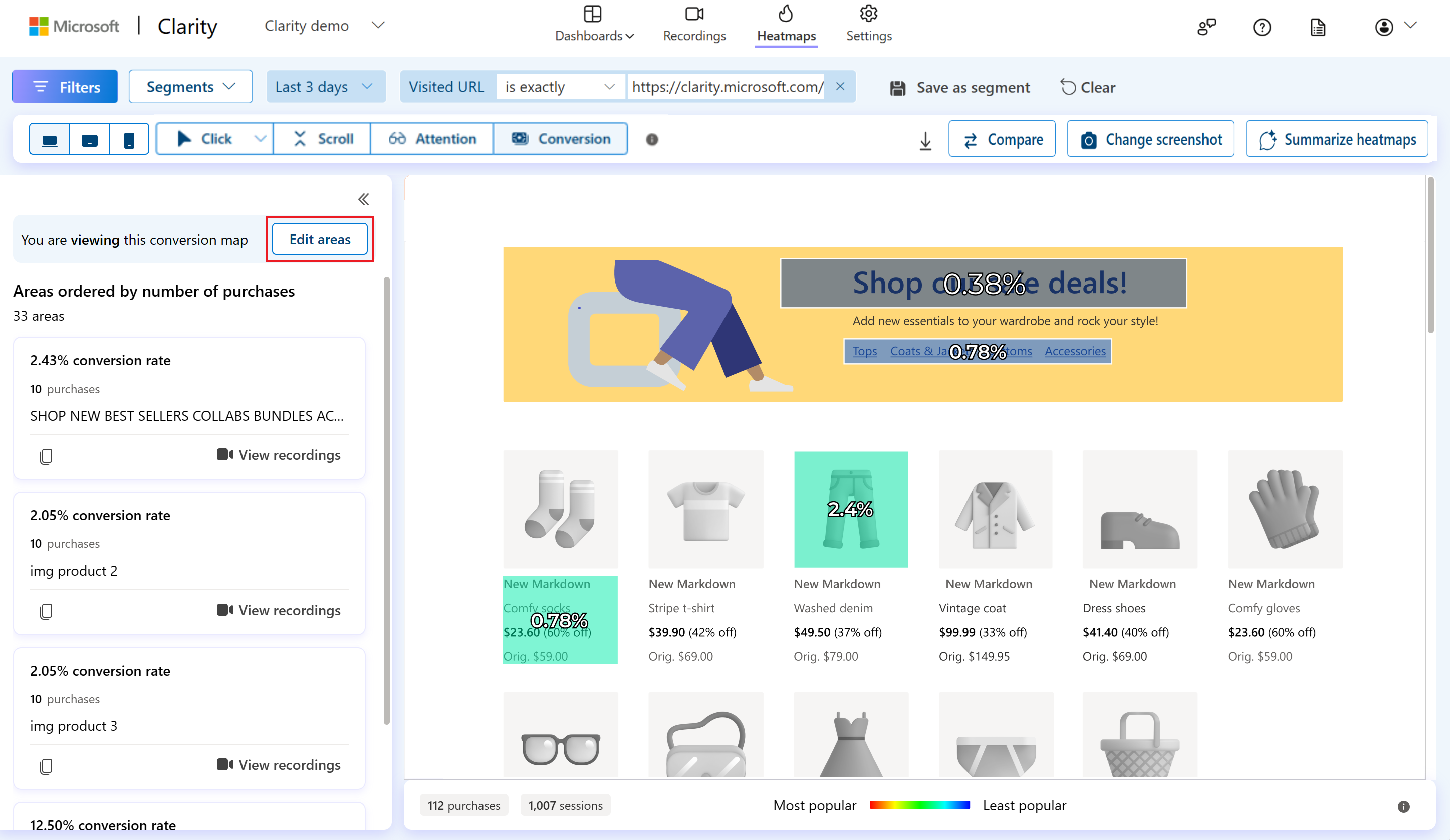

In this mode, you can select new regions on the maps. Select the Edit areas button to switch from viewing to editing the conversion maps.

Edit Areas button in conversion maps.

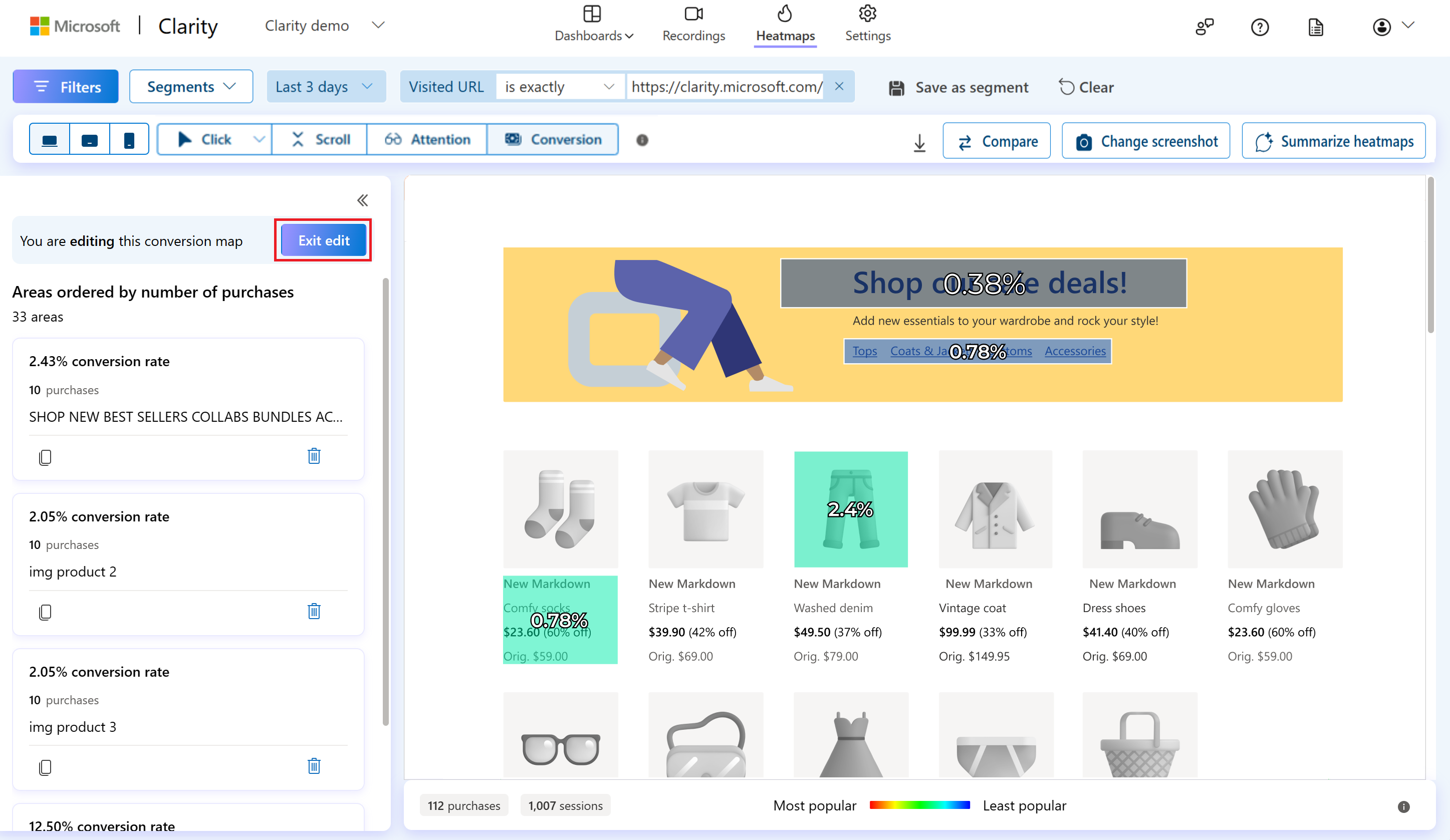

Hover over the heatmap to select an area. CTR for the new area is calculated on the fly.

Edit conversion maps.

Select Exit edit as you finish editing.

Tip

In addition to team members, guest members can also edit areas in your project.

View Conversion maps

Conversion maps display the conversion rate, which is the percentage of all sessions that resulted in a purchase when a user clicks in a selected area.

Left panel

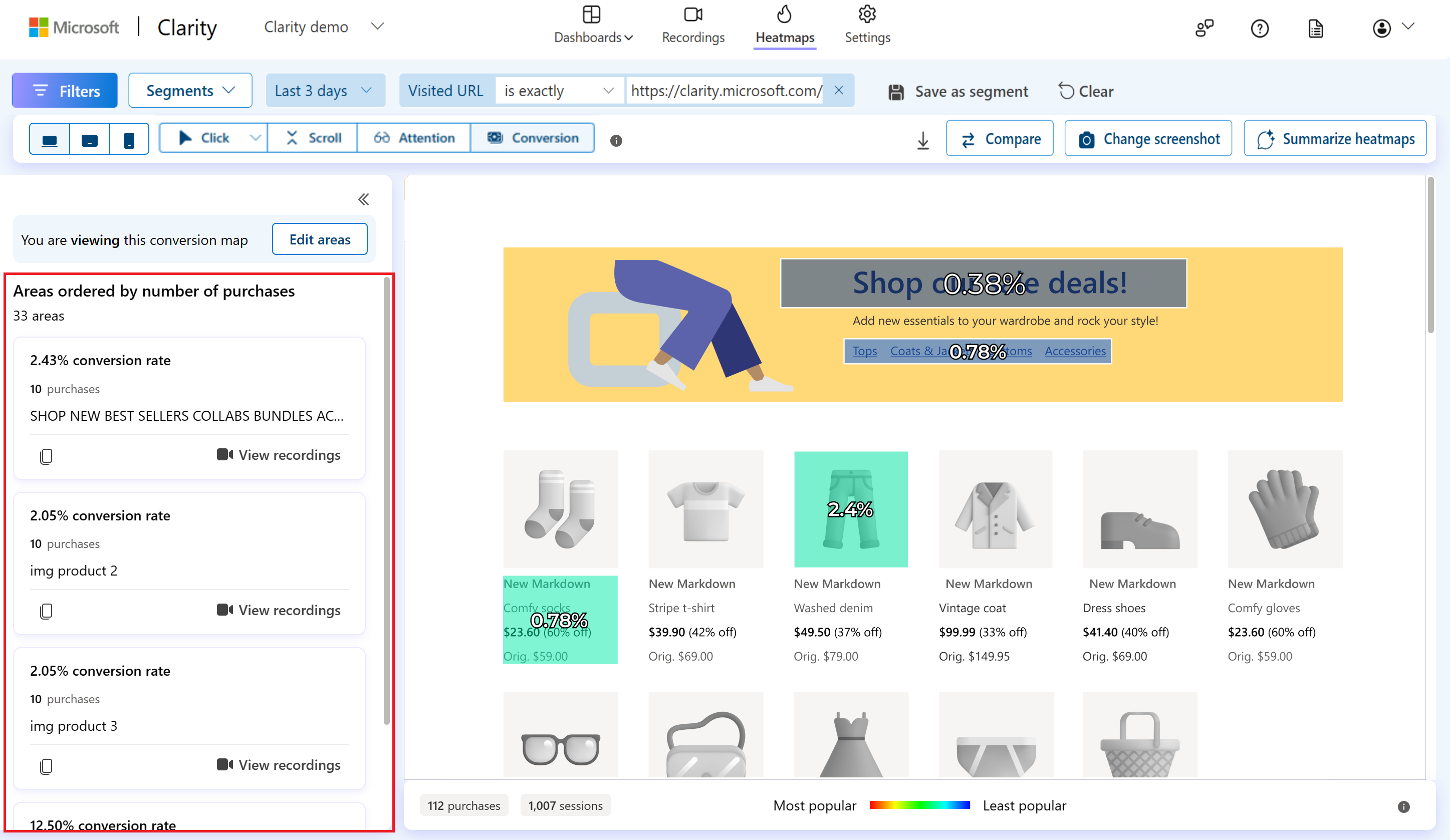

The left panel contains the list of areas in order of appearance on a page. Select a new area between two zones in Edit mode to add from top to bottom and left to right. Expand (>>) to view or collapse (<<) to close areas.

Note

By default, the area is connected to a single URL or group of URLs with applied filters. These areas cannot be transferred to another heat map.

As you scroll to the bottom, you can see list of areas ordered by number of purchases. Select any element to view the CTR for the entire area.

Conversion maps left panel.

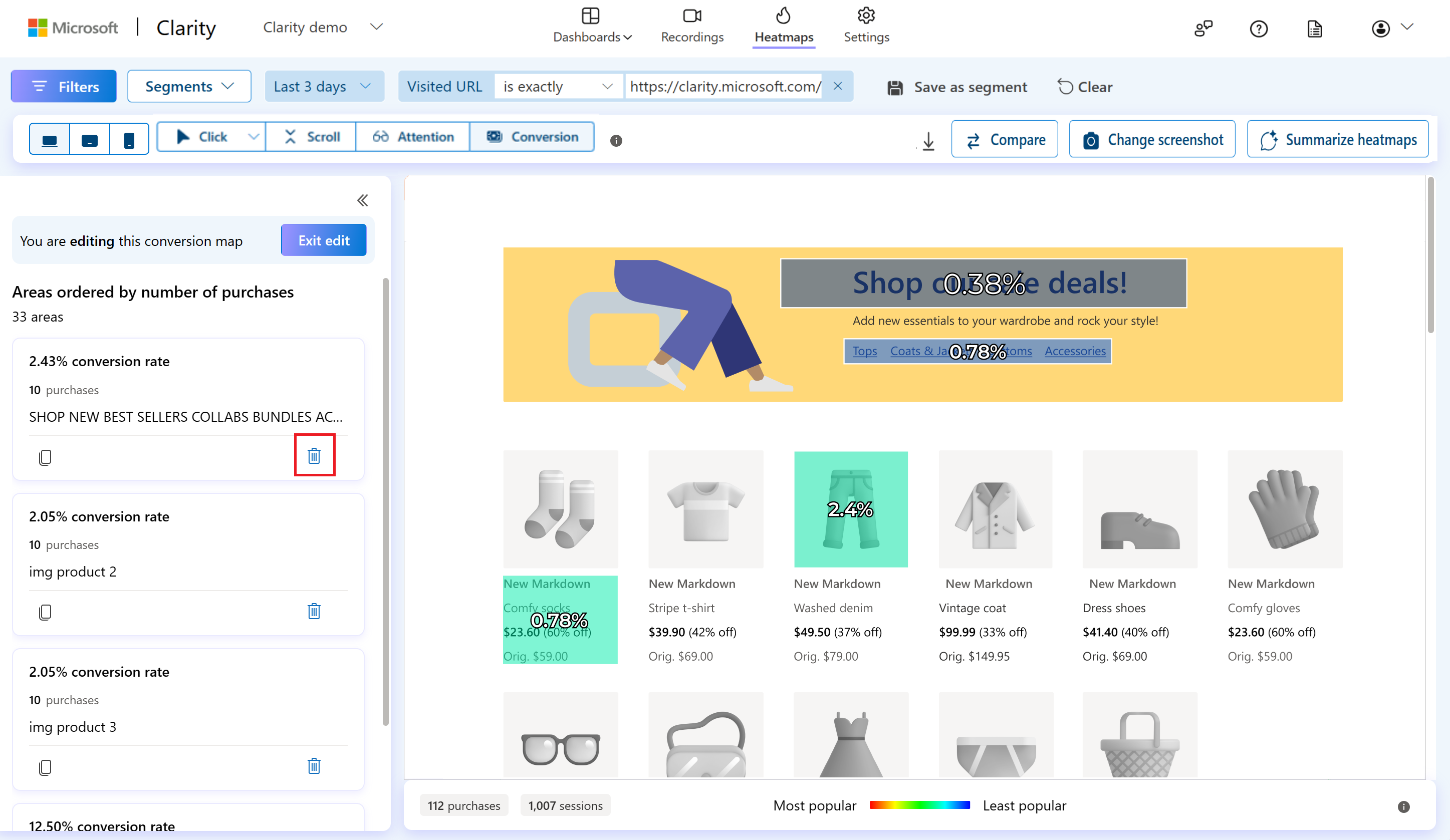

As a new area is selected in Edit mode, it appears in the left panel. Deselect the area by selecting the delete icon in the left panel.

Remove area in the left panel.

View recordings

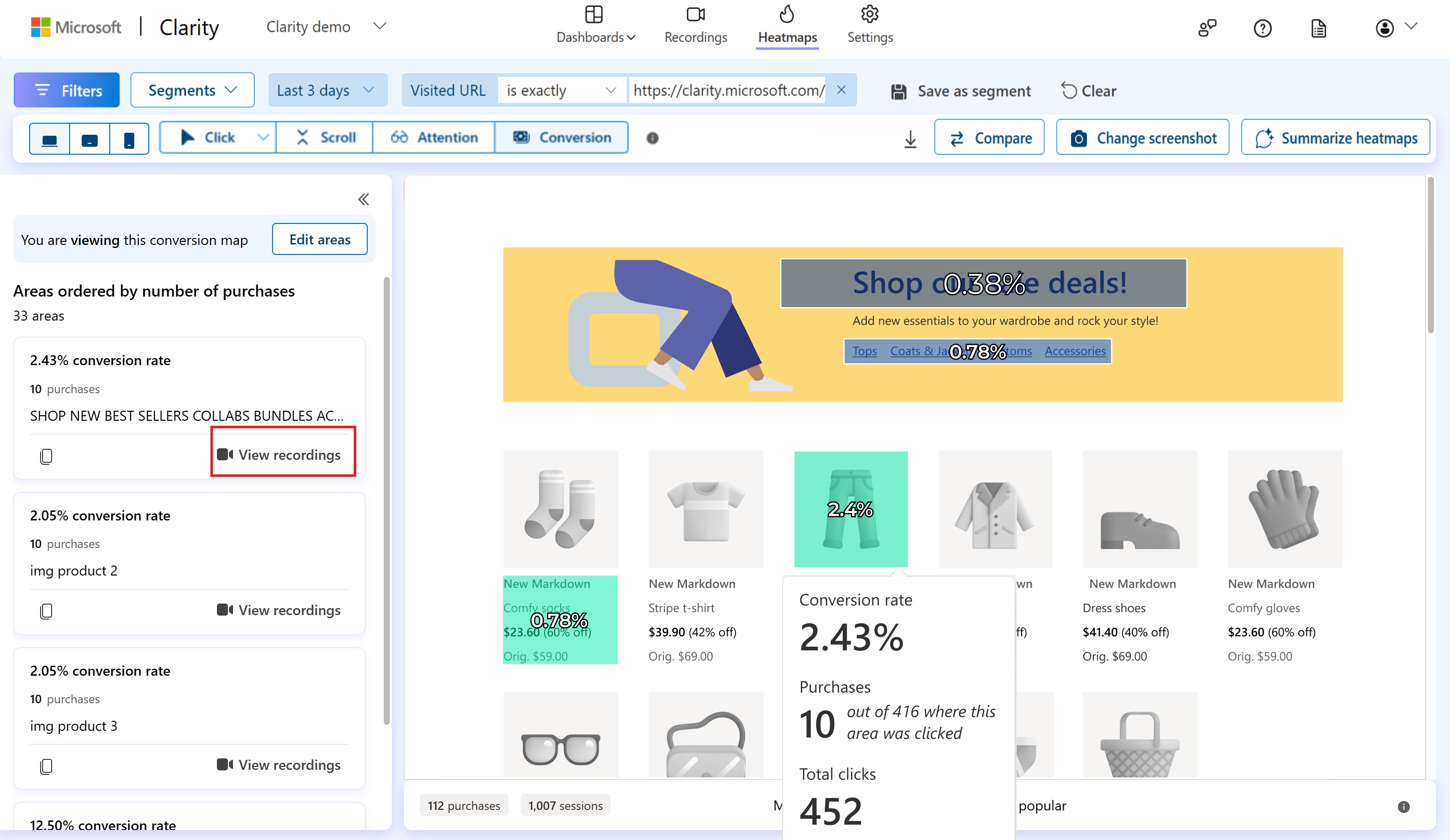

You can also view the recordings either by selecting or by selecting View recordings. View recordings help you watch recordings where the element was clicked.

Conversion maps view recordings button.

You can see a clicked element badge as an applied filter on selecting this button. Learn more about badge labels.

Note:

  • Once applied, this filter appears on Recordings, Dashboard, and Heatmaps verticals.
  • You can access it later by saving it as a segment or sharing it.

Badge label limitations:

  • This filter can only be set through a heat map and can't be selected from filters.
  • If you close the filter, you have to set it through Heatmaps again.

Copy Element

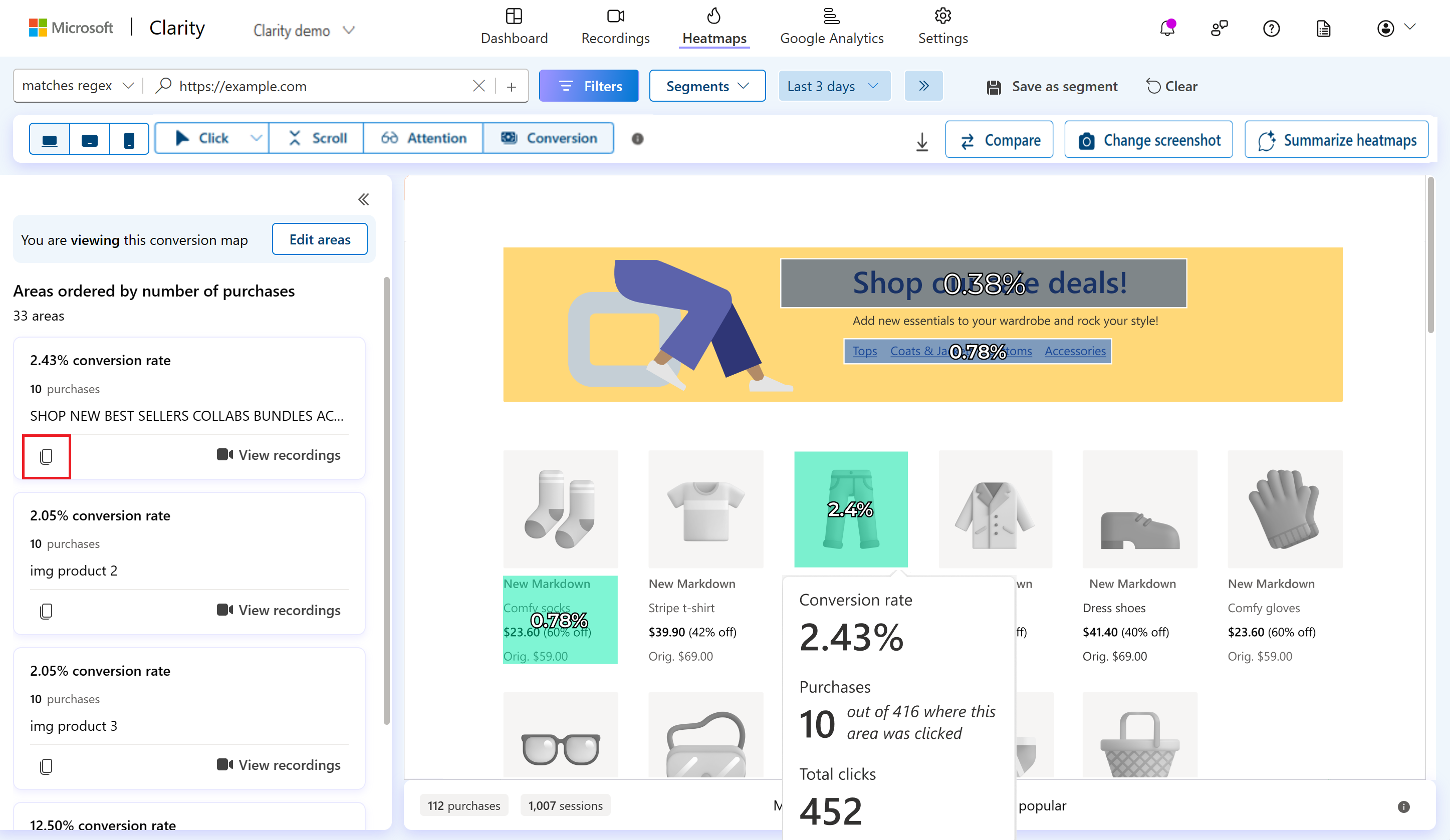

You can now copy the element to the clipboard by selecting the copy icon. This copies the CSS selector of an element that allows you to identify the exact element in the UI. You can use it to change the style of an element.

Copy element to clipboard in Conversion maps.

Top panel

The top panel helps you customize the Conversion maps visualization:

Conversion maps top panel.

  1. URL: This autofill search bar contains all the websites that are part of Clarity's project.

  2. Filters: Refer to Filters overview to learn more.

  3. Segments: Refer to Segments to learn more.

  4. Visited URL: The URL for which you can view the Heatmaps. The applied filters appear here. You can also save the filters as a segment. Learn more here.

  5. Supported devices: Choose PC/Tablet/Mobile view to understand user behavior on these devices.

  6. Heatmaps types: You can switch between click map types, scroll maps, area maps, and conversion maps.

  7. Download: This feature is coming soon.

  8. Sharing: Share the area map with others.

    Tip

    As you share a Heatmap, in addition to team members, guest members can also edit areas in your project.

  9. Compare: Compare two same or different heatmaps.

  10. Summarize heatmaps: Summarize heatmaps to easily understand the user behaviors and trends of your website pages.

Bottom panel

Conversion maps bottom panel.

  1. Purchases and Sessions: The total number of purchases and the total number of sessions for applied filters. The purchases are limited to up to 100,000 per Heatmap.

  2. Color scale: Colors get warmer as the popularity of a section increases. The warmer the colors, the denser the CTR. Red indicates high CTR and blue indicates low CTR.

Limitations

  • Though you select areas in Edit mode, it won't retain if you switch to any other vertical.
  • The Conversion maps data is retained until the session expires.
  • Unlike segments, the selected areas can't be saved.

FAQ

For more answers, refer to Heatmap FAQ.
