People picker component in Microsoft Graph Toolkit

Artikkel
02/07/2024

You can use the mgt-people-picker web component to search for people, groups, or both. By default, the component searches for all people and users in the organization, but you can change the behavior to also search for groups, or only groups. You can also filter the search to a specific group. You can also allow the user to enter and select any email address.

Example

The following example shows the mgt-people-picker component. Start searching for a name to see the results render and use the code editor to see how properties change the behavior of the component.

HTML
React

Open this example in mgt.dev.

Properties

By default, the mgt-people-picker component fetches people from the /me/people and /users endpoints. Use the following attributes to change this behavior.

Attribute	Property	Description
show-max	showMax	A number value to indicate the maximum number of people to show. The default value is 6.
group-id	groupId	A string value that belongs to a Microsoft Graph defined group for further filtering of the search results.
transitive-search	transitiveSearch	A Boolean value to perform a transitive search returning a flat list of all nested members - by default transitive search isn't used.
type	type	The type of entities to search for. Available options are: `person`, `group`, `any`. Default value is `any`. If this attribute is set to `group` and either `group-id` or `group-ids` are set, then `userFilters` and `peopleFilters` have no effect.
user-type	userType	The type of user to search for. Available options are: `any`, `user` for organizational users, or `contact` for contacts. Default value is `any`.
group-type	groupType	The group type or types to search for. Available options are: `unified`, `security`, `mailenabledsecurity`, `distribution`, `any`. Default value is `any`. This attribute has no effect if the `type` property is set to `person`. This attribute accepts a comma-separated list of values; the property accepts an array or values.
selected-people	selectedPeople	An array of selected people. Set this value to select people programmatically.
people	people	An array of people found and rendered in the search result
placeholder	placeholder	The default text that appears to explain how to use the component. Default value is `Start typing a name`.
default-selected-user-ids	defaultSelectedUserIds	When provided a string of comma-separated Microsoft Graph user IDs, the component renders the respective users as selected upon initialization.
default-selected-group-ids	defaultSelectedGroupIds	Similar to default-selected-user-ids, when provided a string of comma-separated Microsoft Graph group IDs, the component renders the respective groups as selected upon initialization.
selection-mode	selectionMode	Used to indicate whether to allow selecting multiple items (users or groups) or just a single item. Available options are: `single`, `multiple`. Default value is `multiple`.
disabled	disabled	Sets whether the people picker is disabled. When disabled, the user isn't able to search or select people. Default is `false`.
disable-images	disableImages	Sets whether to disable fetching and display of person images. When set to `true`, user initials are displayed instead. Default is `false`.
person-card	personCardInteraction	Sets the behavior to show the person card of a selected person. The allowed values are `none`, `hover` or `click`. Default is `none`.
allow-any-email	allowAnyEmail	Indicates whether the people picker can accept email addresses without selecting a person. Default value is `false`. When you finish typing an email address, you can press comma (`,`), semicolon (`;`), tab or enter keys to add it.
user-ids	userIds	A string of comma-separated user IDs. They only appear on the dropdown menu or your search results when you type a query. For example, `48d31887-5fad-4d73-a9f5-3c356e68a038,24fcbca3-c3e2-48bf-9ffc-c7f81b81483d` only displays the two users in the dropdown when the input is focused. When you type a search text, it returns results that match the users in the two user IDs only.
user-filters	userFilters	Specifies the filter criteria to use when querying the users' endpoint. It requires the `user-type` to be set to `user` or `contact`. By default, the `user-type` is `any` and leads the querying to take place in the `people` endpoint block. Example: `user-filters="startsWith(displayName,'a')"`. This attribute is optional. Learn more about the support for filter on user properties of directory objects. When you use only the `User.ReadBasic.All` permission, the list of available properties is limited and the component adapts accordingly. Under the User.ReadBasic.All scope, you're limited to the following properties: `id`, `displayName`, `givenName`, `mail`, `securityIdentifier`, `surname`, and `userPrincipalName`. By default, this component uses the `jobTitle` and `department` properties. The `mail` property serves as a fallback for `jobTitle` when `User.ReadBasic.All` is in use and other properties aren't rendered. Use the `User.Read.All` permission to query more properties.
group-filters	groupFilters	Specifies the filter criteria to use when querying the `groups` endpoint. It requires the `type` to be set to `group`. Example: `group-filters="startsWith(displayName,'a')"`. This attribute is optional.
people-filters	peopleFilters	Specifies the filter criteria to use when querying the `people` endpoint. It's used as it is. Example: `people-filters="jobTitle eq 'Web Marketing Manager'"`. This attribute is optional. Learn more about filtering and the supported capabilities on the people resource.
group-ids	groupIds	A string of comma-separated group IDs. The available results should be limited to the specified groups. Users that appear on the dropdown menu and via the search experience should only come from the specified group IDs. For example, `02bd9fd6-8f93-4758-87c3-1fb73740a315,06f62f70-9827-4e6e-93ef-8e0f2d9b7b23` only displays users belonging to these groups. When you type a search text, it returns results that match the users in the two group IDs only. This property isn't used if `group-id` is defined. If the property is set, the `type` is `group` by default and `transitive-search` is `true` by default. If the `group-type` is set with the property, the `type` can be `any` or `group`. If the `type` is `person`, the property isn't used.
aria-label	ariaLabel	A string provided to help assistive technologies provide context for the people picker.

The following example shows the show-max attribute.

<mgt-people-picker show-max="4"> </mgt-people-picker>

Selected people

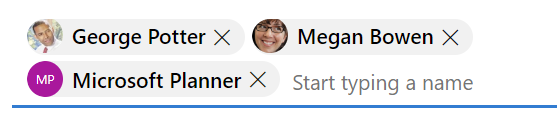

The selected people section of the component renders each person chosen by the developer or user.

mgt-people-picker

You can populate selected people data with the following options:

Setting the selectedPeople property directly, as shown in the following example.

// personObject is the User or Person object from Microsoft Graph
document.querySelector("mgt-people-picker").selectedPeople.push(personObject);

Using the selectUsersById() method, which accepts an array of Microsoft graph user IDs to find associated user details for selection.

Note: If no user is found for an id, no data will be rendered for that id.
```
// id = Microsoft graph User "id"
document.querySelector("mgt-people-picker").selectUsersById(["id", "id"]);
```

Using the selectGroupsById() method, which accepts an array of Microsoft graph group IDs to find the group(s) with associated users.

// groupid = Microsoft graph group "id"
document
  .querySelector("mgt-people-picker")
  .selectGroupsById(["groupid", "groupid"]);

CSS custom properties

The mgt-people-picker component defines the following CSS custom properties.

<mgt-people-picker class="people-picker"></mgt-people-picker>

.people-picker {
  --people-picker-selected-option-background-color: orange;
  --people-picker-selected-option-highlight-background-color: red;
  --people-picker-dropdown-background-color: blue;
  --people-picker-dropdown-result-background-color: yellow;
  --people-picker-dropdown-result-hover-background-color: gold;
  --people-picker-dropdown-result-focus-background-color: green;
  --people-picker-no-results-text-color: orange;
  --people-picker-input-background: gray;
  --people-picker-input-border-color: yellow;
  --people-picker-input-hover-background: green;
  --people-picker-input-hover-border-color: red;
  --people-picker-input-focus-background: purple;
  --people-picker-input-focus-border-color: orange;

  --people-picker-input-placeholder-focus-text-color: yellow;
  --people-picker-input-placeholder-hover-text-color: gold;
  --people-picker-input-placeholder-text-color: white;
  --people-picker-search-icon-color: yellow;
  --people-picker-remove-selected-close-icon-color: blue;

  /** Style for the avatar-size in the people-picker **/
  --people-picker-result-person-avatar-size: 50px;
  --people-picker-selected-person-avatar-size: 30px;

  /** You can also change the person tokens **/
  --person-line1-text-color: blue;
  --person-line2-text-color: red;
}

To learn more, see styling components.

Events

The following events are fired from the component.

Event	When is it emitted	Custom data	Cancelable	Bubbles	Works with custom template
`selectionChanged`	The user added or removed a person from the list of selected/picked people	Array of selected people, where a person can be a Graph user, person or contact with another `personImage` property that contains the URL of the user's photo	No	No	Yes, unless you override the default template

For more information about handling events, see events.

Templates

mgt-people-picker supports several templates that you can use to replace certain parts of the component. To specify a template, include a <template> element inside a component and set the data-type to one of the following values.

Data type	Data context	Description
default	null: no data	The template used to override the rendering of the entire component.
loading	null: no data	The template used to render the state of picker while request to graph is being made.
error	null: no data	The template used if user search returns no users.
no-data	null: no data	An alternative template used if user search returns no users.
selected-person	person: The person details object	The template to render selected people.
person	person: The person details object	The template to render people in the dropdown.

The following examples show how to use the error template.

<mgt-people-picker>
  <template data-type="error">
    <p>Sorry, no people were found</p>
  </template>
</mgt-people-picker>

Microsoft Graph permissions

This component might make many queries depending on configuration and state. The following table splits the Microsoft Graph APIs and permissions that are required into three sections for simplicity. For each API called, the user must have at least one of the permissions listed.

Regardless of the user input state

Configuration	Permission	API	Additional options
`default-selected-user-ids` set	User.ReadBasic.All, User.Read.All, Directory.Read.All, User.ReadWrite.All, Directory.ReadWrite.All	/users/$({userId}	When `user-filters` is set this is added as the `$filter` parameter to the request with `$count=true` and the `ConsistencyLevel: 'eventual'` header is set on the request
`default-selected-group-ids` set	GroupMember.Read.All, Group.Read.All, Directory.Read.All, Group.ReadWrite.All, Directory.ReadWrite.All	/groups	When `people-filters` is set, its value is added as the `$filter` parameter to the request
When a configuration below depends on `user-ids` being set, if there's an entry of `me` in `user-ids`	User.Read, User.ReadWrite	/me

When no user input is present

Configuration	Permission	API	Additional options
`group-id` set	GroupMember.Read.All, Group.Read.All, Directory.Read.All, GroupMember.ReadWrite.All, Group.ReadWrite.All	/groups/${groupId}/members	When `type` is `person` or `group` either `/microsoft.graph.user` or `/microsoft.graph.group` will be appended to the request path
`group-id` set AND `transitive-search` is true	GroupMember.Read.All, Group.Read.All, Directory.Read.All, GroupMember.ReadWrite.All, Group.ReadWrite.All	/groups/${groupId}/transitiveMembers	When `type` is `person` or `group` either `/microsoft.graph.user` or `/microsoft.graph.group` will be appended to the request path
`group-ids` set AND `type` is `group`	GroupMember.Read.All, Group.Read.All, Directory.Read.All, Group.ReadWrite.All, Directory.ReadWrite.All	/groups/${id}
`group-ids` set AND `type` is NOT `group`	GroupMember.Read.All, Group.Read.All, Directory.Read.All, GroupMember.ReadWrite.All, Group.ReadWrite.All	/groups/${groupId}/members	When `type` is `person` then `/microsoft.graph.user` is appended to the request path
`group-ids` set AND `type` is NOT `group` AND `transitive-search` is true	GroupMember.Read.All, Group.Read.All, Directory.Read.All, GroupMember.ReadWrite.All, Group.ReadWrite.All	/groups/${groupId}/transitiveMembers	When `type` is `person` then `/microsoft.graph.user` is appended to the request path
`type` is `group` and neither `group-id` nor `group-ids` are set	GroupMember.Read.All, Group.Read.All, Directory.Read.All, Group.ReadWrite.All, Directory.ReadWrite.All	/groups
`type` set to `person` or `any` and `userIds` is set	User.ReadBasic.All, User.Read.All, Directory.Read.All, User.ReadWrite.All, Directory.ReadWrite.All	/users/$({userId}	When `user-filters` is set this is added as the $filter parameter to the request with `$count=true` and the `ConsistencyLevel: 'eventual'` header is set on the request
`type` set to `person` or `any` and `user-filters` is set and `user-type` is set to either `user` or `contact`	User.ReadBasic.All, User.Read.All, Directory.Read.All, User.ReadWrite.All, Directory.ReadWrite.All	/users	When `user-filters` is set this is added as the $filter parameter to the request with `$count=true` and the `ConsistencyLevel: 'eventual'` header is set on the request
`type` set to `person` or `any` and either `user-filters` isn't set or `user-type` is set to neither `user` nor `contact`	People.Read, People.Read.All	/me/people	When `people-filters` is set or `user-type` isn't `any` a $filter parameter is added to the request. If `user-type` isn't `contact` the `X-PeopleQuery-QuerySources: 'Mailbox,Directory'` header is set on the request

When a user has supplied a search term

Configuration	Permission	API	Additional options
`group-id` is set	GroupMember.Read.All, Group.Read.All, Directory.Read.All, GroupMember.ReadWrite.All, Group.ReadWrite.All	/groups/${groupId}/members	When `type` is `person` or `group` either `/microsoft.graph.user` or `/microsoft.graph.group` is appended to the request path, a `$filter` parameter is composed with the user input value
`group-id` is set and `transitive-search` is true	GroupMember.Read.All, Group.Read.All, Directory.Read.All, GroupMember.ReadWrite.All, Group.ReadWrite.All	/groups/${groupId}/transitiveMembers	When `type` is `person` or `group` either `/microsoft.graph.user` or `/microsoft.graph.group` is appended to the request path, a `$filter` parameter is composed with the user input value
`group-id` isn't set and `type` set to `person` or `any` and `user-type` set to `any` and `group-ids` is set	GroupMember.Read.All, Group.Read.All, Directory.Read.All, GroupMember.ReadWrite.All, Group.ReadWrite.All	/groups/${groupId}/members	When `type` is `person` then `/microsoft.graph.user` is appended to the request path, a `$filter` parameter is composed with the user input value
`group-id` isn't set and `type` set to `person` or `any` and `user-type` set to `any` and `group-ids` is set and `transitive-search` is true	GroupMember.Read.All, Group.Read.All, Directory.Read.All, GroupMember.ReadWrite.All, Group.ReadWrite.All	/groups/${groupId}/transitiveMembers	When `type` is `person` then `/microsoft.graph.user` is appended to the request path, a `$filter` parameter is composed with the user input value
`type` set to `person` or `any` and `user-type` not set to `any` and `user-ids` is set	User.ReadBasic.All, User.Read.All, Directory.Read.All, User.ReadWrite.All, Directory.ReadWrite.All	/users/$({userId}	When `user-filters` is set this is added as the $filter parameter to the request with `$count=true` and the `ConsistencyLevel: 'eventual'` header is set on the request
`type` set to `person` or `any` and `user-type` set to `any` and `group-ids` isn't set and `user-ids` is set	User.ReadBasic.All, User.Read.All, Directory.Read.All, User.ReadWrite.All, Directory.ReadWrite.All	/users/$({userId}	When `user-filters` is set this is added as the $filter parameter to the request with `$count=true` and the `ConsistencyLevel: 'eventual'` header is set on the request
`group-id` isn't set and `type` is `group` or `type` is `any` and fewer results than `show-max` were found	GroupMember.Read.All, Group.Read.All, Directory.Read.All, Group.ReadWrite.All, Directory.ReadWrite.All	/groups	A `$filter` is composed using the supplied user input, `group-filters`, and `group-type` values
`group-id` isn't set and `group-ids` is set and `type` is `group` or `type` is `any` and fewer results than `show-max` were found	GroupMember.Read.All, Group.Read.All, Directory.Read.All, Group.ReadWrite.All, Directory.ReadWrite.All	/groups	A `$filter` is composed using the supplied user input, `user-filters`, and `group-type` values

Subcomponents

The mgt-people-picker component consists of one or more subcomponents that might require other permissions than the ones listed previously. For more information, see the documentation for each subcomponent: mgt-person.

Authentication

The control uses the global authentication provider described in the authentication documentation.

Cache

Object store	Cached data	Remarks
`groups`	List of groups	Used when `type` is set to `PersonType.group`
`people`	List of people	Used when `type` is set to `PersonType.person` or `PersonType.any`
`users`	List of users	Used when `groupId` specified

For more information about how to configure the cache, see Caching.

Extend for more control

For more complex scenarios or a truly custom UX, this component exposes several protected render* methods for override in component extensions.

Method	Description
renderInput	Renders the input text box.
renderSelectedPeople	Renders the selected people tokens.
renderSelectedPerson	Renders an individual person token.
renderFlyout	Renders the flyout chrome.
renderFlyoutContent	Renders the appropriate state in the results flyout.
renderLoading	Renders the loading state.
renderNoData	Renders the state when no results are found for the search query.
renderSearchResults	Renders the list of search results.
renderPersonResult	Renders an individual person search result.

Localization

The control exposes the following variables that can be localized. For details about localization, see Localizing components.

String name	Default value
inputPlaceholderText	`Search for a name`
maxSelectionsPlaceHolder	`Max contacts added`
maxSelectionsAriaLabel	`Maximum contact selections reached`
noResultsFound	`We didn't find any matches.`
loadingMessage	`Loading...`
selected	`selected`
removeSelectedUser	`Remove`
selectContact	`select a contact`
suggestionsTitle	`Suggested contacts`
