Tutorial: How to display route directions using Azure Maps Route service and Map control

This tutorial shows you how to use the Azure Maps Route service API and Map control to display route directions from start to end point. This tutorial demonstrates how to:

  • Create and display the Map control on a web page.
  • Define the display rendering of the route by defining Symbol layers and Line layers.
  • Create and add GeoJSON objects to the Map to represent start and end points.
  • Get route directions from start and end points using the Get Route directions API.

See the route tutorial in GitHub for the source code. See Route to a destination for a live sample.

Prerequisites

Create and display the Map control

The following steps show you how to create and display the Map control in a web page.

  1. On your local machine, create a new file and name it MapRoute.html.

  2. Add the following HTML to the file:

    <!DOCTYPE html>
    <html>
    <head>
        <title>Map Route</title>
        <meta charset="utf-8">
        <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

        <!-- Add references to the Azure Maps Map control JavaScript and CSS files. -->
        <link rel="stylesheet" href="https://atlas.microsoft.com/sdk/javascript/mapcontrol/3/atlas.min.css" type="text/css">
        <script src="https://atlas.microsoft.com/sdk/javascript/mapcontrol/3/atlas.min.js"></script>

        <script>
            var map, datasource, client;

            function GetMap() {
                //Add Map Control JavaScript code here.
            }
        </script>
        <style>
            html,
            body {
                width: 100%;
                height: 100%;
                padding: 0;
                margin: 0;
            }

            #myMap {
                width: 100%;
                height: 100%;
            }
        </style>
    </head>
    <body onload="GetMap()">
        <div id="myMap"></div>
    </body>
    </html>


    Some things to know about the HTML:

    • The HTML header includes CSS and JavaScript resource files hosted by the Azure Map Control library.
    • The onload event in the body of the page calls the GetMap function when the body of the page finishes loading.
    • The GetMap function contains the inline JavaScript code used to access the Azure Maps APIs. This function is added in the next step.
  3. Next, add the following JavaScript code to the GetMap function, just beneath the code added in the last step. This code creates a map control and initializes it using your Azure Maps subscription keys that you provide. Make sure and replace the string <Your Azure Maps Key> with the Azure Maps primary key that you copied from your Maps account.

    //Instantiate a map object
    var map = new atlas.Map('myMap', {
        // Replace <Your Azure Maps Key> with your Azure Maps subscription key. https://aka.ms/am-primaryKey
        authOptions: {
           authType: 'subscriptionKey',
           subscriptionKey: '<Your Azure Maps Key>'
        }
    });


    Some things to know about the JavaScript:

    • This is the core of the GetMap function, which initializes the Map Control API for your Azure Maps account key.
    • atlas is the namespace that contains the Azure Maps API and related visual components.
    • atlas.Map provides the control for a visual and interactive web map.
  4. Save your changes to the file and open the HTML page in a browser. The map shown is the most basic map that you can make by calling atlas.Map using your Azure Maps account subscription key.

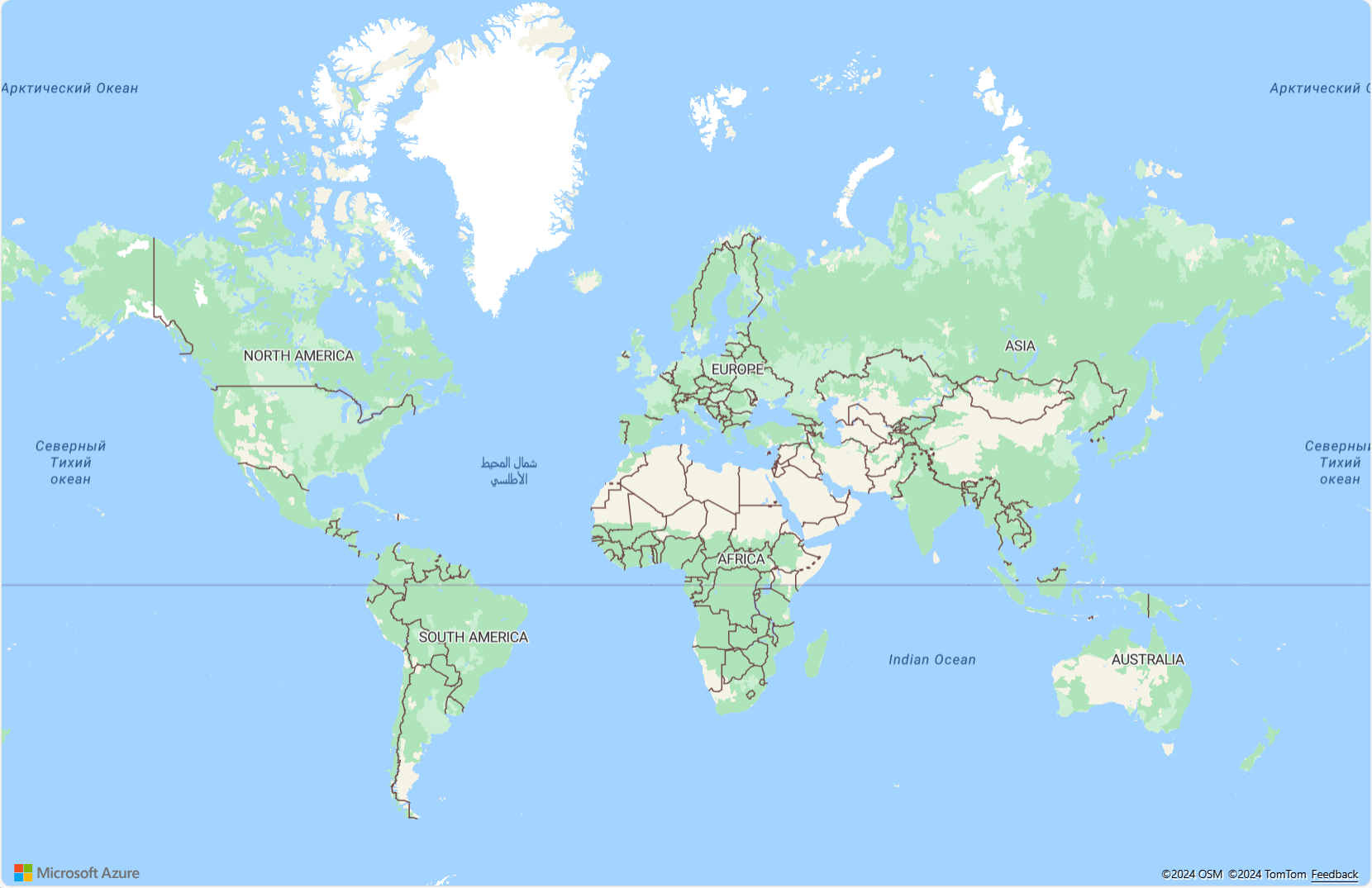

    A screenshot showing the most basic map that you can make by calling `atlas.Map` using your Azure Maps account key.

Define route display rendering

In this tutorial, the route is rendered using a line layer. The start and end points are rendered using a symbol layer. For more information on adding line layers, see Add a line layer to a map. To learn more about symbol layers, see Add a symbol layer to a map.

  1. In the GetMap function, after initializing the map, add the following JavaScript code.

    //Wait until the map resources are ready.
    map.events.add('ready', function() {

        //Create a data source and add it to the map.
        datasource = new atlas.source.DataSource();
        map.sources.add(datasource);

        //Add a layer for rendering the route lines and have it render under the map labels.
        map.layers.add(new atlas.layer.LineLayer(datasource, null, {
            strokeColor: '#2272B9',
            strokeWidth: 5,
            lineJoin: 'round',
            lineCap: 'round'
        }), 'labels');

        //Add a layer for rendering point data.
        map.layers.add(new atlas.layer.SymbolLayer(datasource, null, {
            iconOptions: {
                image: ['get', 'icon'],
                allowOverlap: true
           },
            textOptions: {
                textField: ['get', 'title'],
                offset: [0, 1.2]
            },
            filter: ['any', ['==', ['geometry-type'], 'Point'], ['==', ['geometry-type'], 'MultiPoint']] //Only render Point or MultiPoints in this layer.
        }));
    });


    Some things to know about the JavaScript:

    • This code implements the Map control's ready event handler. The rest of the code in this tutorial is placed inside the ready event handler.
    • In the map control's ready event handler, a data source is created to store the route from start to end point.
    • To define how the route line is rendered, a line layer is created and attached to the data source. To ensure that the route line doesn't cover up the road labels, pass a second parameter with the value of 'labels'.

    Next, a symbol layer is created and attached to the data source. This layer specifies how the start and end points are rendered. Expressions were added to retrieve the icon image and text label information from properties on each point object. To learn more about expressions, see Data-driven style expressions.

  2. Next, set the start point at Microsoft, and the end point at a gas station in Seattle. Start and points are created by appending the following code in the Map control's ready event handler:

    //Create the GeoJSON objects which represent the start and end points of the route.
    var startPoint = new atlas.data.Feature(new atlas.data.Point([-122.130137, 47.644702]), {
        title: "Redmond",
        icon: "pin-blue"
    });

    var endPoint = new atlas.data.Feature(new atlas.data.Point([-122.3352, 47.61397]), {
        title: "Seattle",
        icon: "pin-round-blue"
    });

    //Add the data to the data source.
    datasource.add([startPoint, endPoint]);

    map.setCamera({
        bounds: atlas.data.BoundingBox.fromData([startPoint, endPoint]),
        padding: 80
    });


    Some things to know about the JavaScript:

    • This code creates two GeoJSON Point objects to represent start and end points, which are then added to the data source.
    • The last block of code sets the camera view using the latitude and longitude of the start and end points.
    • The start and end points are added to the data source.
    • The bounding box for the start and end points is calculated using the atlas.data.BoundingBox.fromData function. This bounding box is used to set the map cameras view over the entire route using the map.setCamera function.
    • Padding is added to compensate for the pixel dimensions of the symbol icons.

    For more information about the Map control's setCamera property, see the setCamera(CameraOptions | CameraBoundsOptions & AnimationOptions) property.

  3. Save MapRoute.html and refresh your browser. The map is now centered over Seattle. The blue teardrop pin marks the start point. The blue round pin marks the end point.

    A screenshot showing a map with a route containing a blue teardrop pin marking the start point at Microsoft in Redmond Washington and a blue round pin marking the end point at a gas station in Seattle.

Get route directions

This section shows you how to use the Azure Maps Route Directions API to get route directions and the estimated time of arrival from one point to another.

Tip

The Azure Maps Route services offer APIs to plan routes based on different route types such as fastest, shortest, eco, or thrilling routes based on distance, traffic conditions, and mode of transport used. The service also lets users plan future routes based on historical traffic conditions. Users can see the prediction of route durations for any given time. For more information, see Get Route directions API.

  1. In the GetMap function, inside the control's ready event handler, add the following to the JavaScript code.

    var query = startPoint.geometry.coordinates[1] + "," +
                startPoint.geometry.coordinates[0] + ":" +
                endPoint.geometry.coordinates[1] + "," +
                endPoint.geometry.coordinates[0];
    var url = `https://atlas.microsoft.com/route/directions/json?api-version=1.0&query=${query}`;

    //Make a search route request
    fetch(url, {
        headers: {
            "Subscription-Key": map.authentication.getToken()
        }
    })
    .then((response) => response.json())
    .then((response) => {
        var route = response.routes[0];
        //Create an array to store the coordinates of each turn
        var routeCoordinates = [];
        route.legs.forEach((leg) => {
            var legCoordinates = leg.points.map((point) => {
                return [point.longitude, point.latitude];
            });
            //Add each turn to the array
            routeCoordinates = routeCoordinates.concat(legCoordinates);
        });
        //Add route line to the datasource
        datasource.add(new atlas.data.Feature(new atlas.data.LineString(routeCoordinates)));
    });


    Some things to know about the JavaScript:

    • This code constructs the route from the start to end point.
    • The url queries the Azure Maps Route service API to calculate route directions.
    • An array of coordinates is then extracted from the response and added to the data source.
  2. Save the MapRoute.html file and refresh your web browser. The map should now display the route from the start to end points.

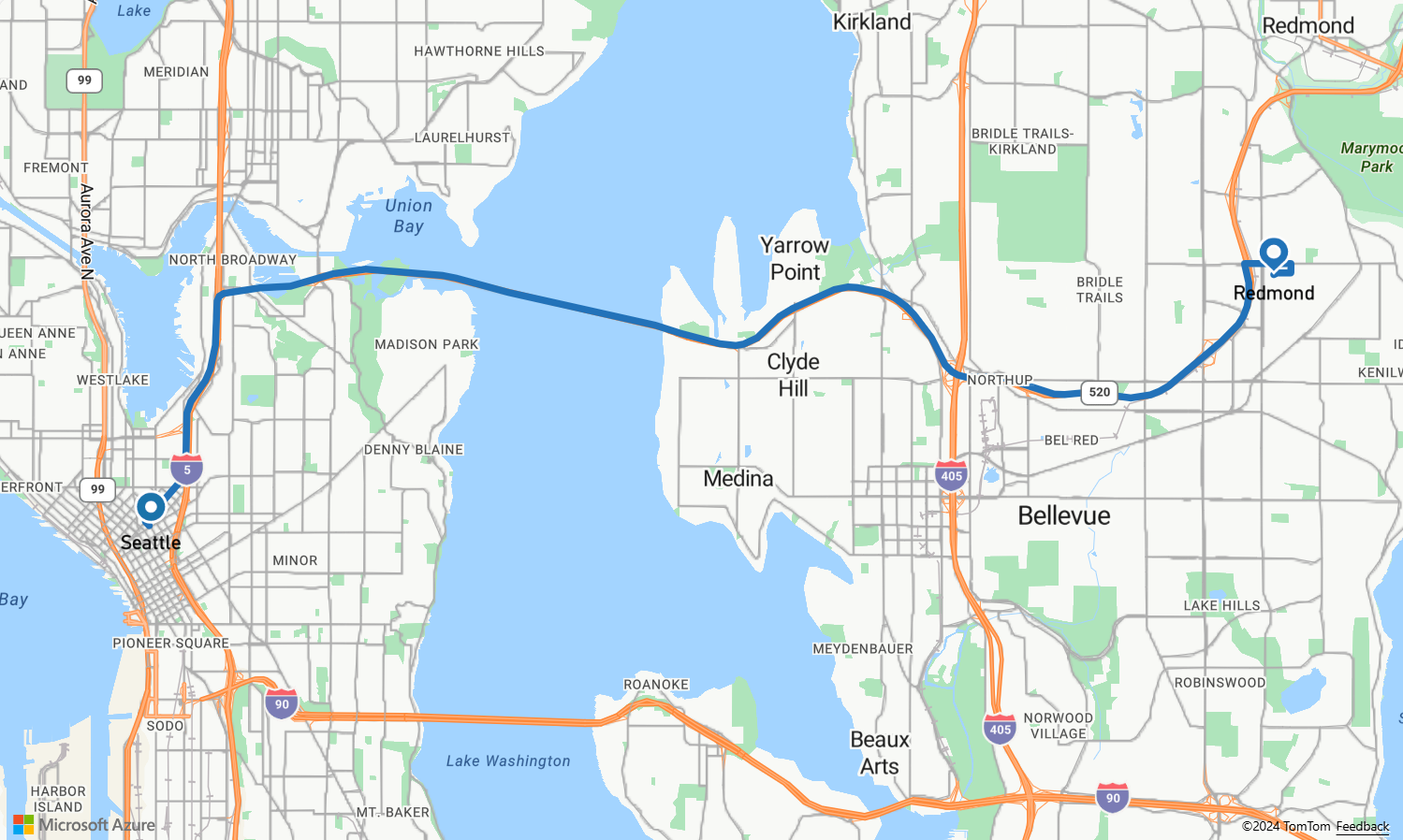

    A screenshot showing a map that demonstrates the Azure Map control and Route service.

Next steps

The next tutorial shows you how to create a route query with restrictions, like mode of travel or type of cargo. You can then display multiple routes on the same map.
