Copy data from Drill using Azure Data Factory or Synapse Analytics
APPLIES TO:
Azure Data Factory
Azure Synapse Analytics
Tip
Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!
This article outlines how to use the Copy Activity in an Azure Data Factory or Synapse Analytics pipeline to copy data from Drill. It builds on the copy activity overview article that presents a general overview of copy activity.
Supported capabilities
This Drill connector is supported for the following capabilities:
Supported capabilities | IR |
---|---|
Copy activity (source/-) | ① ② |
Lookup activity | ① ② |
① Azure integration runtime ② Self-hosted integration runtime
For a list of data stores that are supported as sources or sinks by the copy activity, see the Supported data stores table.
The service provides a built-in driver to enable connectivity, therefore you don't need to manually install any driver using this connector.
Prerequisites
If your data store is located inside an on-premises network, an Azure virtual network, or Amazon Virtual Private Cloud, you need to configure a self-hosted integration runtime to connect to it.
If your data store is a managed cloud data service, you can use the Azure Integration Runtime. If the access is restricted to IPs that are approved in the firewall rules, you can add Azure Integration Runtime IPs to the allow list.
You can also use the managed virtual network integration runtime feature in Azure Data Factory to access the on-premises network without installing and configuring a self-hosted integration runtime.
For more information about the network security mechanisms and options supported by Data Factory, see Data access strategies.
Getting started
To perform the Copy activity with a pipeline, you can use one of the following tools or SDKs:
- The Copy Data tool
- The Azure portal
- The .NET SDK
- The Python SDK
- Azure PowerShell
- The REST API
- The Azure Resource Manager template
Create a linked service to Drill using UI
Use the following steps to create a linked service to Drill in the Azure portal UI.
Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then click New:

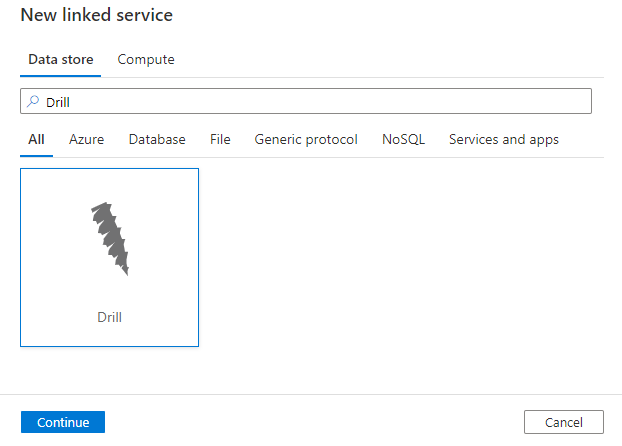

Search for Drill and select the Drill connector.

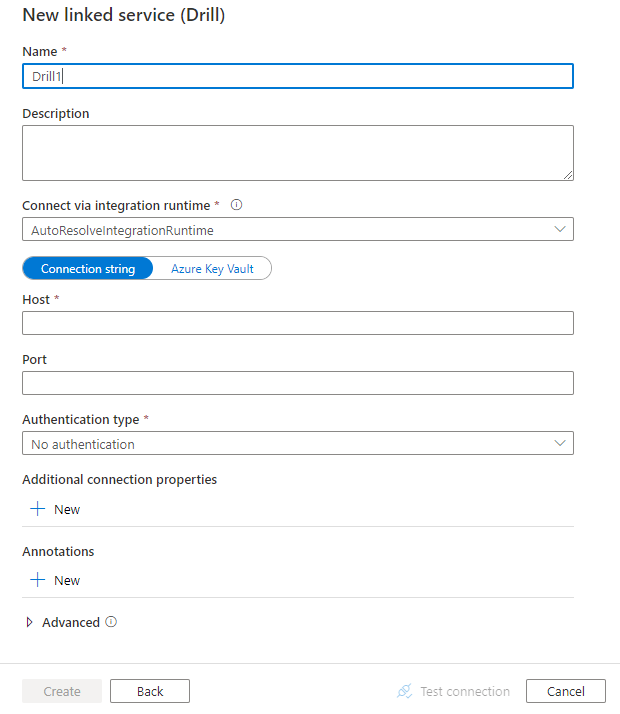

Configure the service details, test the connection, and create the new linked service.
Connector configuration details
The following sections provide details about properties that are used to define Data Factory entities specific to Drill connector.
Linked service properties
The following properties are supported for Drill linked service:
Property | Description | Required |
---|---|---|
type | The type property must be set to: Drill | Yes |
connectionString | An ODBC connection string to connect to Drill. You can also put password in Azure Key Vault and pull the pwd configuration out of the connection string. Refer to the following samples and Store credentials in Azure Key Vault article with more details. |
Yes |
connectVia | The Integration Runtime to be used to connect to the data store. Learn more from Prerequisites section. If not specified, it uses the default Azure Integration Runtime. | No |
Example:
{
"name": "DrillLinkedService",
"properties": {
"type": "Drill",
"typeProperties": {
"connectionString": "ConnectionType=Direct;Host=<host>;Port=<port>;AuthenticationType=Plain;UID=<user name>;PWD=<password>"
},
"connectVia": {
"referenceName": "<name of Integration Runtime>",
"type": "IntegrationRuntimeReference"
}
}
}
Example: store password in Azure Key Vault
{
"name": "DrillLinkedService",
"properties": {
"type": "Drill",
"typeProperties": {
"connectionString": "ConnectionType=Direct;Host=<host>;Port=<port>;AuthenticationType=Plain;UID=<user name>;",
"pwd": {
"type": "AzureKeyVaultSecret",
"store": {
"referenceName": "<Azure Key Vault linked service name>",
"type": "LinkedServiceReference"
},
"secretName": "<secretName>"
}
},
"connectVia": {
"referenceName": "<name of Integration Runtime>",
"type": "IntegrationRuntimeReference"
}
}
}
Dataset properties
For a full list of sections and properties available for defining datasets, see the datasets article. This section provides a list of properties supported by Drill dataset.
To copy data from Drill, set the type property of the dataset to DrillTable. The following properties are supported:
Property | Description | Required |
---|---|---|
type | The type property of the dataset must be set to: DrillTable | Yes |
schema | Name of the schema. | No (if "query" in activity source is specified) |
table | Name of the table. | No (if "query" in activity source is specified) |
tableName | Name of the table with schema. This property is supported for backward compatibility. Use schema and table for new workload. |
No (if "query" in activity source is specified) |
Example
{
"name": "DrillDataset",
"properties": {
"type": "DrillTable",
"typeProperties": {},
"schema": [],
"linkedServiceName": {
"referenceName": "<Drill linked service name>",
"type": "LinkedServiceReference"
}
}
}
Copy activity properties
For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by Drill source.
DrillSource as source
To copy data from Drill, set the source type in the copy activity to DrillSource. The following properties are supported in the copy activity source section:
Property | Description | Required |
---|---|---|
type | The type property of the copy activity source must be set to: DrillSource | Yes |
query | Use the custom SQL query to read data. For example: "SELECT * FROM MyTable" . |
No (if "tableName" in dataset is specified) |
Example:
"activities":[
{
"name": "CopyFromDrill",
"type": "Copy",
"inputs": [
{
"referenceName": "<Drill input dataset name>",
"type": "DatasetReference"
}
],
"outputs": [
{
"referenceName": "<output dataset name>",
"type": "DatasetReference"
}
],
"typeProperties": {
"source": {
"type": "DrillSource",
"query": "SELECT * FROM MyTable"
},
"sink": {
"type": "<sink type>"
}
}
}
]
Lookup activity properties
To learn details about the properties, check Lookup activity.
Related content
For a list of data stores supported as sources and sinks by the copy activity, see supported data stores.
