Copy data from Impala using Azure Data Factory or Synapse Analytics

2025-06-30

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

This article outlines how to use Copy Activity in an Azure Data Factory or Synapse Analytics pipeline to copy data from Impala. It builds on the Copy Activity overview article that presents a general overview of the copy activity.

Important

The Impala connector version 2.0 provides improved native Impala support. If you are using the Impala connector version 1.0 in your solution, please upgrade your Impala connector before September 30, 2025. Refer to this section for details on the difference between version 2.0 and version 1.0.

Supported capabilities

This Impala connector is supported for the following capabilities:

Supported capabilities	IR
Copy activity (source/-)	① ②
Lookup activity	① ②

① Azure integration runtime ② Self-hosted integration runtime

For a list of data stores that are supported as sources or sinks by the copy activity, see the Supported data stores table.

The service provides a built-in driver to enable connectivity. Therefore, you don't need to manually install a driver to use this connector.

Prerequisites

If your data store is located inside an on-premises network, an Azure virtual network, or Amazon Virtual Private Cloud, you need to configure a self-hosted integration runtime to connect to it.

If your data store is a managed cloud data service, you can use the Azure Integration Runtime. If the access is restricted to IPs that are approved in the firewall rules, you can add Azure Integration Runtime IPs to the allow list.

You can also use the managed virtual network integration runtime feature in Azure Data Factory to access the on-premises network without installing and configuring a self-hosted integration runtime.

For more information about the network security mechanisms and options supported by Data Factory, see Data access strategies.

Note

Version 2.0 is supported with the self-hosted integration runtime version 5.55 or above.

Get started

To perform the Copy activity with a pipeline, you can use one of the following tools or SDKs:

Create a linked service to Impala using UI

Use the following steps to create a linked service to Impala in the Azure portal UI.

Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then click New:
- Azure Data Factory
- Azure Synapse

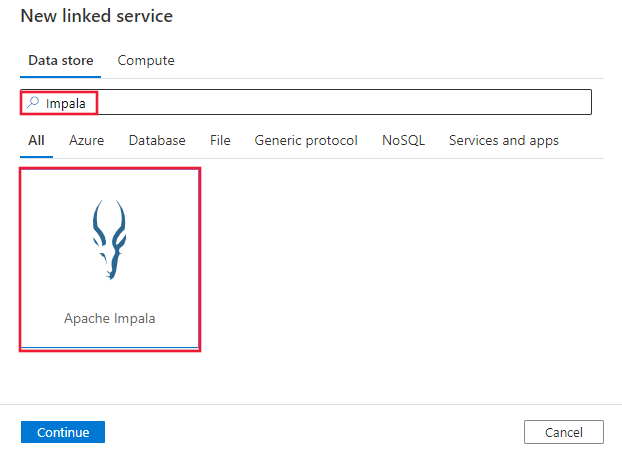

Search for Impala and select the Impala connector.

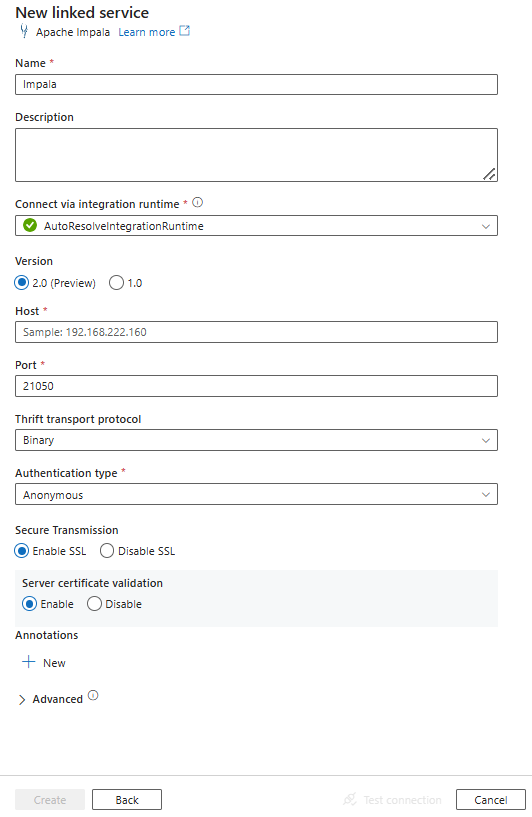

Configure the service details, test the connection, and create the new linked service.

Connector configuration details

The following sections provide details about properties that are used to define Data Factory entities specific to the Impala connector.

Linked service properties

The Impala connector now supports version 2.0. Refer to this section to upgrade your Impala connector version from version 1.0. For the property details, see the corresponding sections.

Version 2.0
Version 1.0

Version 2.0

The Impala linked service supports the following properties when apply version 2.0:

Property	Description	Required
type	The type property must be set to Impala.	Yes
version	The version that you specify. The value is `2.0`.	Yes
host	The IP address or host name of the Impala server (that is, 192.168.222.160).	Yes
port	The TCP port that the Impala server uses to listen for client connections. The default value is 21050.	No
thriftTransportProtocol	The transport protocol to use in the Thrift layer. Allowed values are: Binary, HTTP. The default value is Binary.	Yes
authenticationType	The authentication type to use. Allowed values are Anonymous and UsernameAndPassword.	Yes
username	The user name used to access the Impala server.	No
password	The password that corresponds to the user name when you use UsernameAndPassword. Mark this field as a SecureString to store it securely, or reference a secret stored in Azure Key Vault.	No
enableSsl	Specifies whether the connections to the server are encrypted by using TLS. The default value is true.	No
enableServerCertificateValidation	Specify whether to enable server SSL certificate validation when you connect. Always use System Trust Store. The default value is true.	No
connectVia	The integration runtime to be used to connect to the data store. Learn more from Prerequisites section. If not specified, it uses the default Azure Integration Runtime. You can use the self-hosted integration runtime and its version should be 5.55 or above.	No

Example:

{
    "name": "ImpalaLinkedService",
    "properties": {
        "type": "Impala",
        "version": "2.0",
        "typeProperties": {
            "host" : "<host>",
            "port" : "<port>",
            "authenticationType" : "UsernameAndPassword",
            "username" : "<username>",
            "password": {
                "type": "SecureString",
                "value": "<password>"
            },
            "enableSsl": true,
            "thriftTransportProtocol": "Binary",
            "enableServerCertificateValidation": true
        },
        "connectVia": {
            "referenceName": "<name of Integration Runtime>",
            "type": "IntegrationRuntimeReference"
        }
    }
}

Version 1.0

The following properties are supported for Impala linked service when apply version 1.0:

The following properties are supported for Impala linked service.

Property	Description	Required
type	The type property must be set to Impala.	Yes
host	The IP address or host name of the Impala server (that is, 192.168.222.160).	Yes
port	The TCP port that the Impala server uses to listen for client connections. The default value is 21050.	No
authenticationType	The authentication type to use. Allowed values are Anonymous, SASLUsername, and UsernameAndPassword.	Yes
username	The user name used to access the Impala server. The default value is anonymous when you use SASLUsername.	No
password	The password that corresponds to the user name when you use UsernameAndPassword. Mark this field as a SecureString to store it securely, or reference a secret stored in Azure Key Vault.	No
enableSsl	Specifies whether the connections to the server are encrypted by using TLS. The default value is false.	No
trustedCertPath	The full path of the .pem file that contains trusted CA certificates used to verify the server when you connect over TLS. This property can be set only when you use TLS on Self-hosted Integration Runtime. The default value is the cacerts.pem file installed with the integration runtime.	No
useSystemTrustStore	Specifies whether to use a CA certificate from the system trust store or from a specified PEM file. The default value is false.	No
allowHostNameCNMismatch	Specifies whether to require a CA-issued TLS/SSL certificate name to match the host name of the server when you connect over TLS. The default value is false.	No
allowSelfSignedServerCert	Specifies whether to allow self-signed certificates from the server. The default value is false.	No
connectVia	The integration runtime to be used to connect to the data store. Learn more from Prerequisites section. If not specified, it uses the default Azure Integration Runtime.	No

Example:

{
    "name": "ImpalaLinkedService",
    "properties": {
        "type": "Impala",
        "typeProperties": {
            "host" : "<host>",
            "port" : "<port>",
            "authenticationType" : "UsernameAndPassword",
            "username" : "<username>",
            "password": {
                "type": "SecureString",
                "value": "<password>"
            }
        },
        "connectVia": {
            "referenceName": "<name of Integration Runtime>",
            "type": "IntegrationRuntimeReference"
        }
    }
}

Dataset properties

For a full list of sections and properties available for defining datasets, see the Datasets article. This section provides a list of properties supported by the Impala dataset.

To copy data from Impala, set the type property of the dataset to ImpalaObject. The following properties are supported:

Property	Description	Required
type	The type property of the dataset must be set to: ImpalaObject	Yes
schema	Name of the schema.	No (if "query" in activity source is specified)
table	Name of the table.	No (if "query" in activity source is specified)
tableName	Name of the table with schema. This property is supported for backward compatibility. Use `schema` and `table` for new workload.	No (if "query" in activity source is specified)

Example

{
    "name": "ImpalaDataset",
    "properties": {
        "type": "ImpalaObject",
        "typeProperties": {},
        "schema": [],
        "linkedServiceName": {
            "referenceName": "<Impala linked service name>",
            "type": "LinkedServiceReference"
        }
    }
}

Copy activity properties

For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by the Impala source type.

Impala as a source type

To copy data from Impala, set the source type in the copy activity to ImpalaSource. The following properties are supported in the copy activity source section.

Property	Description	Required
type	The type property of the copy activity source must be set to ImpalaSource.	Yes
query	Use the custom SQL query to read data. An example is `"SELECT * FROM MyTable"`.	No (if "tableName" in dataset is specified)

Example:

"activities":[
    {
        "name": "CopyFromImpala",
        "type": "Copy",
        "inputs": [
            {
                "referenceName": "<Impala input dataset name>",
                "type": "DatasetReference"
            }
        ],
        "outputs": [
            {
                "referenceName": "<output dataset name>",
                "type": "DatasetReference"
            }
        ],
        "typeProperties": {
            "source": {
                "type": "ImpalaSource",
                "query": "SELECT * FROM MyTable"
            },
            "sink": {
                "type": "<sink type>"
            }
        }
    }
]

Data type mapping for Impala

When you copy data from and to Impala, the following interim data type mappings are used within the service. To learn about how the copy activity maps the source schema and data type to the sink, see Schema and data type mappings.

Impala data type	Interim service data type (for version 2.0)	Interim service data type (for version 1.0)
ARRAY	String	String
BIGINT	Int64	Int64
BOOLEAN	Boolean	Boolean
CHAR	String	String
DATE	DateTime	DateTime
DECIMAL	Decimal	Decimal
DOUBLE	Double	Double
FLOAT	Single	Single
INT	Int32	Int32
MAP	String	String
SMALLINT	Int16	Int16
STRING	String	String
STRUCT	String	String
TIMESTAMP	DateTimeOffset	DateTime
TINYINT	SByte	Int16
VARCHAR	String	String

Lookup activity properties

To learn details about the properties, check Lookup activity.

Impala connector lifecycle and upgrade

The following table shows the release stage and change logs for different versions of the Impala connector:

Version	Release stage	Change log
Version 1.0	End of support announced	/
Version 2.0	GA version available	• The self-hosted integration runtime version should be 5.55 or above. • The default value of `enableSSL` is true. `enableServerCertificateValidation` is supported. `trustedCertPath`, `useSystemTrustStore`, `allowHostNameCNMismatch` and `allowSelfSignedServerCert` are not supported. • TIMESTAMP is read as DateTimeOffset data type. • TINYINT is read as SByte data type. • SASLUsername authentication type is not supported.

Upgrade the Impala connector from version 1.0 to version 2.0

In Edit linked service page, select version 2.0 and configure the linked service by referring to Linked service properties version 2.0.
The data type mapping for the Impala linked service version 2.0 is different from that for the version 1.0. To learn the latest data type mapping, see Data type mapping for Impala.
Apply a self-hosted integration runtime with version 5.55 or above.

For a list of data stores supported as sources and sinks by the copy activity, see Supported data stores.
