Desktop app that calls web APIs: Code configuration

Now that you've created your application, you'll learn how to configure the code with the application's coordinates.

Microsoft libraries supporting desktop apps

The following Microsoft libraries support desktop apps:

Language / framework	Project on GitHub	Package	Getting started	Sign in users	Access web APIs	Generally available (GA) or Public preview1
Electron	MSAL Node.js	msal-node	—			Public preview
Java	MSAL4J	msal4j	—			GA
macOS (Swift/Obj-C)	MSAL for iOS and macOS	MSAL	Tutorial			GA
UWP	MSAL.NET	Microsoft.Identity.Client	Tutorial			GA
WPF	MSAL.NET	Microsoft.Identity.Client	Tutorial			GA

¹ Universal License Terms for Online Services apply to libraries in Public preview.

Public client application

From a code point of view, desktop applications are public client applications. The configuration will be a bit different based on whether you use interactive authentication or not.

.NET

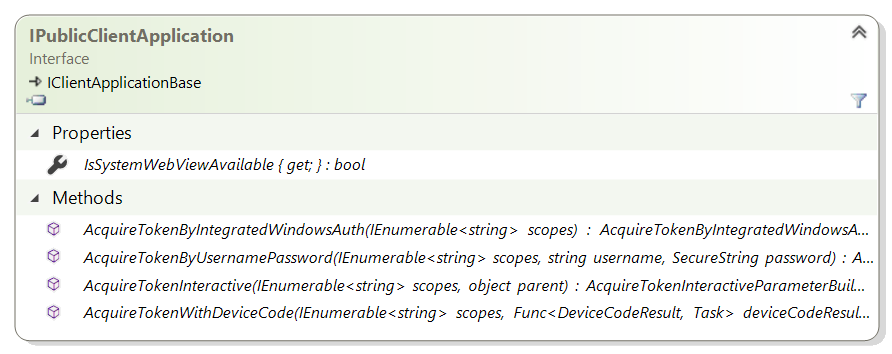

You'll need to build and manipulate MSAL.NET IPublicClientApplication.

Exclusively by code

The following code instantiates a public client application and signs in users in the Microsoft Azure public cloud with a work or school account or a personal Microsoft account.

IPublicClientApplication app = PublicClientApplicationBuilder.Create(clientId)
    .Build();

If you intend to use interactive authentication or device code flow, as seen previously, use the .WithRedirectUri modifier.

IPublicClientApplication app;
app = PublicClientApplicationBuilder.Create(clientId)
        .WithDefaultRedirectUri()
        .Build();

Use configuration files

The following code instantiates a public client application from a configuration object, which could be filled in programmatically or read from a configuration file.

PublicClientApplicationOptions options = GetOptions(); // your own method
IPublicClientApplication app = PublicClientApplicationBuilder.CreateWithApplicationOptions(options)
        .WithDefaultRedirectUri()
        .Build();

More elaborated configuration

You can elaborate the application building by adding a number of modifiers. For instance, if you want your application to be a multitenant application in a national cloud, such as US Government shown here, you could write:

IPublicClientApplication app;
app = PublicClientApplicationBuilder.Create(clientId)
        .WithDefaultRedirectUri()
        .WithAadAuthority(AzureCloudInstance.AzureUsGovernment,
                         AadAuthorityAudience.AzureAdMultipleOrgs)
        .Build();

MSAL.NET also contains a modifier for Active Directory Federation Services 2019:

IPublicClientApplication app;
app = PublicClientApplicationBuilder.Create(clientId)
        .WithAdfsAuthority("https://consoso.com/adfs")
        .Build();

Finally, if you want to acquire tokens for an Azure Active Directory (Azure AD) B2C tenant, specify your tenant as shown in the following code snippet:

IPublicClientApplication app;
app = PublicClientApplicationBuilder.Create(clientId)
        .WithB2CAuthority("https://fabrikamb2c.b2clogin.com/tfp/{tenant}/{PolicySignInSignUp}")
        .Build();

Learn more

To learn more about how to configure an MSAL.NET desktop application:

• For a list of all modifiers available on PublicClientApplicationBuilder, see the reference documentation PublicClientApplicationBuilder.
• For a description of all the options exposed in PublicClientApplicationOptions, see PublicClientApplicationOptions in the reference documentation.

Complete example with configuration options

Imagine a .NET console application that has the following appsettings.json configuration file:

{
  "Authentication": {
    "AzureCloudInstance": "AzurePublic",
    "AadAuthorityAudience": "AzureAdMultipleOrgs",
    "ClientId": "00001111-aaaa-2222-bbbb-3333cccc4444"
  },

  "WebAPI": {
    "MicrosoftGraphBaseEndpoint": "https://graph.microsoft.com"
  }
}

You have little code to read in this file by using the .NET-provided configuration framework:

public class SampleConfiguration
{
 /// <summary>
 /// Authentication options
 /// </summary>
 public PublicClientApplicationOptions PublicClientApplicationOptions { get; set; }

 /// <summary>
 /// Base URL for Microsoft Graph (it varies depending on whether the application runs
 /// in Microsoft Azure public clouds or national or sovereign clouds)
 /// </summary>
 public string MicrosoftGraphBaseEndpoint { get; set; }

 /// <summary>
 /// Reads the configuration from a JSON file
 /// </summary>
 /// <param name="path">Path to the configuration json file</param>
 /// <returns>SampleConfiguration as read from the json file</returns>
 public static SampleConfiguration ReadFromJsonFile(string path)
 {
  // .NET configuration
  IConfigurationRoot Configuration;
  var builder = new ConfigurationBuilder()
                    .SetBasePath(Directory.GetCurrentDirectory())
                    .AddJsonFile(path);
  Configuration = builder.Build();

  // Read the auth and graph endpoint configuration
  SampleConfiguration config = new SampleConfiguration()
  {
   PublicClientApplicationOptions = new PublicClientApplicationOptions()
  };
  Configuration.Bind("Authentication", config.PublicClientApplicationOptions);
  config.MicrosoftGraphBaseEndpoint =
  Configuration.GetValue<string>("WebAPI:MicrosoftGraphBaseEndpoint");
  return config;
 }
}

Now, to create your application, write the following code:

SampleConfiguration config = SampleConfiguration.ReadFromJsonFile("appsettings.json");
var app = PublicClientApplicationBuilder.CreateWithApplicationOptions(config.PublicClientApplicationOptions)
           .WithDefaultRedirectUri()
           .Build();

Before the call to the .Build() method, you can override your configuration with calls to .WithXXX methods, as seen previously.

Java

Here's the class used in MSAL Java development samples to configure the samples: TestData.

PublicClientApplication pca = PublicClientApplication.builder(CLIENT_ID)
        .authority(AUTHORITY)
        .build();

MacOS

The following code instantiates a public client application and signs in users in the Microsoft Azure public cloud with a work or school account or a personal Microsoft account.

Quick configuration

Objective-C:

NSError *msalError = nil;

MSALPublicClientApplicationConfig *config = [[MSALPublicClientApplicationConfig alloc] initWithClientId:@"<your-client-id-here>"];
MSALPublicClientApplication *application = [[MSALPublicClientApplication alloc] initWithConfiguration:config error:&msalError];

Swift:

let config = MSALPublicClientApplicationConfig(clientId: "<your-client-id-here>")
if let application = try? MSALPublicClientApplication(configuration: config){ /* Use application */}

More elaborated configuration

You can elaborate the application building by adding a number of modifiers. For instance, if you want your application to be a multitenant application in a national cloud, such as US Government shown here, you could write:

Objective-C:

MSALAADAuthority *aadAuthority =
                [[MSALAADAuthority alloc] initWithCloudInstance:MSALAzureUsGovernmentCloudInstance
                                                   audienceType:MSALAzureADMultipleOrgsAudience
                                                      rawTenant:nil
                                                          error:nil];

MSALPublicClientApplicationConfig *config =
                [[MSALPublicClientApplicationConfig alloc] initWithClientId:@"<your-client-id-here>"
                                                                redirectUri:@"<your-redirect-uri-here>"
                                                                  authority:aadAuthority];

NSError *applicationError = nil;
MSALPublicClientApplication *application =
                [[MSALPublicClientApplication alloc] initWithConfiguration:config error:&applicationError];

Swift:

let authority = try? MSALAADAuthority(cloudInstance: .usGovernmentCloudInstance, audienceType: .azureADMultipleOrgsAudience, rawTenant: nil)

let config = MSALPublicClientApplicationConfig(clientId: "<your-client-id-here>", redirectUri: "<your-redirect-uri-here>", authority: authority)
if let application = try? MSALPublicClientApplication(configuration: config) { /* Use application */}

Node.js

Configuration parameters can be loaded from many sources, like a JavaScript file or from environment variables. Below, an authConfig.js file is used.

/*
 * Copyright (c) Microsoft Corporation. All rights reserved.
 * Licensed under the MIT License.
 */

const { LogLevel } = require("@azure/msal-node");

/**
 * Configuration object to be passed to MSAL instance on creation.
 * For a full list of MSAL.js configuration parameters, visit:
 * https://github.com/AzureAD/microsoft-authentication-library-for-js/blob/dev/lib/msal-node/docs/configuration.md
 */
const AAD_ENDPOINT_HOST = "Enter_the_Cloud_Instance_Id_Here"; // include the trailing slash

const msalConfig = {
    auth: {
        clientId: "Enter_the_Application_Id_Here",
        authority: `${AAD_ENDPOINT_HOST}Enter_the_Tenant_Info_Here`,
    },
    system: {
        loggerOptions: {
            loggerCallback(loglevel, message, containsPii) {
                console.log(message);
            },
            piiLoggingEnabled: false,
            logLevel: LogLevel.Verbose,
        },
    },
};

/**
 * Add here the endpoints and scopes when obtaining an access token for protected web APIs. For more information, see:
 * https://github.com/AzureAD/microsoft-authentication-library-for-js/blob/dev/lib/msal-browser/docs/resources-and-scopes.md
 */
const GRAPH_ENDPOINT_HOST = "Enter_the_Graph_Endpoint_Here"; // include the trailing slash

const protectedResources = {
    graphMe: {
        endpoint: `${GRAPH_ENDPOINT_HOST}v1.0/me`,
        scopes: ["User.Read"],
    }
};


module.exports = {
    msalConfig: msalConfig,
    protectedResources: protectedResources,
};

Import the configuration object from authConfig.js file. MSAL Node can be initialized minimally as below. See the available configuration options.

const { PublicClientApplication } = require('@azure/msal-node');
const { msalConfig } = require('./authConfig')

/**
* Initialize a public client application. For more information, visit:
* https://github.com/AzureAD/microsoft-authentication-library-for-js/blob/dev/lib/msal-node/docs/initialize-public-client-application.md
*/
clientApplication = new PublicClientApplication(msalConfig);

Python

config = json.load(open(sys.argv[1]))

app = msal.PublicClientApplication(
    config["client_id"], authority=config["authority"],
    # token_cache=...  # Default cache is in memory only.
                       # You can learn how to use SerializableTokenCache from
                       # https://msal-python.rtfd.io/en/latest/#msal.SerializableTokenCache
    )

Next steps

Move on to the next article in this scenario, Acquire a token for the desktop app.
