Access and manage IBM DB2 resources by using Azure Logic Apps

Applies to: Azure Logic Apps (Consumption)

With Azure Logic Apps and the IBM DB2 connector, you can create automated tasks and workflows based on the resources stored in your DB2 database. Your workflows can connect to the resources in your database, read and list your database tables, add rows, change rows, delete rows, and more. You can include actions in your logic apps that get responses from your database and make the output available for other actions.

This article shows how you can create a logic app that performs various database operations. If you're new to logic apps, review What is Azure Logic Apps?

Supported platforms and versions

The DB2 connector includes a Microsoft client that communicates with remote DB2 servers across a TCP/IP network. You can use this connector for accessing cloud databases such as IBM DB2 for Windows running in Azure virtualization. You can also access on-premises DB2 databases after you install and set up the on-premises data gateway.

The IBM DB2 connector supports these IBM DB2 platforms and versions along with IBM DB2 compatible products that support Distributed Relational Database Architecture (DRDA) SQL Access Manager (SQLAM) versions 10 and 11:

Platform Version
IBM DB2 for z/OS 12, 11.1, 10.1
IBM DB2 for i 7.3, 7.2, 7.1
IBM DB2 for LUW 11, 10.5

Supported database operations

The IBM DB2 connector supports these database operations, which map to the corresponding actions in the connector:

Database operation Connector action
List database tables Get tables
Read one row using SELECT Get row
Read all rows using SELECT Get rows
Add one row using INSERT Insert row
Edit one row using UPDATE Update row
Remove one row using DELETE Delete row

Prerequisites

  • An Azure account and subscription. If you don't have an Azure subscription, sign up for a free Azure account.

  • An IBM DB2 database, either cloud-based or on-premises

  • Basic knowledge about how to create logic apps. For more information, see Create an example Consumption logic app workflow

  • The logic app where you want to access your DB2 database. This connector provides only actions, so to start your logic app, select a separate trigger, for example, the Recurrence trigger. The examples in this article use the Recurrence trigger.

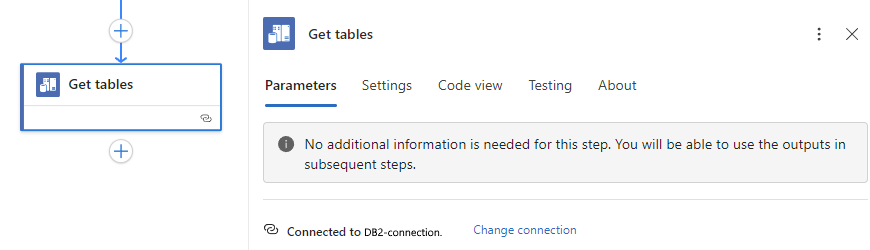

Add DB2 action - Get tables

  1. In the Azure portal, open your logic app in the Logic App Designer, if not already open.

  2. Under the trigger, choose New step.

  3. In the search box, enter "db2" as your filter. For this example, under the actions list, select this action: Get tables (Preview)

    Select action

    You're now prompted to provide connection details for your DB2 database.

  4. Follow the steps for creating connections for cloud databases or on-premises databases.

Connect to cloud DB2

To set up your connection, provide these connection details when prompted, choose Create, and then save your logic app:

Property Required Description
Connect via on-premises gateway No Applies only for on-premises connections.
Connection Name Yes The name for your connection, for example, "MyLogicApp-DB2-connection"
Server Yes The address or alias colon port number for your DB2 server, for example, "myDB2server.cloudapp.net:50000"

Note: This value is a string that represents a TCP/IP address or alias, either in IPv4 or IPv6 format, followed by a colon and a TCP/IP port number.

Database Yes The name for your database

Note: This value is a string that represents a DRDA Relational Database Name (RDBNAM):

- DB2 for z/OS accepts a 16-byte string where the database is known as an "IBM DB2 for z/OS" location.
- DB2 for i accepts an 18-byte string where the database is known as an "IBM DB2 for i" relational database.
- DB2 for LUW accepts an 8-byte string.

Username Yes Your user name for the database

Note: This value is a string whose length is based on the specific database:

- DB2 for z/OS accepts an 8-byte string.
- DB2 for i accepts a 10-byte string.
- DB2 for Linux or UNIX accepts an 8-byte string.
- DB2 for Windows accepts a 30-byte string.

Password Yes Your password for the database

For example:

Connection details for cloud-based databases

Connect to on-premises DB2

Before creating your connection, you must already have your on-premises data gateway installed. Otherwise, you can't finish setting up your connection. If you have your gateway installation, continue with providing these connection details, and then choose Create.

Property Required Description
Connect via on-premises gateway Yes Applies when you want an on-premises connection and shows the on-premises connection properties.
Connection Name Yes The name for your connection, for example, "MyLogicApp-DB2-connection"
Server Yes The address or alias colon port number for your DB2 server, for example, "myDB2server:50000"

Note: This value is a string that represents a TCP/IP address or alias, either in IPv4 or IPv6 format, followed by a colon and a TCP/IP port number.

Database Yes The name for your database

Note: This value is a string that represents a DRDA Relational Database Name (RDBNAM):

- DB2 for z/OS accepts a 16-byte string where the database is known as an "IBM DB2 for z/OS" location.
- DB2 for i accepts an 18-byte string where the database is known as an "IBM DB2 for i" relational database.
- DB2 for LUW accepts an 8-byte string.

Authentication Yes The authentication type for your connection, for example, "Basic"

Note: Select this value from the list, which includes Basic or Windows (Kerberos).

Username Yes Your user name for the database

Note: This value is a string whose length is based on the specific database:

- DB2 for z/OS accepts an 8-byte string.
- DB2 for i accepts a 10-byte string.
- DB2 for Linux or UNIX accepts an 8-byte string.
- DB2 for Windows accepts a 30-byte string.

Password Yes Your password for the database
Gateway Yes The name for your installed on-premises data gateway

Note: Select this value from the list, which includes all the installed data gateways within your Azure subscription and resource group.

For example:

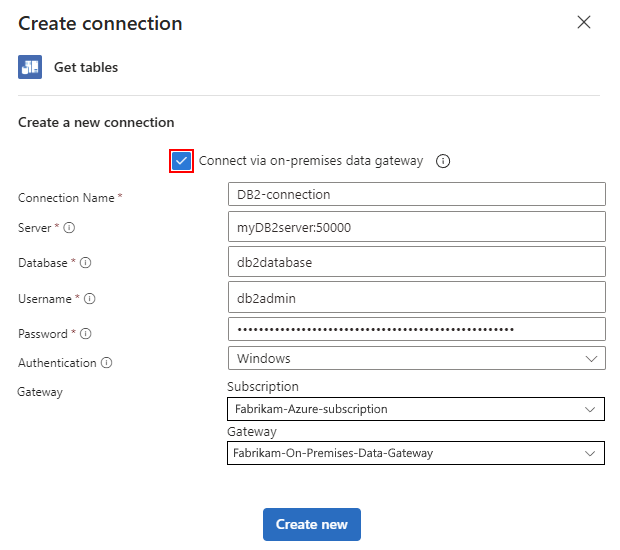

Connection details for on-premises databases

View output tables

To run your logic app manually, on the designer toolbar, choose Run. After your logic app finishes running, you can view the output from the run.

  1. On your logic app menu, select Overview.

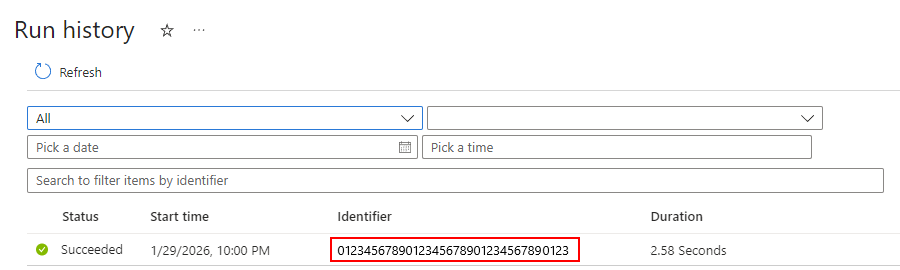

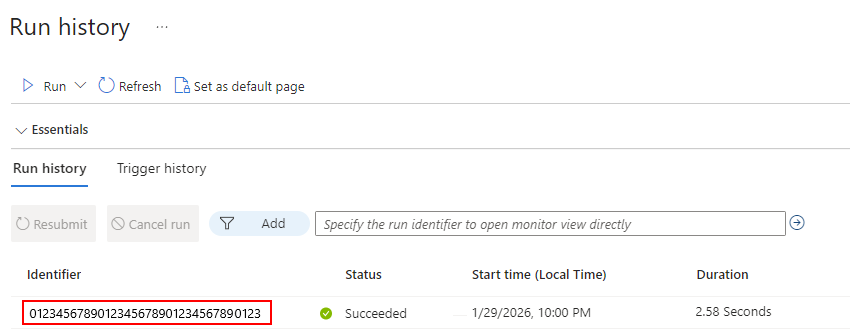

  2. Under Summary, in the Runs history section, select the most recent run, which is the first item in the list.

    View run history

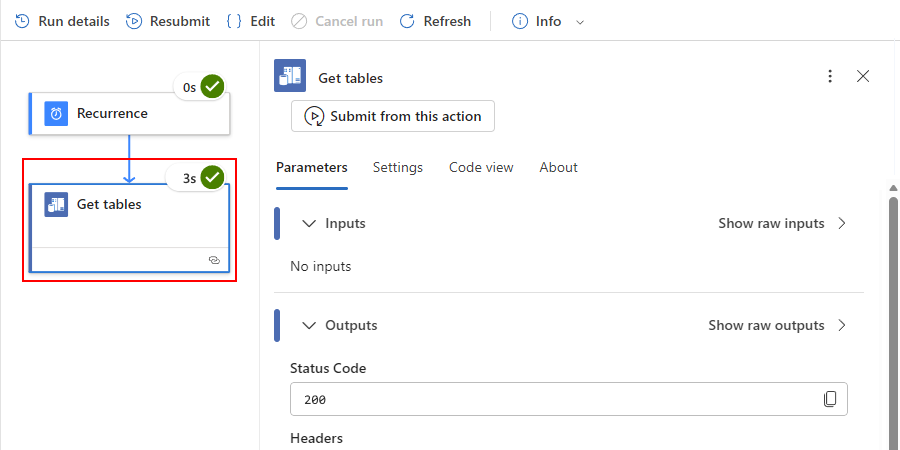

  3. Under Logic app run, you can now review the status, inputs, and outputs for each step in your logic app. Expand the Get tables action.

    Expand action

  4. To view the inputs, choose Show raw inputs.

  5. To view the outputs, choose Show raw outputs.

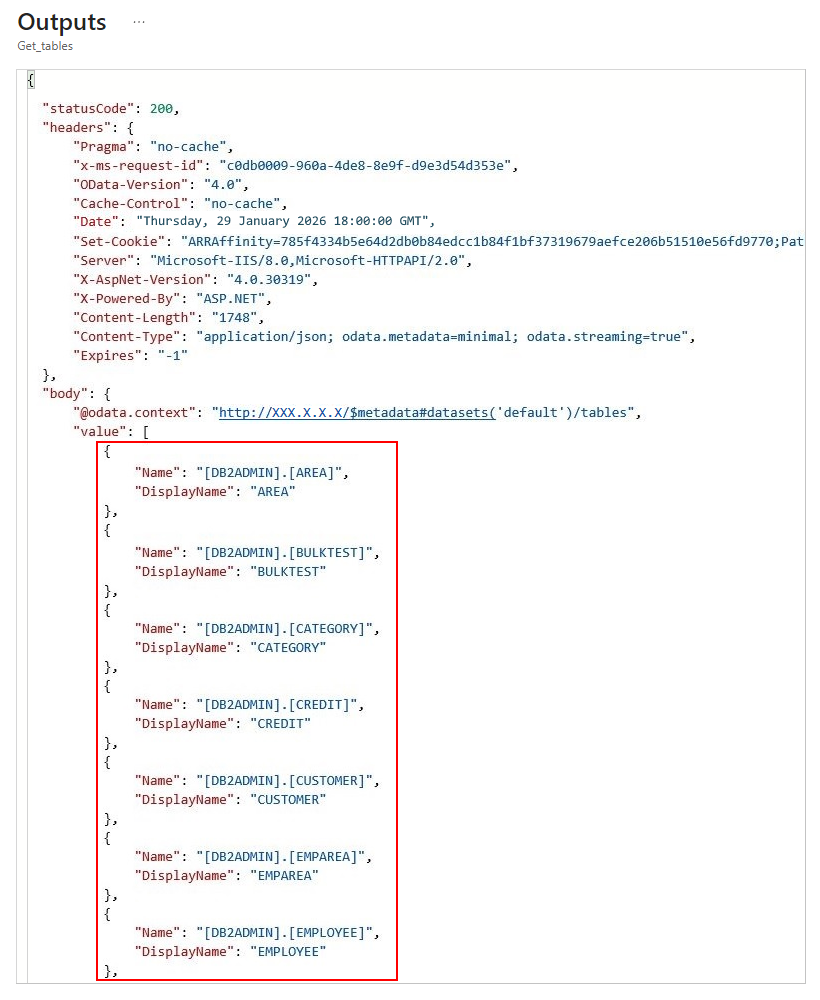

    The outputs include a list of tables.

    View output tables

Get row

To fetch one record in a DB2 database table, use the Get row action in your logic app. This action runs a DB2 SELECT WHERE statement, for example, SELECT FROM AREA WHERE AREAID = '99999'.

  1. If you've never used DB2 actions before in your logic app, review the steps in the Add DB2 action - Get tables section, but add the Get row action instead, and then return here to continue.

    After you add the Get row action, here is how your example logic app appears:

    Get row action

  2. Specify values for all the required properties (*). After you select a table, the action shows the relevant properties that are specific to records in that table.

    Property Required Description
    Table name Yes The table that has the record you want, such as "AREA" in this example
    Area ID Yes The ID for the record you want, such as "99999" in this example

    Screenshot that shows the "Get row (Preview)" action with the opened "Table name" list and the "AREA" value selected.

  3. When you're done, on the designer toolbar, choose Save.

View output row

To run your logic app manually, on the designer toolbar, choose Run. After your logic app finishes running, you can view the output from the run.

  1. On your logic app menu, select Overview.

  2. Under Summary, in the Runs history section, select the most recent run, which is the first item in the list.

  3. Under Logic app run, you can now review the status, inputs, and outputs for each step in your logic app. Expand the Get row action.

  4. To view the inputs, choose Show raw inputs.

  5. To view the outputs, choose Show raw outputs.

    The outputs include your specified row.

    View output row

Get rows

To fetch all records in a DB2 database table, use the Get rows action in your logic app. This action runs a DB2 SELECT statement, for example, SELECT * FROM AREA.

  1. If you've never used DB2 actions before in your logic app, review the steps in the Add DB2 action - Get tables section, but add the Get rows action instead, and then return here to continue.

    After you add the Get rows action, here is how your example logic app appears:

    Get rows action

  2. Open the Table name list, and then select the table you want, which is "AREA" in this example:

    Screenshot that shows the "Get row (Preview)" action with the "AREA" value selected in the "Table name" list.

  3. To specify a filter or query for results, choose Show advanced options.

  4. When you're done, on the designer toolbar, choose Save.

View output rows

To run your logic app manually, on the designer toolbar, choose Run. After your logic app finishes running, you can view the output from the run.

  1. On your logic app menu, select Overview.

  2. Under Summary, in the Runs history section, select the most recent run, which is the first item in the list.

  3. Under Logic app run, you can now review the status, inputs, and outputs for each step in your logic app. Expand the Get rows action.

  4. To view the inputs, choose Show raw inputs.

  5. To view the outputs, choose Show raw outputs.

    The outputs include all the records in your specified table.

    View output rows

Insert row

To add a single record to a DB2 database table, use the Insert row action in your logic app. This action runs a DB2 INSERT statement, for example, INSERT INTO AREA (AREAID, AREADESC, REGIONID) VALUES ('99999', 'Area 99999', 102).

  1. If you've never used DB2 actions before in your logic app, review the steps in the Add DB2 action - Get tables section, but add the Insert row action instead, and then return here to continue.

    After you add the Insert row action, here is how your example logic app appears:

    Insert row action

  2. Specify values for all the required properties (*). After you select a table, the action shows the relevant properties that are specific to records in that table.

    For this example, here are the properties:

    Property Required Description
    Table name Yes The table where to add the record, such as "AREA"
    Area ID Yes The ID for the area to add, such as "99999"
    Area description Yes The description for the area to add, such as "Area 99999"
    Region ID Yes The ID for the region to add, such as "102"

    For example:

    Screenshot that shows the Logic Apps Designer with the "Insert row (Preview)" action and example property values.

  3. When you're done, on the designer toolbar, choose Save.

View insert row outputs

To run your logic app manually, on the designer toolbar, choose Run. After your logic app finishes running, you can view the output from the run.

  1. On your logic app menu, select Overview.

  2. Under Summary, in the Runs history section, select the most recent run, which is the first item in the list.

  3. Under Logic app run, you can now review the status, inputs, and outputs for each step in your logic app. Expand the Insert row action.

  4. To view the inputs, choose Show raw inputs.

  5. To view the outputs, choose Show raw outputs.

    The outputs include the record you added to your specified table.

    View output with inserted row

Update row

To update a single record in a DB2 database table, use the Update row action in your logic app. This action runs a DB2 UPDATE statement, for example, UPDATE AREA SET AREAID = '99999', AREADESC = 'Updated 99999', REGIONID = 102).

  1. If you've never used DB2 actions before in your logic app, review the steps in the Add DB2 action - Get tables section, but add the Update row action instead, and then return here to continue.

    After you add the Update row action, here is how your example logic app appears:

    Update row action

  2. Specify values for all the required properties (*). After you select a table, the action shows the relevant properties that are specific to records in that table.

    For this example, here are the properties:

    Property Required Description
    Table name Yes The table where to update the record, such as "AREA"
    Row ID Yes The ID for the record to update, such as "99999"
    Area ID Yes The new area ID, such as "99999"
    Area description Yes The new area description, such as "Updated 99999"
    Region ID Yes The new region ID, such as "102"

    For example:

    Screenshot that shows the Logic Apps Designer with the "Update row (Preview)" action where you select a table.

  3. When you're done, on the designer toolbar, choose Save.

View update row outputs

To run your logic app manually, on the designer toolbar, choose Run. After your logic app finishes running, you can view the output from the run.

  1. On your logic app menu, select Overview.

  2. Under Summary, in the Runs history section, select the most recent run, which is the first item in the list.

  3. Under Logic app run, you can now review the status, inputs, and outputs for each step in your logic app. Expand the Update row action.

  4. To view the inputs, choose Show raw inputs.

  5. To view the outputs, choose Show raw outputs.

    The outputs include the record you updated in your specified table.

    View output with updated row

Delete row

To delete a single record from a DB2 database table, use the Delete row action in your logic app. This action runs a DB2 DELETE statement, for example, DELETE FROM AREA WHERE AREAID = '99999'.

  1. If you've never used DB2 actions before in your logic app, review the steps in the Add DB2 action - Get tables section, but add the Delete row action instead, and then return here to continue.

    After you add the Delete row action, here is how your example logic app appears:

    Delete row action

  2. Specify values for all the required properties (*). After you select a table, the action shows the relevant properties that are specific to records in that table.

    For this example, here are the properties:

    Property Required Description
    Table name Yes The table where to delete the record, such as "AREA"
    Row ID Yes The ID for the record to delete, such as "99999"

    For example:

    Screenshot that shows the Logic Apps Designer with the "Delete row (Preview)" action where you select a table to delete.

  3. When you're done, on the designer toolbar, choose Save.

View delete row outputs

To run your logic app manually, on the designer toolbar, choose Run. After your logic app finishes running, you can view the output from the run.

  1. On your logic app menu, select Overview.

  2. Under Summary, in the Runs history section, select the most recent run, which is the first item in the list.

  3. Under Logic app run, you can now review the status, inputs, and outputs for each step in your logic app. Expand the Delete row action.

  4. To view the inputs, choose Show raw inputs.

  5. To view the outputs, choose Show raw outputs.

    The outputs no longer include the record you deleted from your specified table.

    View output without deleted row

Connector reference

For more technical details about this connector, such as triggers, actions, and limits as described by the connector's Swagger file, see the connector's reference page.
