Copy Data tool in Azure Data Factory and Synapse Analytics

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

The Copy Data tool eases and optimizes the process of ingesting data into a data lake, which is usually a first step in an end-to-end data integration scenario. It saves time, especially when you use the service to ingest data from a data source for the first time. Some of the benefits of using this tool are:

  • When using the Copy Data tool, you do not need understand service definitions for linked services, datasets, pipelines, activities, and triggers.
  • The flow of Copy Data tool is intuitive for loading data into a data lake. The tool automatically creates all the necessary resources to copy data from the selected source data store to the selected destination/sink data store.
  • The Copy Data tool helps you validate the data that is being ingested at the time of authoring, which helps you avoid any potential errors at the beginning itself.
  • If you need to implement complex business logic to load data into a data lake, you can still edit the resources created by the Copy Data tool by using the per-activity authoring in the UI.

The following table provides guidance on when to use the Copy Data tool vs. per-activity authoring in the UI:

Copy Data tool Per activity (Copy activity) authoring
You want to easily build a data loading task without learning about entities (linked services, datasets, pipelines, etc.) You want to implement complex and flexible logic for loading data into lake.
You want to quickly load a large number of data artifacts into a data lake. You want to chain Copy activity with subsequent activities for cleansing or processing data.

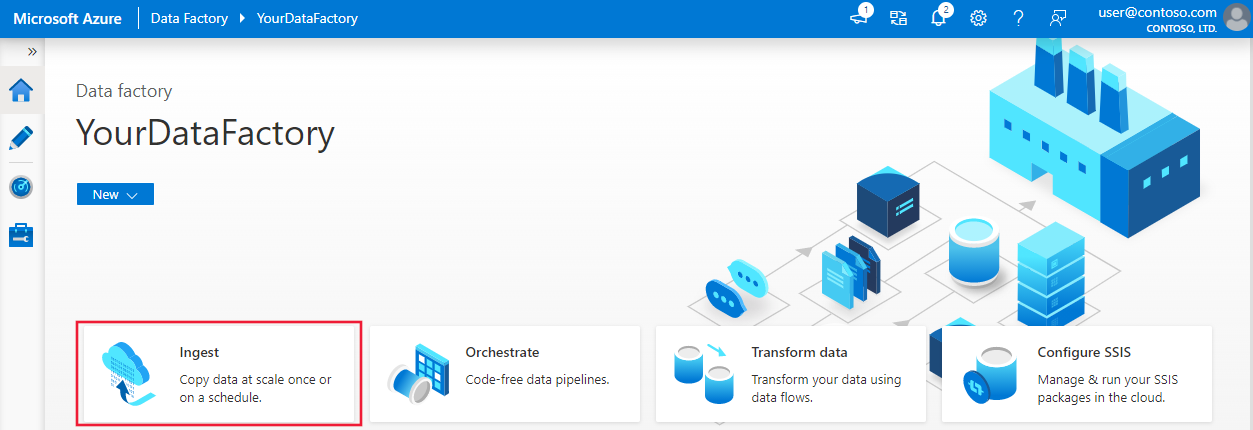

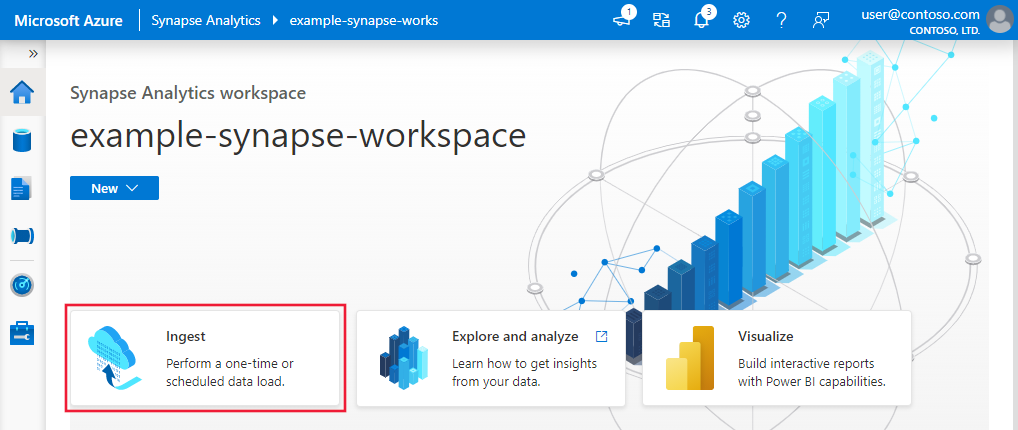

To start the Copy Data tool, click the Ingest tile on the home page of the Data Factory or Synapse Studio UI.

After you launch copy data tool, you will see two types of the tasks: one is built-in copy task and another is metadata driven copy task. The built-in copy task leads you to create a pipeline within five minutes to replicate data without learning about entities. The metadata driven copy task to ease your journey of creating parameterized pipelines and external control table in order to manage to copy large amounts of objects (for example, thousands of tables) at scale. You can see more details in metadata driven copy data.

Intuitive flow for loading data into a data lake

This tool allows you to easily move data from a wide variety of sources to destinations in minutes with an intuitive flow:

  1. Configure settings for the source.

  2. Configure settings for the destination.

  3. Configure advanced settings for the copy operation such as column mapping, performance settings, and fault tolerance settings.

  4. Specify a schedule for the data loading task.

  5. Review summary of entities to be created.

  6. Edit the pipeline to update settings for the copy activity as needed.

    The tool is designed with big data in mind from the start, with support for diverse data and object types. You can use it to move hundreds of folders, files, or tables. The tool supports automatic data preview, schema capture and automatic mapping, and data filtering as well.

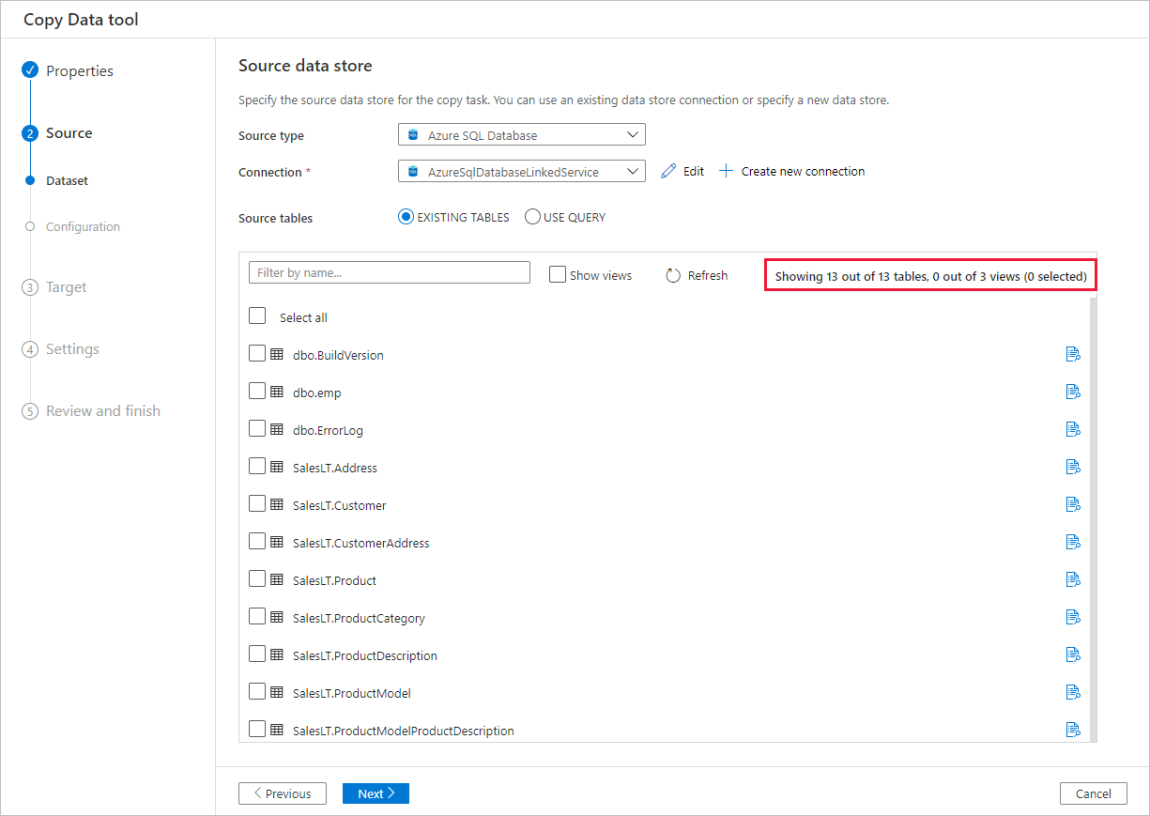

Copy Data tool

Automatic data preview

You can preview part of the data from the selected source data store, which allows you to validate the data that is being copied. In addition, if the source data is in a text file, the Copy Data tool parses the text file to automatically detect the row and column delimiters, and schema.

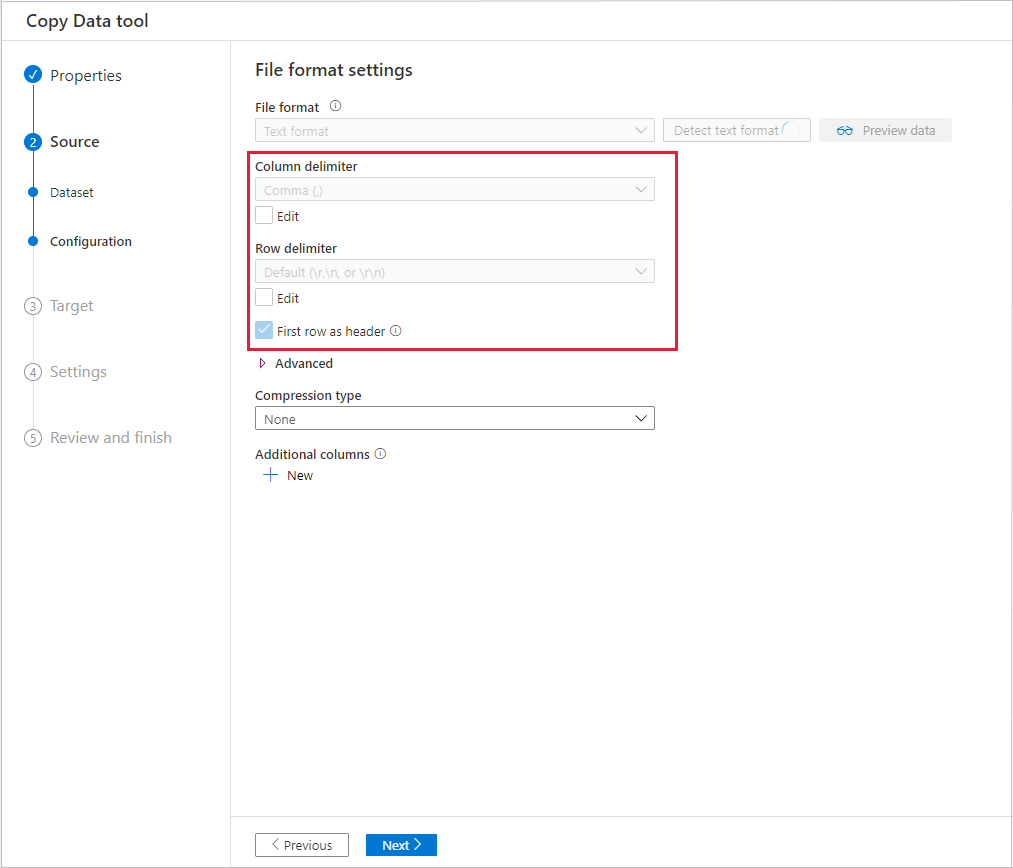

File settings

After the detection, select Preview data:

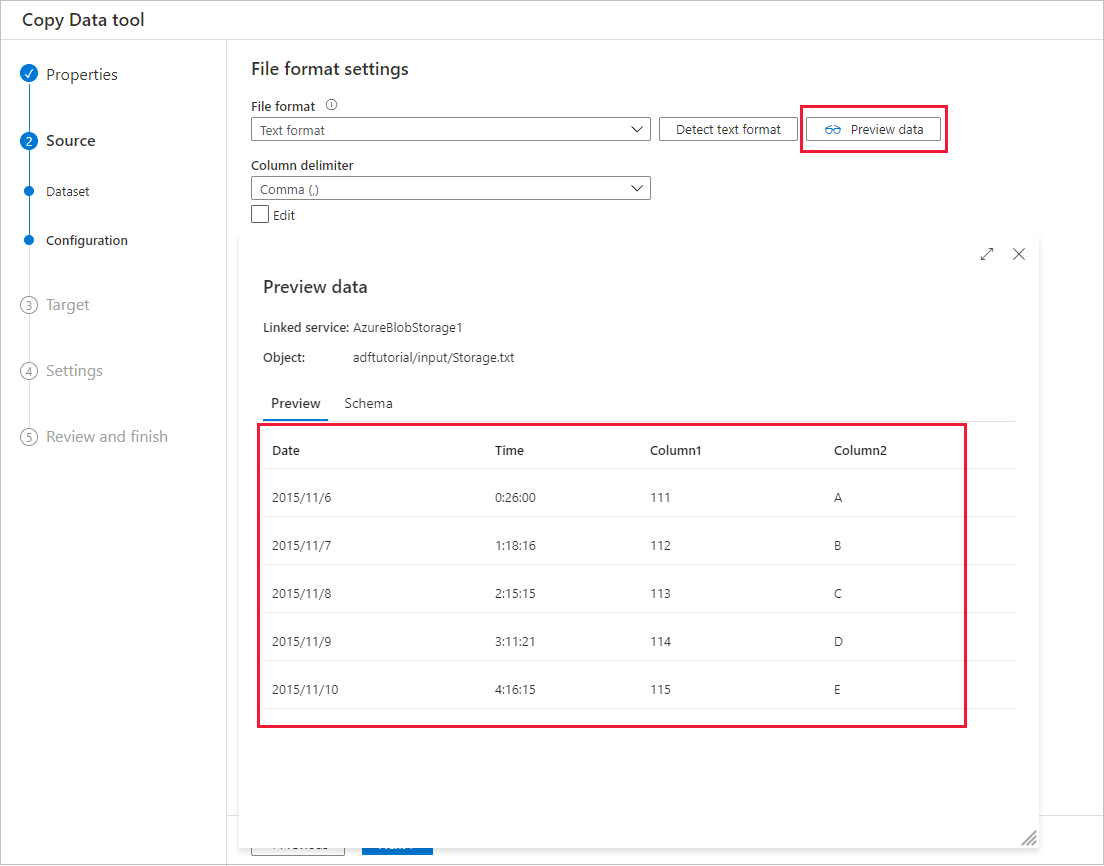

Detected file settings and preview

Schema capture and automatic mapping

The schema of data source may not be same as the schema of data destination in many cases. In this scenario, you need to map columns from the source schema to columns from the destination schema.

The Copy Data tool monitors and learns your behavior when you are mapping columns between source and destination stores. After you pick one or a few columns from source data store, and map them to the destination schema, the Copy Data tool starts to analyze the pattern for column pairs you picked from both sides. Then, it applies the same pattern to the rest of the columns. Therefore, you see all the columns have been mapped to the destination in a way you want just after several clicks. If you are not satisfied with the choice of column mapping provided by Copy Data tool, you can ignore it and continue with manually mapping the columns. Meanwhile, the Copy Data tool constantly learns and updates the pattern, and ultimately reaches the right pattern for the column mapping you want to achieve.

Note

When copying data from SQL Server or Azure SQL Database into Azure Synapse Analytics, if the table does not exist in the destination store, Copy Data tool supports creation of the table automatically by using the source schema.

Filter data

You can filter source data to select only the data that needs to be copied to the sink data store. Filtering reduces the volume of the data to be copied to the sink data store and therefore enhances the throughput of the copy operation. Copy Data tool provides a flexible way to filter data in a relational database by using the SQL query language, or files in an Azure blob folder.

Filter data in a database

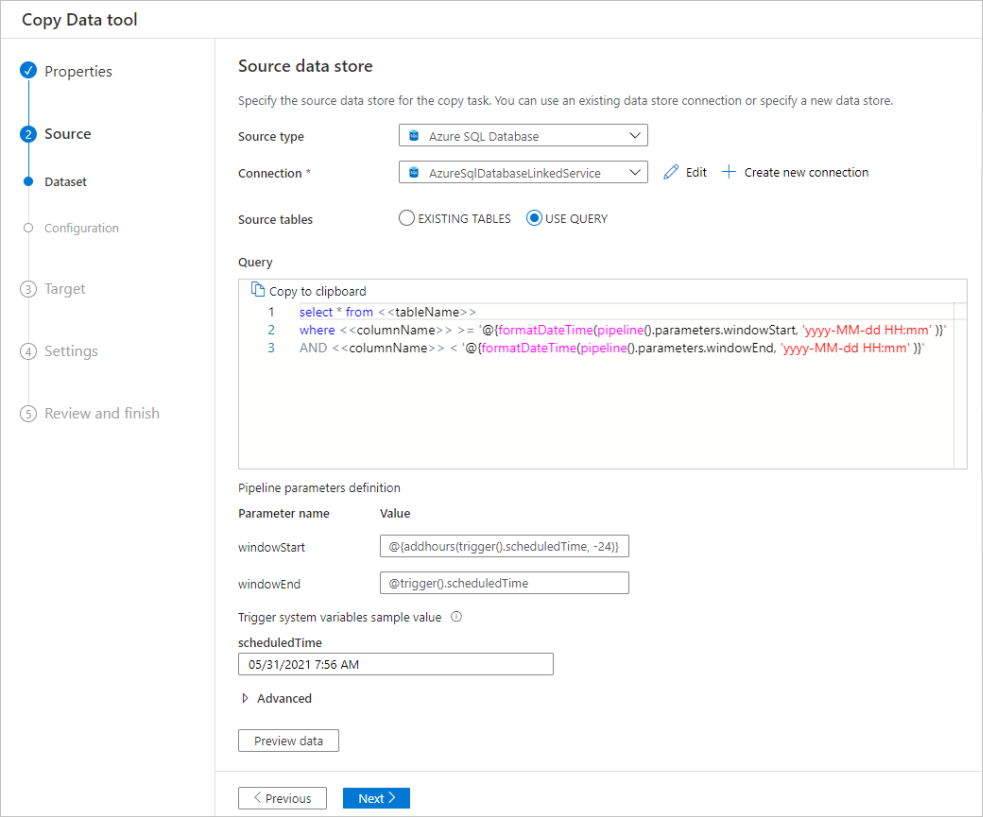

The following screenshot shows a SQL query to filter the data.

Filter data in a database

Filter data in an Azure blob folder

You can use variables in the folder path to copy data from a folder. The supported variables are: {year}, {month}, {day}, {hour}, and {minute}. For example: inputfolder/{year}/{month}/{day}.

Suppose that you have input folders in the following format:

2016/03/01/01
2016/03/01/02
2016/03/01/03
...

Click the Browse button for File or folder, browse to one of these folders (for example, 2016->03->01->02), and click Choose. You should see 2016/03/01/02 in the text box.

Then, replace 2016 with {year}, 03 with {month}, 01 with {day}, and 02 with {hour}, and press the Tab key. When you select Incremental load: time-partitioned folder/file names in the File loading behavior section and you select Schedule or Tumbling window on the Properties page, you should see drop-down lists to select the format for these four variables:

Filter file or folder

The Copy Data tool generates parameters with expressions, functions, and system variables that can be used to represent {year}, {month}, {day}, {hour}, and {minute} when creating pipeline.

Scheduling options

You can run the copy operation once or on a schedule (hourly, daily, and so on). These options can be used for the connectors across different environments, including on-premises, cloud, and local desktop.

A one-time copy operation enables data movement from a source to a destination only once. It applies to data of any size and any supported format. The scheduled copy allows you to copy data on a recurrence that you specify. You can use rich settings (like retry, timeout, and alerts) to configure the scheduled copy.

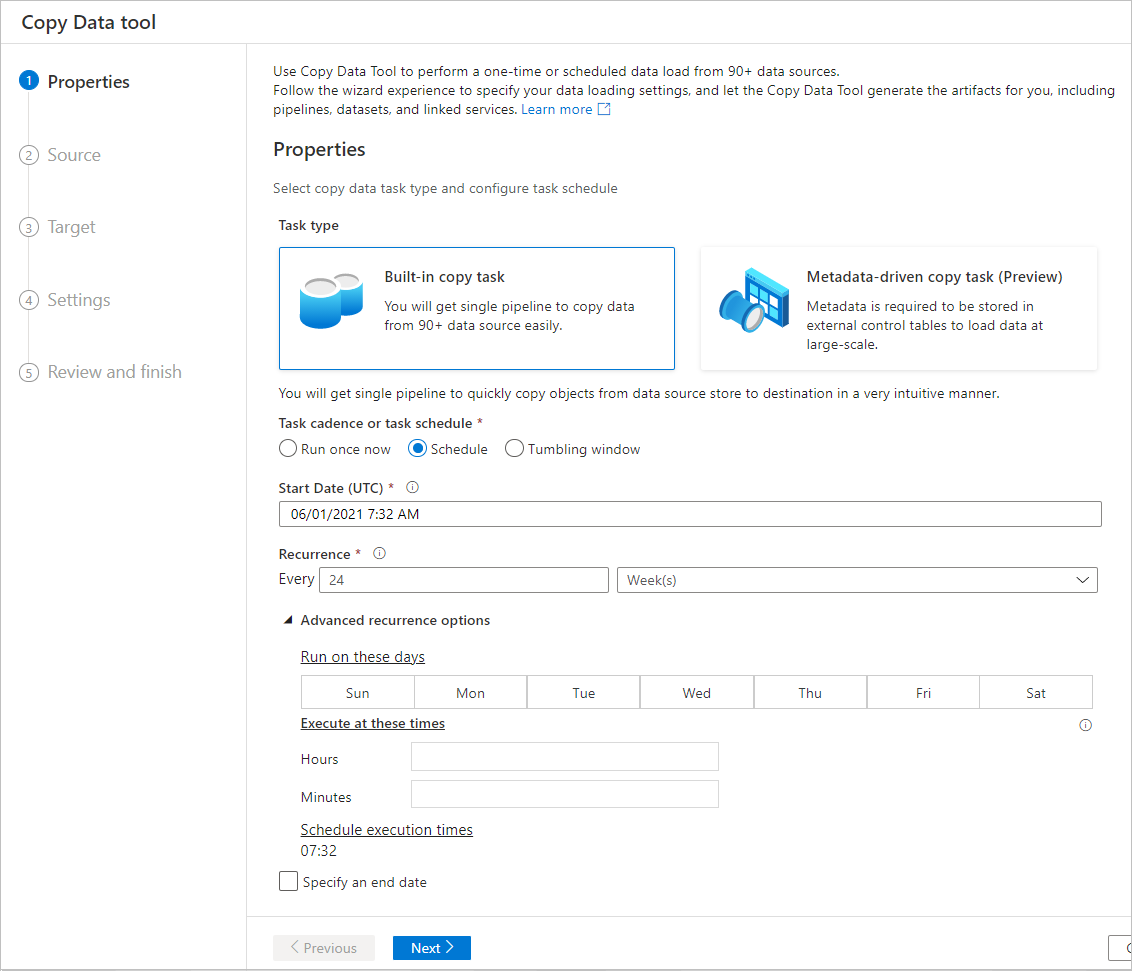

Scheduling options

Try these tutorials that use the Copy Data tool:
