JSON format in Azure Data Factory and Azure Synapse Analytics

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

Follow this article when you want to parse the JSON files or write the data into JSON format.

JSON format is supported for the following connectors:

Dataset properties

For a full list of sections and properties available for defining datasets, see the Datasets article. This section provides a list of properties supported by the JSON dataset.

Property Description Required
type The type property of the dataset must be set to Json. Yes
location Location settings of the file(s). Each file-based connector has its own location type and supported properties under location. See details in connector article -> Dataset properties section. Yes
encodingName The encoding type used to read/write test files.
Allowed values are as follows: "UTF-8","UTF-8 without BOM", "UTF-16", "UTF-16BE", "UTF-32", "UTF-32BE", "US-ASCII", "UTF-7", "BIG5", "EUC-JP", "EUC-KR", "GB2312", "GB18030", "JOHAB", "SHIFT-JIS", "CP875", "CP866", "IBM00858", "IBM037", "IBM273", "IBM437", "IBM500", "IBM737", "IBM775", "IBM850", "IBM852", "IBM855", "IBM857", "IBM860", "IBM861", "IBM863", "IBM864", "IBM865", "IBM869", "IBM870", "IBM01140", "IBM01141", "IBM01142", "IBM01143", "IBM01144", "IBM01145", "IBM01146", "IBM01147", "IBM01148", "IBM01149", "ISO-2022-JP", "ISO-2022-KR", "ISO-8859-1", "ISO-8859-2", "ISO-8859-3", "ISO-8859-4", "ISO-8859-5", "ISO-8859-6", "ISO-8859-7", "ISO-8859-8", "ISO-8859-9", "ISO-8859-13", "ISO-8859-15", "WINDOWS-874", "WINDOWS-1250", "WINDOWS-1251", "WINDOWS-1252", "WINDOWS-1253", "WINDOWS-1254", "WINDOWS-1255", "WINDOWS-1256", "WINDOWS-1257", "WINDOWS-1258".
No
compression Group of properties to configure file compression. Configure this section when you want to do compression/decompression during activity execution. No
type
(under compression)
The compression codec used to read/write JSON files.
Allowed values are bzip2, gzip, deflate, ZipDeflate, TarGzip, Tar, snappy, or lz4. Default is not compressed.
Note currently Copy activity doesn't support "snappy" & "lz4", and mapping data flow doesn't support "ZipDeflate"", "TarGzip" and "Tar".
Note when using copy activity to decompress ZipDeflate/TarGzip/Tar file(s) and write to file-based sink data store, by default files are extracted to the folder:<path specified in dataset>/<folder named as source compressed file>/, use preserveZipFileNameAsFolder/preserveCompressionFileNameAsFolder on copy activity source to control whether to preserve the name of the compressed file(s) as folder structure.
No.
level
(under compression)
The compression ratio.
Allowed values are Optimal or Fastest.
- Fastest: The compression operation should complete as quickly as possible, even if the resulting file is not optimally compressed.
- Optimal: The compression operation should be optimally compressed, even if the operation takes a longer time to complete. For more information, see Compression Level topic.
No

Below is an example of JSON dataset on Azure Blob Storage:

{
    "name": "JSONDataset",
    "properties": {
        "type": "Json",
        "linkedServiceName": {
            "referenceName": "<Azure Blob Storage linked service name>",
            "type": "LinkedServiceReference"
        },
        "schema": [ < physical schema, optional, retrievable during authoring > ],
        "typeProperties": {
            "location": {
                "type": "AzureBlobStorageLocation",
                "container": "containername",
                "folderPath": "folder/subfolder",
            },
            "compression": {
                "type": "gzip"
            }
        }
    }
}

Copy activity properties

For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by the JSON source and sink.

Learn about how to extract data from JSON files and map to sink data store/format or vice versa from schema mapping.

JSON as source

The following properties are supported in the copy activity *source* section.

Property Description Required
type The type property of the copy activity source must be set to JSONSource. Yes
formatSettings A group of properties. Refer to JSON read settings table below. No
storeSettings A group of properties on how to read data from a data store. Each file-based connector has its own supported read settings under storeSettings. See details in connector article -> Copy activity properties section. No

Supported JSON read settings under formatSettings:

Property Description Required
type The type of formatSettings must be set to JsonReadSettings. Yes
compressionProperties A group of properties on how to decompress data for a given compression codec. No
preserveZipFileNameAsFolder
(under compressionProperties->type as ZipDeflateReadSettings)
Applies when input dataset is configured with ZipDeflate compression. Indicates whether to preserve the source zip file name as folder structure during copy.
- When set to true (default), the service writes unzipped files to <path specified in dataset>/<folder named as source zip file>/.
- When set to false, the service writes unzipped files directly to <path specified in dataset>. Make sure you don't have duplicated file names in different source zip files to avoid racing or unexpected behavior.
No
preserveCompressionFileNameAsFolder
(under compressionProperties->type as TarGZipReadSettings or TarReadSettings)
Applies when input dataset is configured with TarGzip/Tar compression. Indicates whether to preserve the source compressed file name as folder structure during copy.
- When set to true (default), the service writes decompressed files to <path specified in dataset>/<folder named as source compressed file>/.
- When set to false, the service writes decompressed files directly to <path specified in dataset>. Make sure you don't have duplicated file names in different source files to avoid racing or unexpected behavior.
No

JSON as sink

The following properties are supported in the copy activity *sink* section.

Property Description Required
type The type property of the copy activity source must be set to JSONSink. Yes
formatSettings A group of properties. Refer to JSON write settings table below. No
storeSettings A group of properties on how to write data to a data store. Each file-based connector has its own supported write settings under storeSettings. See details in connector article -> Copy activity properties section. No

Supported JSON write settings under formatSettings:

Property Description Required
type The type of formatSettings must be set to JsonWriteSettings. Yes
filePattern Indicate the pattern of data stored in each JSON file. Allowed values are: setOfObjects (JSON Lines) and arrayOfObjects. The default value is setOfObjects. See JSON file patterns section for details about these patterns. No

JSON file patterns

When copying data from JSON files, copy activity can automatically detect and parse the following patterns of JSON files. When writing data to JSON files, you can configure the file pattern on copy activity sink.

  • Type I: setOfObjects

    Each file contains single object, JSON lines, or concatenated objects.

    • single object JSON example

      {
          "time": "2015-04-29T07:12:20.9100000Z",
          "callingimsi": "466920403025604",
          "callingnum1": "678948008",
          "callingnum2": "567834760",
          "switch1": "China",
          "switch2": "Germany"
      }

    • JSON Lines (default for sink)

      {"time":"2015-04-29T07:12:20.9100000Z","callingimsi":"466920403025604","callingnum1":"678948008","callingnum2":"567834760","switch1":"China","switch2":"Germany"}
      {"time":"2015-04-29T07:13:21.0220000Z","callingimsi":"466922202613463","callingnum1":"123436380","callingnum2":"789037573","switch1":"US","switch2":"UK"}
      {"time":"2015-04-29T07:13:21.4370000Z","callingimsi":"466923101048691","callingnum1":"678901578","callingnum2":"345626404","switch1":"Germany","switch2":"UK"}

    • concatenated JSON example

      {
          "time": "2015-04-29T07:12:20.9100000Z",
          "callingimsi": "466920403025604",
          "callingnum1": "678948008",
          "callingnum2": "567834760",
          "switch1": "China",
          "switch2": "Germany"
      }
      {
          "time": "2015-04-29T07:13:21.0220000Z",
          "callingimsi": "466922202613463",
          "callingnum1": "123436380",
          "callingnum2": "789037573",
          "switch1": "US",
          "switch2": "UK"
      }
      {
          "time": "2015-04-29T07:13:21.4370000Z",
          "callingimsi": "466923101048691",
          "callingnum1": "678901578",
          "callingnum2": "345626404",
          "switch1": "Germany",
          "switch2": "UK"
      }

  • Type II: arrayOfObjects

    Each file contains an array of objects.

    [
        {
            "time": "2015-04-29T07:12:20.9100000Z",
            "callingimsi": "466920403025604",
            "callingnum1": "678948008",
            "callingnum2": "567834760",
            "switch1": "China",
            "switch2": "Germany"
        },
        {
            "time": "2015-04-29T07:13:21.0220000Z",
            "callingimsi": "466922202613463",
            "callingnum1": "123436380",
            "callingnum2": "789037573",
            "switch1": "US",
            "switch2": "UK"
        },
        {
            "time": "2015-04-29T07:13:21.4370000Z",
            "callingimsi": "466923101048691",
            "callingnum1": "678901578",
            "callingnum2": "345626404",
            "switch1": "Germany",
            "switch2": "UK"
        }
    ]


Mapping data flow properties

In mapping data flows, you can read and write to JSON format in the following data stores: Azure Blob Storage, Azure Data Lake Storage Gen1, Azure Data Lake Storage Gen2 and SFTP, and you can read JSON format in Amazon S3.

Source properties

The below table lists the properties supported by a json source. You can edit these properties in the Source options tab.

Name Description Required Allowed values Data flow script property
Wild card paths All files matching the wildcard path will be processed. Overrides the folder and file path set in the dataset. no String[] wildcardPaths
Partition root path For file data that is partitioned, you can enter a partition root path in order to read partitioned folders as columns no String partitionRootPath
List of files Whether your source is pointing to a text file that lists files to process no true or false fileList
Column to store file name Create a new column with the source file name and path no String rowUrlColumn
After completion Delete or move the files after processing. File path starts from the container root no Delete: true or false
Move: ['<from>', '<to>']
purgeFiles
moveFiles
Filter by last modified Choose to filter files based upon when they were last altered no Timestamp modifiedAfter
modifiedBefore
Single document Mapping data flows read one JSON document from each file no true or false singleDocument
Unquoted column names If Unquoted column names is selected, mapping data flows reads JSON columns that aren't surrounded by quotes. no true or false unquotedColumnNames
Has comments Select Has comments if the JSON data has C or C++ style commenting no true or false asComments
Single quoted Reads JSON columns that aren't surrounded by quotes no true or false singleQuoted
Backslash escaped Select Backslash escaped if backslashes are used to escape characters in the JSON data no true or false backslashEscape
Allow no files found If true, an error is not thrown if no files are found no true or false ignoreNoFilesFound

Inline dataset

Mapping data flows supports "inline datasets" as an option for defining your source and sink. An inline JSON dataset is defined directly inside your source and sink transformations and is not shared outside of the defined dataflow. It is useful for parameterizing dataset properties directly inside your data flow and can benefit from improved performance over shared ADF datasets.

When you are reading large numbers of source folders and files, you can improve the performance of data flow file discovery by setting the option "User projected schema" inside the Projection | Schema options dialog. This option turns off ADF's default schema auto-discovery and will greatly improve the performance of file discovery. Before setting this option, make sure to import the JSON projection so that ADF has an existing schema for projection. This option does not work with schema drift.

Source format options

Using a JSON dataset as a source in your data flow allows you to set five additional settings. These settings can be found under the JSON settings accordion in the Source Options tab. For Document Form setting, you can select one of Single document, Document per line and Array of documents types.

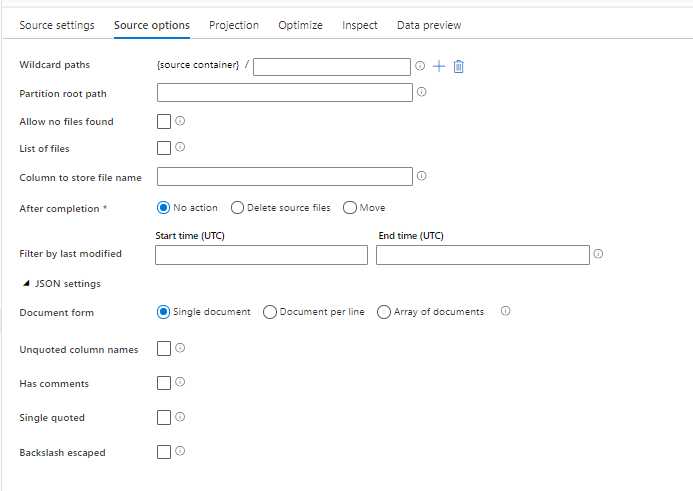

JSON Settings

Default

By default, JSON data is read in the following format.

{ "json": "record 1" }
{ "json": "record 2" }
{ "json": "record 3" }

Single document

If Single document is selected, mapping data flows read one JSON document from each file.

File1.json
{
    "json": "record 1"
}
File2.json
{
    "json": "record 2"
}
File3.json
{
    "json": "record 3"
}

If Document per line is selected, mapping data flows read one JSON document from each line in a file.

File1.json
{"json": "record 1"}

File2.json
 {"time":"2015-04-29T07:12:20.9100000Z","callingimsi":"466920403025604","callingnum1":"678948008","callingnum2":"567834760","switch1":"China","switch2":"Germany"}
 {"time":"2015-04-29T07:13:21.0220000Z","callingimsi":"466922202613463","callingnum1":"123436380","callingnum2":"789037573","switch1":"US","switch2":"UK"}

File3.json
 {"time":"2015-04-29T07:12:20.9100000Z","callingimsi":"466920403025604","callingnum1":"678948008","callingnum2":"567834760","switch1":"China","switch2":"Germany"}
 {"time":"2015-04-29T07:13:21.0220000Z","callingimsi":"466922202613463","callingnum1":"123436380","callingnum2":"789037573","switch1":"US","switch2":"UK"}
 {"time":"2015-04-29T07:13:21.4370000Z","callingimsi":"466923101048691","callingnum1":"678901578","callingnum2":"345626404","switch1":"Germany","switch2":"UK"}

If Array of documents is selected, mapping data flows read one array of document from a file.

File.json
[
        {
            "time": "2015-04-29T07:12:20.9100000Z",
            "callingimsi": "466920403025604",
            "callingnum1": "678948008",
            "callingnum2": "567834760",
            "switch1": "China",
            "switch2": "Germany"
        },
        {
            "time": "2015-04-29T07:13:21.0220000Z",
            "callingimsi": "466922202613463",
            "callingnum1": "123436380",
            "callingnum2": "789037573",
            "switch1": "US",
            "switch2": "UK"
        },
        {
            "time": "2015-04-29T07:13:21.4370000Z",
            "callingimsi": "466923101048691",
            "callingnum1": "678901578",
            "callingnum2": "345626404",
            "switch1": "Germany",
            "switch2": "UK"
        }
    ]

Note

If data flows throw an error stating "corrupt_record" when previewing your JSON data, it is likely that your data contains a single document in your JSON file. Setting "single document" should clear that error.

Unquoted column names

If Unquoted column names is selected, mapping data flows reads JSON columns that aren't surrounded by quotes.

{ json: "record 1" }
{ json: "record 2" }
{ json: "record 3" }

Has comments

Select Has comments if the JSON data has C or C++ style commenting.

{ "json": /** comment **/ "record 1" }
{ "json": "record 2" }
{ /** comment **/ "json": "record 3" }

Single quoted

Select Single quoted if the JSON fields and values use single quotes instead of double quotes.

{ 'json': 'record 1' }
{ 'json': 'record 2' }
{ 'json': 'record 3' }

Backslash escaped

Select Backslash escaped if backslashes are used to escape characters in the JSON data.

{ "json": "record 1" }
{ "json": "\} \" \' \\ \n \\n record 2" }
{ "json": "record 3" }

Sink Properties

The below table lists the properties supported by a json sink. You can edit these properties in the Settings tab.

Name Description Required Allowed values Data flow script property
Clear the folder If the destination folder is cleared prior to write no true or false truncate
File name option The naming format of the data written. By default, one file per partition in format part-#####-tid-<guid> no Pattern: String
Per partition: String[]
As data in column: String
Output to single file: ['<fileName>']
filePattern
partitionFileNames
rowUrlColumn
partitionFileNames

Creating JSON structures in a derived column

You can add a complex column to your data flow via the derived column expression builder. In the derived column transformation, add a new column and open the expression builder by clicking on the blue box. To make a column complex, you can enter the JSON structure manually or use the UX to add subcolumns interactively.

Using the expression builder UX

In the output schema side pane, hover over a column and click the plus icon. Select Add subcolumn to make the column a complex type.

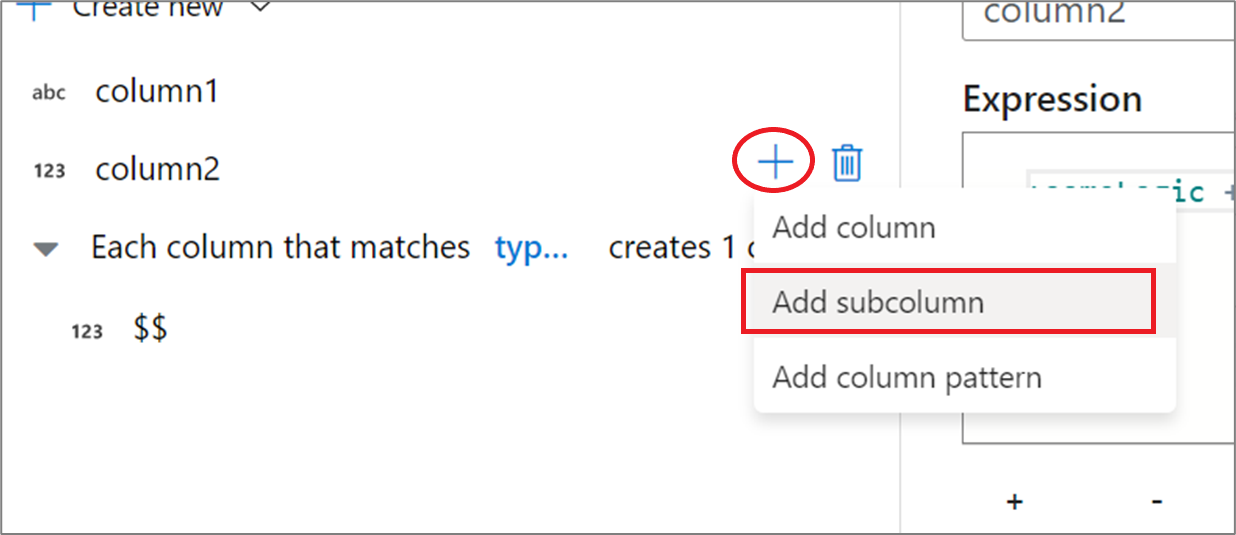

Add subcolumn

You can add additional columns and subcolumns in the same way. For each non-complex field, an expression can be added in the expression editor to the right.

Add complex column

Entering the JSON structure manually

To manually add a JSON structure, add a new column and enter the expression in the editor. The expression follows the following general format:

@(
    field1=0,
    field2=@(
        field1=0
    )
)

If this expression were entered for a column named "complexColumn", then it would be written to the sink as the following JSON:

{
    "complexColumn": {
        "field1": 0,
        "field2": {
            "field1": 0
        }
    }
}

Sample manual script for complete hierarchical definition

@(
    title=Title,
    firstName=FirstName,
    middleName=MiddleName,
    lastName=LastName,
    suffix=Suffix,
    contactDetails=@(
        email=EmailAddress,
        phone=Phone
    ),
    address=@(
        line1=AddressLine1,
        line2=AddressLine2,
        city=City,
        state=StateProvince,
        country=CountryRegion,
        postCode=PostalCode
    ),
    ids=[
        toString(CustomerID), toString(AddressID), rowguid
    ]
)

Here are some common connectors and formats related to the JSON format:
