What are catalogs in Azure Databricks?
A catalog is the primary unit of data organization in the Azure Databricks Unity Catalog data governance model. This article gives an overview of catalogs in Unity Catalog and how best to use them.

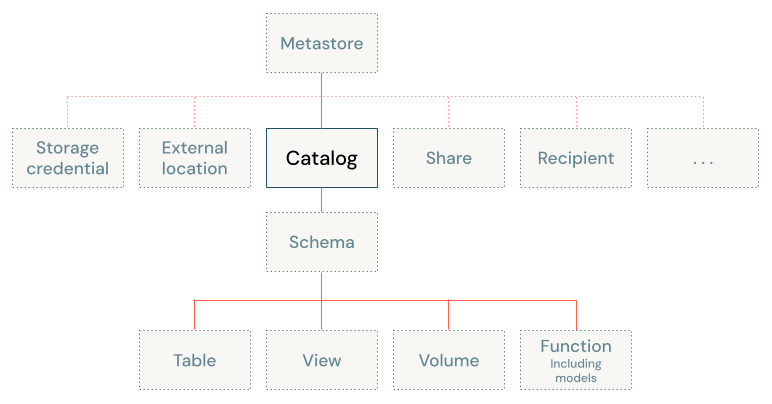

Catalogs are the first layer in Unity Catalog’s three-level namespace (catalog.schema.table-etc). They contain schemas, which in turn can contain tables, views, volumes, models, and functions. Catalogs are registered in a Unity Catalog metastore in your Azure Databricks account.
How should I organize my data into catalogs?
When you design your data governance model, you should give careful thought to the catalogs that you create. As the highest level in your organization’s data governance model, each catalog should represent a logical unit of data isolation and a logical category of data access, allowing an efficient hierarchy of grants to flow down to schemas and the data objects that they contain. Catalogs therefore often mirror organizational units or software development lifecycle scopes. You might choose, for example, to have a catalog for production data and a catalog for development data, or a catalog for non-customer data and one for sensitive customer data.
Data isolation using catalogs
Each catalog typically has its own managed storage location to store managed tables and volumes, providing physical data isolation at the catalog level. You can also choose to store data at the metastore level, providing a default storage location for catalogs that don’t have a managed storage location of their own. You can add storage at the schema level for more granular data isolation.
Because your Azure Databricks account has one metastore per region, catalogs are inherently isolated by region.
For more information, see What are database objects in Azure Databricks? and Data is physically separated in storage.
Catalog-level privileges
Because grants on any Unity Catalog object are inherited by children of that object, owning a catalog or having broad privileges on a catalog is very powerful. For example, catalog owners have all privileges on the catalog and the objects in the catalog, and they can grant access to any object in the catalog. Users with SELECT on a catalog can read any table in the catalog. Users with CREATE TABLE on a catalog can create a table in any schema in the catalog.
To enforce the principle of least privilege, where users have the minimum access they need to perform their required tasks, typically you grant access only to the specific objects or level in the hierarchy that the user requires. But catalog-level privileges let the catalog owner manage what lower-level object owners can grant. Even if a user is granted access to a low-level data object like a table, for example, that user cannot access that table unless they also have the USE CATALOG privilege on the catalog that contains the table.
For more information, see Manage Unity Catalog object ownership, General Unity Catalog privilege types, and Data governance and data isolation building blocks.
Catalog types
When you create a catalog, you’re given two options:
- Standard catalog: the typical catalog, used as the primary unit to organize your data objects in Unity Catalog. This is the catalog type that is discussed in this article.
- Foreign catalog: a Unity Catalog object that is used only in Lakehouse Federation scenarios. A foreign catalog mirrors a database in an external data system, enabling you to perform read-only queries on that data system in your Azure Databricks workspace. See What is Lakehouse Federation?.
In addition to those two catalog types, Azure Databricks provisions the following catalogs automatically when you create a new workspace:
hive_metastorecatalog: This is the repository of all data managed by the legacy Hive metastore in Azure Databricks workspaces. When an existing non-Unity Catalog workspace is converted to Unity Catalog, all objects that are registered in the legacy Hive metastore are surfaced in Unity Catalog in thehive_metastorecatalog. For information about working with the Hive metastore alongside Unity Catalog, see Work with Unity Catalog and the legacy Hive metastore. The Hive metastore is deprecated, and all Azure Databricks workspaces should migrate to Unity Catalog.- Workspace catalog: In all new workspaces, this catalog is created for you by default. Typically, it shares its name with your workspace name. If this catalog exists, all users in your workspace (and only your workspace) have access to it by default, which makes it a convenient place for users to try out the process of creating and accessing data objects in Unity Catalog. See Step 1: Confirm that your workspace is enabled for Unity Catalog.
Default catalog
A default catalog is configured for each workspace that is enabled for Unity Catalog. The default catalog lets you perform data operations without specifying a catalog. If you omit the top-level catalog name when you perform data operations, the default catalog is assumed.
If your workspace was enabled for Unity Catalog automatically, the pre-provisioned workspace catalog is specified as the default catalog. A workspace admin can change the default catalog as needed.
For details, see Manage the default catalog.
Workspace-catalog binding
If you use workspaces to isolate user data access, you might want to use workspace-catalog bindings. Workspace-catalog bindings enable you to limit catalog access by workspace boundaries. For example, you can ensure that workspace admins and users can only access production data in prod_catalog from a production workspace environment, prod_workspace. Catalogs are shared with all workspaces attached to the current metastore unless you specify a binding. See Organize your data and Limit catalog access to specific workspaces.
If your workspace was enabled for Unity Catalog automatically, the pre-provisioned workspace catalog is bound to your workspace by default.
