Configure the Microsoft Security DevOps GitHub action

Microsoft Security DevOps is a command-line application that integrates static analysis tools into the development lifecycle. Security DevOps installs, configures, and runs the latest versions of static analysis tools such as SDL, security, and compliance tools. Security DevOps is data-driven with portable configurations that enable deterministic execution across multiple environments.

Microsoft Security DevOps uses the following open-source tools:

Name	Language	License
AntiMalware	Anti-malware protection in Windows from Microsoft Defender for Endpoint that scans for malware and breaks the build if malware is found. This tool scans by default on windows-latest agent.	Not Open Source
Bandit	Python	Apache License 2.0
BinSkim	Binary--Windows, ELF	MIT License
Checkov	Terraform, Terraform plan, CloudFormation, Amazon Web Services (AWS) SAM, Kubernetes, Helm charts, Kustomize, Dockerfile, Serverless, Bicep, OpenAPI, ARM	Apache License 2.0
ESlint	JavaScript	MIT License
Template Analyzer	ARM Template, Bicep	MIT License
Terrascan	Terraform (HCL2), Kubernetes (JSON/YAML), Helm v3, Kustomize, Dockerfiles, CloudFormation	Apache License 2.0
Trivy	container images, Infrastructure as Code (IaC)	Apache License 2.0

Prerequisites

Before you configure the Microsoft Security DevOps GitHub action, make sure you have the following prerequisites:

An Azure subscription. If you don't have an Azure subscription, create a free Azure account before you begin.
Connect your GitHub repositories.
Open the Microsoft Security DevOps GitHub action in a new window.
Ensure that Workflow permissions are set to Read and Write on the GitHub repository. This step includes setting the ID-token: write permission in the GitHub workflow for federation with Microsoft Defender for Cloud.

Set up the GitHub action workflow

To set up the GitHub action:

Sign in to GitHub.
Select a repository you want to configure the GitHub action to.

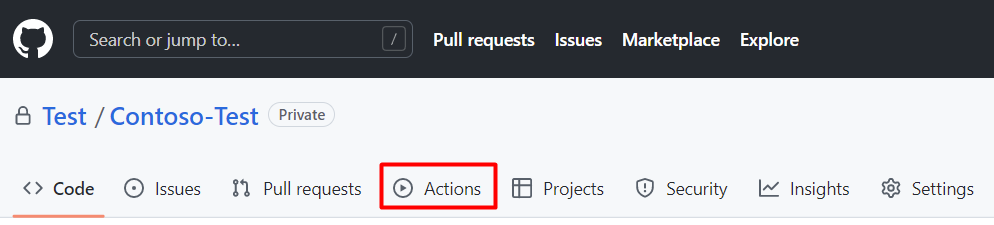

Select Actions.
Select New workflow.

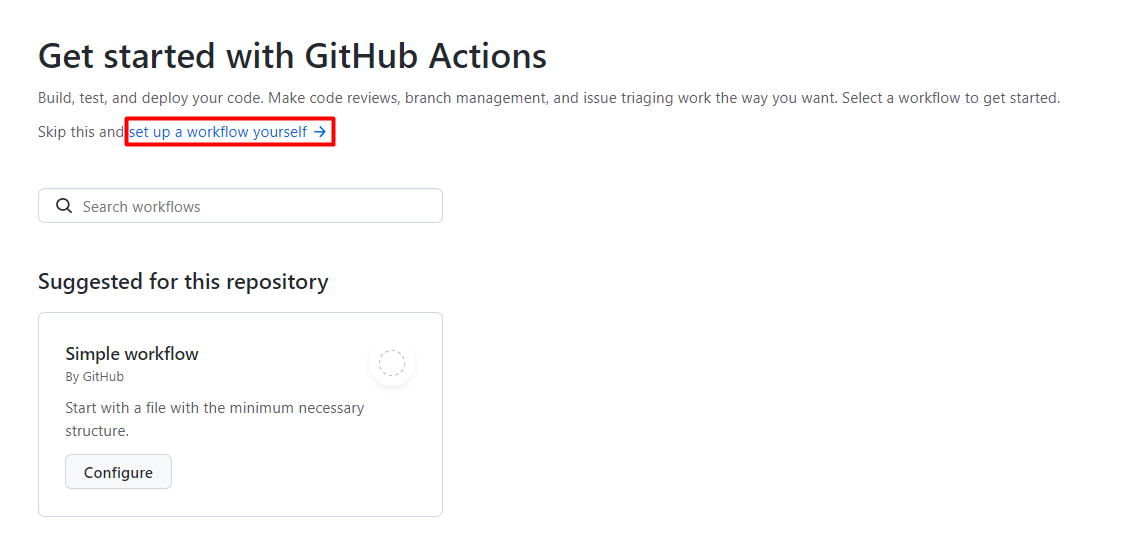

On Get started with GitHub Actions, select set up a workflow yourself.
Enter a name for your workflow file. For example, msdevopssec.yml.

Copy and paste the following sample action workflow into the Edit new file tab.

name: MSDO
on:
  push:
    branches:
      - main

jobs:
  sample:
    name: Microsoft Security DevOps

    # Windows and Linux agents are supported
    runs-on: windows-latest

    permissions:
      contents: read
      id-token: write
      actions: read
      # Write access for security-events is only required for customers looking for MSDO results to appear in the codeQL security alerts tab on GitHub (Requires GHAS)
      security-events: write

    steps:

      # Checkout your code repository to scan
    - uses: actions/checkout@v3

      # Run analyzers
    - name: Run Microsoft Security DevOps
      uses: microsoft/security-devops-action@latest
      id: msdo
    # with:
      # config: string. Optional. A file path to an MSDO configuration file ('*.gdnconfig').
      # policy: 'GitHub' | 'microsoft' | 'none'. Optional. The name of a well-known Microsoft policy. If no configuration file or list of tools is provided, the policy may instruct MSDO which tools to run. Default: GitHub.
      # categories: string. Optional. A comma-separated list of analyzer categories to run. Values: 'code', 'artifacts', 'IaC', 'containers'. Example: 'IaC, containers'. Defaults to all.
      # languages: string. Optional. A comma-separated list of languages to analyze. Example: 'javascript,typescript'. Defaults to all.
      # tools: string. Optional. A comma-separated list of analyzer tools to run. Values: 'bandit', 'binskim', 'checkov', 'eslint', 'templateanalyzer', 'terrascan', 'trivy'.

      # Upload alerts to the Security tab - required for MSDO results to appear in the codeQL security alerts tab on GitHub (Requires GHAS)
    # - name: Upload alerts to Security tab
    #  uses: github/codeql-action/upload-sarif@v3
    #  with:
    #    sarif_file: ${{ steps.msdo.outputs.sarifFile }}

      # Upload alerts file as a workflow artifact - required for MSDO results to appear in the codeQL security alerts tab on GitHub (Requires GHAS)
    # - name: Upload alerts file as a workflow artifact
    #  uses: actions/upload-artifact@v3
    #  with:
    #    name: alerts
    #    path: ${{ steps.msdo.outputs.sarifFile }}

Note

For more tool configuration options and instructions, see the Microsoft Security DevOps wiki.

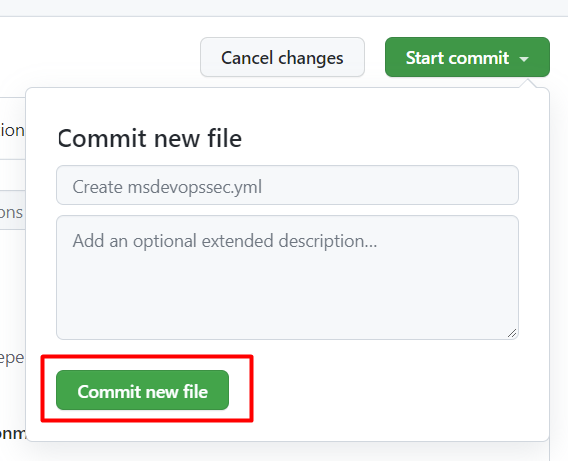

Select Start commit.
Select Commit new file. The process can take up to one minute to complete.

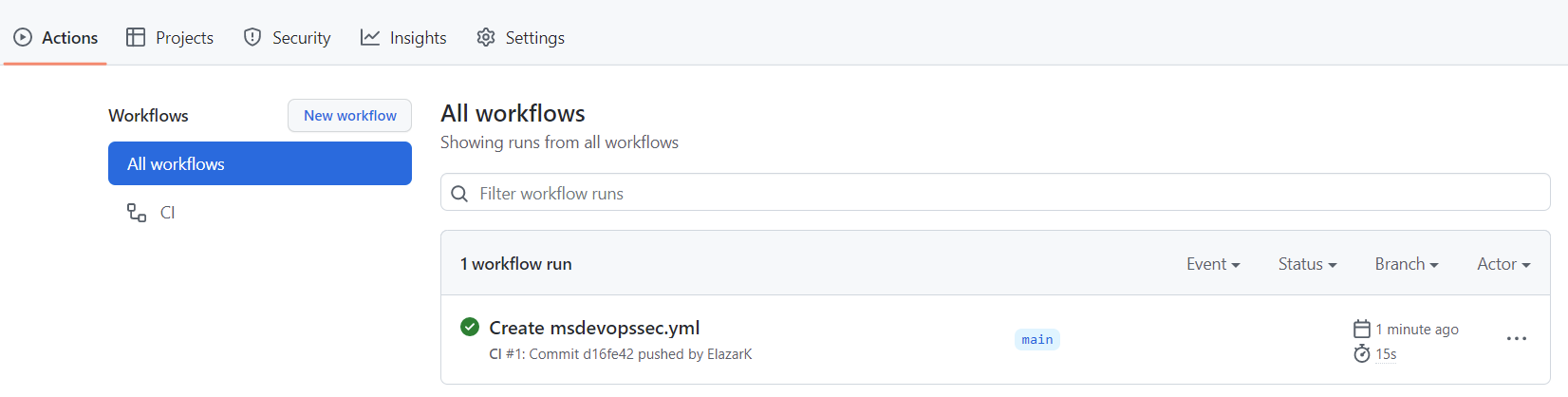

Select Actions and verify the new action is running.

View scan results

To view your scan results:

Sign in to Azure.
Go to Defender for Cloud > DevOps Security.
From the DevOps security pane, you can see the same Microsoft Security DevOps (MSDO) security results. Developers see these results in their CI logs for the associated repository in minutes. Customers with GitHub Advanced Security also see the findings ingested from these tools.

Next step

Connect your GitHub Organizations to Defender for Cloud
