Move data to Azure Blob storage

If your workflow includes moving data to Azure Blob storage, make sure you are using an efficient strategy. You should create the cache, add the blob container as a storage target, and then copy your data using Azure HPC Cache.

This article explains the best ways to move data to blob storage for use with Azure HPC Cache.

Tip

This article does not apply to NFS-mounted blob storage (ADLS-NFS storage targets). You can use any NFS-based method to populate an ADLS-NFS blob container before or after adding it to the HPC Cache. Read Pre-load data with NFS protocol to learn more.

Keep these facts in mind:

  • Azure HPC Cache uses a specialized storage format to organize data in blob storage. This is why a blob storage target must either be a new, empty container, or a blob container that was previously used for Azure HPC Cache data.

  • Copying data through the Azure HPC Cache to a back-end storage target is more efficient when you use multiple clients and parallel operations. A simple copy command from one client will move data slowly.

The strategies outlined in this article work for populating an empty blob container or for adding files to a previously used storage target.

Copy data through the Azure HPC Cache

Azure HPC Cache is designed to serve multiple clients simultaneously, so to copy data through the cache, you should use parallel writes from multiple clients.

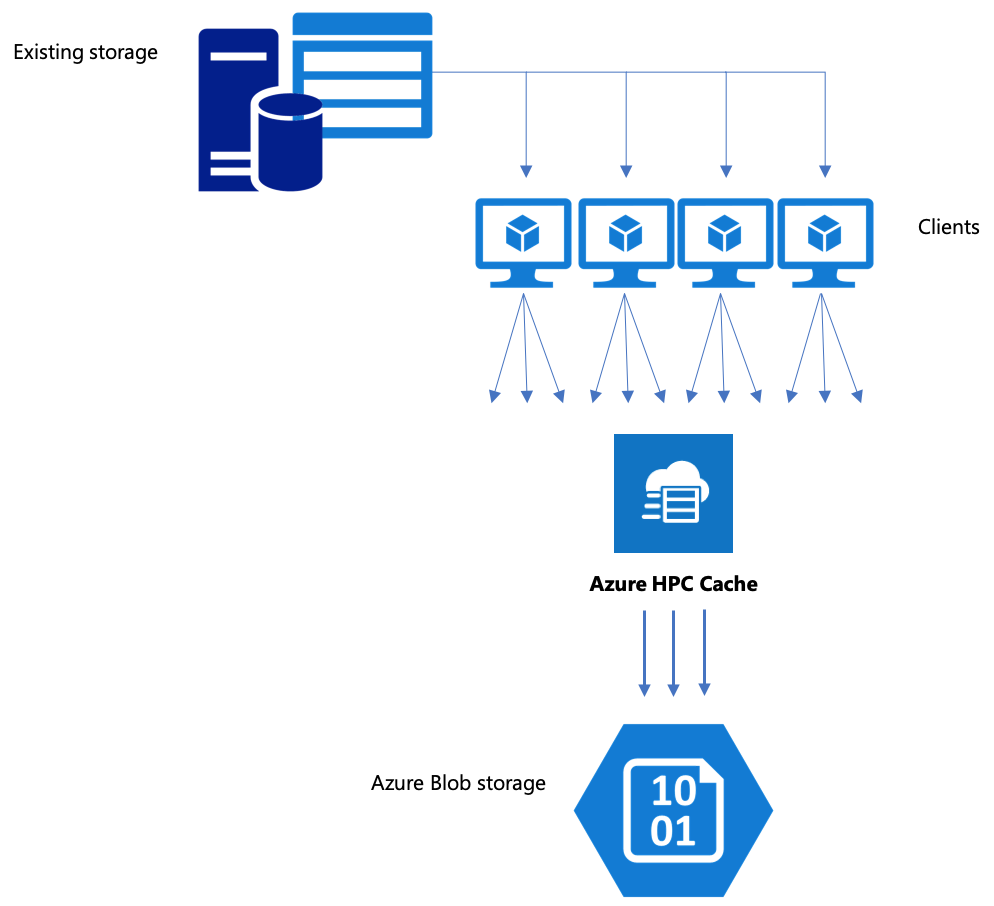

Diagram showing multi-client, multi-threaded data movement: At the top left, an icon for on-premises hardware storage has multiple arrows coming from it. The arrows point to four client machines. From each client machine three arrows point toward the Azure HPC Cache. From the Azure HPC Cache, multiple arrows point to blob storage.

The cp or copy commands that you typically use to transfer data from one storage system to another are single-threaded processes that copy only one file at a time. This means that the file server is ingesting only one file at a time - which is a waste of the cache's resources.

This section explains strategies for creating a multi-client, multi-threaded file copying system to move data to blob storage with Azure HPC Cache. It explains file transfer concepts and decision points that can be used for efficient data copying using multiple clients and simple copy commands.

It also explains some utilities that can help. The msrsync utility can be used to partially automate the process of dividing a dataset into buckets and using rsync commands. The parallelcp script is another utility that reads the source directory and issues copy commands automatically.

Strategic planning

When building a strategy to copy data in parallel, you should understand the tradeoffs in file size, file count, and directory depth.

  • When files are small, the metric of interest is files per second.
  • When files are large (10MiBi or greater), the metric of interest is bytes per second.

Each copy process has a throughput rate and a files-transferred rate, which can be measured by timing the length of the copy command and factoring the file size and file count. Explaining how to measure the rates is outside the scope of this document, but it is imperative to understand whether you’ll be dealing with small or large files.

Strategies for parallel data ingest with Azure HPC Cache include:

Next steps

After you set up your storage, learn how clients can mount the cache.
