Tutorial: Diagnose a virtual machine network routing problem using the Azure portal

  • Artikkeli

In this tutorial, you use Azure Network Watcher next hop tool to troubleshoot and diagnose a VM routing problem that's preventing it from correctly communicating with other resources. Next hop shows you that a custom route caused the routing problem.

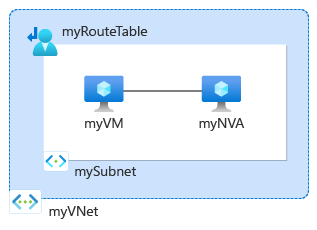

Diagram shows the resources created in the tutorial.

In this tutorial, you learn how to:

  • Create a virtual network
  • Create two virtual machines
  • Test communication to different IPs using the next hop capability of Azure Network Watcher
  • View the effective routes
  • Create a custom route
  • Diagnose a routing problem

If you prefer, you can diagnose a virtual machine network routing problem using the Azure CLI or Azure PowerShell versions of the tutorial.

If you don't have an Azure subscription, create a free account before you begin.

Prerequisites

  • An Azure account with an active subscription.

Create a virtual network

In this section, you create a virtual network.

  1. Sign in to the Azure portal.

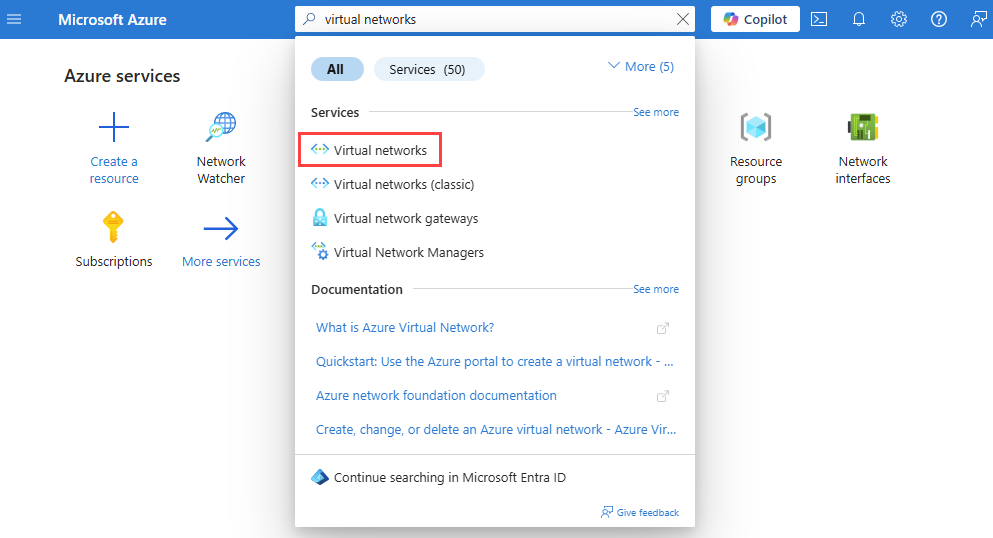

  2. In the search box at the top of the portal, enter virtual networks. Select Virtual networks from the search results.

    Screenshot shows searching for virtual networks in the Azure portal.

  3. Select + Create.

  4. Enter or select the following values on the Basics tab of Create virtual network:

    Setting Value
    Project Details
    Subscription Select your Azure subscription.
    Resource Group Select Create new.
    Enter myResourceGroup in Name.
    Select OK.
    Instance details
    Virtual network name Enter myVNet.
    Region Select (US) East US.

  5. Select the IP Addresses tab, or select Next button at the bottom of the page twice.

  6. Enter the following values on the IP Addresses tab:

    Setting Value
    IPv4 address space 10.0.0.0/16
    Subnet name mySubnet
    Subnet IP address range 10.0.0.0 - 10.0.0.255 (size: /24)

  7. Select the Review + create tab or select the Review + create button at the bottom of the page.

  8. Review the settings, and then select Create.

Create virtual machines

In this section, you create two virtual machines:

  • myVM: to test the communication from.
  • myNVA: to use as a network virtual appliance.

Create first virtual machine

  1. In the search box at the top of the portal, enter virtual machines. Select Virtual machines from the search results.

  2. Select + Create and then select Azure virtual machine.

  3. Enter or select the following values on the Basics tab of Create a virtual machine:

    Setting Value
    Project Details
    Subscription Select your Azure subscription.
    Resource group Select myResourceGroup.
    Instance details
    Virtual machine name Enter myVM.
    Region Select (US) East US.
    Availability options Select No infrastructure redundancy required.
    Security type Select Standard.
    Image Select Windows Server 2022 Datacenter: Azure Edition - x64 Gen2.
    Size Choose a size or leave the default setting.
    Administrator account
    Username Enter a username.
    Password Enter a password.
    Confirm password Reenter password.

  4. Select the Networking tab, or select Next: Disks, then Next: Networking.

  5. On the Networking tab, enter or select the following values:

    Setting Value
    Network interface
    Virtual network Select myVNet.
    Subnet Select mySubnet.
    Public IP Select (new) myVM-ip.
    NIC network security group Select Basic.
    Public inbound ports Select Allow selected ports.
    Select inbound ports Select RDP (3389).

    Caution

    Leaving the RDP port open to the internet is only recommended for testing. For production environments, it's recommended to restrict access to the RDP port to a specific IP address or range of IP addresses. You can also block internet access to the RDP port and use Azure Bastion to securely connect to your virtual machine from the Azure portal.

  6. Select Review + create.

  7. Review the settings, and then select Create.

  8. Once the deployment is complete, select Go to resource to go to the Overview page of myVM.

  9. Select Connect, then select select under Native RDP.

  10. Select Download RDP file and open the downloaded file.

  11. Select Connect and then enter the username and password that you created in the previous steps. Accept the certificate if prompted.

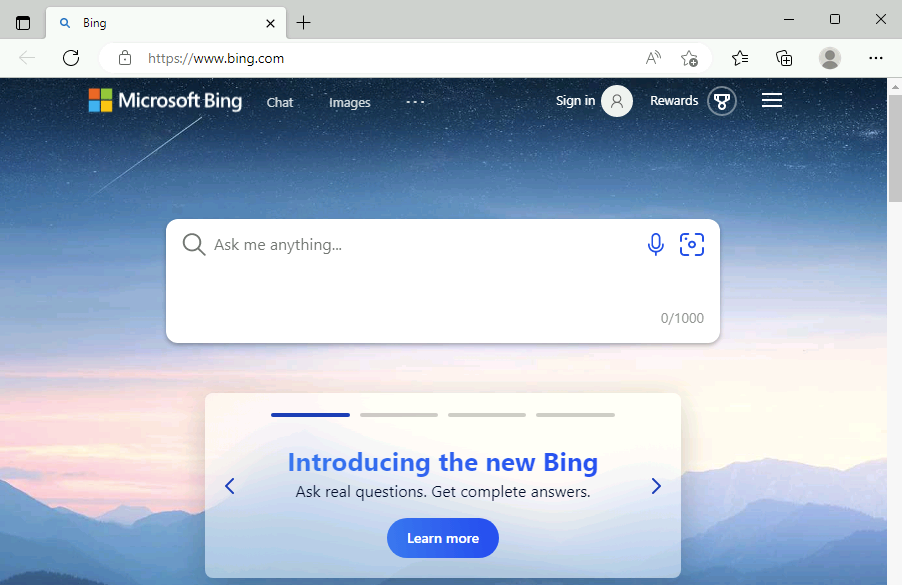

  12. Once logged in, open a web browser and go to www.bing.com to verify it's reachable.

    Screenshot showing Bing page in a web browser.

Create second virtual machine

Follow the previous steps (1-6) and use myNVA for the virtual machine name to create the second virtual machine.

Test network communication using Network Watcher next hop

Use the next hop capability of Network Watcher to determine which route Azure is using to route traffic from myVM, which has one network interface with one IP configuration

  1. In the search box at the top of the portal, enter network watcher. Select Network Watcher from the search results.

  2. Under Network diagnostic tools, select Next hop. Enter or select the following values:

    Setting Value
    Subscription Select your Azure subscription.
    Resource group Select myResourceGroup.
    Virtual machine Select myVM.
    Network interface Leave the default.
    Source IP address Enter 10.0.0.4 or the IP of your VM if it's different.
    Destination IP address Enter 13.107.21.200 to test the communication to www.bing.com.

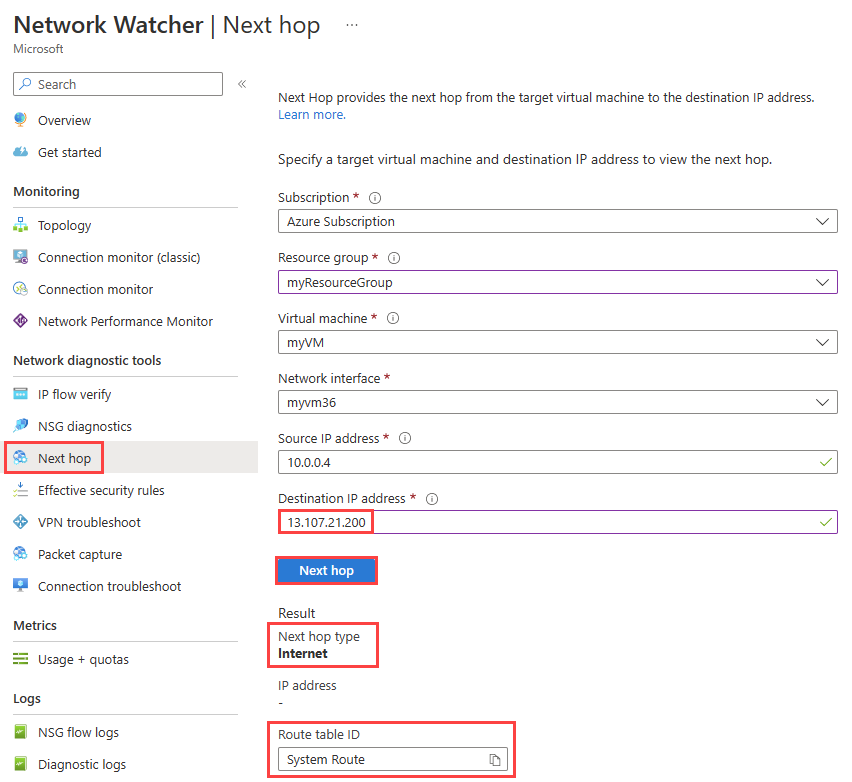

  3. Select Next hop button to start the test. The test result shows information about the next hop like the next hop type, its IP address, and the route table ID used to route traffic. The result of testing 13.107.21.200 shows that the next hop type is Internet and the route table ID is System Route which means traffic destined to www.bing.com from myVM is routed to the internet using Azure default system route.

    Screenshot showing how to test communication to www.bing.com using Azure Network Watcher next hop capability.

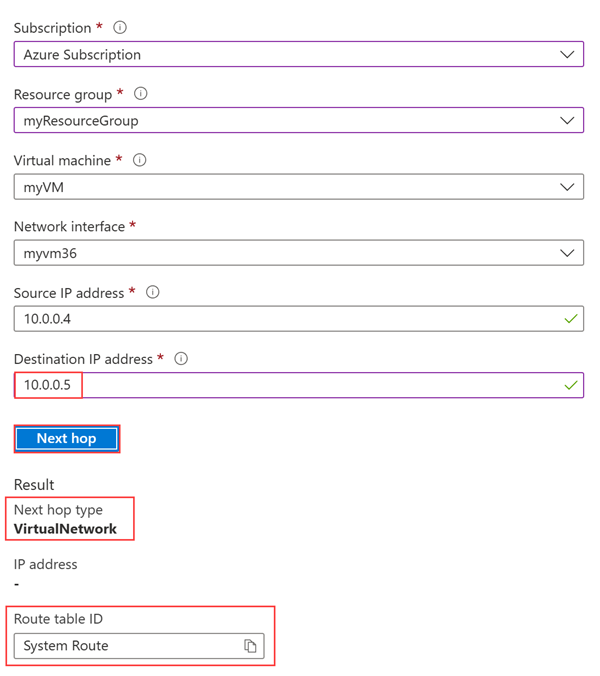

  4. Change the Destination IP address to 10.0.0.5 which is the IP address of myNVA virtual machine, and then select Next hop button. The result shows that the next hop type is VirtualNetwork and the route table ID is System Route which means traffic destined to 10.0.0.5 from myVM is routed within myVNet virtual network using Azure default system route.

    Screenshot showing Network Watcher next hop result when testing with an IP within the same virtual network.

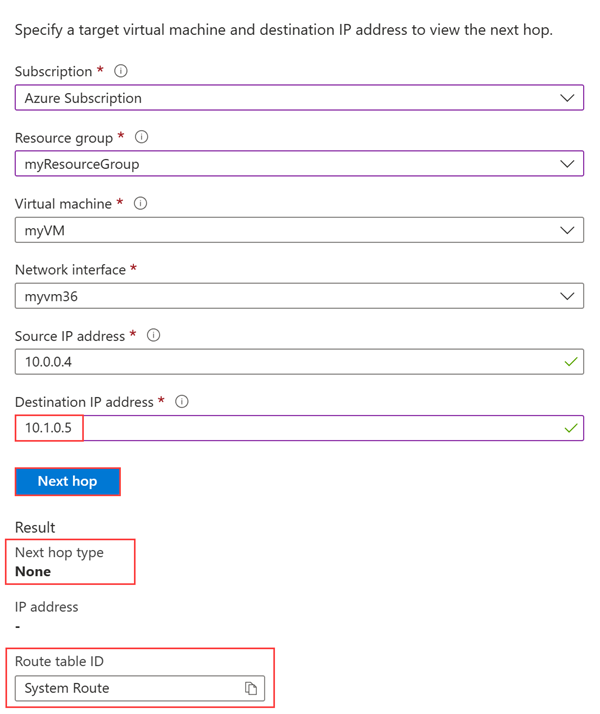

  5. Next, change the Destination IP address to 10.1.0.5 which is a private IP address that isn't in the address space of myVNet virtual network, and then select Next hop button. The result shows that the next hop type is None which means traffic destined to 10.1.0.5 from myVM is dropped.

    Screenshot showing Network Watcher next hop result when testing with a private IP outside the address space of the virtual network.

View details of a route

To further analyze routing, review the effective routes for myVM network interface.

  1. In the search box at the top of the portal, enter virtual machines. Select Virtual machines from the search results.

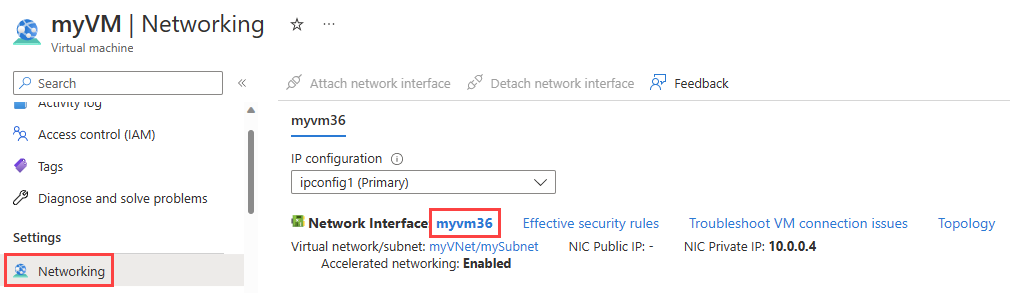

  2. Under Settings, select Networking, then select the network interface.

    Screenshot showing how to select the network interface page from the virtual machine settings in the Azure portal.

  3. Under Help, select Effective routes to see the all routes associated with the network interface of myVM.

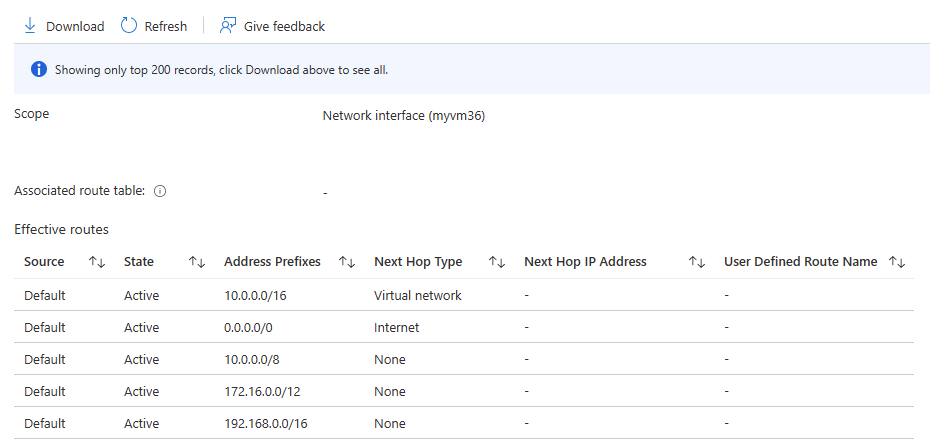

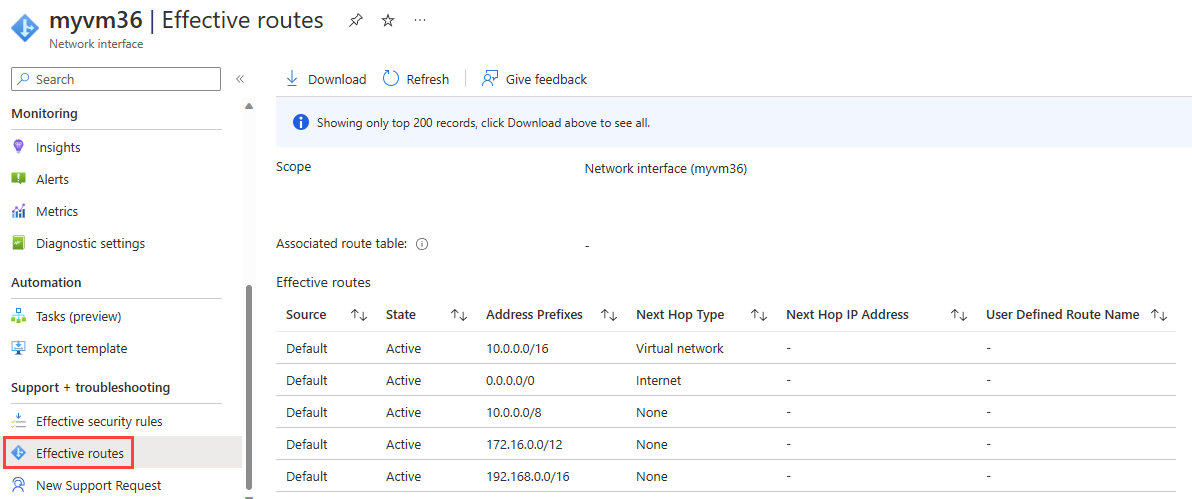

    Screenshot showing Azure default system routes associated with the virtual machine network interface.

    In the previous section, when you ran the test using 13.107.21.200, the route with 0.0.0.0/0 address prefix was used to route traffic to the address since no other route has the address. By default, all addresses not specified within the address prefix of another route are routed to the internet.

    When you ran the test using 10.0.0.5, the route with 10.0.0.0/16 address prefix was used to route traffic to it.

    However, when you ran the test using 10.1.0.5, the result was None for the next hop type because this IP address is in the 10.0.0.0/8 address space. Azure default route for 10.0.0.0/8 address prefix has next hope type as None. If you add an address prefix that contains 10.1.0.5 to the virtual network address space, then the next hop type for 10.1.0.5 will change from None to VirtualNetwork.

Test a routing problem due to custom routes

Next, you create a static custom route to override Azure default system routes and cause a routing problem to myVM virtual machine that prevents it from directly communicating with www.bing.com. Then, you'll use Network Watcher next hop to troubleshoot and diagnose the problem.

Create a custom route

In this section, you create a static custom route (user-defined route) in a route table that forces all traffic destined outside the virtual network to a specific IP address. Forcing traffic to a virtual network appliance is a common scenario.

  1. In the search box at the top of the portal, enter route tables. Select Route tables from the search results.

  2. Select + Create to create a new route table. On the Create Route table page, enter, or select the following values:

    Setting Value
    Project Details
    Subscription Select your Azure subscription.
    Resource group Select myResourceGroup.
    Instance Details
    Region Select East US.
    Name Enter myRouteTable.
    Propagate gateway routes Leave the default.

  3. Select Review + create.

  4. Review the settings, and then select Create.

  5. Once the deployment is complete, select Go to resource to go to the Overview page of myRouteTable.

  6. Under Settings, select Routes, and then select + Add to add a custom route.

  7. In the Add route page, enter or select the following values:

    Setting Value
    Route name Enter myRoute.
    Address prefix destination Select IP Addresses.
    Destination IP addresses/CIDR ranges Enter 0.0.0.0/0.
    Next hop type Select Virtual appliance.
    next hop address Enter 10.0.0.5.

  8. Select Add.

Associate the route table with the subnet

In this section, you associate the route table that you created in the previous section with mySubnet subnet.

  1. Under Settings, select Subnets, and then select + Associate to associate myRouteTable with mySubnet subnet.

  2. In the Associate subnet page, select the following values:

    Setting Value
    Virtual network Select myVNet (myResourcegroup).
    Subnet Select MySubnet.

  3. Select OK.

Go to www.bing.com

In myVM, open the web browser and go to www.bing.com to verify if it's still reachable. The custom route that you created and associated with subnet of myVM forces the traffic to go to myNVA. The traffic is dropped as myNVA isn't set up to forward the traffic for the purposes of this tutorial to demonstrate a routing problem.

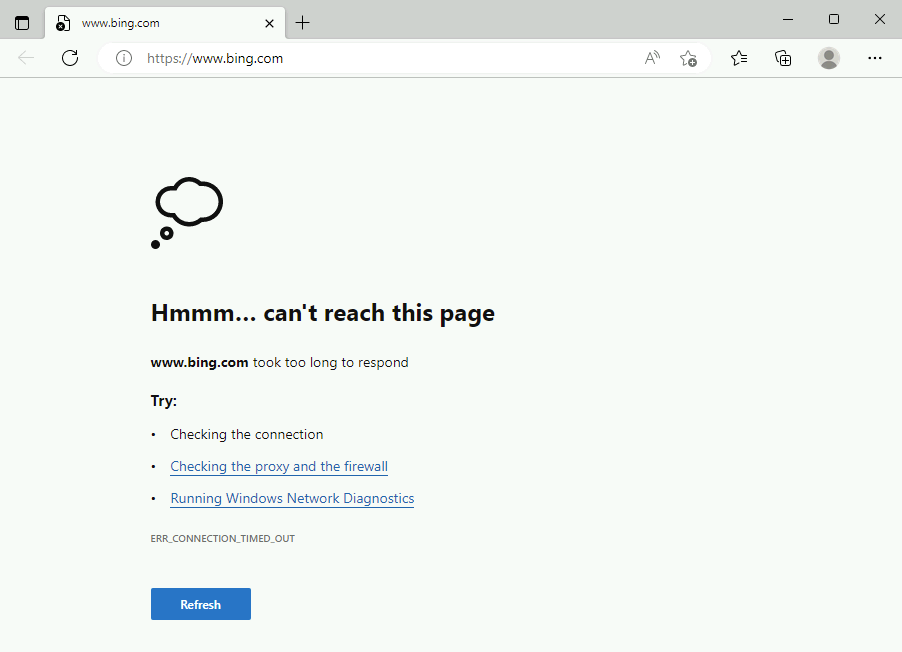

Screenshot showing Bing page isn't reachable in a web browser.

Test network communication using next hop

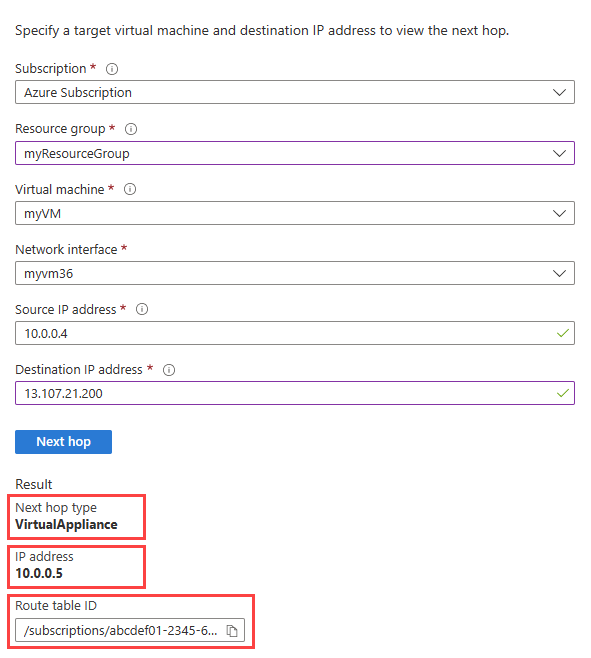

Repeat the steps you used in Test network communication using Network Watcher next hop section using 13.107.21.200 to test the communication to www.bing.com.

Screenshot showing virtual appliance as the next hop after applying a custom route.

View effective routes

Repeat the steps you used in View details of a route to check the effective routes after using the custom route that caused an issue in reaching www.bing.com.

The custom route with prefix 0.0.0.0/0 overrode Azure default route and caused all traffic destined outside myVNet virtual machine to go to 10.0.0.5.

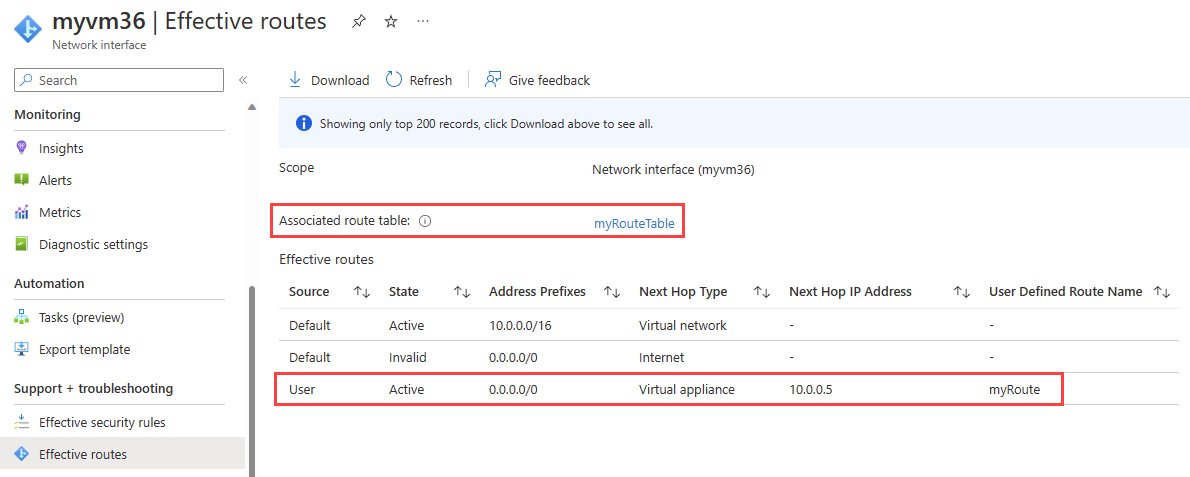

Screenshot the effective routes after overriding Azure default system routes using a custom route.

Note

In this tutorial, traffic to www.bing.com was dropped because myNVA was not set up to forward traffic. To learn how to set up a virtual machine to forward traffic, see Turn on IP forwarding.

Clean up resources

When no longer needed, delete myResourceGroup resource group and all of the resources it contains:

  1. In the search box at the top of the portal, enter myResourceGroup. Select myResourceGroup from the search results.

  2. Select Delete resource group.

  3. In Delete a resource group, enter myResourceGroup, and then select Delete.

  4. Select Delete to confirm the deletion of the resource group and all its resources.

Next step

To learn how to monitor communication between two virtual machines, advance to the next tutorial:

Monitor network communication between virtual machines
