Back up and recover Oracle Database on an Azure Linux VM by using Azure Files

Applies to: ✔️ Linux VMs

This article demonstrates the use of Azure Files as a medium to back up and restore an Oracle database running on an Azure virtual machine (VM). The steps in this article were tested against Oracle 12.1 and later.

In this article, you use Oracle Recovery Manager (RMAN) to back up the database to an Azure file share mounted to a VM via the Server Message Block (SMB) protocol. Using Azure Files for backup media is cost-effective and performant. However, for large databases, Azure Backup provides a better solution.

Prerequisites

• Use the Bash environment in Azure Cloud Shell. For more information, see Quickstart for Bash in Azure Cloud Shell.



• If you prefer to run CLI reference commands locally, install the Azure CLI. If you're running on Windows or macOS, consider running Azure CLI in a Docker container. For more information, see How to run the Azure CLI in a Docker container.

  • If you're using a local installation, sign in to the Azure CLI by using the az login command. To finish the authentication process, follow the steps displayed in your terminal. For other sign-in options, see Sign in with the Azure CLI.

  • When you're prompted, install the Azure CLI extension on first use. For more information about extensions, see Use extensions with the Azure CLI.

  • Run az version to find the version and dependent libraries that are installed. To upgrade to the latest version, run az upgrade.

• To perform the backup and recovery process, you must first create a Linux VM that has an installed instance of Oracle Database. We recommend using Oracle 12.x or later.

• Create an Oracle Database instance by following the steps in Create an Oracle Database instance in an Azure VM.

Prepare the database environment

1. To create a Secure Shell (SSH) session with the VM, use the following command. Replace <publicIpAddress> with the public address value for your VM.

   ssh azureuser@<publicIpAddress>


2. Switch to the root user:

   sudo su -


3. Add the oracle user to the /etc/sudoers file:

   echo "oracle   ALL=(ALL)      NOPASSWD: ALL" >> /etc/sudoers


4. This step assumes that you have an Oracle instance (test) that's running on a VM named vmoracle19c.

   Switch to the oracle user:

   sudo su - oracle


5. Before you connect, set the environment variable ORACLE_SID:

   export ORACLE_SID=test;


   You should also add the ORACLE_SID variable to the oracle user's .bashrc file for future sign-ins by using the following command:

   echo "export ORACLE_SID=test" >> ~oracle/.bashrc


6. Start the Oracle listener if it isn't already running:

   lsnrctl start


   The output should look similar to the following example:

   LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 18-SEP-2020 03:23:49

   Copyright (c) 1991, 2019, Oracle.  All rights reserved.

   Starting /u01/app/oracle/product/19.0.0/dbhome_1/bin/tnslsnr: please wait...

   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
   System parameter file is /u01/app/oracle/product/19.0.0/dbhome_1/network/admin/listener.ora
   Log messages written to /u01/app/oracle/diag/tnslsnr/vmoracle19c/listener/alert/log.xml
   Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=vmoracle19c.eastus.cloudapp.azure.com)(PORT=1521)))
   Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))

   Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=vmoracle19c.eastus.cloudapp.azure.com)(PORT=1521)))
   STATUS of the LISTENER
   ------------------------
   Alias                     LISTENER
   Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
   Start Date                18-SEP-2020 03:23:49
   Uptime                    0 days 0 hr. 0 min. 0 sec
   Trace Level               off
   Security                  ON: Local OS Authentication
   SNMP                      OFF
   Listener Parameter File   /u01/app/oracle/product/19.0.0/dbhome_1/network/admin/listener.ora
   Listener Log File         /u01/app/oracle/diag/tnslsnr/vmoracle19c/listener/alert/log.xml
   Listening Endpoints Summary...
    (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=vmoracle19c.eastus.cloudapp.azure.com)(PORT=1521)))
   (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
   The listener supports no services
   The command completed successfully


7. Create the location for the fast recovery area:

   mkdir /u02/fast_recovery_area


8. Connect to the database:

   sqlplus / as sysdba


9. Start the database if it isn't already running:

   SQL> startup


10. Set database environment variables for the fast recovery area:

    SQL> alter system set db_recovery_file_dest_size=4096M scope=both;
    SQL> alter system set db_recovery_file_dest='/u02/fast_recovery_area' scope=both;


11. Verify the database is in ARCHIVELOG mode to enable online backups.

    Check the log archive status:

    SQL> SELECT log_mode FROM v$database;

    LOG_MODE
    ------------
    NOARCHIVELOG


    If the log archive is in NOARCHIVELOG mode, run the following commands in SQL Plus:

    SQL> SHUTDOWN IMMEDIATE;
    SQL> STARTUP MOUNT;
    SQL> ALTER DATABASE ARCHIVELOG;
    SQL> ALTER DATABASE OPEN;
    SQL> ALTER SYSTEM SWITCH LOGFILE;


12. Create a table to test the backup and restore operations:

    SQL> create user scott identified by tiger quota 100M on users;
    SQL> grant create session, create table to scott;
    SQL> connect scott/tiger
    SQL> create table scott_table(col1 number, col2 varchar2(50));
    SQL> insert into scott_table VALUES(1,'Line 1');
    SQL> commit;
    SQL> quit


Back up to Azure Files

To back up to Azure Files, complete these steps:

1. Set up Azure Files.
2. Mount the Azure file share to your VM.
3. Back up the database.
4. Restore and recover the database.

Set up Azure Files

In this section, you back up the Oracle database to Azure Files by using Oracle RMAN. Azure file shares are fully managed file shares that stay in the cloud. You can access them by using either the SMB protocol or the Network File System (NFS) protocol.

The following procedures cover creating a file share that uses the SMB protocol to mount to your VM. For information about how to mount by using NFS, see Create an NFS share.

When you're mounting the Azure file share, use the cache=none option to disable caching of file share data. To ensure that the oracle user owns the files created in the share, set the uid=oracle and gid=oinstall options.

Portal

Set up your storage account:

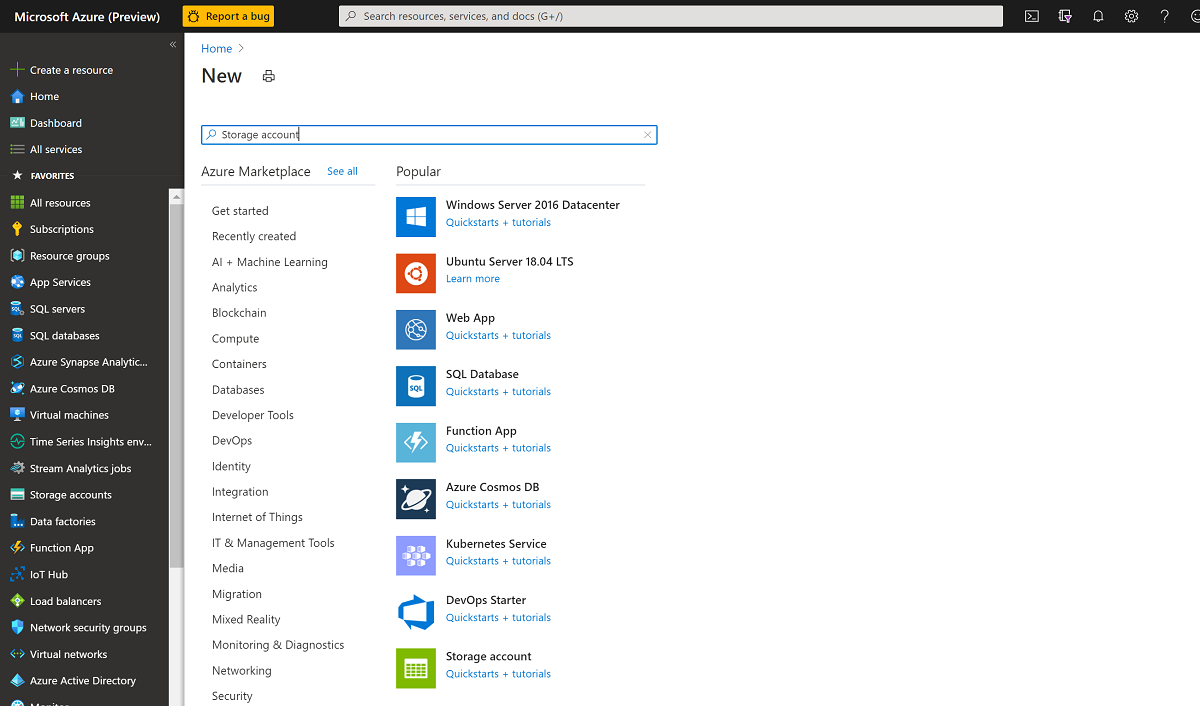

1. In the Azure portal, select + Create a resource, and then search for and select Storage Account.

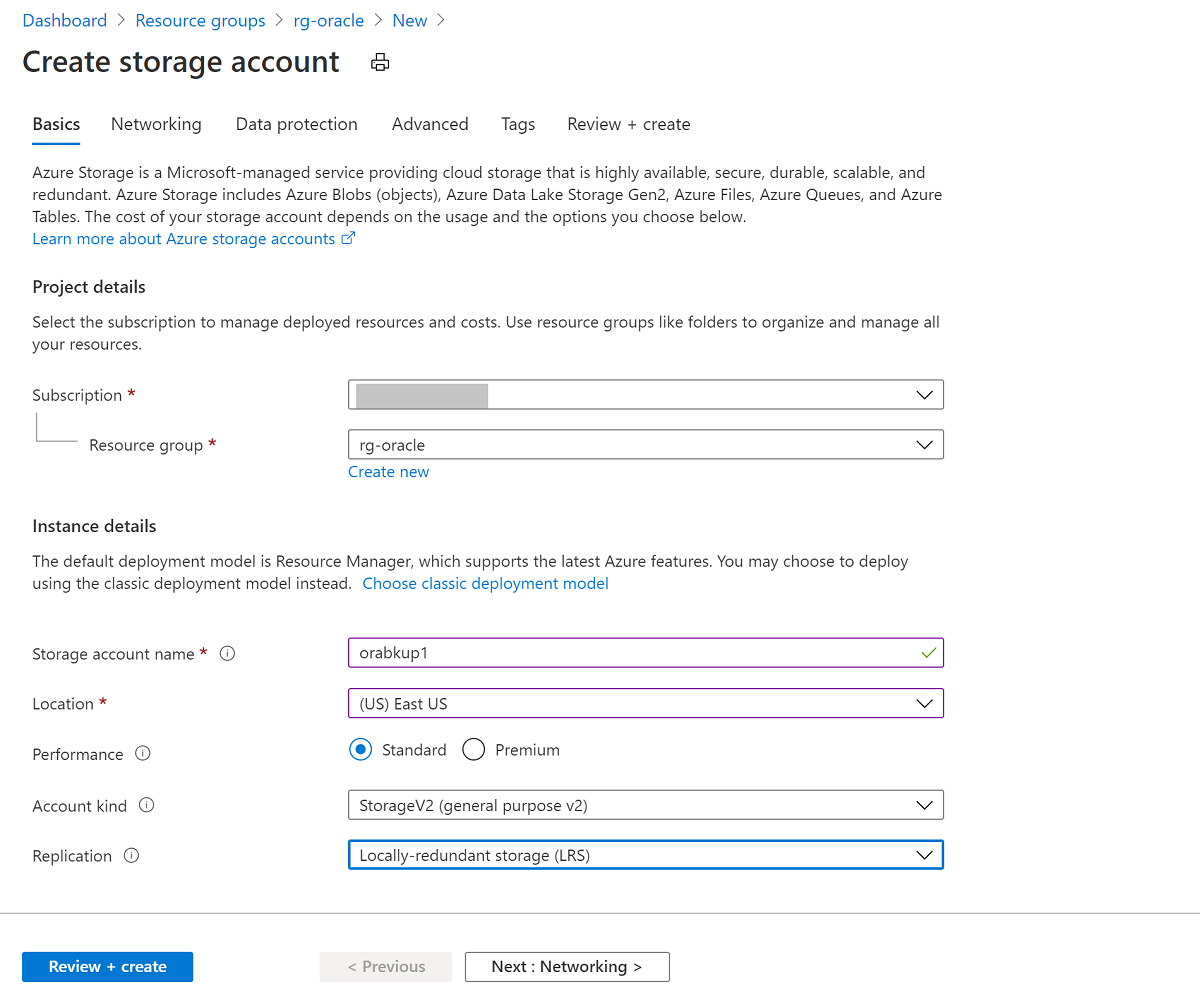

2. On the Create storage account pane:

   1. For Resource group, select your existing resource group, rg-oracle.
   2. For Storage account name, enter oracbkup1.
   3. Ensure that Location is set to the same region as all your other resources in the resource group.
   4. Set Performance to Standard.
   5. For Account kind, select StorageV2 (general purpose v2).
   6. For Replication, select Locally-redundant storage (LRS).

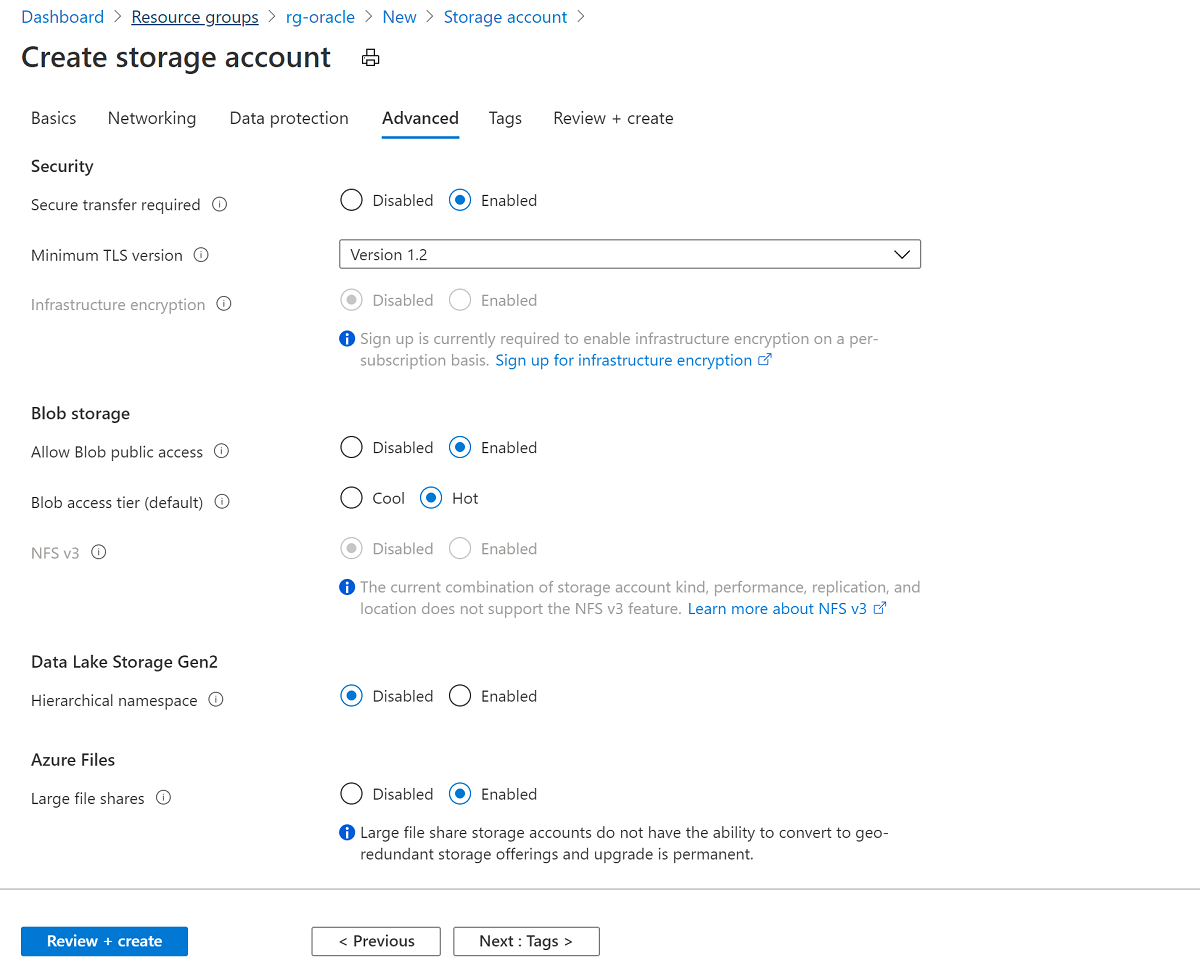

3. Select the Advanced tab. Under Azure Files, set Large file shares to Enabled. Select Review + Create, and then select Create.



4. When the storage account is created, go to the resource and select File shares.

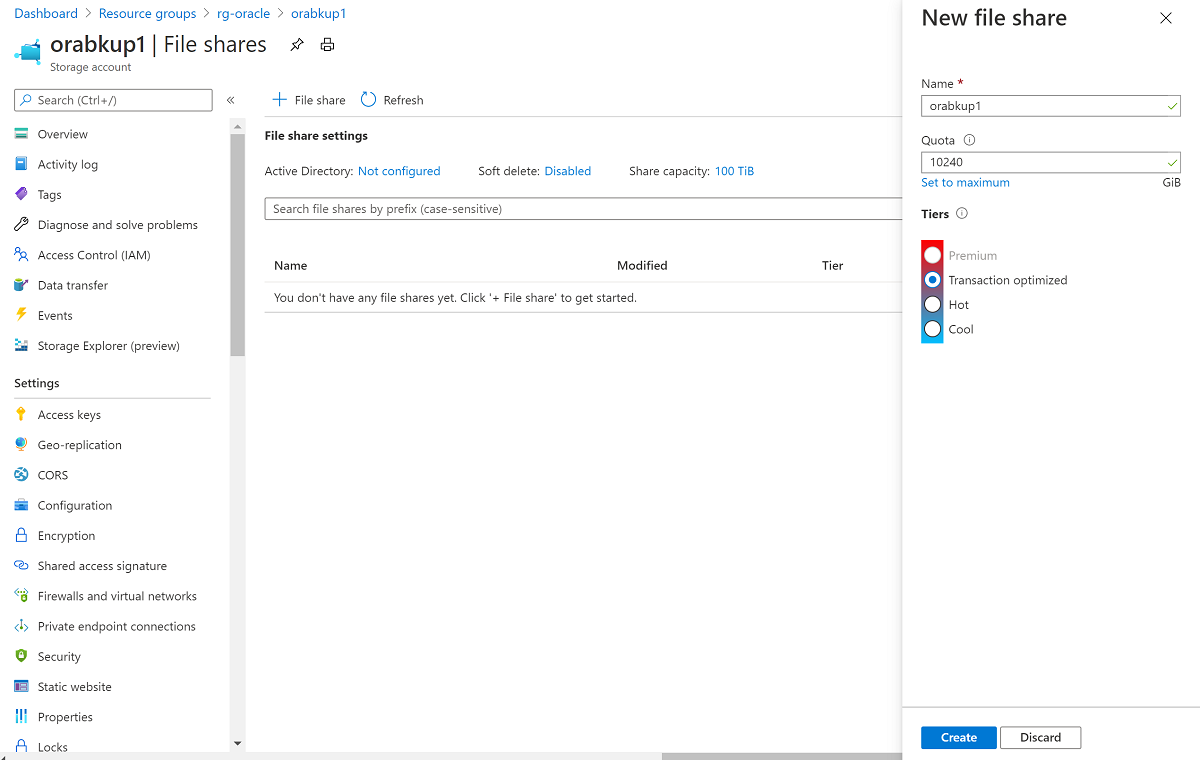

5. Select + File share, and then on the New file share panel:

   1. For Name, enter orabkup1.

   2. Set Quota to 10240 gibibytes (GiB).

      The quota reflects an upper boundary that the file share can grow to. Because you're using standard storage in this example, resources are pay-as-you-go and not provisioned. Setting the quota to 10 tebibytes (TiB) doesn't incur costs beyond what you use. If your backup strategy requires more storage, set the quota to an appropriate level to hold all backups.

   3. Under Tiers, select Transaction optimized.

   4. Select Create.



6. When the file share is created, select orabkup1 on the File share settings pane.

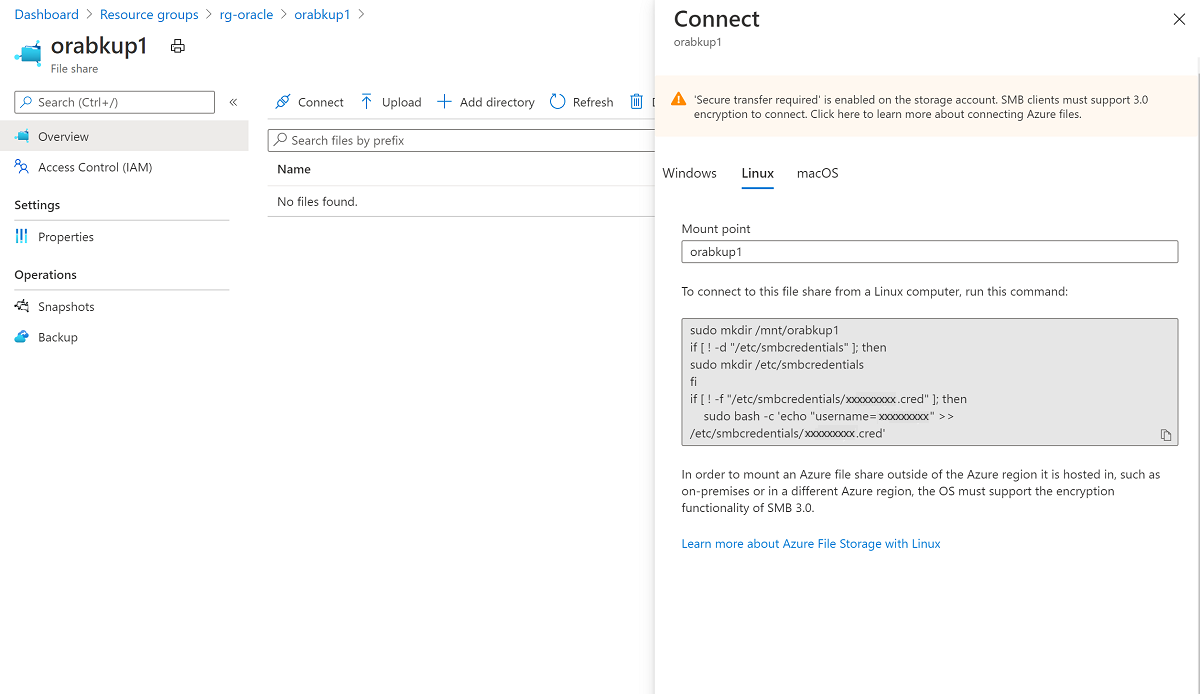

7. Select the Connect tab to open the Connect panel, and then select the Linux tab. Copy the provided commands to mount the file share by using the SMB protocol.



Azure CLI

To set up your storage account and file share, run the following commands:

1. Create the storage account in the same resource group and location as your VM:

   az storage account create -n orabackup1 -g rg-oracle -l eastus --sku Standard_LRS --enable-large-file-share


2. Create a file share in the storage account with a quota of 10 TiB:

   az storage share create --account-name orabackup1 --name orabackup --quota 10240


3. Retrieve the storage account's primary key (key1 value). You need it when you mount the file share to your VM.

   az storage account keys list --resource-group rg-oracle --account-name orabackup1


Mount the Azure file share to your VM

1. Create the mount point:

   sudo mkdir /mnt/orabackup


2. Set up credentials:

   if [ ! -d "/etc/smbcredentials" ]; then
    sudo mkdir /etc/smbcredentials
   fi


3. Run the following command. Substitute <Your Storage Account Key1> with the storage account key that you retrieved earlier.

   if [ ! -f "/etc/smbcredentials/orabackup1.cred" ]; then
     sudo bash -c 'echo "username=orabackup1" >> /etc/smbcredentials/orabackup1.cred'
     sudo bash -c 'echo "password=<Your Storage Account Key1>" >> /etc/smbcredentials/orabackup1.cred'
   fi


4. Change permissions on the credentials file:

   sudo chmod 600 /etc/smbcredentials/orabackup1.cred


5. Add the mount to the /etc/fstab file:

   sudo bash -c 'echo "//orabackup1.file.core.windows.net/orabackup /mnt/orabackup cifs nofail,vers=3.0,credentials=/etc/smbcredentials/orabackup1.cred,dir_mode=0777,file_mode=0777,serverino,cache=none,uid=oracle,gid=oinstall" >> /etc/fstab'


6. Run the commands to mount the Azure file share by using the SMB protocol:

   sudo mount -t cifs //orabackup1.file.core.windows.net/orabackup /mnt/orabackup -o vers=3.0,credentials=/etc/smbcredentials/orabackup1.cred,dir_mode=0777,file_mode=0777,serverino,cache=none,uid=oracle,gid=oinstall


   If you get an error similar to the following example, the Common Internet File System (CIFS) package might not be installed on your Linux host:

   mount: wrong fs type, bad option, bad superblock on //orabackup1.file.core.windows.net/orabackup


   To check if the CIFS package is installed, run the following command:

   sudo rpm -qa|grep cifs-utils


   If the command returns no output, install the CIFS package by using the following command. Then rerun the mount command to mount the Azure file share.

   sudo yum install cifs-utils


7. Check that the file share is mounted properly by using the following command:

   df -h


   The output should look similar to this example:

   $ df -h
   Filesystem                                    Size  Used Avail Use% Mounted on
   devtmpfs                                      3.3G     0  3.3G   0% /dev
   tmpfs                                         3.3G     0  3.3G   0% /dev/shm
   tmpfs                                         3.3G   17M  3.3G   1% /run
   tmpfs                                         3.3G     0  3.3G   0% /sys/fs/cgroup
   /dev/sda2                                      30G  9.1G   19G  34% /
   /dev/sdc1                                      59G  2.7G   53G   5% /u02
   /dev/sda1                                     497M  199M  298M  41% /boot
   /dev/sda15                                    495M  9.7M  486M   2% /boot/efi
   tmpfs                                         671M     0  671M   0% /run/user/54321
   /dev/sdb1                                      14G  2.1G   11G  16% /mnt/resource
   tmpfs                                         671M     0  671M   0% /run/user/54322
   //orabackup1.file.core.windows.net/orabackup   10T     0   10T   0% /mnt/orabackup


Back up the database

In this section, you use Oracle RMAN to take a full backup of the database and archive logs. You then write the backup as a backup set to the Azure file share that you mounted earlier.

1. Configure RMAN to back up to the Azure Files mount point:

   rman target /
   RMAN> configure snapshot controlfile name to '/mnt/orabkup/snapcf_ev.f';
   RMAN> configure channel 1 device type disk format '/mnt/orabkup/%d/Full_%d_%U_%T_%s';
   RMAN> configure channel 2 device type disk format '/mnt/orabkup/%d/Full_%d_%U_%T_%s';


2. In this example, you're limiting the size of RMAN backup pieces to 4 GiB. However, the RMAN backup maxpiecesize value can go up to 4 TiB, which is the file size limit for Azure standard file shares and premium file shares. For more information, see Azure Files scalability and performance targets.

   RMAN> configure channel device type disk maxpiecesize 4000G;


3. Confirm the configuration change details:

   RMAN> show all;


4. Run the backup. The following command takes a full database backup, including archive log files, as a backup set in compressed format:

   RMAN> backup as compressed backupset database plus archivelog;


You backed up the database online by using Oracle RMAN, with the backup located in Azure Files. Because you're storing the backups in Azure Files, you can access them from other VMs if you need to clone the database.

Using RMAN and Azure Files for database backup has many advantages. The backup and restore time is linked to the size of the database. For large databases, these operations can take considerable time.

An alternative is to use application-consistent VM backups through Azure Backup. This mechanism uses snapshot technology to perform fast backups irrespective of database size. Integration with a Recovery Services vault provides cloud storage of your Oracle Database backups, so you can access them from other VMs and other Azure regions.

Restore and recover the database

1. Shut down the Oracle instance:

   sqlplus / as sysdba
   SQL> shutdown abort
   ORACLE instance shut down.


2. Remove the database datafiles:

   cd /u02/oradata/TEST
   rm -f *.dbf


3. The following commands use RMAN to restore the missing datafiles and recover the database:

   rman target /
   RMAN> startup mount;
   RMAN> restore database;
   RMAN> recover database;
   RMAN> alter database open;


4. Check that the database content is fully recovered:

   RMAN> SELECT * FROM scott.scott_table;


The backup and recovery of the Oracle Database 19c database on an Azure Linux VM are now finished.

Delete the VM

When you no longer need the VM, you can use the following command to remove the resource group, the VM, and all related resources:

az group delete --name rg-oracle

Next steps

Create highly available VMs

Explore Azure CLI samples for VM deployment
