How network security groups filter network traffic

Use an Azure network security group (NSG) to filter network traffic to and from Azure resources in an Azure virtual network. A network security group contains security rules that allow or deny inbound network traffic to, or outbound network traffic from, several types of Azure resources. For each rule, you can specify source and destination details, port, and protocol.

You can deploy resources from several Azure services into an Azure virtual network. For a complete list, see Services that can be deployed into a virtual network. If desired, you can associate a network security group with each virtual network subnet and network interface in a virtual machine. The same network security group can be associated with as many subnets and network interfaces as you choose.

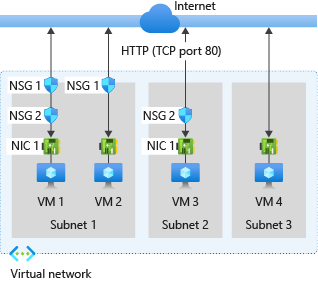

The following diagram illustrates different scenarios for how network security groups might be deployed to allow network traffic to and from the internet over TCP port 80:

Diagram of network security group processing.

Refer to the preceding diagram to understand how Azure processes inbound and outbound rules. The diagram illustrates how network security groups handle traffic filtering.

Inbound traffic

For inbound traffic, Azure processes the rules in a network security group associated with a subnet first (if one exists) and then processes the rules in a network security group associated with the network interface (if one exists). This order of evaluation also applies to intra-subnet traffic.

  • VM1: The security rules in NSG1 are processed because NSG1 is associated with Subnet1, and VM1 resides in Subnet1. The DenyAllInbound default security rule blocks the traffic unless you create a custom rule that explicitly allows port 80 inbound. NSG2, associated with the network interface NIC1, doesn't evaluate the blocked traffic. However, if NSG1 allows port 80 in its security rule, NSG2 then evaluates the traffic. To permit port 80 to the virtual machine, both NSG1 and NSG2 must include a rule that allows port 80 from the internet.

  • VM2: The security rules in NSG1 are processed because VM2 is also in Subnet1. Since VM2 doesn't have a network security group associated with its network interface, it receives all traffic allowed through NSG1 and is denied all traffic blocked by NSG1. Traffic is either allowed or denied to all resources in the same subnet when a network security group is associated to a subnet.

  • VM3: Since there's no network security group associated with Subnet2, traffic is allowed into the subnet and processed by NSG2 because NSG2 is associated with the network interface NIC1 attached to VM3.

  • VM4: Traffic is blocked to VM4 because a network security group isn't associated with Subnet3 nor the network interface in the virtual machine. All network traffic is blocked through a subnet and network interface if they don't have a network security group associated to them. The virtual machine with a standard public IP address is secure by default. For traffic to flow from the internet, a network security group must be associated with the subnet or network interface of the virtual machine. For more information, see IP address version.

Outbound traffic

For outbound traffic, Azure processes the rules in a network security group associated with a network interface first (if one exists) and then processes the rules in a network security group associated with the subnet (if one exists). This order of evaluation also applies to intra-subnet traffic.

  • VM1: The security rules in NSG2 are processed. The AllowInternetOutbound default security rule in both NSG1 and NSG2 allows the traffic unless you create a security rule that explicitly denies port 80 outbound to the internet. If NSG2 denies port 80 in its security rule, it denies the traffic, and NSG1 never receives the traffic and cannot evaluate it. To deny port 80 from the virtual machine, either one of or both of the network security groups must have a rule that denies port 80 to the internet.

  • VM2: All traffic is sent through the network interface to the subnet, since the network interface attached to VM2 doesn't have a network security group associated with it. The rules in NSG1 are processed.

  • VM3: If NSG2 denies port 80 in its security rule, it blocks the traffic. If NSG2 doesn't deny port 80, the AllowInternetOutbound default security rule in NSG2 allows the traffic because there's no network security group associated with Subnet2.

  • VM4: All network traffic is allowed from VM4 because a network security group isn't associated with the network interface attached to the virtual machine nor with Subnet3.

Intra-subnet traffic

It's important to note that security rules in a network security group associated with a subnet can affect connectivity between virtual machines within it. By default, virtual machines in the same subnet can communicate based on a default network security group rule allowing intra-subnet traffic. If you add a rule to NSG1 that denies all inbound and outbound traffic, VM1 and VM2 can't communicate with each other.

You can easily view the aggregate rules applied to a network interface by viewing the effective security rules for a network interface. You can also use the IP flow verify capability in Azure Network Watcher to determine whether communication is allowed to or from a network interface. You can use IP flow verify to determine whether a communication is allowed or denied. Additionally, use IP flow verify to surface the identity of the network security rule responsible for allowing or denying the traffic. Azure Virtual Network Manager's network verifier can also assist in troubleshooting reachability between virtual machines and the internet or other Azure resources, and provide insights into network security group rules (among several other Azure rules and policies) that might affect connectivity.

Tip

Generally, it is recommended that you associate a network security group with either a subnet or a network interface, but not simultaneously with both. Rules in a network security group associated with a subnet can conflict with rules in a network security group associated with a network interface, resulting in unintended traffic filtering behavior.
