Tutorial: Integrate Miro with Microsoft Entra ID

  • Artikkeli

In this tutorial, you'll learn how to integrate Miro with Microsoft Entra ID. Another version of this tutorial can be found at help.miro.com. When you integrate Miro with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Miro.
  • Enable your users to be automatically signed-in to Miro with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Miro single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

To configure the integration of Miro into Microsoft Entra ID, you need to add Miro from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Miro in the search box.
  4. Select Miro from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Miro

Configure and test Microsoft Entra SSO with Miro using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Miro.

To configure and test Microsoft Entra SSO with Miro, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Miro SSO - to configure the single sign-on settings on application side.
    1. Create Miro test user - to have a counterpart of B.Simon in Miro that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Miro application integration page, find the Manage section and select Single sign-on.

  3. On the Select a Single sign-on method page, select SAML.

  4. On the Set up Single Sign-On with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, perform the following step:

    a. In the Identifier text box, type one of the following URL/pattern:

    Identifier
    https://miro.com/
    https://<SUBDOMAIN>.miro.com/<ORG_ID>/<SAMLSETTINGS_ID>
    https://miro.com/<ORG_ID>/<SAMLSETTINGS_ID>
    https://<SUBDOMAIN>.miro.com/<ORG_ID>

    b. In the Reply URL text box, type one of the following URL/pattern:

    Reply URL
    https://miro.com/sso/saml
    https://<SUBDOMAIN>.miro.com/sso/saml/<ORG_ID>
    https://miro.com/sso/saml/<ORG_ID>/<SAMLSETTINGS_ID>
    https://<SUBDOMAIN>.miro.com/sso/saml/<ORG_ID>/<SAMLSETTINGS_ID>

  6. Perform the following step, if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type the URL: https://miro.com/sso/login/

    Note

    These values are not real. Update these values with the actual Identifier and Reply URL. Contact Miro support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section in the Microsoft Entra admin center.

  7. On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer. You will need it to configure SSO on the Miro side.

    Screenshot shows the Certificate download link.

  8. On the Set up Miro section, copy the Login URL. You will need it to configure SSO on the Miro side.

    Screenshot shows to copy Login URL.

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Miro.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Miro.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

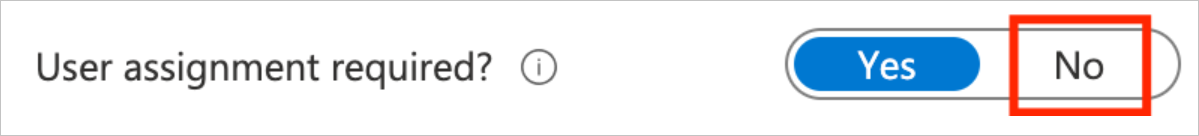

  • Alternatively go to the application's Properties and toggle off User assignment required Disable assignment requirement

Configure Miro SSO

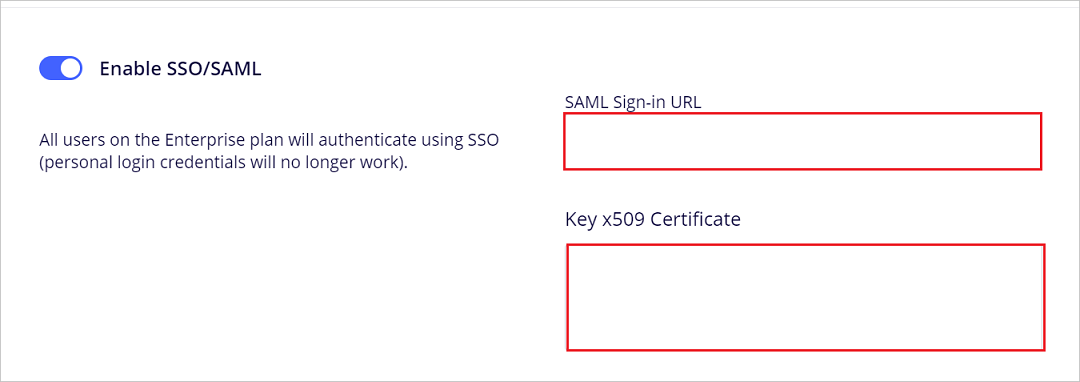

To configure single sign-on on Miro side, use the certificate you previously downloaded and the Login URL you previously copied. In the Miro account settings go to the Security section and toggle on Enable SSO/SAML.

  1. Paste the Login URL in the SAML Sign-in URL field.

  2. Open the certificate file with a text editor and copy the certificate sequence. Paste the sequence in the Key x509 Certificate field. Miro settings

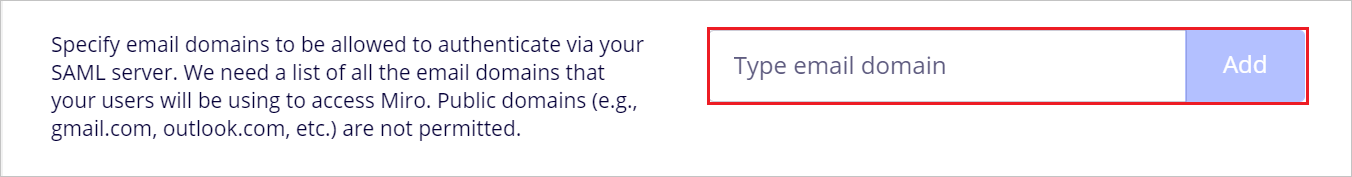

  3. In the Domains field type in your domain address, click Add and follow the verification procedure. Repeat for your other domain addresses if you have any. The Miro SSO feature will be working for the end users which domains are on the list. Domain

  4. Decide if you will be using Just in Time provisioning (pulling your users into your subscription during their registration in Miro) and click Save to complete the SSO configuration on the Miro side. Just in Time Provisioning

Create Miro test user

In this section, a user called B.Simon is created in Miro. Miro supports just-in-time user provisioning, which is enabled by default. There's no action item for you in this section. If a user doesn't already exist in Miro, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options using the test user B.Simon.

SP initiated:

  • Go to Miro Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, in Azure portal and choose to log in as B.Simon. You should be automatically signed in to the Miro subscription for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Miro tile in the My Apps, if configured in SP mode you would be redirected to the application sign-on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Miro for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.
