Tutorial: Microsoft Entra single sign-on (SSO) integration with Velpic SAML

  • Artikkeli

In this tutorial, you'll learn how to integrate Velpic SAML with Microsoft Entra ID. When you integrate Velpic SAML with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Velpic SAML.
  • Enable your users to be automatically signed-in to Velpic SAML with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Velpic SAML single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

To configure the integration of Velpic SAML into Microsoft Entra ID, you need to add Velpic SAML from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Velpic SAML in the search box.
  4. Select Velpic SAML from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Velpic SAML

Configure and test Microsoft Entra SSO with Velpic SAML using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Velpic SAML.

To configure and test Microsoft Entra SSO with Velpic SAML, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Velpic SAML SSO - to configure the single sign-on settings on application side.
    1. Create Velpic SAML test user - to have a counterpart of B.Simon in Velpic SAML that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Velpic SAML > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, perform the following steps:

    a. In the Sign on URL text box, type a URL using the following pattern: https://<sub-domain>.velpicsaml.net

    b. In the Identifier (Entity ID) text box, type a URL using the following pattern: https://auth.velpic.com/saml/v2/<entity-id>/login

    Note

    Please note that the Sign on URL will be provided by the Velpic SAML team and Identifier value will be available when you configure the SSO Plugin on Velpic SAML side. You need to copy that value from Velpic SAML application page and paste it here.

  6. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

    The Certificate download link

  7. On the Set up Velpic SAML section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Velpic SAML.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Velpic SAML.
  3. In the app's overview page, find the Manage section and select Users and groups.
  4. Select Add user, then select Users and groups in the Add Assignment dialog.
  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
  6. If you're expecting any role value in the SAML assertion, in the Select Role dialog, select the appropriate role for the user from the list and then click the Select button at the bottom of the screen.
  7. In the Add Assignment dialog, click the Assign button.

Configure Velpic SAML SSO

  1. In a different web browser window, sign in to your Velpic SAML company site as an administrator

  2. Click on Manage tab and go to Integration section where you need to click on Plugins button to create new plugin for Sign-In.

    Screenshot shows the Integration page where you can select Plugins.

  3. Click on the Add plugin button.

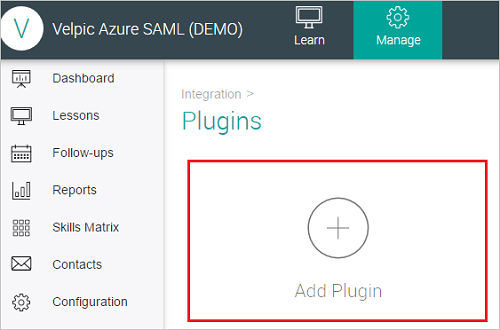

    Screenshot shows the Add Plugin button selected.

  4. Click on the SAML tile in the Add Plugin page.

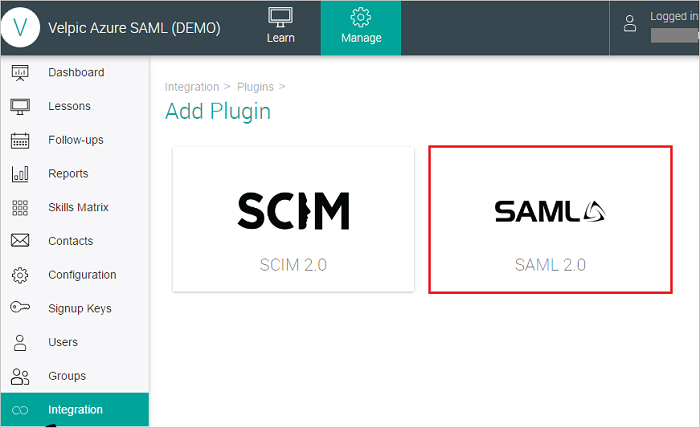

    Screenshot shows SAML selected in the Add Plugin page.

  5. Enter the name of the new SAML plugin and click the Add button.

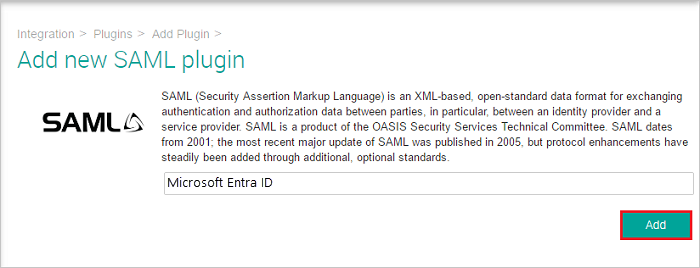

    Screenshot shows the Add new SAML plugin dialog box with Microsoft Entra ID entered.

  6. Enter the details as follows:

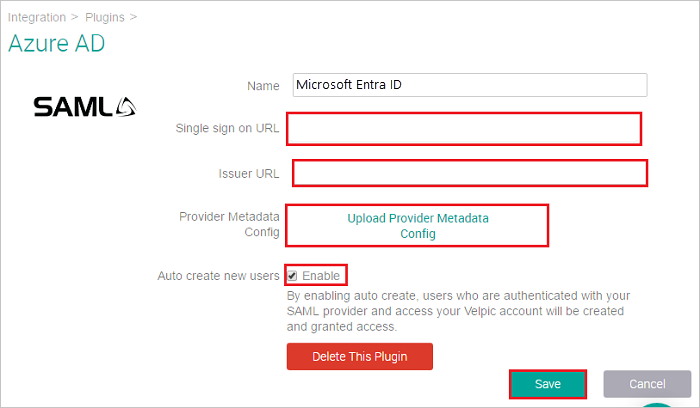

    Screenshot shows the Microsoft Entra ID page where you can enter the values described.

    a. In the Name textbox, type the name of SAML plugin.

    b. In the Issuer URL textbox, paste the Microsoft Entra Identifier you copied from the Configure sign-on window.

    c. In the Provider Metadata Config upload the Metadata XML file which you downloaded previously.

    d. You can also choose to enable SAML just in time provisioning by enabling the Auto create new users checkbox. If a user doesn’t exist in Velpic and this flag is not enabled, the login from Azure will fail. If the flag is enabled the user will automatically be provisioned into Velpic at the time of login.

    e. Copy the Single sign on URL from the text box and paste it.

    f. Click Save.

Create Velpic SAML test user

This step is usually not required as the application supports just in time user provisioning. If the automatic user provisioning is not enabled then manual user creation can be done as described below.

Sign into your Velpic SAML company site as an administrator and perform following steps:

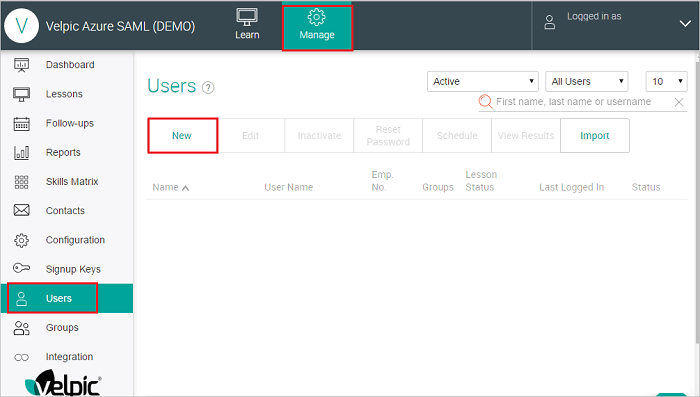

  1. Click on Manage tab and go to Users section, then click on New button to add users.

    Add user

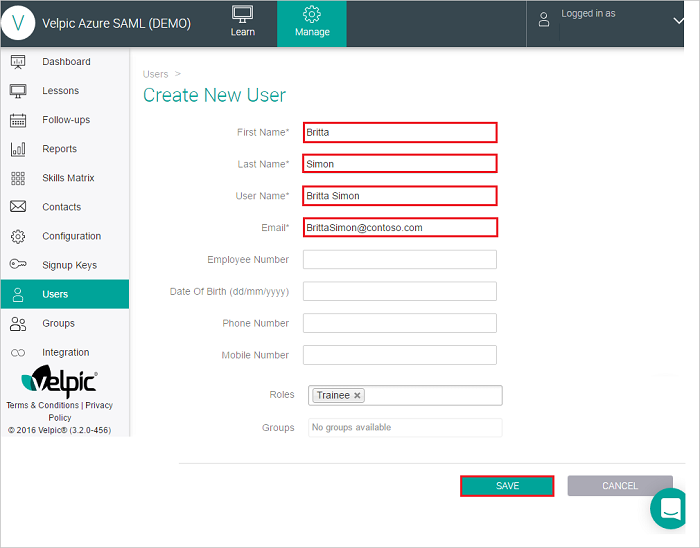

  2. On the “Create New User” dialog page, perform the following steps.

    User

    a. In the First Name textbox, type the first name of B.

    b. In the Last Name textbox, type the last name of Simon.

    c. In the User Name textbox, type the user name of B.Simon.

    d. In the Email textbox, type the email address of B.Simon@contoso.com account.

    e. Rest of the information is optional, you can fill it if needed.

    f. Click SAVE.

Note

Velpic SAML also supports automatic user provisioning, you can find more details here on how to configure automatic user provisioning.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration using the My Apps.

  1. When you click the Velpic SAML tile in the My Apps, you should get login page of Velpic SAML application. You should see the Log In With Microsoft Entra ID button on the sign in page.

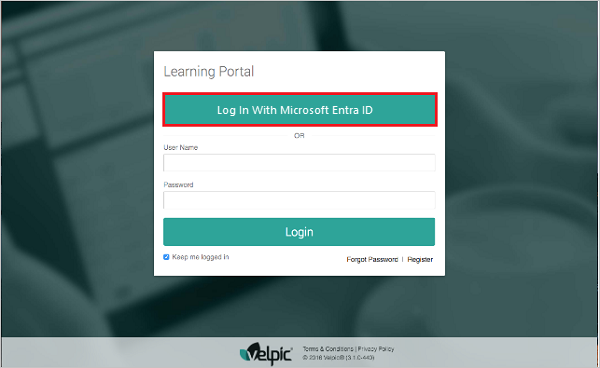

    Screenshot shows the Learning Portal with Log In With Microsoft Entra ID selected.

  2. Click on the Log In With Microsoft Entra ID button to log in to Velpic using your Microsoft Entra account.

Next steps

Once you configure Velpic SAML you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
