Table samples

These samples showcase common interactions with Excel tables.

Create a sorted table

This sample creates a table from the current worksheet's used range, then sorts it based on the first column.

function main(workbook: ExcelScript.Workbook) {
  // Get the current worksheet.
  const selectedSheet = workbook.getActiveWorksheet();

  // Create a table with the used cells.
  const usedRange = selectedSheet.getUsedRange();
  const newTable = selectedSheet.addTable(usedRange, true);

  // Sort the table using the first column.
  newTable.getSort().apply([{ key: 0, ascending: true }]);
}

Filter a table

This sample filters an existing table using the values in one of the columns.

function main(workbook: ExcelScript.Workbook) {
  // Get the table in the workbook named "StationTable".
  const table = workbook.getTable("StationTable");

  // Get the "Station" table column for the filter.
  const stationColumn = table.getColumnByName("Station");

  // Apply a filter to the table that will only show rows
  // with a value of "Station-1" in the "Station" column.
  stationColumn.getFilter().applyValuesFilter(["Station-1"]);
}

Filter out one value

The previous sample filters a table based on a list of included values. To exclude a particular value from the table, you need to provide the list of every other value in the column. This sample uses a function columnToSet to convert a column into a set of unique values. That set then has the excluded value ("Station-1") removed.

function main(workbook: ExcelScript.Workbook) {
  // Get the table in the workbook named "StationTable".
  const table = workbook.getTable("StationTable");

  // Get the "Station" table column for the filter.
  const stationColumn = table.getColumnByName("Station");

  // Get a list of unique values in the station column.
  const stationSet = columnToSet(stationColumn);

  // Apply a filter to the table that will only show rows
  // that don't have a value of "Station-1" in the "Station" column.
  stationColumn.getFilter().applyValuesFilter(stationSet.filter((value) => {
      return value !== "Station-1";
  }));
}

/**
 * Convert a column into a set so it only contains unique values.
 */
function columnToSet(column: ExcelScript.TableColumn): string[] {
    const range = column.getRangeBetweenHeaderAndTotal().getValues() as string[][];
    const columnSet: string[] = [];
    range.forEach((value) => {
        if (!columnSet.includes(value[0])) {
            columnSet.push(value[0]);
        }
    });

    return columnSet;
}

Remove table column filters

This sample removes the filters from a table column, based on the active cell location. The script detects if the cell is part of a table, determines the table column, and clears any filters that are applied on it.

Download table-with-filter.xlsx for a ready-to-use workbook. Add the following script to try the sample yourself!

function main(workbook: ExcelScript.Workbook) {
  // Get the active cell.
  const cell = workbook.getActiveCell();

  // Get the tables associated with that cell.
  // Since tables can't overlap, this will be one table at most.
  const currentTable = cell.getTables()[0];

  // If there's no table on the selection, end the script.
  if (!currentTable) {
    console.log("The selection is not in a table.");
    return;
  }

  // Get the table header above the current cell by referencing its column.
  const entireColumn = cell.getEntireColumn();
  const intersect = entireColumn.getIntersection(currentTable.getRange());
  const headerCellValue = intersect.getCell(0, 0).getValue() as string;

  // Get the TableColumn object matching that header.
  const tableColumn = currentTable.getColumnByName(headerCellValue);

  // Clear the filters on that table column.
  tableColumn.getFilter().clear();
}

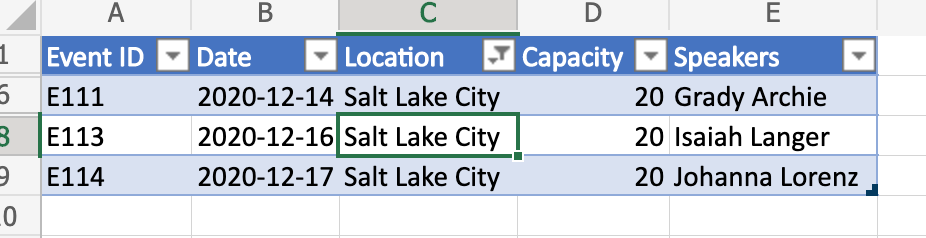

Before clearing column filter (notice the active cell)

An active cell before clearing column filter.

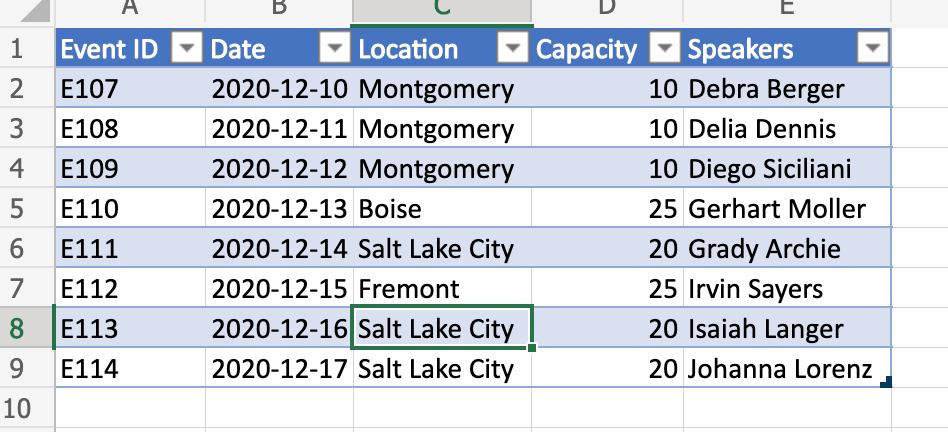

After clearing column filter

An active cell after clearing column filter.

Tip

If you wish to learn more about how to save the filter prior to clearing it (and re-apply later), see Move rows across tables by saving filters, a more advanced sample.

Dynamically reference table values

This script uses the "@COLUMN_NAME" syntax to set formulas in a table column. The column names in the table can be changed without changing this script.

function main(workbook: ExcelScript.Workbook) {
  // Get the current worksheet.
  const table = workbook.getTable("Profits");

  // Get the column names for columns 2 and 3.
  // Note that these are 1-based indices.
  const nameOfColumn2 = table.getColumn(2).getName();
  const nameOfColumn3 = table.getColumn(3).getName();

  // Set the formula of the fourth column to be the product of the values found
  // in that row's second and third columns.
  const combinedColumn = table.getColumn(4).getRangeBetweenHeaderAndTotal();
  combinedColumn.setFormula(`=[@[${nameOfColumn2}]]*[@[${nameOfColumn3}]]`);
}

Before the script

Month Price Units Sold Total
Jan 45 5
Feb 45 3
Mar 45 6

After the script

Month Price Units Sold Total
Jan 45 5 225
Feb 45 3 135
Mar 45 6 270
