iOS extensions in Xamarin.iOS

Creating Extensions in iOS video

Extensions, as introduced in iOS 8, are specialized UIViewControllers that are presented by iOS inside standard contexts such as within the Notification Center, as custom keyboard types requested by the user to perform specialized input or other contexts like editing a photo where the Extension can provide special effect filters.

All Extensions are installed in conjunction with a Container app (with both elements written using the 64-bit Unified APIs) and are activated from a particular Extension Point in a Host app. And since they will be used as supplements to existing system functions, they must be high performance, lean, and robust.

Extension points

Type Description Extension Point Host App
Action Specialized editor or viewer for a particular media type com.apple.ui-services Any
Document Provider Allows app to use a remote document store com.apple.fileprovider-ui Apps using a UIDocumentPickerViewController
Keyboard Alternate keyboards com.apple.keyboard-service Any
Photo Editing Photo manipulation and editing com.apple.photo-editing Photos.app editor
Share Shares data with social networks, messaging services, etc. com.apple.share-services Any
Today “Widgets” that appear on the Today screen or Notification Center com.apple.widget-extensions Today and Notification Center

Additional extension points were added in iOS 10 and iOS 12. You can find the complete table of all supported types in the iOS App Extension Programming Guide.

Limitations

Extensions have a number of limitations, some of which are universal to all types (for instance, no type of Extension can access the cameras or microphones) while other types of Extension may have specific limitations on their usage (for instance, custom keyboards cannot be used for secure data entry fields such as for passwords).

The universal limitations are:

For individual limitations, please see Apple's App Extension Programming Guide.

Distributing, installing, and running extensions

Extensions are distributed from within a container app, which, in turn is submitted and distributed via the App Store. The Extension(s) distributed with the app are installed at that point, but the user must enable each Extension explicitly. The different types of Extensions are enabled in different ways; several require the user to navigate to the Settings app and enable them from there. While others are enabled at point of use, such as enabling a Sharing Extension when sending a photo.

The app in which the Extension is used (where the user encounters the Extension Point) is referred to as the Host app, since it is the app that hosts the Extension when it executes. The app that installs the Extension is the Container app, because it is the app that contained the Extension when it was installed.

Typically, the container app describes the extension and walks the user through the process of enabling it.

Debug and release versions of extensions

Memory limits for running app extensions are significantly lower than the memory limits applied to a foreground app. Simulators running iOS have less restrictions applied to extensions, and you can execute your extension without any issues. However, running the same extension on a device can lead to unexpected results, including the extension crashing or being aggressively terminated by the system. Therefore, ensure you build and test the extension on a device before shipping it.

You should ensure that the following settings are applied to the container project and all referenced extensions:

  1. Build a application package in Release configuration.
  2. In the iOS Build project settings, set the Linker behavior option to Link Framework SDKs Only or Link All.
  3. In the iOS Debug project settings, uncheck the Enable debugging and Enable profiling option.

Extension lifecycle

An Extension can be as simple as a single UIViewController or more complex Extensions that present multiple screens of UI. When the user encounters an Extension Points (such as when sharing an image), they will have an opportunity to choose from the Extensions registered for that Extension Point.

If they choose one of your app's Extensions, its UIViewController will be instantiated and begin the normal View Controller lifecycle. However, unlike a normal app, which are suspended but not generally terminated when the user finishes interacting with them, Extensions are loaded, executed, and then terminated repeatedly.

Extensions can communicate with their Host apps via an NSExtensionContext object. Some Extensions have operations that receive asynchronous callbacks with the results. These callbacks will be executed on background threads and the Extension must take this into consideration; for instance, by using NSObject.InvokeOnMainThread if they want to update the user interface. See the Communicating with the Host App section below for more details.

By default, Extensions and their container apps can not communicate, despite being installed together. In some cases, the Container app is essentially an empty "shipping" container whose purpose is served once the Extension is installed. However, if circumstances dictate, the Container app and the Extension may share resources from a common area. Additionally, a Today Extension may request its Container app to open a URL. This behavior is shown in the Event Countdown Widget.

Creating an extension

Extensions (and their Container apps) must be 64-bit binaries and built using the Xamarin.iOS Unified APIs. When developing an Extension, your solutions will contain at least two projects: the container app and one project for each Extension the container provides.

Container app project requirements

The Container app used to install the Extension has the following requirements:

  • It must maintain a reference to the Extension project.
  • It must be a complete app (must be able to launch and run successfully) even if it does nothing more than provide a way to install an Extension.
  • It must have a Bundle Identifier that is the basis for the Bundle Identifier of the Extension project (see the section below for more details).

Extension project requirements

Additionally, the Extension's project has the following requirements:

  • It must have a Bundle Identifier that starts with its Container app's Bundle Identifier. For example, if the Container app's has a Bundle Identifier of com.myCompany.ContainerApp, the Extension's identifier might be com.myCompany.ContainerApp.MyExtension:

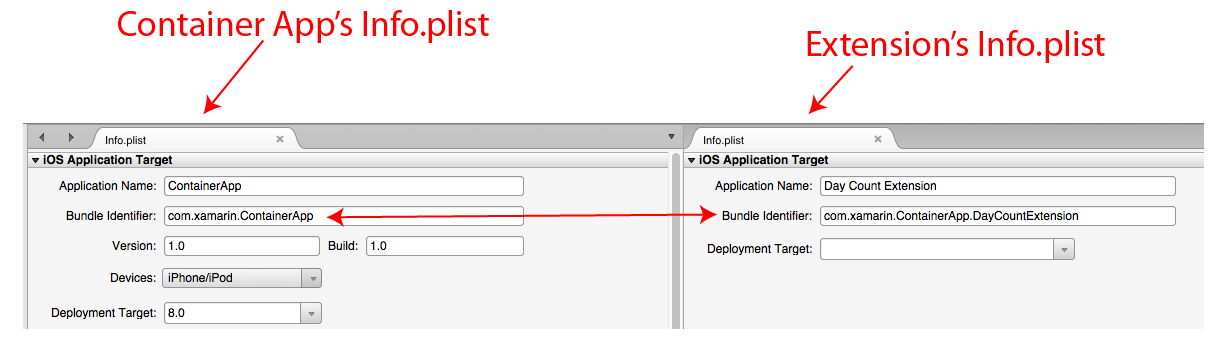

    Bundle identifiers

  • It must define the key NSExtensionPointIdentifier, with an appropriate value (such as com.apple.widget-extension for a Today Notification Center widget), in its Info.plist file.

  • It must also define either the NSExtensionMainStoryboard key or the NSExtensionPrincipalClass key in its Info.plist file with an appropriate value:

    • Use the NSExtensionMainStoryboard key to specify the name of the Storyboard that presents the main UI for the Extension (minus .storyboard). For example, Main for the Main.storyboard file.
    • Use the NSExtensionPrincipalClass key to specify the class that will be initialized when the Extension is started. The value must match the Register value of your UIViewController:

    Principal class registration

Specific types of Extensions may have additional requirements. For instance, a Today or Notification Center Extension’s principal class must implement INCWidgetProviding.

Important

If you start your project using one the Extensions templates provided by Visual Studio for Mac, most (if not all) these requirements will be provided and met for you automatically by the template.

Walkthrough

In following walkthrough, you will create an example Today widget that calculates the day and number of days remaining in the year:

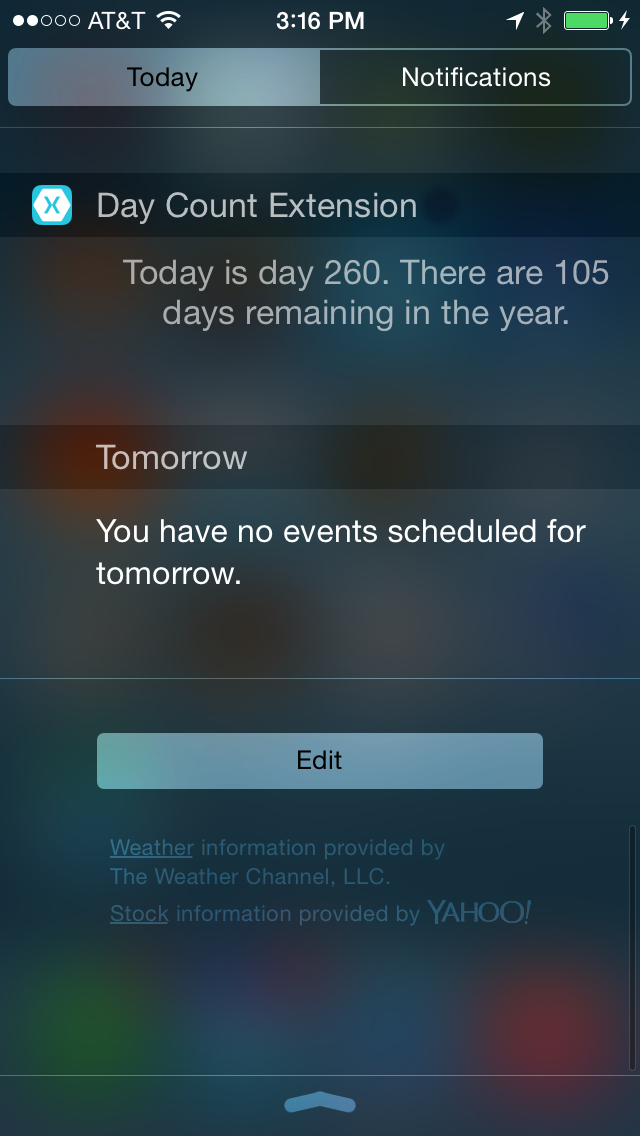

An example Today widget that calculates the day and number of days remaining in the year

Creating the solution

To create the required solution, do the following:

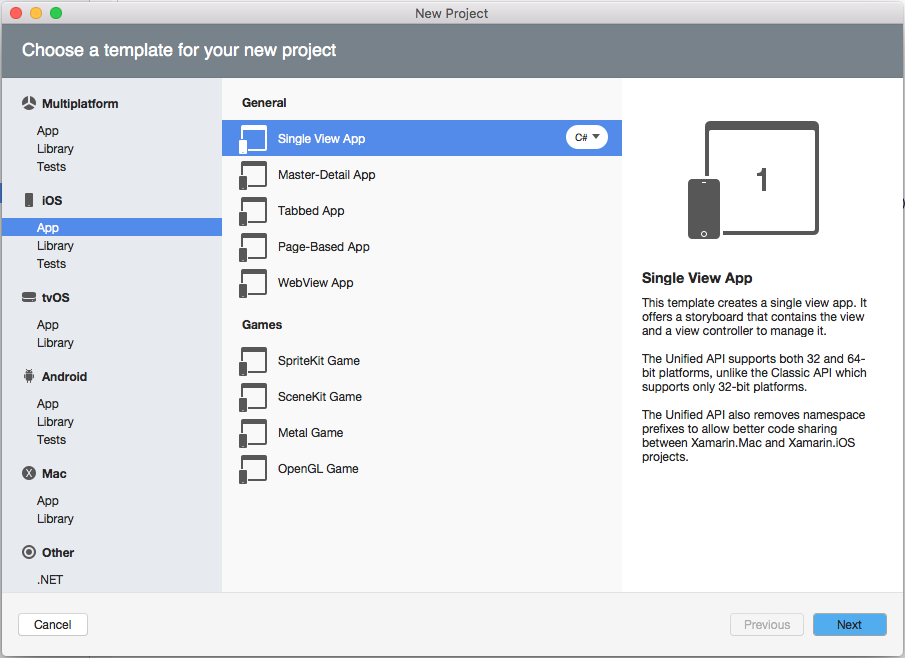

  1. First, create a new iOS, Single View App project and click the Next button:

    First, create a new iOS, Single View App project and click the Next button

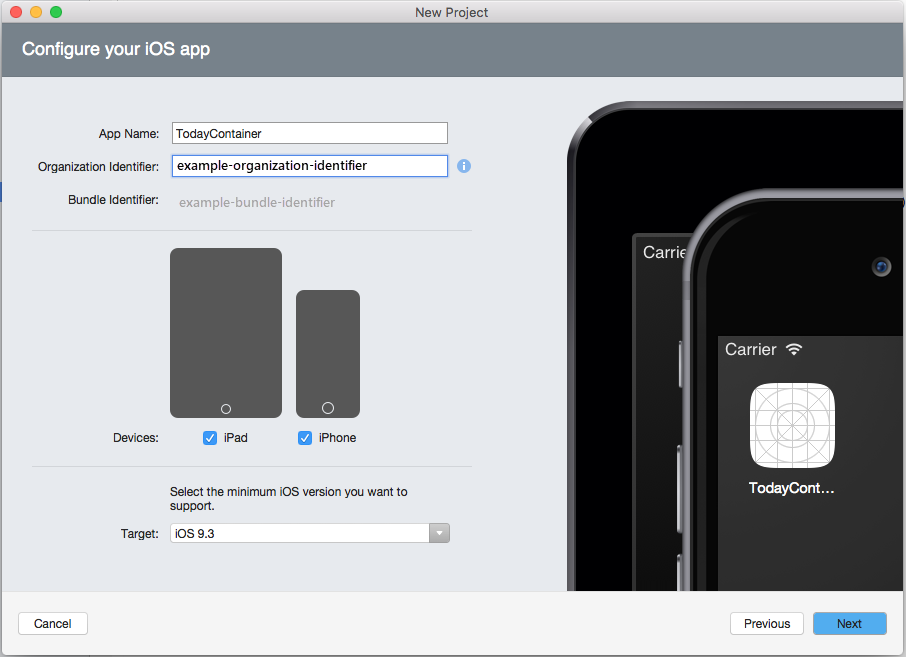

  2. Call the project TodayContainer and click the Next button:

    Call the project TodayContainer and click the Next button

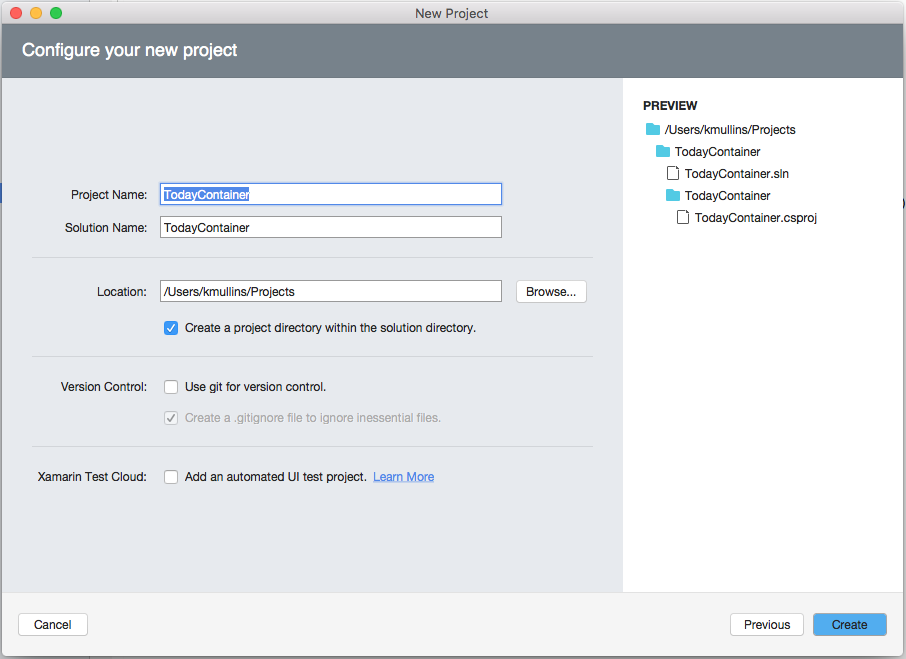

  3. Verify the Project Name and SolutionName and click the Create button to create the solution:

    Verify the Project Name and SolutionName and click the Create button to create the solution

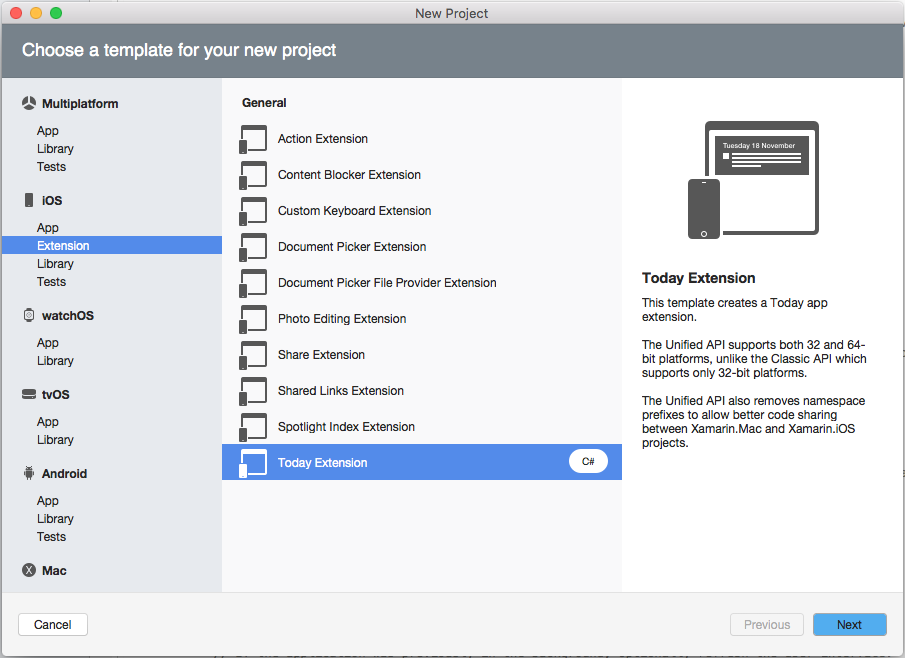

  4. Next, in the Solution Explorer, right-click on the Solution and add a new iOS Extension project from the Today Extension template:

    Next, in the Solution Explorer, right-click on the Solution and add a new iOS Extension project from the Today Extension template

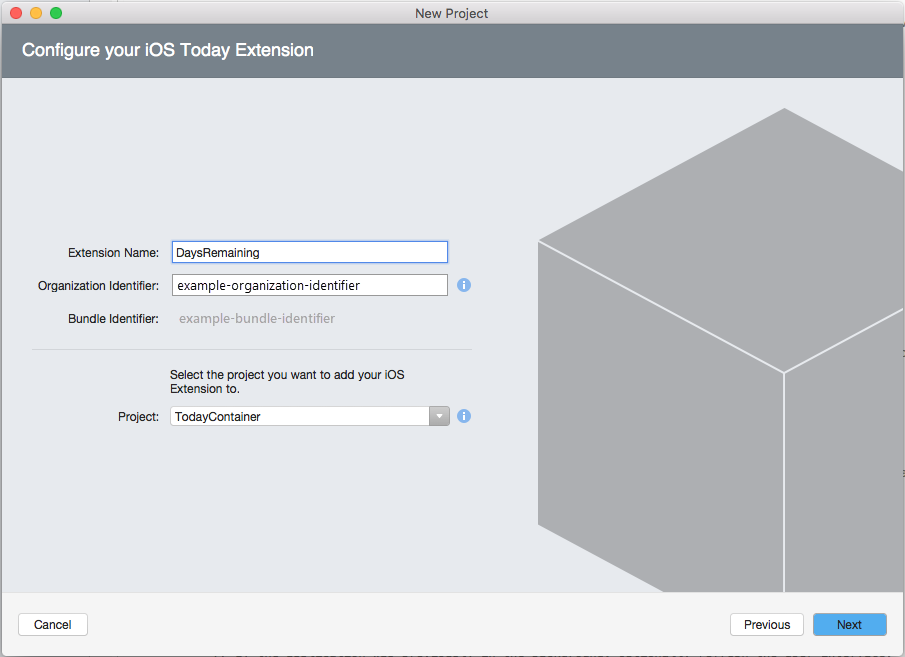

  5. Call the project DaysRemaining and click the Next button:

    Call the project DaysRemaining and click the Next button

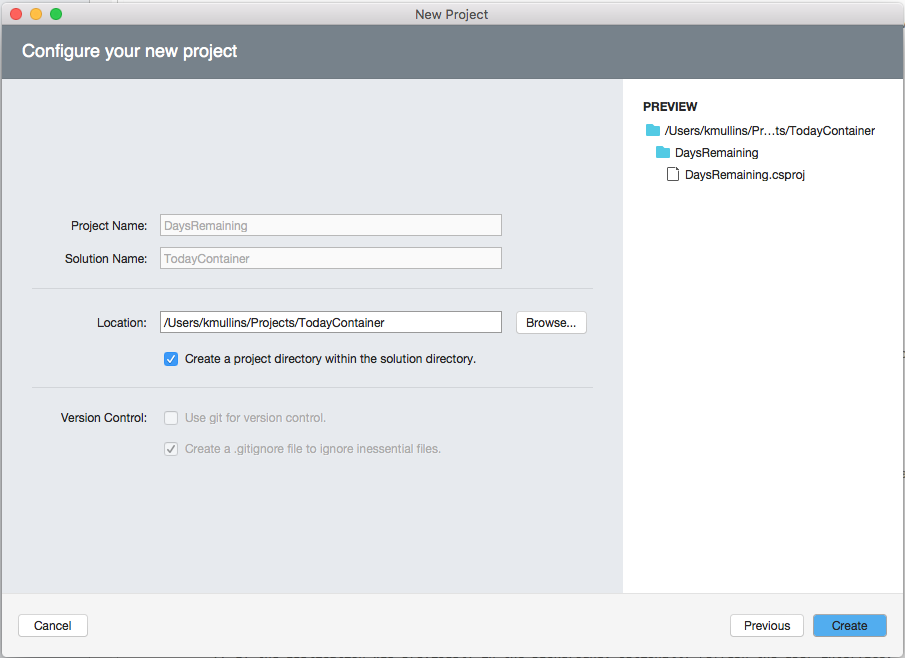

  6. Review the project and click the Create button to create it:

    Review the project and click the Create button to create it

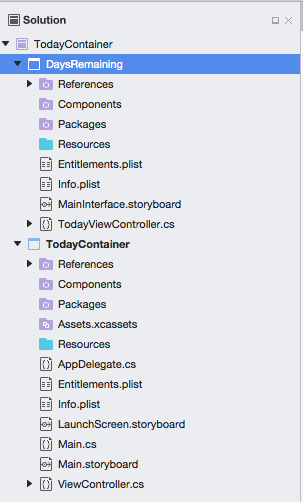

The resulting Solution should now have two projects, as shown here:

The resulting Solution should now have two projects, as shown here

Creating the extension user interface

Next, you will need to design the interface for your Today widget. This can either be done using a Storyboard or by creating the UI in code. Both methods will be covered below in detail.

Using storyboards

To build the UI with a Storyboard, do the following:

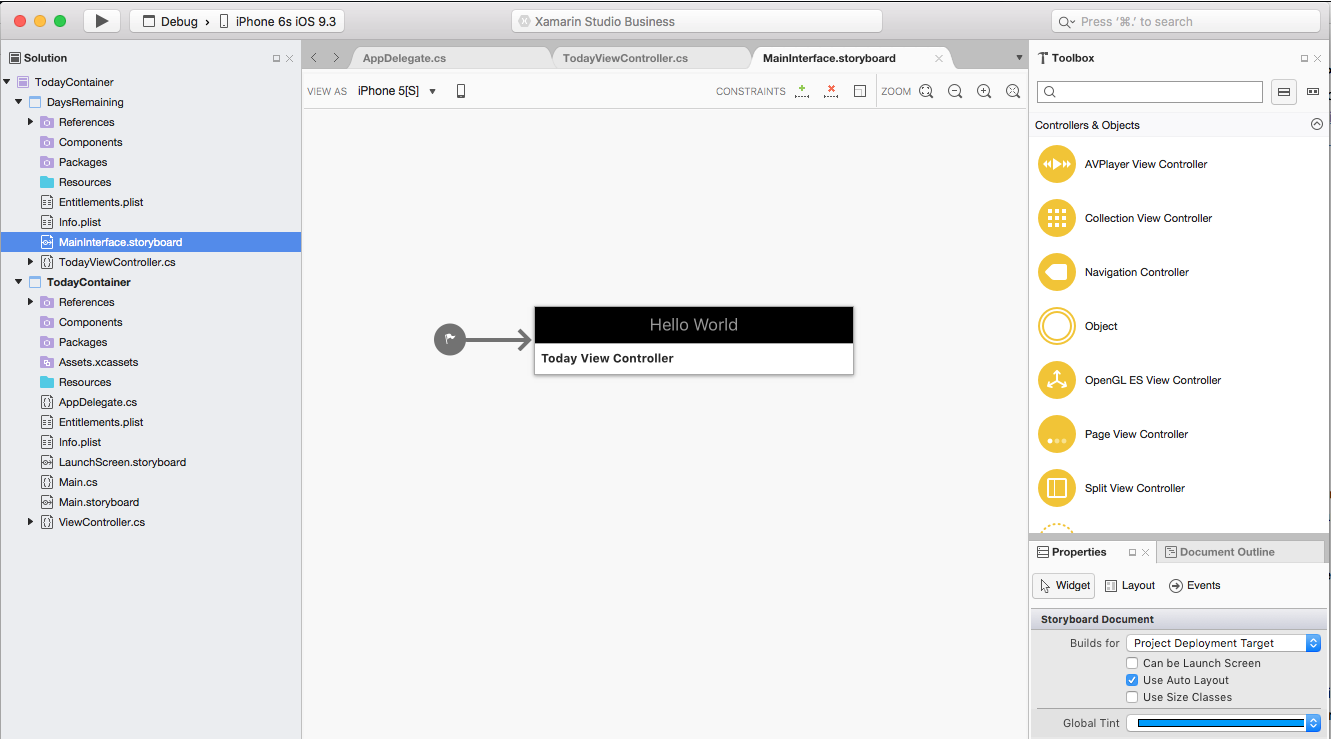

  1. In the Solution Explorer, double-click the Extension project's Main.storyboard file to open it for editing:

    Double-click the Extension projects Main.storyboard file to open it for editing

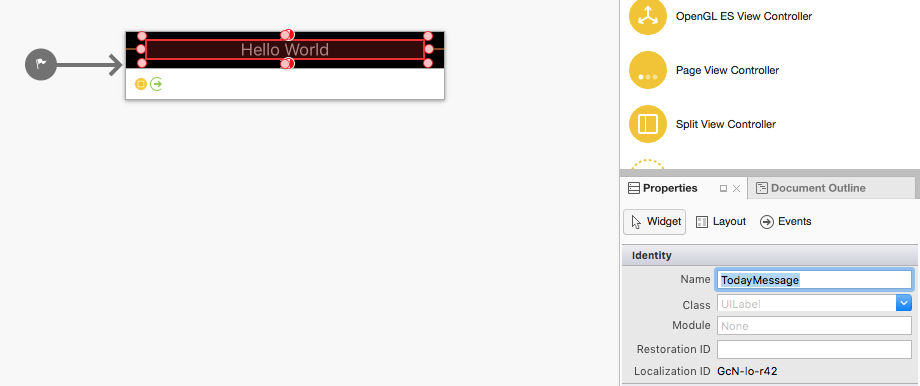

  2. Select the Label that was automatically added to the UI by template and give it the Name TodayMessage in the Widget tab of the Properties Explorer:

    Select the Label that was automatically added to the UI by template and give it the Name TodayMessage in the Widget tab of the Properties Explorer

  3. Save the changes to the Storyboard.

Using code

To build the UI in code, do the following:

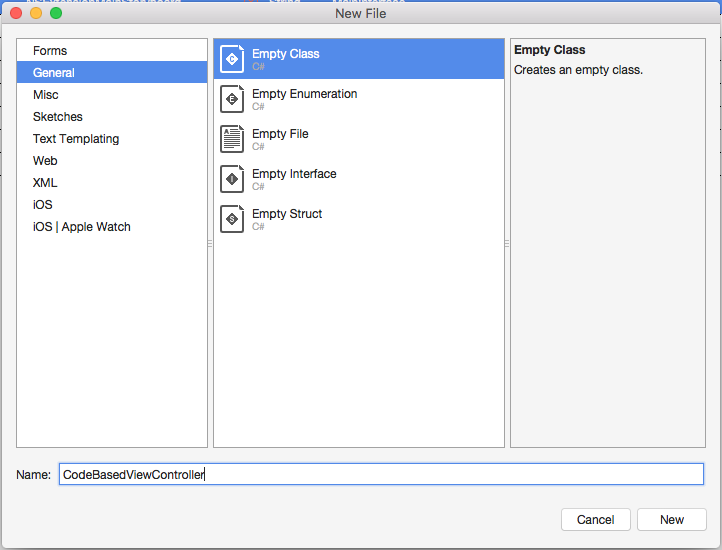

  1. In the Solution Explorer, select the DaysRemaining project, add a new class and call it CodeBasedViewController:

    Aelect the DaysRemaining project, add a new class and call it CodeBasedViewController

  2. Again, in the Solution Explorer, double-click Extension's Info.plist file to open it for editing:

    Double-click Extensions Info.plist file to open it for editing

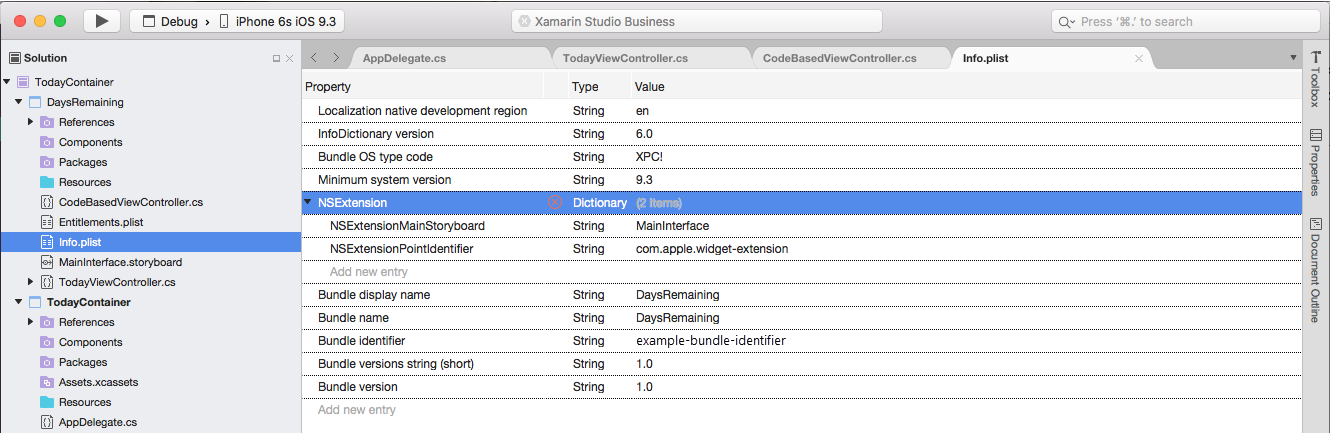

  3. Select the Source View (from the bottom of the screen) and open the NSExtension node:

    Select the Source View from the bottom of the screen and open the NSExtension node

  4. Remove the NSExtensionMainStoryboard key and add a NSExtensionPrincipalClass with the value CodeBasedViewController:

    Remove the NSExtensionMainStoryboard key and add a NSExtensionPrincipalClass with the value CodeBasedViewController

  5. Save your changes.

Next, edit the CodeBasedViewController.cs file and make it look like the following:

using System;
using Foundation;
using UIKit;
using NotificationCenter;
using CoreGraphics;

namespace DaysRemaining
{
  [Register("CodeBasedViewController")]
  public class CodeBasedViewController : UIViewController, INCWidgetProviding
  {
    public CodeBasedViewController ()
    {
    }

    public override void ViewDidLoad ()
    {
      base.ViewDidLoad ();

      // Add label to view
      var TodayMessage = new UILabel (new CGRect (0, 0, View.Frame.Width, View.Frame.Height)) {
        TextAlignment = UITextAlignment.Center
      };

      View.AddSubview (TodayMessage);

      // Insert code to power extension here...

    }
  }
}

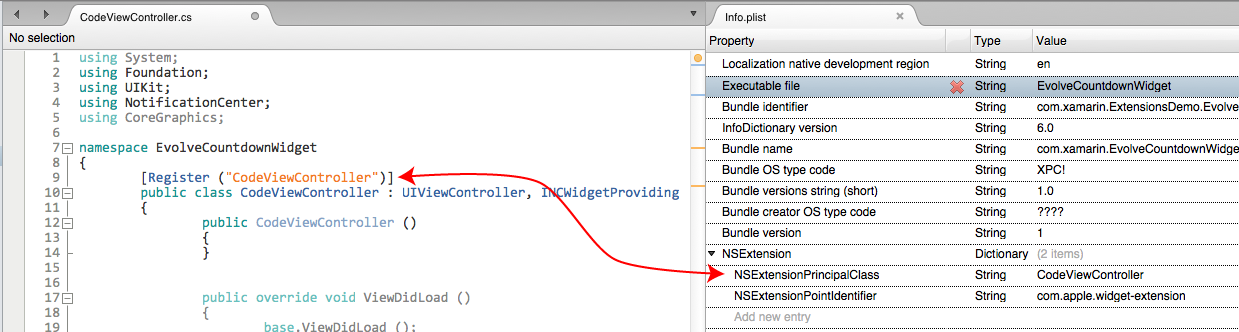

Note that the [Register("CodeBasedViewController")] matches the value that you specified for the NSExtensionPrincipalClass above.

Coding the extension

With the User Interface created, open either the TodayViewController.cs or the CodeBasedViewController.cs file (based of the method used to create the User Interface above), change the ViewDidLoad method and make it look like the following:

public override void ViewDidLoad ()
{
  base.ViewDidLoad ();

  // Calculate the values
  var dayOfYear = DateTime.Now.DayOfYear;
  var leapYearExtra = DateTime.IsLeapYear (DateTime.Now.Year) ? 1 : 0;
  var daysRemaining = 365 + leapYearExtra - dayOfYear;

  // Display the message
  if (daysRemaining == 1) {
    TodayMessage.Text = String.Format ("Today is day {0}. There is one day remaining in the year.", dayOfYear);
  } else {
    TodayMessage.Text = String.Format ("Today is day {0}. There are {1} days remaining in the year.", dayOfYear, daysRemaining);
  }
}

If using the code based User Interface method, replace the // Insert code to power extension here... comment with the new code from above. After calling the base implementation (and inserting a Label for the code based version), this code does a simple calculation to get the day of the year and how many days are remaining. Then it displays the message in the Label (TodayMessage) that you created in the UI design.

Note how similar this process is to the normal process of writing an app. An Extension's UIViewController has the same lifecycle as a View Controller in an app, except Extensions do not have background modes and are not suspended when the user is finished using them. Instead, Extensions are repeatedly initialized and de-allocated as required.

Creating the container app user interface

For this walkthrough, the container app is simply used as a method to ship and install the Extension and provides no functionality of its own. Edit the TodayContainer's Main.storyboard file and add some text defining the Extension's function and how to install it:

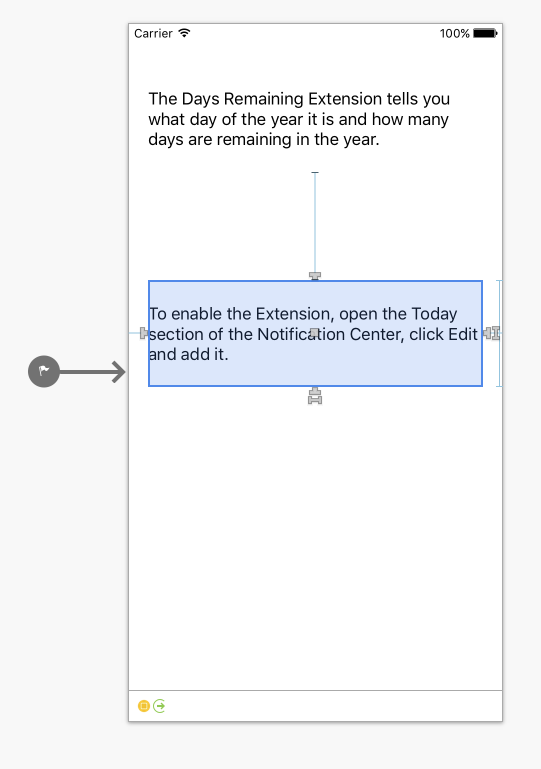

Edit the TodayContainers Main.storyboard file and add some text defining the Extensions function and how to install it

Save the changes to the Storyboard.

Testing the extension

To test your Extension in the iOS Simulator, run the TodayContainer app. The container's main view will be displayed:

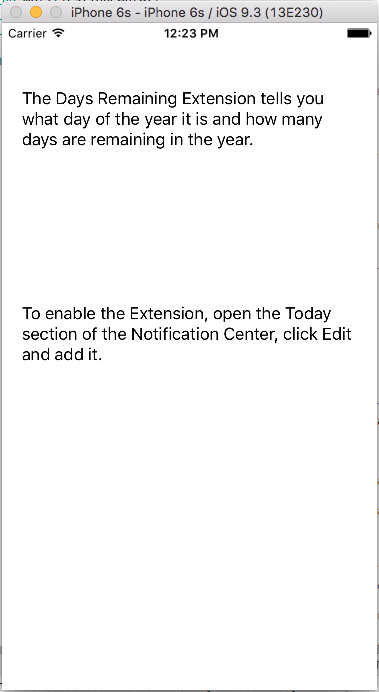

The containers main view will be displayed

Next, hit the Home button in the Simulator, swipe down from the top of the screen to open the Notification Center, select the Today tab and click the Edit button:

Hit the Home button in the Simulator, swipe down from the top of the screen to open the Notification Center, select the Today tab and click the Edit button

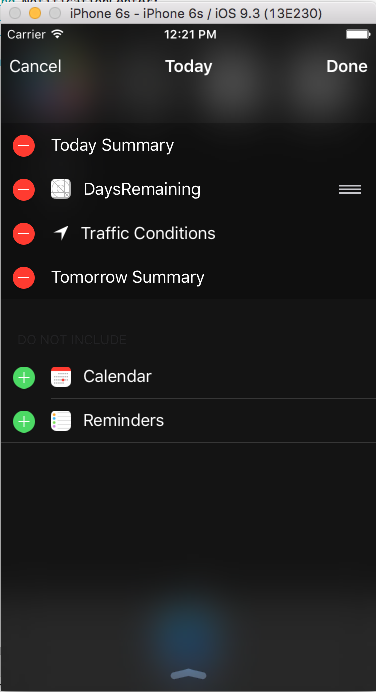

Add the DaysRemaining Extension to the Today view and click the Done button:

Add the DaysRemaining Extension to the Today view and click the Done button

The new widget will be added to the Today view and the results will be displayed:

The new widget will be added to the Today view and the results will be displayed

Communicating with the host app

The example Today Extension you created above does not communicate with its host app (the Today screen). If it did, it would use the ExtensionContext property of the TodayViewController or CodeBasedViewController classes.

For Extensions that will receive data from their host apps, the data is in the form of an array of NSExtensionItem objects stored in the InputItems property of the ExtensionContext of the Extension's UIViewController.

Other Extensions, such as Photo Editing extensions, may distinguish between the user completing or canceling usage. This will be signaled back to the host app via the CompleteRequest and CancelRequest methods of ExtensionContext property.

For more information, please see Apple's App Extension Programming Guide.

Communicating with the parent app

An App Group allows different applications (or an application and its extensions) to access a shared file storage location. App Groups can be used for data like:

For more information, please see the App Groups section of our Working with Capabilities documentation.
