OPENXML (SQL Server)

Applies to: SQL Server Azure SQL Database Azure SQL Managed Instance

OPENXML is a Transact-SQL keyword, which provides a rowset over in-memory XML documents that is similar to a table or a view. OPENXML allows access to XML data as though it's a relational rowset. It does this by providing a rowset view of the internal representation of an XML document. The records in the rowset can be stored in database tables.

OPENXML can be used in SELECT and SELECT INTO statements wherever rowset providers, a view, or OPENROWSET can appear as the source. For information about the syntax of OPENXML, see OPENXML (Transact-SQL).

To write queries against an XML document by using OPENXML, you must first call sp_xml_preparedocument. This parses the XML document and returns a handle to the parsed document that is ready for consumption. The parsed document is a document object model (DOM) tree representation of various nodes in the XML document. The document handle is passed to OPENXML. OPENXML then provides a rowset view of the document, based on the parameters passed to it.

Note

sp_xml_preparedocument uses a SQL-updated version of the MSXML parser, Msxmlsql.dll. This version of the MSXML parser was designed to support SQL Server and remain backward compatible with MSXML version 2.6.

The internal representation of an XML document must be removed from memory by calling the sp_xml_removedocument system stored procedure to free the memory.

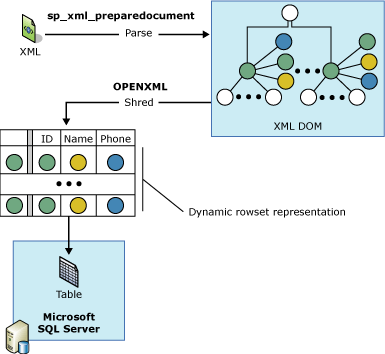

The following illustration shows the process.

Parsing XML with OPENXML.

Note that to understand OPENXML, familiarity with XPath queries and an understanding of XML is required. For more information about XPath support in SQL Server, see Using XPath Queries in SQLXML 4.0.

Note

OpenXML allows the row and column XPath patterns to be parameterized as variables. Such parameterization could lead to XPath expression injections, if the programmer exposes the parameterization to outside users (for example, if the parameters are provided via an externally called stored procedure). To avoid such potential security issues, it is recommended that XPath parameters should never be exposed to external callers.

Example

The following example shows the use of OPENXML in an INSERT statement and a SELECT statement. The sample XML document contains <Customers> and <Orders> elements.

First, the sp_xml_preparedocument stored procedure parses the XML document. The parsed document is a tree representation of the nodes (elements, attributes, text, and comments) in the XML document. OPENXML then refers to this parsed XML document and provides a rowset view of all or parts of this XML document. An INSERT statement using OPENXML can insert data from such a rowset into a database table. Several OPENXML calls can be used to provide a rowset view of various parts of the XML document and process them, for example, by inserting them into different tables. This process is also referred to as shredding XML into tables.

In the following example, an XML document is shredded in a way that <Customers> elements are stored in the Customers table and <Orders> elements are stored in the Orders table by using two INSERT statements. The example also shows a SELECT statement with OPENXML that retrieves CustomerID and OrderDate from the XML document. The last step in the process is to call sp_xml_removedocument. This is done in order to release the memory allocated to contain the internal XML tree representation that was created during the parse phase.

-- Create tables for later population using OPENXML.
CREATE TABLE Customers (CustomerID varchar(20) primary key,
                ContactName varchar(20),
                CompanyName varchar(20));
GO
CREATE TABLE Orders( CustomerID varchar(20), OrderDate datetime);
GO
DECLARE @docHandle int;
DECLARE @xmlDocument nvarchar(max); -- or xml type
SET @xmlDocument = N'<ROOT>
<Customers CustomerID="XYZAA" ContactName="Joe" CompanyName="Company1">
<Orders CustomerID="XYZAA" OrderDate="2000-08-25T00:00:00"/>
<Orders CustomerID="XYZAA" OrderDate="2000-10-03T00:00:00"/>
</Customers>
<Customers CustomerID="XYZBB" ContactName="Steve"
CompanyName="Company2">No Orders yet!
</Customers>
</ROOT>';
EXEC sp_xml_preparedocument @docHandle OUTPUT, @xmlDocument;
-- Use OPENXML to provide rowset consisting of customer data.
INSERT Customers
SELECT *
FROM OPENXML(@docHandle, N'/ROOT/Customers')
  WITH Customers;
-- Use OPENXML to provide rowset consisting of order data.
INSERT Orders
SELECT *
FROM OPENXML(@docHandle, N'//Orders')
  WITH Orders;
-- Using OPENXML in a SELECT statement.
SELECT * FROM OPENXML(@docHandle, N'/ROOT/Customers/Orders')
  WITH (CustomerID nchar(5) '../@CustomerID', OrderDate datetime);
-- Remove the internal representation of the XML document.
EXEC sp_xml_removedocument @docHandle;

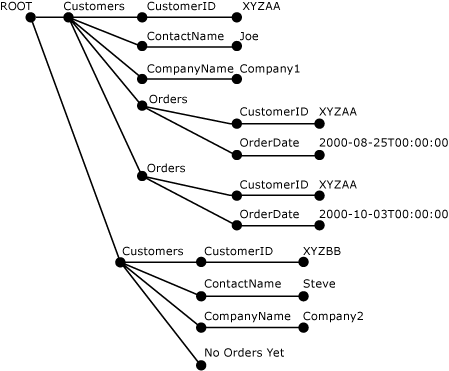

The following illustration shows the parsed XML tree of the previous XML document that was created by using sp_xml_preparedocument.

Parsed XML tree.

OPENXML parameters

The parameters to OPENXML include the following:

  • An XML document handle (idoc)

  • An XPath expression to identify the nodes to be mapped to rows (rowpattern)

  • A description of the rowset to be generated

  • Mapping between the rowset columns and the XML nodes

XML document handle (idoc)

The document handle is returned by the sp_xml_preparedocument stored procedure.

XPath expression to identify the nodes to be processed (rowpattern)

The XPath expression specified as rowpattern identifies a set of nodes in the XML document. Each node that is identified by rowpattern corresponds to a single row in the rowset that is generated by OPENXML.

The nodes identified by the XPath expression can be any XML node in the XML document. If rowpattern identifies a set of elements in the XML document, there's one row in the rowset for each element node identified. For example, if rowpattern ends in an attribute, a row is created for each attribute node selected by rowpattern.

Description of the rowset to be generated

A rowset schema is used by OPENXML to generate the resulting rowset. You can use the following options when specifying a rowset schema.

Use the edge table format

You should use the edge table format to specify a rowset schema. Don't use the WITH clause.

When you do this, OPENXML returns a rowset in the edge table format. This is referred to as an edge table, because every edge in the parsed XML document tree maps to a row in the rowset.

Edge tables represent within a single table the fine-grained XML document structure. This structure includes the element and attribute names, the document hierarchy, the namespaces, and the processing instructions. The edge table format allows you to obtain additional information that isn't exposed through the metaproperties. For more information about metaproperties, see Specify Metaproperties in OPENXML.

The additional information provided by an edge table allows you to store and query the data type of an element and attribute, and the node type, and also store and query information about the XML document structure. With this additional information, it may also be possible to build your own XML document management system.

By using an edge table, you can write stored procedures that take XML documents as binary large object (BLOB) input, produce the edge table, and then extract and analyze the document on a more detailed level. This detailed level could include finding the document hierarchy, the element and attribute names, the namespaces, and the processing instructions.

The edge table also can serve as a storage format for XML documents when mapping to other relational formats isn't logical and an ntext field isn't providing enough structural information.

In situations where you can use an XML parser to examine an XML document, you can use an edge table instead to obtain the same information.

The following table describes the structure of the edge table.

Column name Data type Description
id bigint Is the unique ID of the document node.

The root element has an ID value of 0. The negative ID values are reserved.
parentid bigint Identifies the parent of the node. The parent identified by this ID isn't necessarily the parent element. However, this depends on the NodeType of the node whose parent is identified by this ID. For example, if the node is a text node, its parent may be an attribute node.

If the node is at the top level in the XML document, its ParentID is NULL.
node type int Identifies the node type and is an integer that corresponds to the XML object model (DOM) node type numbering.

Following are the values that can appear in this column to indicate the node type:

1 = Element node

2 = Attribute node

3 = Text node

4 = CDATA section node

5 = Entity reference node

6 = Entity node

7 = Processing instruction node

8 = Comment node

9 = Document node

10 = Document Type node

11 = Document Fragment node

12 = Notation node

For more information, see the "nodeType Property" article in the Microsoft XML (MSXML) SDK.
localname nvarchar(max) Gives the local name of the element or attribute. Is NULL if the DOM object doesn't have a name.
prefix nvarchar(max) Is the namespace prefix of the node name.
namespaceuri nvarchar(max) Is the namespace URI of the node. If the value is NULL, no namespace is present.
datatype nvarchar(max) Is the actual data type of the element or attribute row and is otherwise NULL. The data type is inferred from the inline DTD or from the inline schema.
prev bigint Is the XML ID of the previous sibling element. Is NULL if there's no direct previous sibling.
text ntext Contains the attribute value or the element content in text form. Or is NULL, if the edge table entry doesn't need a value.

Use the WITH clause to specify an existing table

You can use the WITH clause to specify the name of an existing table. To do this, just specify an existing table name whose schema can be used by OPENXML to generate the rowset.

Use the WITH clause to specify a schema

You can use the WITH Clause to specify a complete schema. In specifying the rowset schema, you specify the column names, their data types, and their mapping to the XML document.

You can specify the column pattern by using the ColPattern parameter in the SchemaDeclaration. The specified column pattern is used to map a rowset column to the XML node that is identified by rowpattern and is also used to determine the type of mapping.

If ColPattern isn't specified for a column, the rowset column maps to the XML node with the same name, based on the mapping specified by the flags parameter. However, if ColPattern is specified as part of the schema specification in the WITH clause, it overwrites the mapping that is specified in the flags parameter.

Map between the rowset columns and the XML nodes

In the OPENXML statement, you can optionally specify the type of mapping, such as attribute-centric or element-centric, between the rowset columns and the XML nodes that are identified by the rowpattern. This information is used in the transformation between the XML nodes and the rowset columns.

You can specify the mapping in two ways, and you can also specify both:

  • By using the flags parameter

    The mapping that is specified by the flags parameter assumes name correspondence in which the XML nodes map to the corresponding rowset columns with same name.

  • By using the ColPattern parameter

    ColPattern, an XPath expression, is specified as part of SchemaDeclaration in the WITH clause. The mapping specified in ColPattern overwrites the mapping specified by the flags parameter.

    ColPattern can be used to specify the type of mapping, such as attribute-centric or element-centric, that overwrites or enhances the default mapping indicated by the flags.

    ColPattern is specified under the following circumstances:

    • The column name in the rowset is different from the element or attribute name to which it is mapped. In this case, ColPattern is used to identify the XML element and attribute name to which the rowset column maps.

    • You want to map a metaproperty attribute to the column. In this case, ColPattern is used to identify the metaproperty to which the rowset column maps. For more information about how to use metaproperties, see Specify Metaproperties in OPENXML.

Both the flags and ColPattern parameters are optional. If no mapping is specified, attribute-centric mapping is assumed. Attribute-centric mapping is the default value of the flags parameter.

Attribute-centric mapping

Setting the flags parameter in OPENXML to 1 (XML_ATTRIBUTES) specifies attribute-centric mapping. If flags contains XML_ ATTRIBUTES, the exposed rowset provides or consumes rows where each XML element is represented as a row. The XML attributes are mapped to the attributes that are defined in the SchemaDeclaration or that are provided by the TableName of the WITH clause, based on name correspondence. Name correspondence means that the XML attributes of a particular name are stored in a column in the rowset with the same name.

If the column name is different from the attribute name that it maps to, ColPattern must be specified.

If the XML attribute has a namespace qualifier, the column name in the rowset must also have the qualifier.

Element-centric mapping

Setting the flags parameter in OPENXML to 2 (XML_ELEMENTS) specifies element-centric mapping. It's similar to attribute-centric mapping, except for the following differences:

  • The name correspondence of the mapping example, a column mapping to an XML element with the same name chooses the noncomplex subelements, unless a column-level pattern is specified. In the retrieval process, if the subelement is complex because it contains additional subelements, the column is set to NULL. Attribute values of the subelements are then ignored.

  • For multiple subelements that have the same name, the first node is returned.
