MFC class hierarchy chart

Note

The Microsoft Foundation Classes (MFC) library continues to be supported. However, we're no longer adding features or updating the documentation.

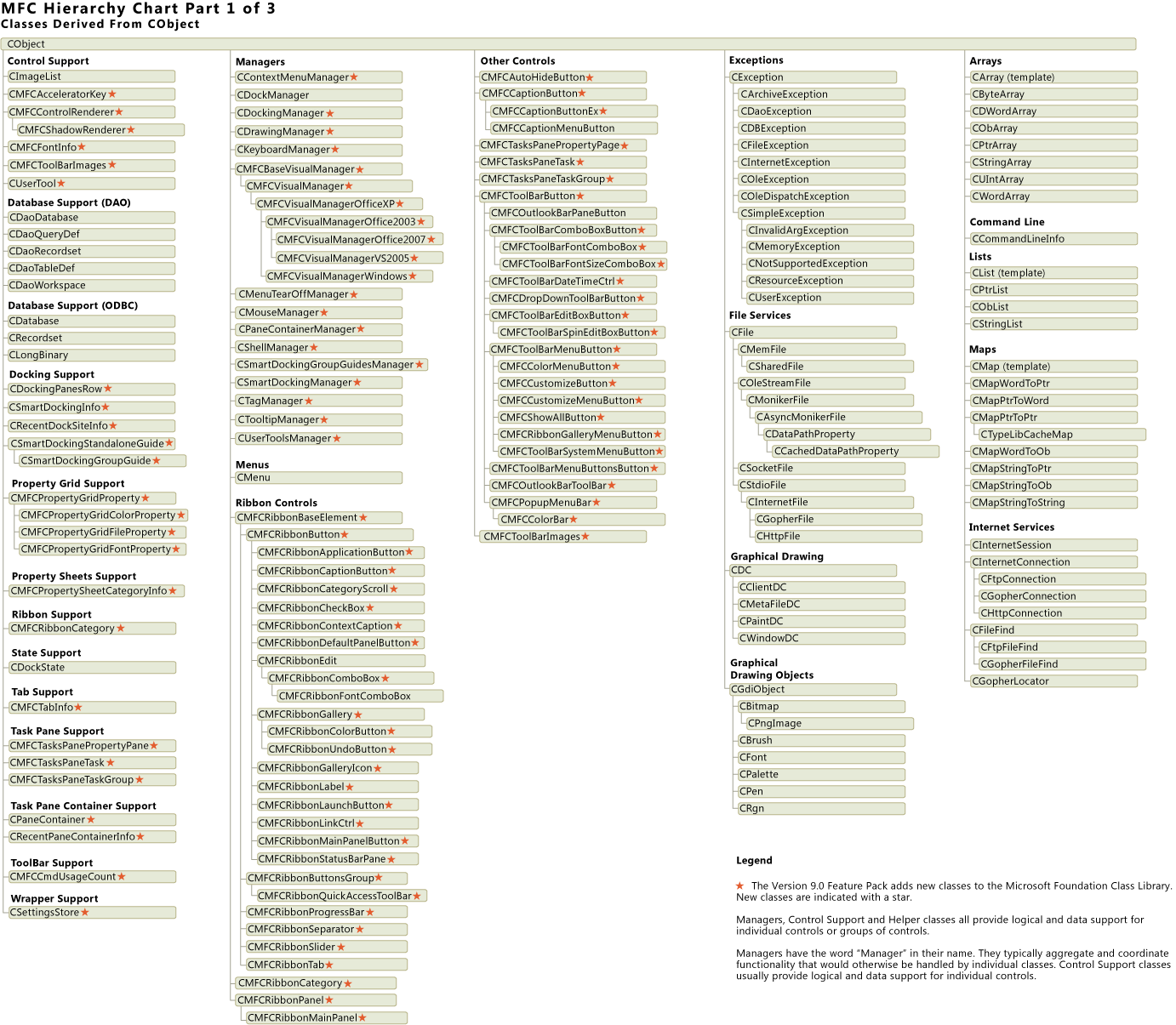

The following illustration represents the MFC classes derived from CObject:

Chart that lists the MFC classes derived from CObject.

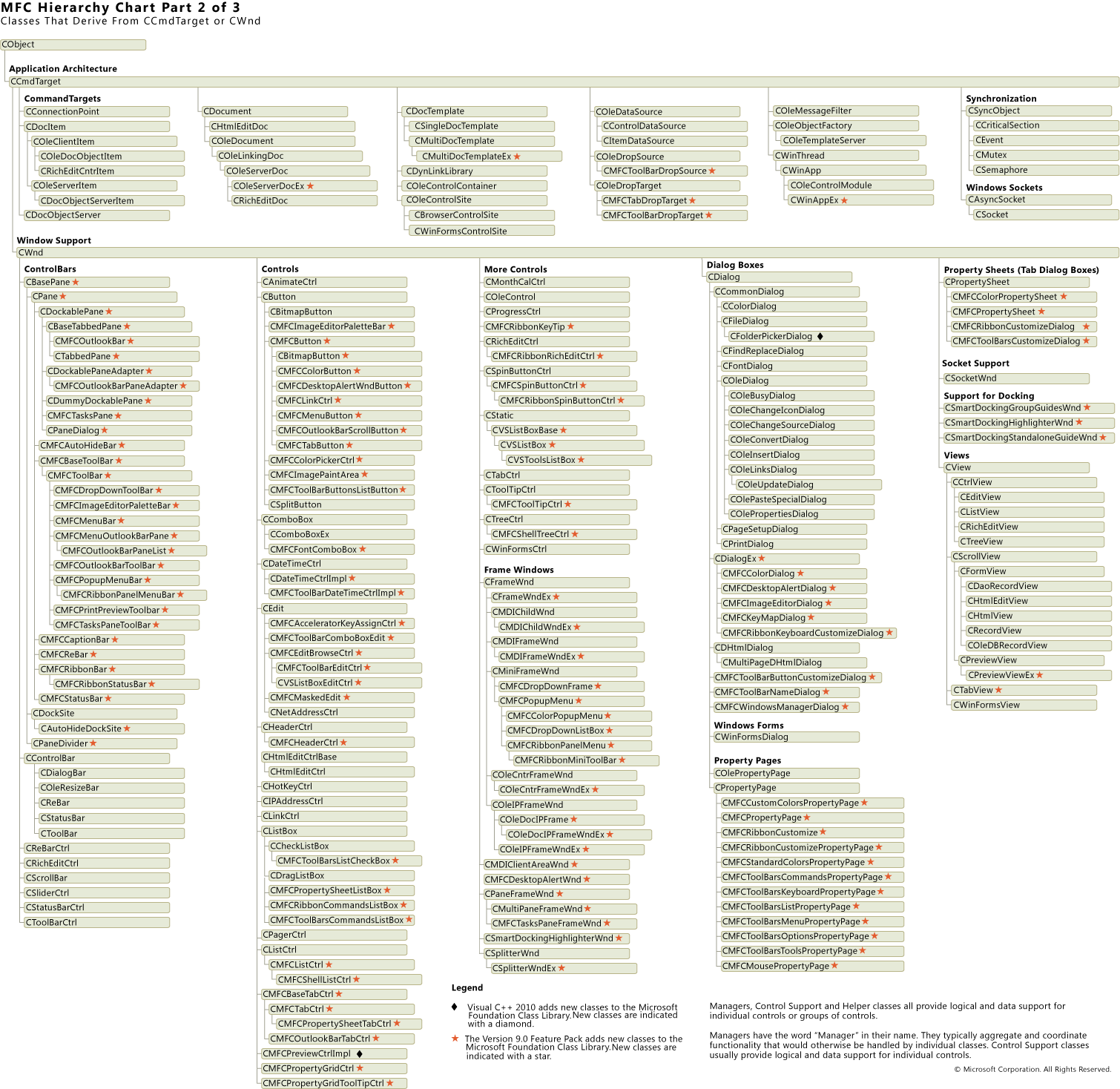

The following illustration represents the MFC classes derived from CWnd and CCmdTarget:

Chart that lists the MFC classes derived from CCmdTarget or CWnd.

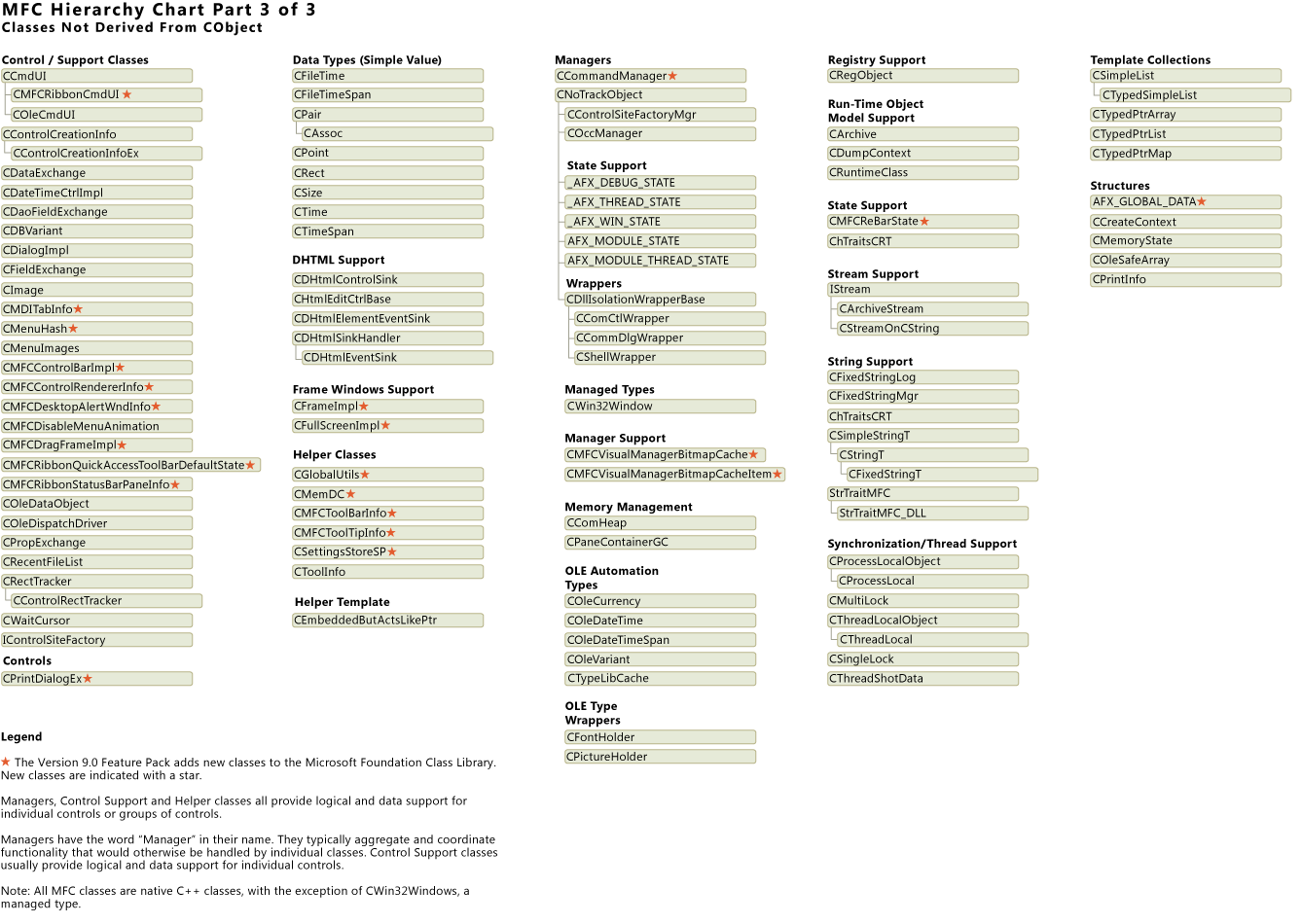

The following illustration represents the MFC classes not derived from CObject:

Chart that lists the MFC classes that aren't derived from CObject.

You can download the complete chart from this location: MFC Hierarchy Charts Download.

See also

Hierarchy Chart Categories
Class Overview
