Utiliser le contrôle WinForms ReportViewer

Pour afficher les rapports déployés sur un serveur de rapports ou des rapports qui existent sur le système de fichiers local, utilisez le contrôle WinForms ReportViewer pour les afficher dans une application Windows.

Ajouter le contrôle ReportViewer à une application Windows

  1. Créez une application Windows à l’aide de Microsoft C# ou de Microsoft Visual Basic.

    - Ou -

    Ouvrez un projet d'application Windows existant et ajoutez un nouveau formulaire.

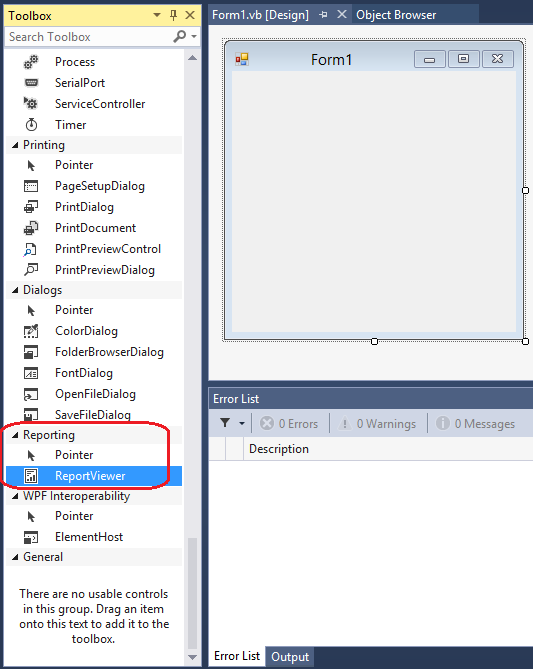

  2. Localisez le contrôle ReportViewer dans la Boîte à outils. Si la boîte à outils n’est pas visible, vous pouvez y accéder à partir du menu Affichage en sélectionnant Boîte à outils.

    Screenshot of the Toolbox, highlighting ReportViewer control.

  3. Faites glisser le contrôle ReportViewer vers l'aire de conception du Windows Form.

    Un contrôle ReportViewer nommé reportViewer1 est ajouté au formulaire.

Une fois le contrôle ajouté au formulaire, la balise active Tâches ReportViewer s’affiche et vous invite à sélectionner un rapport.

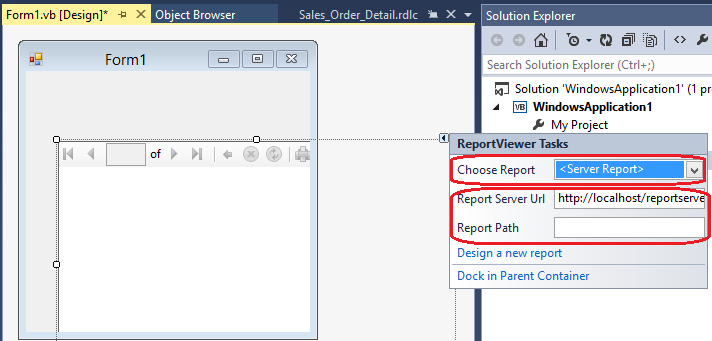

Si le rapport que vous souhaitez afficher est déployé sur un serveur de rapports, sélectionnez l’option <Rapport> serveur dans la liste déroulante Choisir un rapport . Une fois l’option <Rapport> serveur sélectionnée, deux autres propriétés s’affichent : URL du serveur de rapports et chemin d’accès au rapport. L’URL de Report Server correspond à l’adresse du serveur de rapports et le Chemin d’accès au rapport correspond au chemin complet au rapport à restituer.

Screenshot of the ReportViewer Tasks smart tag, highlighting the server report.

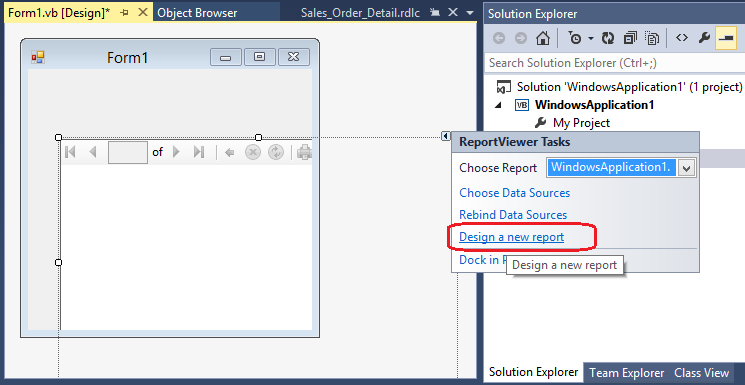

Si vous souhaitez afficher un rapport en mode local, sélectionnez l’option Concevoir un nouveau rapport afin de lancer le Concepteur de rapports, ou sélectionnez un rapport faisant déjà partie du projet existant.

Screenshot of the ReportViewer Tasks smart tag, highlighting the local report.

Affichage des rapports en mode de traitement à distance

L’exemple suivant montre comment afficher un rapport déployé sur un serveur de rapports à l’aide du contrôle WinForms ReportViewer. Cet exemple utilise le rapport Sales Order Detail inclus avec le projet d'exemples de rapports AdventureWorks2022.

C#

public partial class Form1 : Form
{
    private void Form1_Load(object sender, EventArgs e)
    {
        // Set the processing mode for the ReportViewer to Remote
        reportViewer1.ProcessingMode = ProcessingMode.Remote;

        ServerReport serverReport = reportViewer1.ServerReport;

        // Get a reference to the default credentials
        System.Net.ICredentials credentials =
            System.Net.CredentialCache.DefaultCredentials;

        // Get a reference to the report server credentials
        ReportServerCredentials rsCredentials =
            serverReport.ReportServerCredentials;

        // Set the credentials for the server report
        rsCredentials.NetworkCredentials = credentials;

        // Set the report server URL and report path
        serverReport.ReportServerUrl =
            new Uri("https:// <Server Name>/reportserver");
        serverReport.ReportPath =
            "/AdventureWorks Sample Reports/Sales Order Detail";

        // Create the sales order number report parameter
        ReportParameter salesOrderNumber = new ReportParameter();
        salesOrderNumber.Name = "SalesOrderNumber";
        salesOrderNumber.Values.Add("SO43661");

        // Set the report parameters for the report
        reportViewer1.ServerReport.SetParameters(
            new ReportParameter[] { salesOrderNumber });

        // Refresh the report
        reportViewer1.RefreshReport();
    }
}

VB.NET

Imports Microsoft.Reporting.WinForms

Public Class Form1

    Private Sub Form1_Load(ByVal sender As System.Object, _
                           ByVal e As System.EventArgs) _
                           Handles MyBase.Load

        'Set the processing mode for the ReportViewer to Remote
        reportViewer1.ProcessingMode = ProcessingMode.Remote

        Dim serverReport As ServerReport
        serverReport = reportViewer1.ServerReport

        'Get a reference to the default credentials
        Dim credentials As System.Net.ICredentials
        credentials = System.Net.CredentialCache.DefaultCredentials

        'Get a reference to the report server credentials
        Dim rsCredentials As ReportServerCredentials
        rsCredentials = serverReport.ReportServerCredentials

        'Set the credentials for the server report
        rsCredentials.NetworkCredentials = credentials

        'Set the report server URL and report path
        serverReport.ReportServerUrl = _
           New Uri("https://<Server Name>/reportserver")
        serverReport.ReportPath = _
           "/AdventureWorks Sample Reports/Sales Order Detail"

        'Create the sales order number report parameter
        Dim salesOrderNumber As New ReportParameter()
        salesOrderNumber.Name = "SalesOrderNumber"
        salesOrderNumber.Values.Add("SO43661")

        'Set the report parameters for the report
        Dim parameters() As ReportParameter = {salesOrderNumber}
        serverReport.SetParameters(parameters)

        'Refresh the report
        reportViewer1.RefreshReport()
    End Sub

End Class

Afficher les rapports en mode de traitement local

L’exemple suivant montre comment afficher un rapport qui fait partie de l’application Windows et n’est pas déployé sur un serveur de rapports.

Pour ajouter le rapport Sales Order Detail dans une application Windows

  1. Ouvrez le projet Windows auquel le rapport doit être ajouté.

  2. Dans le menu Projet, sélectionnez Ajouter un élément existant.

  3. Accédez à l'emplacement où vous avez installé le projet d'exemples de rapports AdventureWorks2022.

    Pour télécharger les exemples de rapports, accédez à Exemples de rapports AdventureWorks.

  4. Sélectionnez le fichier Détail de la commande client.rdl, puis sélectionnez le bouton Ajouter .

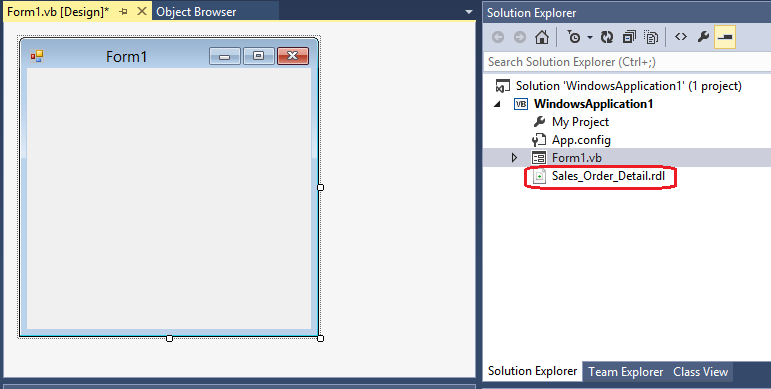

    Le fichier Sales Order Detail.rdl doit maintenant faire partie du projet.

    Screenshot of the Solution Explorer, highlighting the Sales Order Detail Report.

  5. Cliquez avec le bouton droit sur le fichier Sales Order Detail.rdl dans l’Explorateur de solutions et sélectionnez Renommer. Renommez le rapport en Sales Order Detail.rdlc et appuyez sur Entrée.

    Si Explorateur de solutions n’est pas visible, vous pouvez l’ouvrir dans le menu Affichage en sélectionnant Explorateur de solutions.

    Remarque

    Le renommage de l’extension de fichier rdl en rdlc vous permet de modifier le rapport à l’aide du Concepteur de rapports pour Microsoft Visual Studio 2005.

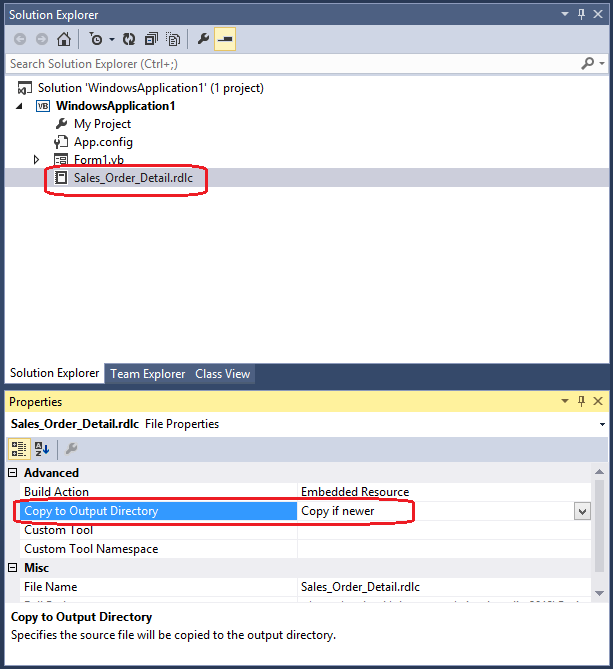

  6. Une fois le rapport renommé, sélectionnez le fichier et recherchez le Fenêtre Propriétés. Affectez à la propriété Copier dans le répertoire de sortie la valeur Copier si plus récent.

    Screenshot of the Properties window, highlighting the Copy To Output setting.

    Si la fenêtre Propriétés n’est pas visible, vous pouvez l’ouvrir dans le menu Affichage en sélectionnant Fenêtre Propriétés.

L’exemple de code suivant crée un jeu de données pour les données de commande client, puis affiche le rapport Détails de la commande client en mode local.

C#

public partial class Form1 : Form
{
    private void Form1_Load(object sender, EventArgs e)
    {
        // Set the processing mode for the ReportViewer to Local
        reportViewer1.ProcessingMode = ProcessingMode.Local;

        LocalReport localReport = reportViewer1.LocalReport;

        localReport.ReportPath = "Sales Order Detail.rdlc";

        DataSet dataset = new DataSet("Sales Order Detail");

        string salesOrderNumber = "SO43661";

        // Get the sales order data
        GetSalesOrderData(salesOrderNumber, ref dataset);

        // Create a report data source for the sales order data
        ReportDataSource dsSalesOrder = new ReportDataSource();
        dsSalesOrder.Name = "SalesOrder";
        dsSalesOrder.Value = dataset.Tables["SalesOrder"];

        localReport.DataSources.Add(dsSalesOrder);

        // Get the sales order detail data
        GetSalesOrderDetailData(salesOrderNumber, ref dataset);

        // Create a report data source for the sales order detail
        // data
        ReportDataSource dsSalesOrderDetail =
            new ReportDataSource();
        dsSalesOrderDetail.Name = "SalesOrderDetail";
        dsSalesOrderDetail.Value =
            dataset.Tables["SalesOrderDetail"];

        localReport.DataSources.Add(dsSalesOrderDetail);

        // Create a report parameter for the sales order number
        ReportParameter rpSalesOrderNumber = new ReportParameter();
        rpSalesOrderNumber.Name = "SalesOrderNumber";
        rpSalesOrderNumber.Values.Add("SO43661");

        // Set the report parameters for the report
        localReport.SetParameters(
            new ReportParameter[] { rpSalesOrderNumber });

        // Refresh the report
        reportViewer1.RefreshReport();
    }

    private void GetSalesOrderData(string salesOrderNumber,
                                   ref DataSet dsSalesOrder)
    {
        string sqlSalesOrder =
            "SELECT SOH.SalesOrderNumber, S.Name AS Store, " +
            "       SOH.OrderDate, C.FirstName AS SalesFirstName, " +
            "       C.LastName AS SalesLastName, E.Title AS " +
            "       SalesTitle, SOH.PurchaseOrderNumber, " +
            "       SM.Name AS ShipMethod, BA.AddressLine1 " +
            "       AS BillAddress1, BA.AddressLine2 AS " +
            "       BillAddress2, BA.City AS BillCity, " +
            "       BA.PostalCode AS BillPostalCode, BSP.Name " +
            "       AS BillStateProvince, BCR.Name AS " +
            "       BillCountryRegion, SA.AddressLine1 AS " +
            "       ShipAddress1, SA.AddressLine2 AS " +
            "       ShipAddress2, SA.City AS ShipCity, " +
            "       SA.PostalCode AS ShipPostalCode, SSP.Name " +
            "       AS ShipStateProvince, SCR.Name AS " +
            "       ShipCountryRegion, CC.Phone AS CustPhone, " +
            "       CC.FirstName AS CustFirstName, CC.LastName " +
            "       AS CustLastName " +
            "FROM   Person.Address SA INNER JOIN " +
            "       Person.StateProvince SSP ON " +
            "       SA.StateProvinceID = SSP.StateProvinceID " +
            "       INNER JOIN Person.CountryRegion SCR ON " +
            "       SSP.CountryRegionCode = SCR.CountryRegionCode " +
            "       RIGHT OUTER JOIN Sales.SalesOrderHeader SOH " +
            "       LEFT OUTER JOIN  Person.Contact CC ON " +
            "       SOH.ContactID = CC.ContactID LEFT OUTER JOIN" +
            "       Person.Address BA INNER JOIN " +
            "       Person.StateProvince BSP ON " +
            "       BA.StateProvinceID = BSP.StateProvinceID " +
            "       INNER JOIN Person.CountryRegion BCR ON " +
            "       BSP.CountryRegionCode = " +
            "       BCR.CountryRegionCode ON SOH.BillToAddressID " +
            "       = BA.AddressID ON  SA.AddressID = " +
            "       SOH.ShipToAddressID LEFT OUTER JOIN " +
            "       Person.Contact C RIGHT OUTER JOIN " +
            "       HumanResources.Employee E ON C.ContactID = " +
            "       E.ContactID ON SOH.SalesPersonID = " +
            "       E.EmployeeID LEFT OUTER JOIN " +
            "       Purchasing.ShipMethod SM ON SOH.ShipMethodID " +
            "       = SM.ShipMethodID LEFT OUTER JOIN Sales.Store" +
            "        S ON SOH.CustomerID = S.CustomerID " +
            "WHERE  (SOH.SalesOrderNumber = @SalesOrderNumber)";

        SqlConnection connection = new
            SqlConnection("Data Source=(local); " +
                          "Initial Catalog=AdventureWorks; " +
                          "Integrated Security=SSPI");

        SqlCommand command =
            new SqlCommand(sqlSalesOrder, connection);

        command.Parameters.Add(
            new SqlParameter("SalesOrderNumber",
            salesOrderNumber));

        SqlDataAdapter salesOrderAdapter = new
            SqlDataAdapter(command);

        salesOrderAdapter.Fill(dsSalesOrder, "SalesOrder");
    }

    private void GetSalesOrderDetailData(string salesOrderNumber,
                           ref DataSet dsSalesOrder)
    {
        string sqlSalesOrderDetail =
            "SELECT  SOD.SalesOrderDetailID, SOD.OrderQty, " +
            "        SOD.UnitPrice, CASE WHEN " +
            "        SOD.UnitPriceDiscount IS NULL THEN 0 " +
            "        ELSE SOD.UnitPriceDiscount END AS " +
            "        UnitPriceDiscount, SOD.LineTotal, " +
            "        SOD.CarrierTrackingNumber, " +
            "        SOD.SalesOrderID, P.Name, P.ProductNumber " +
            "FROM    Sales.SalesOrderDetail SOD INNER JOIN " +
            "        Production.Product P ON SOD.ProductID = " +
            "        P.ProductID INNER JOIN " +
            "        Sales.SalesOrderHeader SOH ON " +
            "        SOD.SalesOrderID = SOH.SalesOrderID " +
            "WHERE   (SOH.SalesOrderNumber = @SalesOrderNumber) " +
            "ORDER BY SOD.SalesOrderDetailID";

        using (SqlConnection connection = new
            SqlConnection("Data Source=(local); " +
                          "Initial Catalog=AdventureWorks; " +
                          "Integrated Security=SSPI"))
        {

            SqlCommand command =
                new SqlCommand(sqlSalesOrderDetail, connection);

            command.Parameters.Add(
                new SqlParameter("SalesOrderNumber",
                salesOrderNumber));

            SqlDataAdapter salesOrderDetailAdapter = new
                SqlDataAdapter(command);

            salesOrderDetailAdapter.Fill(dsSalesOrder,
                "SalesOrderDetail");
        }
    }
}

VB.NET

Imports System.Data.SqlClient
Imports Microsoft.Reporting.WinForms

Public Class Form1

    Private Sub Form1_Load(ByVal sender As System.Object, _
                        ByVal e As System.EventArgs) _
                        Handles MyBase.Load

        'Set the processing mode for the ReportViewer to Local
        reportViewer1.ProcessingMode = ProcessingMode.Local

        Dim localReport As LocalReport
        localReport = reportViewer1.LocalReport

        localReport.ReportEmbeddedResource = _
            "ReportViewerIntro.Sales Order Detail.rdlc"

        Dim dataset As New DataSet("Sales Order Detail")

        Dim salesOrderNumber As String = "SO43661"

        'Get the sales order data
        GetSalesOrderData(salesOrderNumber, dataset)

        'Create a report data source for the sales order data
        Dim dsSalesOrder As New ReportDataSource()
        dsSalesOrder.Name = "SalesOrder"
        dsSalesOrder.Value = dataset.Tables("SalesOrder")

        localReport.DataSources.Add(dsSalesOrder)

        'Get the sales order detail data
        GetSalesOrderDetailData(salesOrderNumber, dataset)

        'Create a report data source for the sales
        'order detail data
        Dim dsSalesOrderDetail As New ReportDataSource()
        dsSalesOrderDetail.Name = "SalesOrderDetail"
        dsSalesOrderDetail.Value = _
            dataset.Tables("SalesOrderDetail")

        localReport.DataSources.Add(dsSalesOrderDetail)

        'Create a report parameter for the sales order number
        Dim rpSalesOrderNumber As New ReportParameter()
        rpSalesOrderNumber.Name = "SalesOrderNumber"
        rpSalesOrderNumber.Values.Add("SO43661")

        'Set the report parameters for the report
        Dim parameters() As ReportParameter = {rpSalesOrderNumber}
        localReport.SetParameters(parameters)

        'Refresh the report
        reportViewer1.RefreshReport()

    End Sub

    Private Sub GetSalesOrderData(ByVal salesOrderNumber As String, _
                               ByRef dsSalesOrder As DataSet)

        Dim sqlSalesOrder As String = _
            "SELECT SOH.SalesOrderNumber, S.Name AS Store, " & _
            "       SOH.OrderDate, C.FirstName AS SalesFirstName, " & _
            "       C.LastName AS SalesLastName, E.Title AS " & _
            "       SalesTitle, SOH.PurchaseOrderNumber, " & _
            "       SM.Name AS ShipMethod, BA.AddressLine1 " & _
            "       AS BillAddress1, BA.AddressLine2 AS " & _
            "       BillAddress2, BA.City AS BillCity, " & _
            "       BA.PostalCode AS BillPostalCode, BSP.Name " & _
            "       AS BillStateProvince, BCR.Name AS " & _
            "       BillCountryRegion, SA.AddressLine1 AS " & _
            "       ShipAddress1, SA.AddressLine2 AS " & _
            "       ShipAddress2, SA.City AS ShipCity, " & _
            "       SA.PostalCode AS ShipPostalCode, SSP.Name " & _
            "       AS ShipStateProvince, SCR.Name AS " & _
            "       ShipCountryRegion, CC.Phone AS CustPhone, " & _
            "       CC.FirstName AS CustFirstName, CC.LastName " & _
            "       AS CustLastName " & _
            "FROM   Person.Address SA INNER JOIN " & _
            "       Person.StateProvince SSP ON " & _
            "       SA.StateProvinceID = SSP.StateProvinceID " & _
            "       INNER JOIN Person.CountryRegion SCR ON " & _
            "       SSP.CountryRegionCode = SCR.CountryRegionCode " & _
            "       RIGHT OUTER JOIN Sales.SalesOrderHeader SOH " & _
            "       LEFT OUTER JOIN  Person.Contact CC ON " & _
            "       SOH.ContactID = CC.ContactID LEFT OUTER JOIN" & _
            "       Person.Address BA INNER JOIN " & _
            "       Person.StateProvince BSP ON " & _
            "       BA.StateProvinceID = BSP.StateProvinceID " & _
            "       INNER JOIN Person.CountryRegion BCR ON " & _
            "       BSP.CountryRegionCode = " & _
            "       BCR.CountryRegionCode ON SOH.BillToAddressID " & _
            "       = BA.AddressID ON  SA.AddressID = " & _
            "       SOH.ShipToAddressID LEFT OUTER JOIN " & _
            "       Person.Contact C RIGHT OUTER JOIN " & _
            "       HumanResources.Employee E ON C.ContactID = " & _
            "       E.ContactID ON SOH.SalesPersonID = " & _
            "       E.EmployeeID LEFT OUTER JOIN " & _
            "       Purchasing.ShipMethod SM ON SOH.ShipMethodID " & _
            "       = SM.ShipMethodID LEFT OUTER JOIN Sales.Store" & _
            "        S ON SOH.CustomerID = S.CustomerID " & _
            "WHERE  (SOH.SalesOrderNumber = @SalesOrderNumber)"

        Using connection As New SqlConnection( _
                      "Data Source=(local); " & _
                      "Initial Catalog=AdventureWorks; " & _
                      "Integrated Security=SSPI")

            Dim command As New SqlCommand(sqlSalesOrder, connection)

            Dim parameter As New SqlParameter("SalesOrderNumber", _
                salesOrderNumber)
            command.Parameters.Add(parameter)

            Dim salesOrderAdapter As New SqlDataAdapter(command)

            salesOrderAdapter.Fill(dsSalesOrder, "SalesOrder")

        End Using

    End Sub

    Private Sub GetSalesOrderDetailData( _
                           ByVal salesOrderNumber As String, _
                           ByRef dsSalesOrder As DataSet)

        Dim sqlSalesOrderDetail As String = _
            "SELECT  SOD.SalesOrderDetailID, SOD.OrderQty, " & _
            "        SOD.UnitPrice, CASE WHEN " & _
            "        SOD.UnitPriceDiscount IS NULL THEN 0 " & _
            "        ELSE SOD.UnitPriceDiscount END AS " & _
            "        UnitPriceDiscount, SOD.LineTotal, " & _
            "        SOD.CarrierTrackingNumber, " & _
            "        SOD.SalesOrderID, P.Name, P.ProductNumber " & _
            "FROM    Sales.SalesOrderDetail SOD INNER JOIN " & _
            "        Production.Product P ON SOD.ProductID = " & _
            "        P.ProductID INNER JOIN " & _
            "        Sales.SalesOrderHeader SOH ON " & _
            "        SOD.SalesOrderID = SOH.SalesOrderID " & _
            "WHERE   (SOH.SalesOrderNumber = @SalesOrderNumber) " & _
            "ORDER BY SOD.SalesOrderDetailID"

        Using connection As New SqlConnection( _
                      "Data Source=(local); " & _
                      "Initial Catalog=AdventureWorks; " & _
                      "Integrated Security=SSPI")

            Dim command As New SqlCommand(sqlSalesOrderDetail, _
                                          connection)

            Dim parameter As New SqlParameter("SalesOrderNumber", _
                salesOrderNumber)
            command.Parameters.Add(parameter)

            Dim salesOrderDetailAdapter As New SqlDataAdapter(command)

            salesOrderDetailAdapter.Fill(dsSalesOrder, _
                "SalesOrderDetail")

        End Using

    End Sub

End Class
